Split Bedroom Mediterranean

Plan 64303BT

  • 2,651

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • Exterior columns flank the window of bedroom two, giving this Mediterranean house plan a substantial look.
  • Attractive tray ceilings can be found throughout the home giving it a custom feel.
  • Double doors in the huge family room lead out to a shaded lanai where you can sit and put your feet up.
  • The master suite also has double doors to the lanai plus an optional attached den that connects with a pocket door.
  • The split bedroom layout affords privacy for homeowners.
  • In the kitchen, the sink faces the family room and lanai so you can keep tabs on family activities.
  • There are two other bathrooms to serve the other two bedrooms.

What is Included in Our Plans?

We work with hundreds of designers and architects who work in a variety of styles.  It is important to note. Their plan packages may contain different details.

We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below are examples of sheets that may be included in plan sets - please be aware that not every plan includes every one of these pages:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

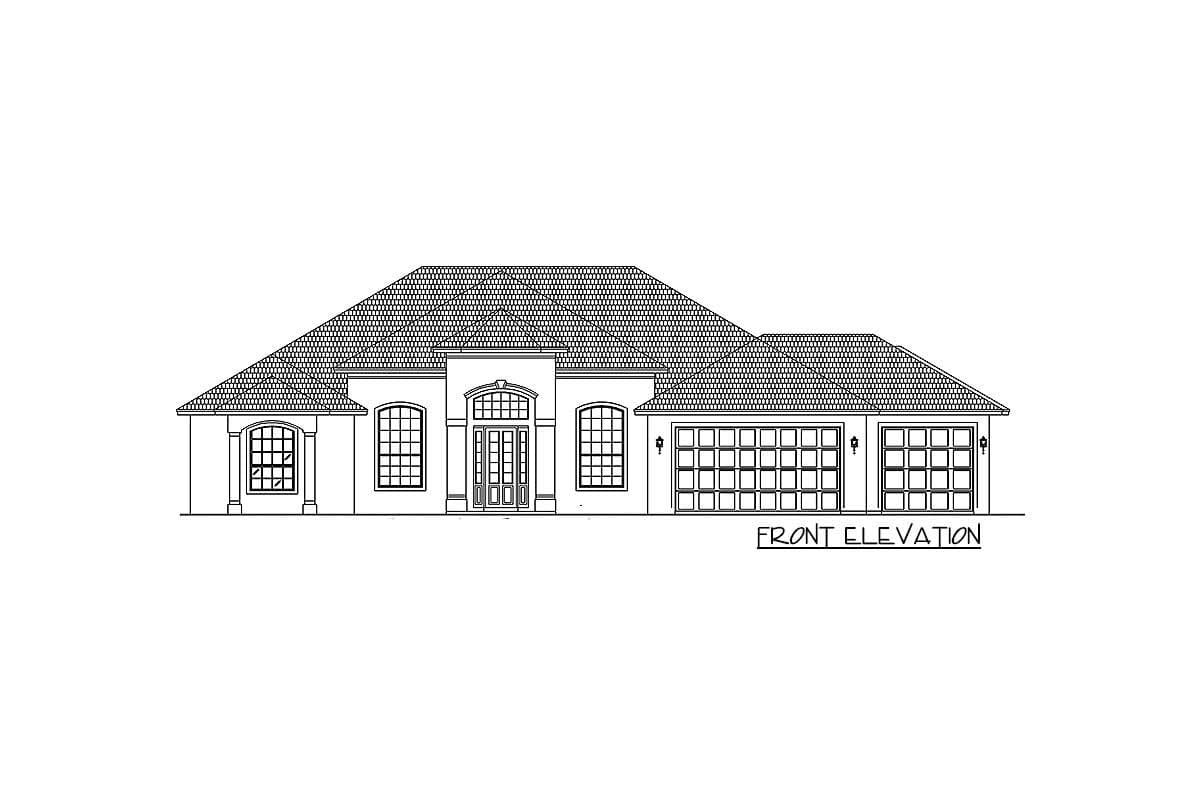

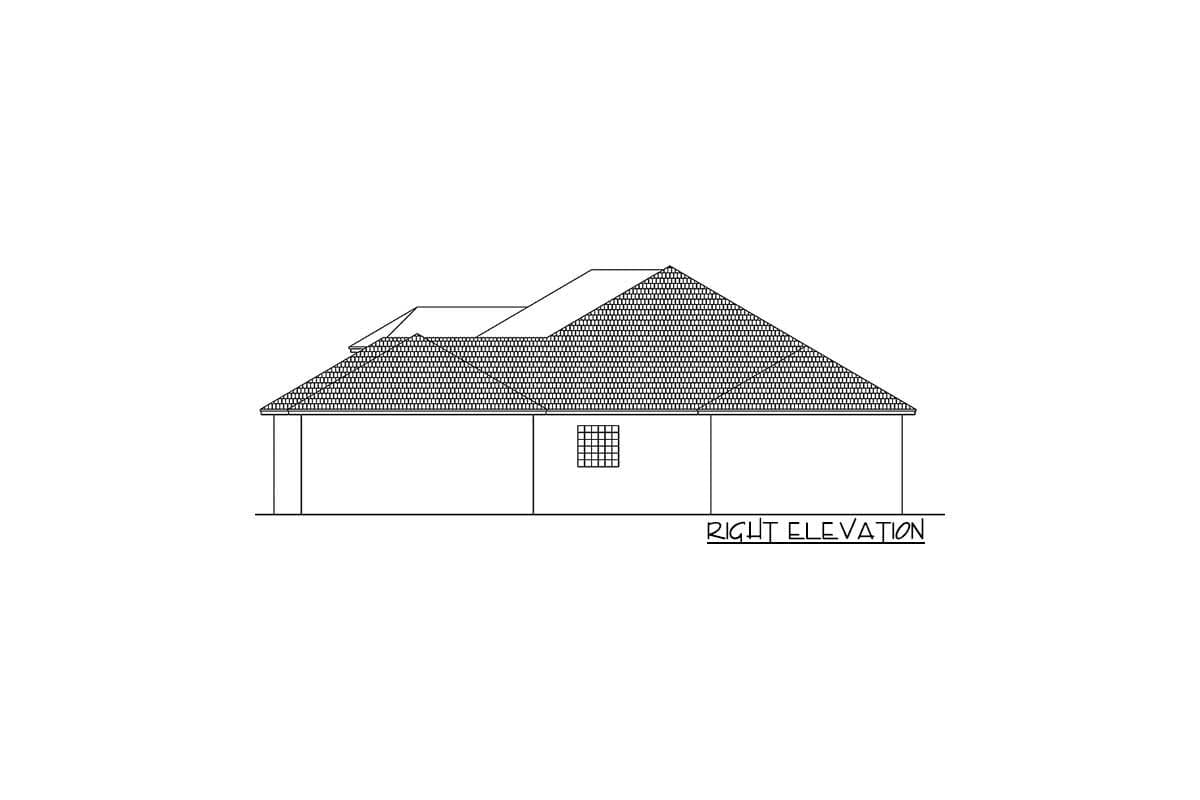

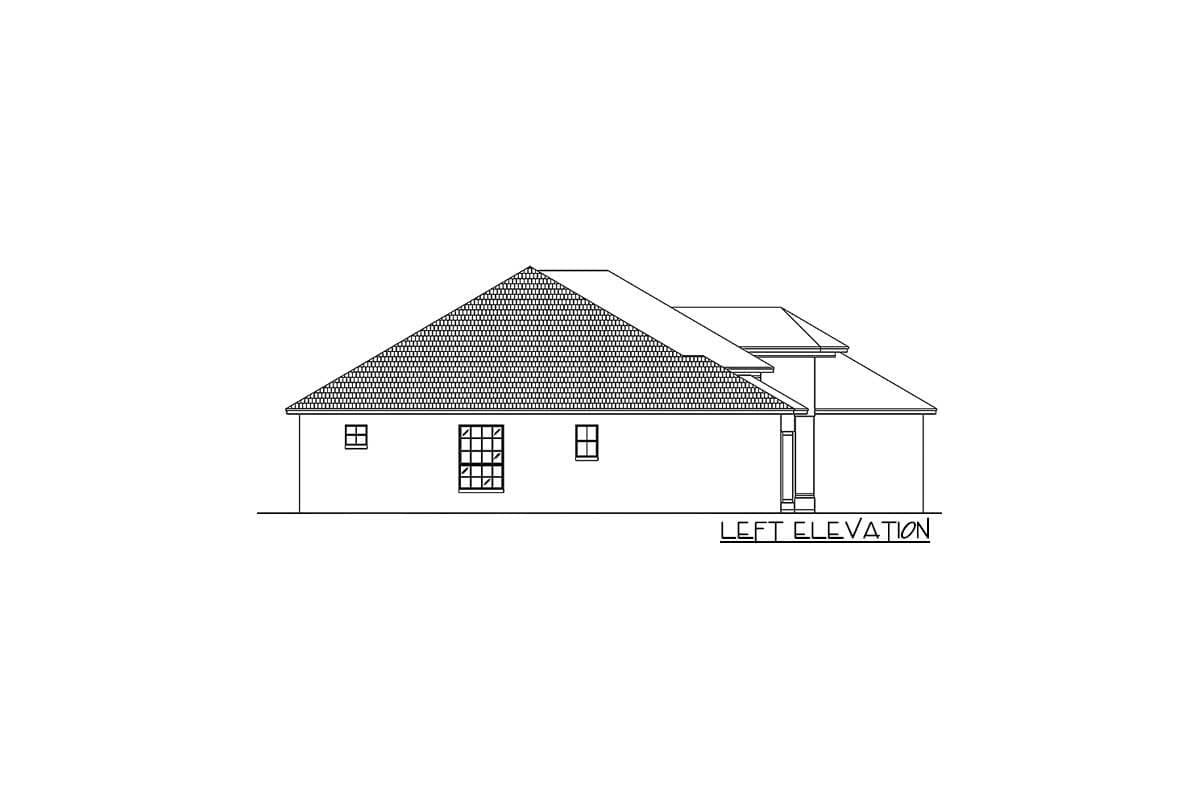

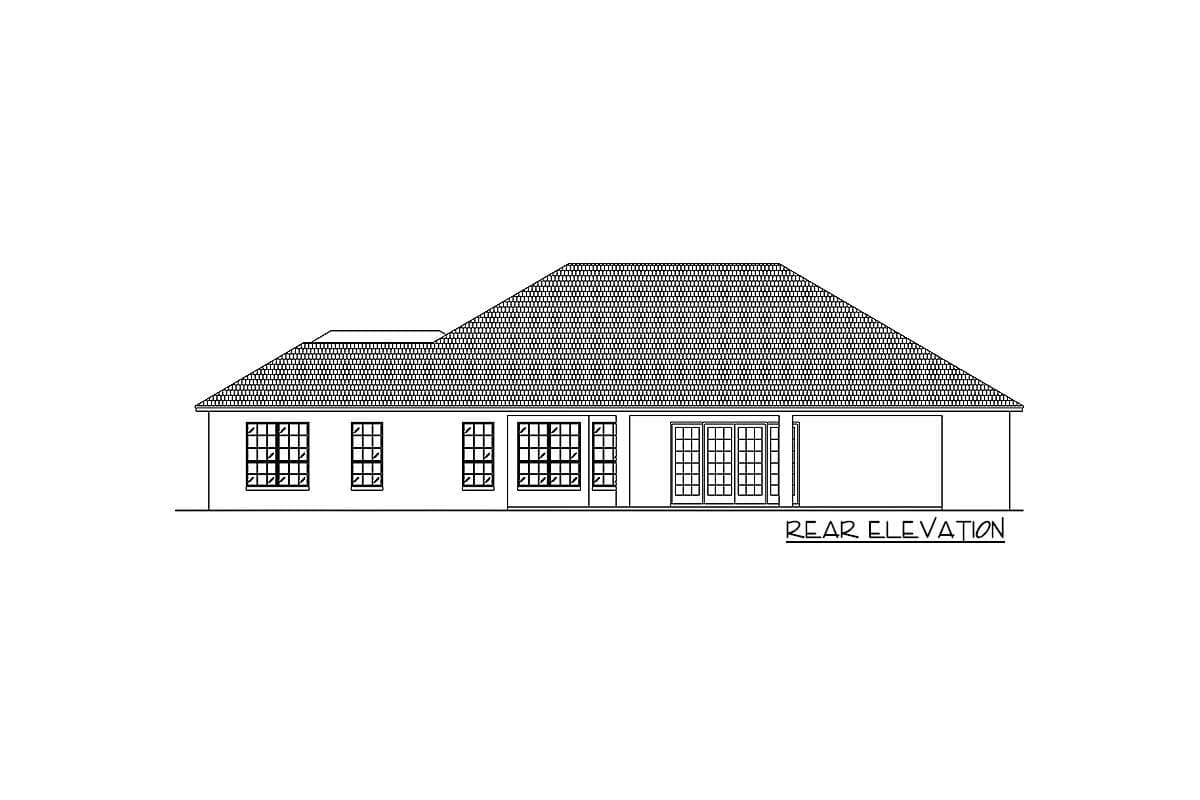

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

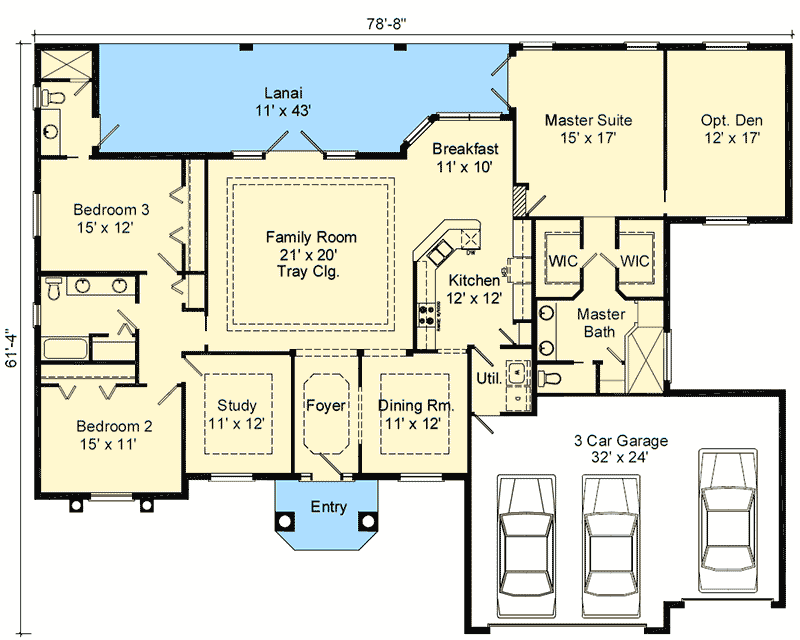

Split Bedroom Mediterranean - 64303BT floor plan - Main Level

Split Bedroom Mediterranean

  • 2,651

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,651 sq. ft.
  • 1st Floor: 2,651 sq. ft.

Dimensions

  • Width: 78' 8"
  • Depth: 61' 4"
  • Max ridge height: 23' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 779 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
