Plan 56508SM

Split Bedroom Modern Farmhouse with Outdoor Kitchen and Optional Game Room

Name: Plan 56508SM: Split Bedroom Modern Farmhouse with Outdoor Kitchen and Optional Game Room
Brand: Architectural Designs
SKU: 56508SM
Price: 935.64 USD
Availability: InStock

Heated S.F.

2,326

Beds

Baths

2.5

Stories

Cars

Client Photos

Floor Plan

Main Level

Optionally Finished Bonus Room

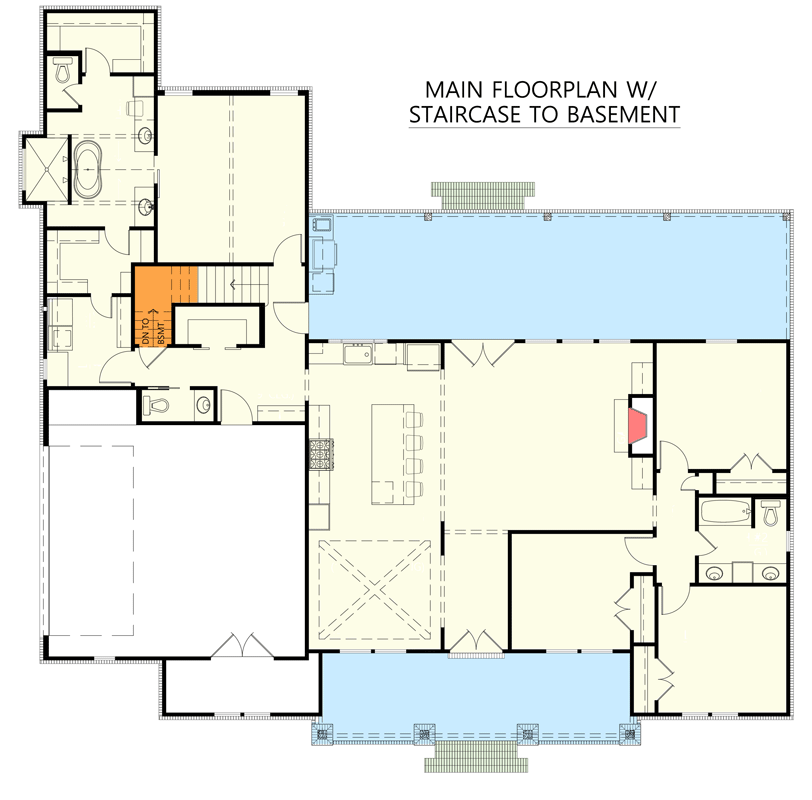

Main Level - Basement Stair Location

Plan Details

Three gables line the front elevation of this Modern Farmhouse plan, which delivers a split-bedroom layout, massive rear porch with an outdoor kitchen, and an optional 602 square foot game room above the garage.
Step into the foyer and you will find the formal dining room to the left with an 11' tray ceiling helping to define the space. The adjoining kitchen connects with the spacious great room and hosts an oversized island with an eating bar.
The master bedroom enjoys a private location and boasts a vaulted ceiling and a spacious ensuite with his and hers closets that connect with the laundry room.
Three secondary bedrooms line the right side of the home and share a 4-fixture bathroom.
A dedicated storage room is accessible from the double garage, while inside a drop zone is conveniently located next to a powder bath.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

Modern Farmhouse Plan 56508SM Comes to Life in Texas

Photos

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
