Split Bedroom New American House Plan with 2-Car Garage

Plan 22571DR

2,117
Heated s.f.
3-4
Beds
2 - 3
Baths
1
Stories
2
Cars

Board and batten siding and brick combine to give this one-story New American house plan great curb appeal. The front-facing garage, offset from the center of the home, actually helps give the master suite privacy by separating it from the active part of the home.
There are vaulted ceilings in both the dining and living rooms. Knee walls help define the dining room while helping create an open floor plan.
The kitchen island has seating for three and a large walk-in pantry gives you great storage.
Enjoy privacy in your master suite with two walk-in closets separated from the bedroom by a sliding barn door. Across the home, two beds share a bath.
In back, gain access to the covered porch by two sets of French doors.
Related Plan: Get a courtyard entry garage with house plan 22629DR.

Each plan includes the following:

* 4 Elevations

* Foundation Plan

* Main Floor Plan

* Upper Floor Plans (if applicable)

* Roof Plan

* Building Section

* Construction Details

* Typical Wall Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

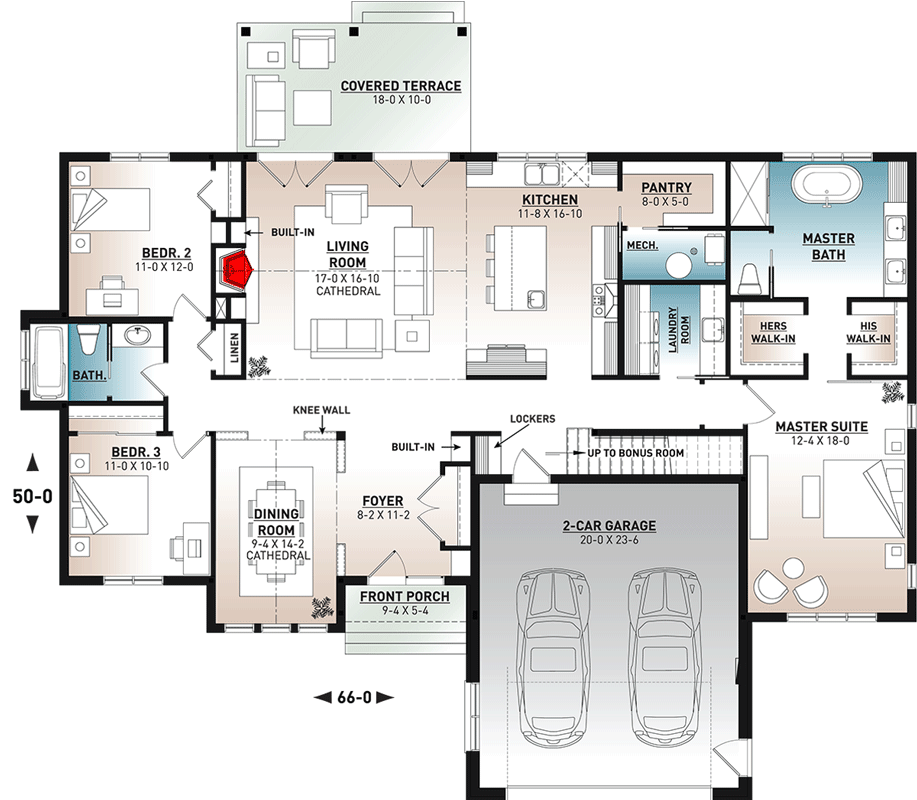

Split Bedroom New American House Plan with 2-Car Garage - 22571DR floor plan - Main Level

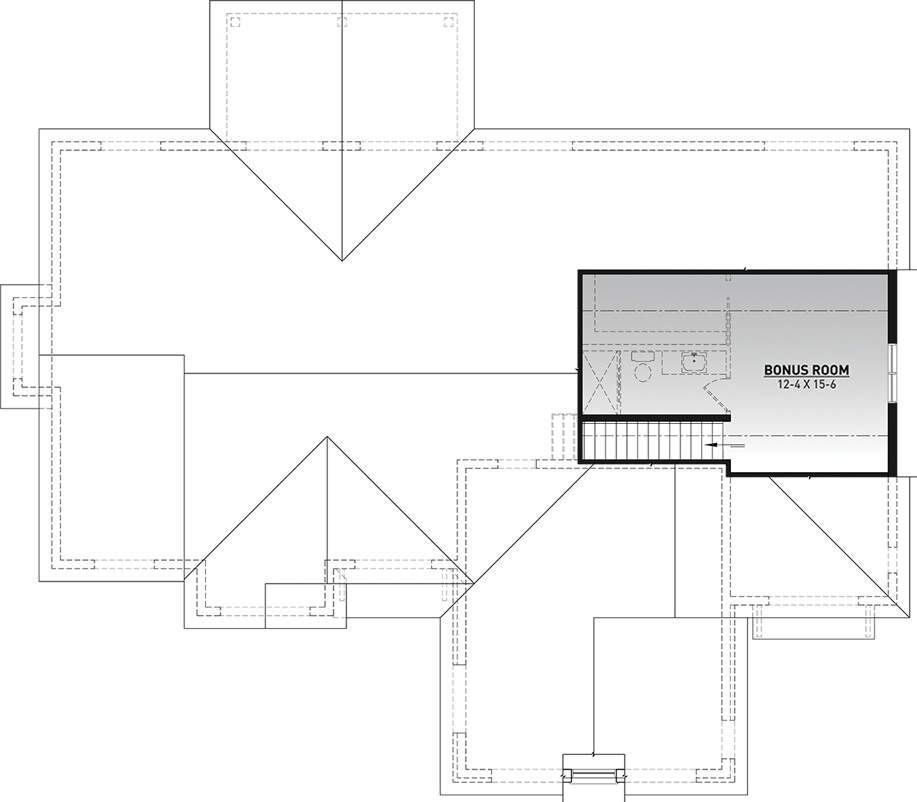

Bonus

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Split Bedroom New American House Plan with 2-Car Garage - 22571DR floor plan - Bonus

Plan details

Square Footage Breakdown

Total Heated Area: 2,117 sq. ft.
1st Floor: 2,117 sq. ft.

Bonus: 362 sq. ft.

Beds/Baths

Bedrooms: 3 or 4

Full bathrooms: 2 or 3

Foundation Type

Standard Foundations: Crawl

Optional Foundations: Monolithic Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 66' 0"
Depth: 60' 0"
Max ridge height: 26' 11"

Garage

Type: Attached
Area: 547 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 10 on 12

Framing Type: Truss
