Plan 62301DJ
Split Bedroom New American Ranch Home Plan with Open Concept Core
Heated S.F.
2,389
Beds
3
Baths
2.5 - 3.5
Stories
1-2
Cars
3
What's Included
Plan Details

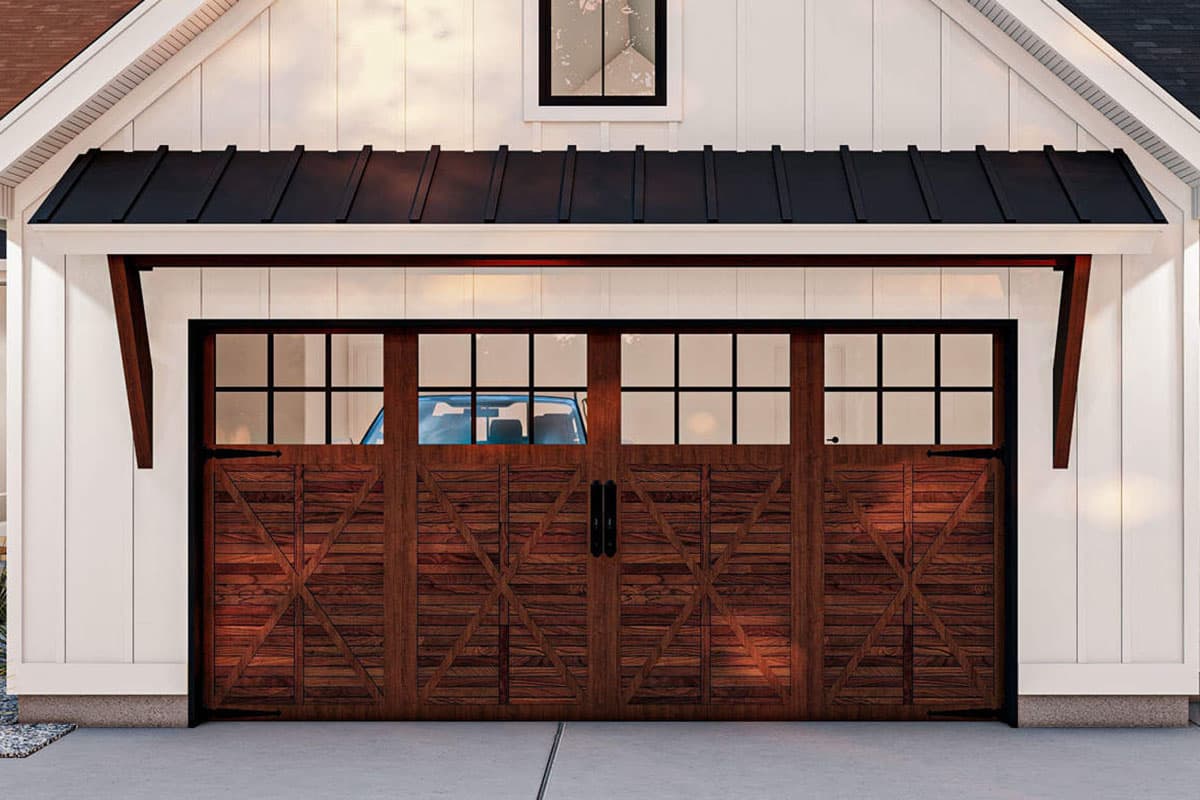

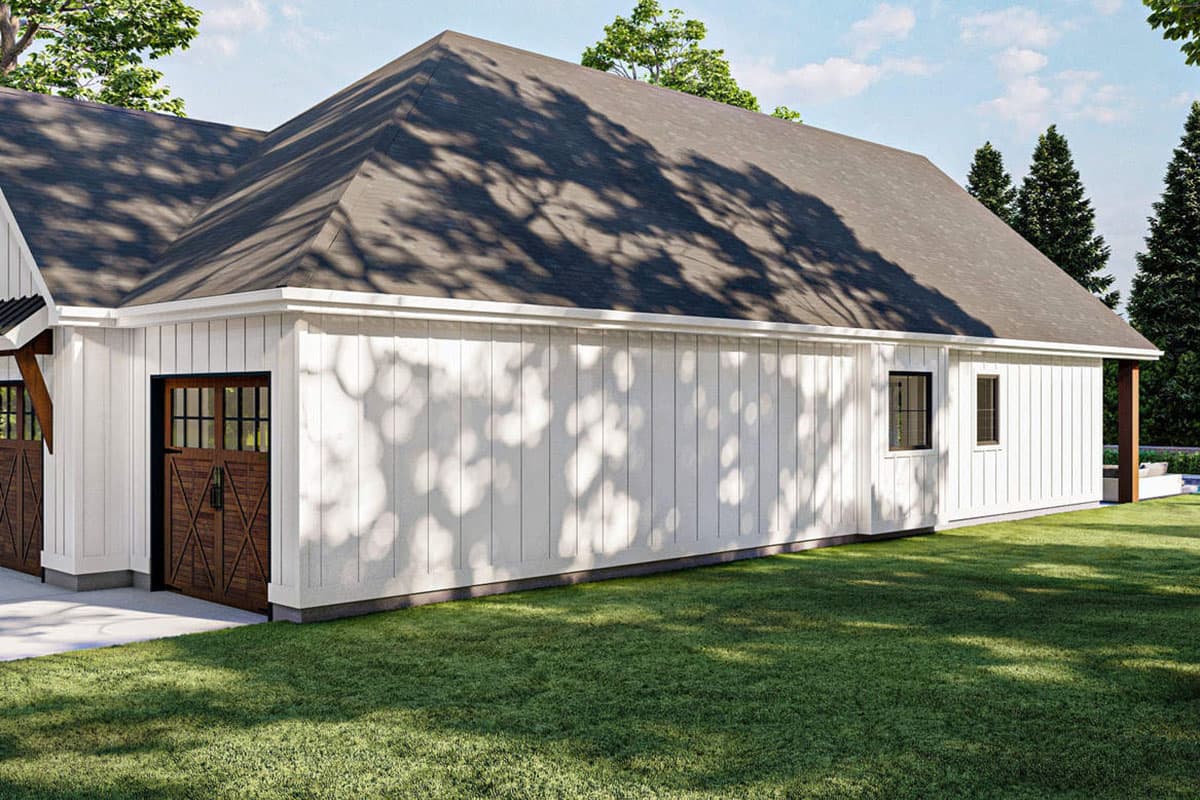

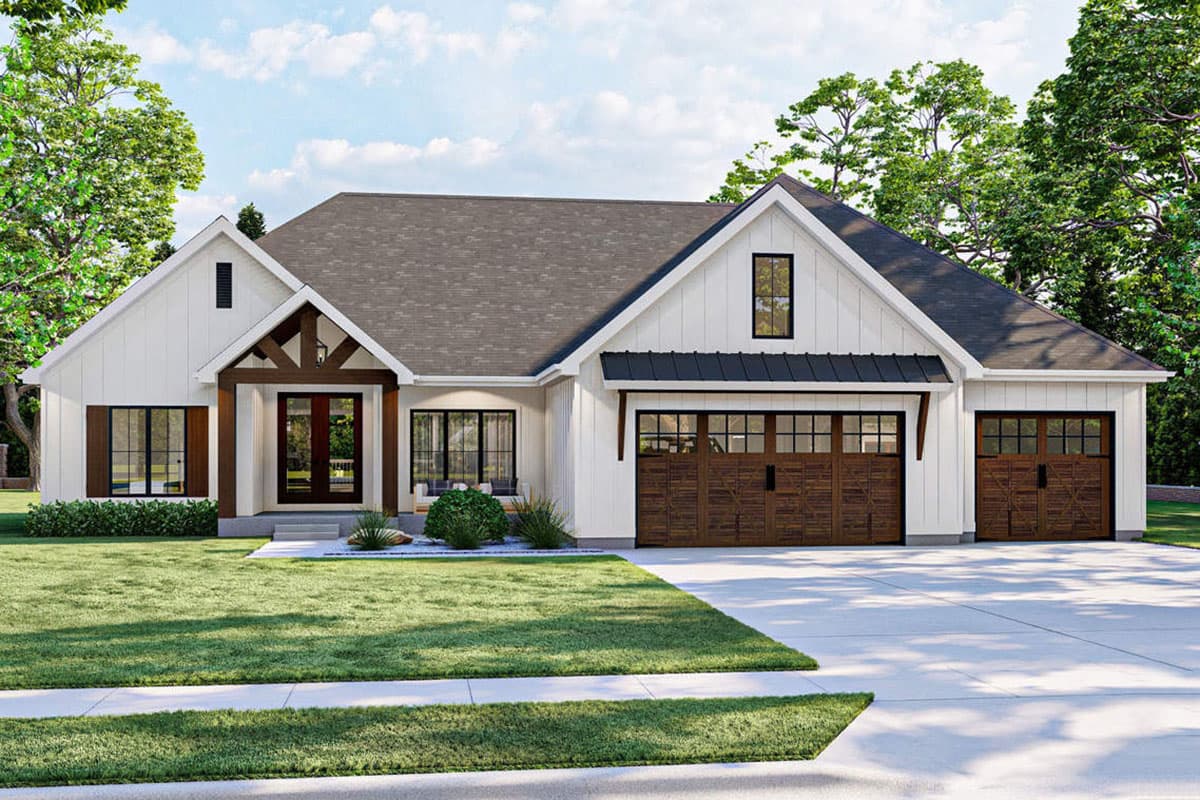

  • The split bedroom New American ranch home plan has board and batten siding, wood beams, and wood garage doors giving the home that modern farmhouse look.

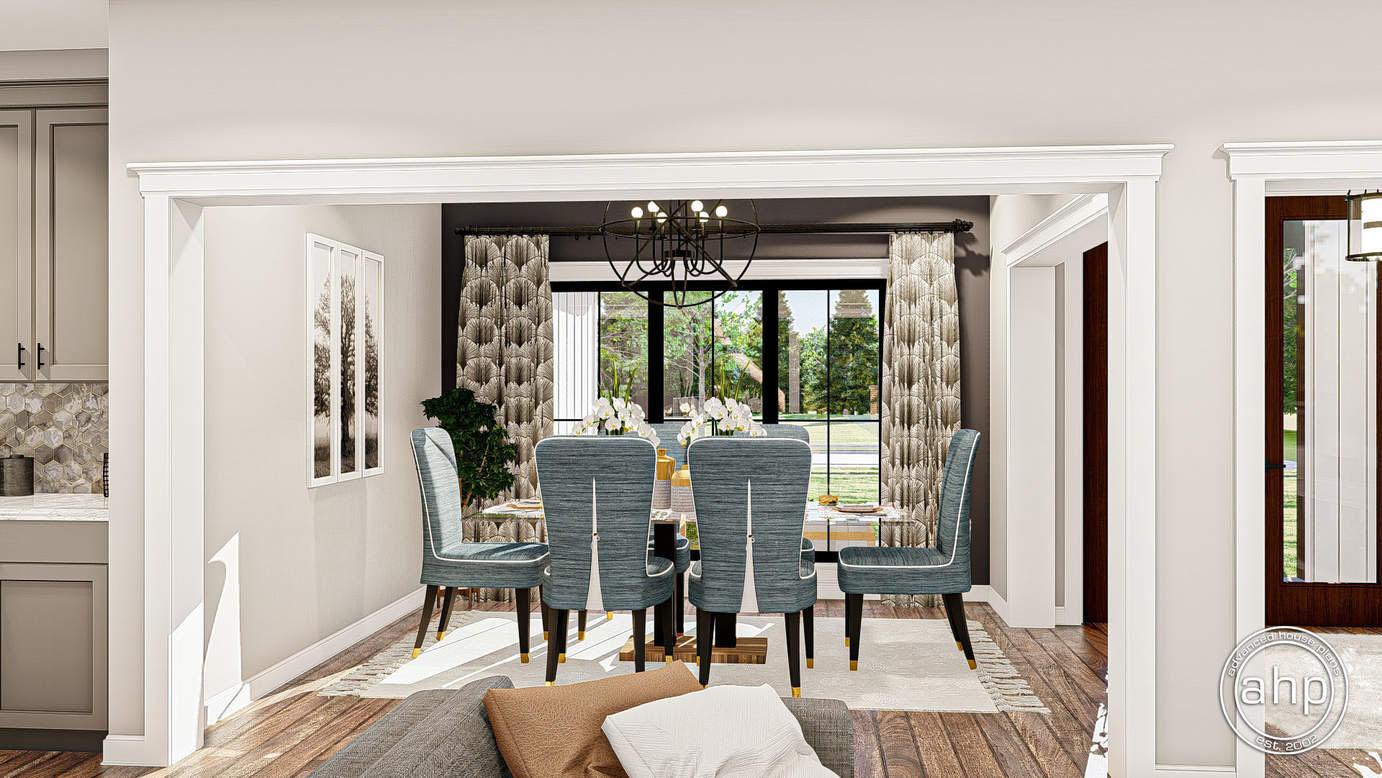

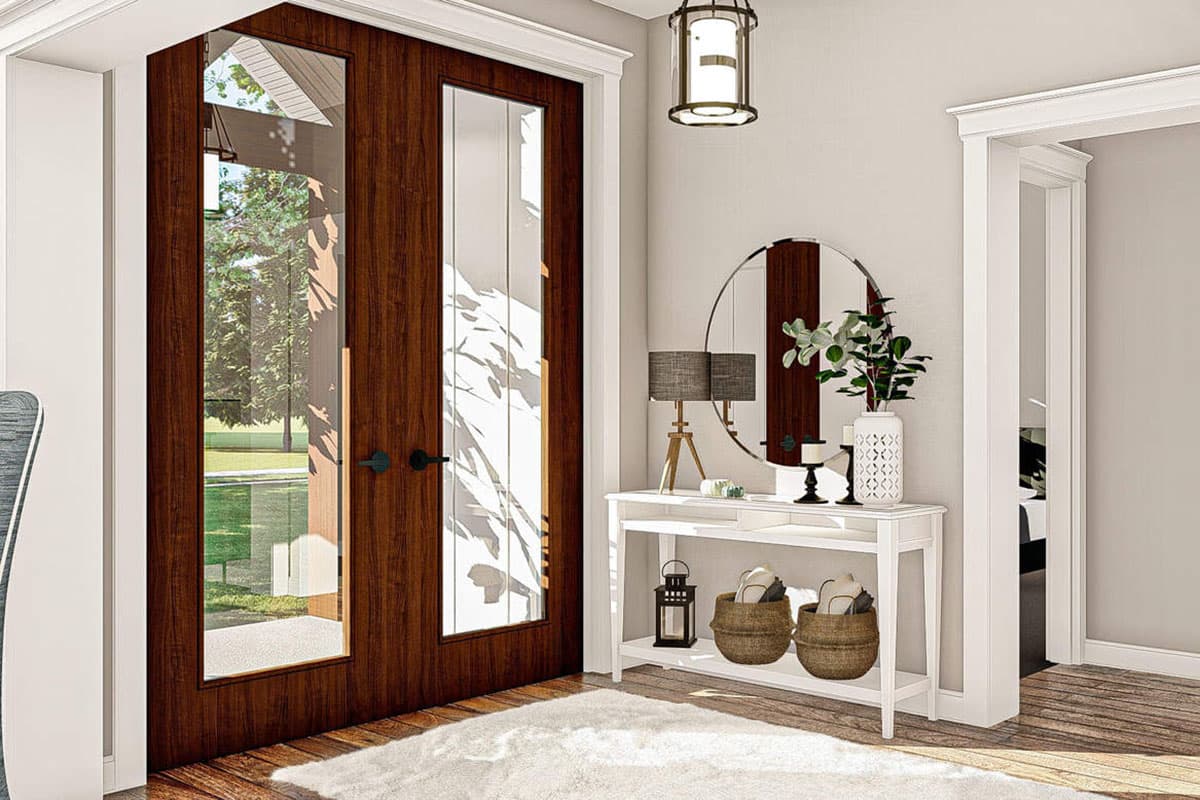

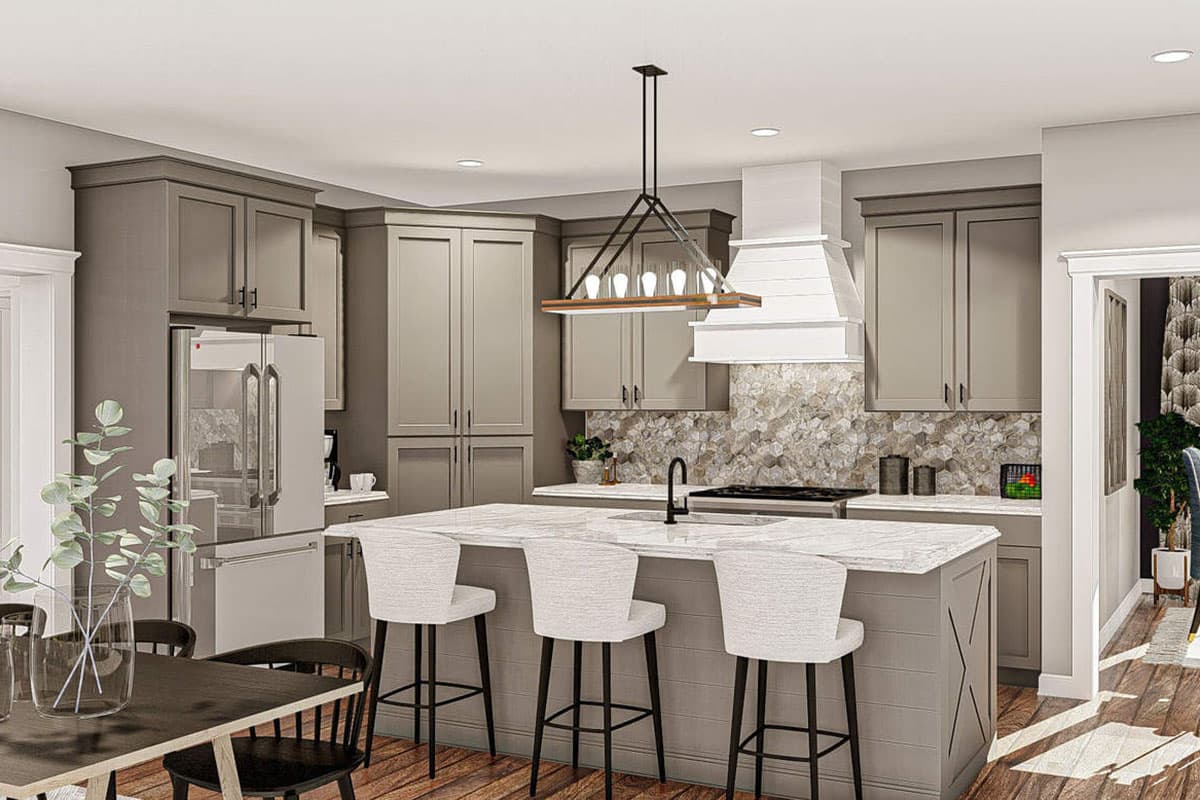

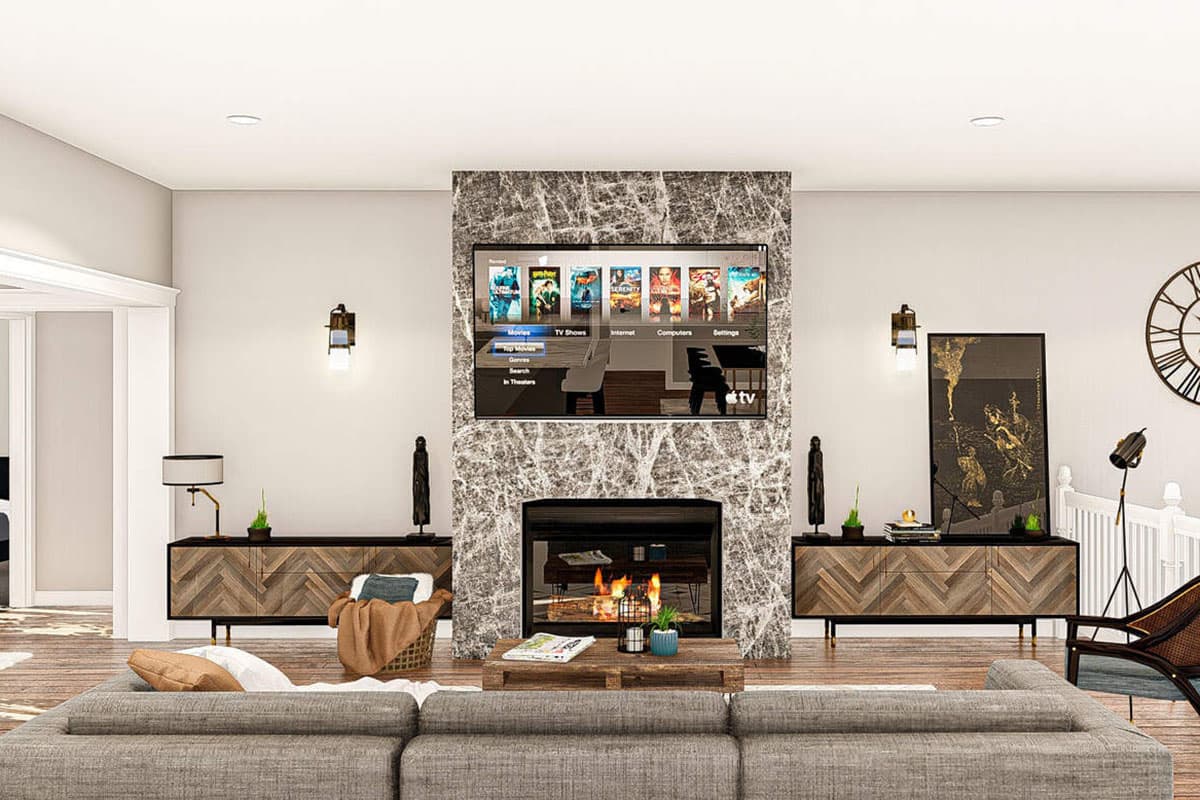

  • Inside, you are greeted by a wide open floor plan. To the right of the entry is your formal dining room and ahead is the great room with its fireplace flanked by built-in bookshelves. The kitchen includes a large island and a massive walk-in pantry. A breakfast area with sliding door access to the covered patio completes the open portion of the home.

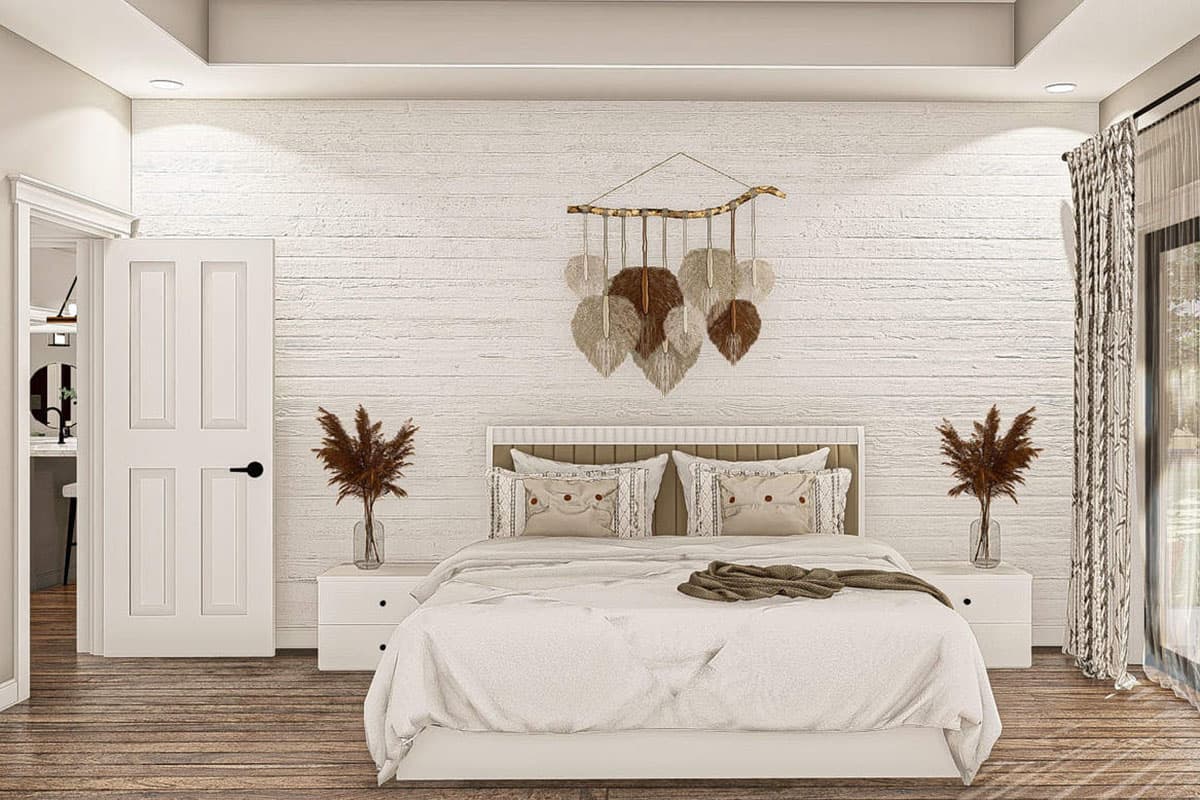

  • Tucked away on the right side of the home is the secluded master suite with outdoor access and a deep walk-in closet. The bathroom includes dual vanities, a soaking tub, an enclosed toilet area, and a large walk-in closet.
  • Across the home, 2 bedrooms - each with walk-in closets - share a bathroom with two vanities and a tub.
  • A stair inside the garage takes you to the bonus space above while stairs running along the back of the great room take you to the basement.
  • A bonus room above the 3 car garage can add 415 sq ft and makes a great room for a guest room or home office.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split Bedroom New American Ranch Home Plan with Open Concept Core

  • 2,389

    Heated s.f.

  • 3

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

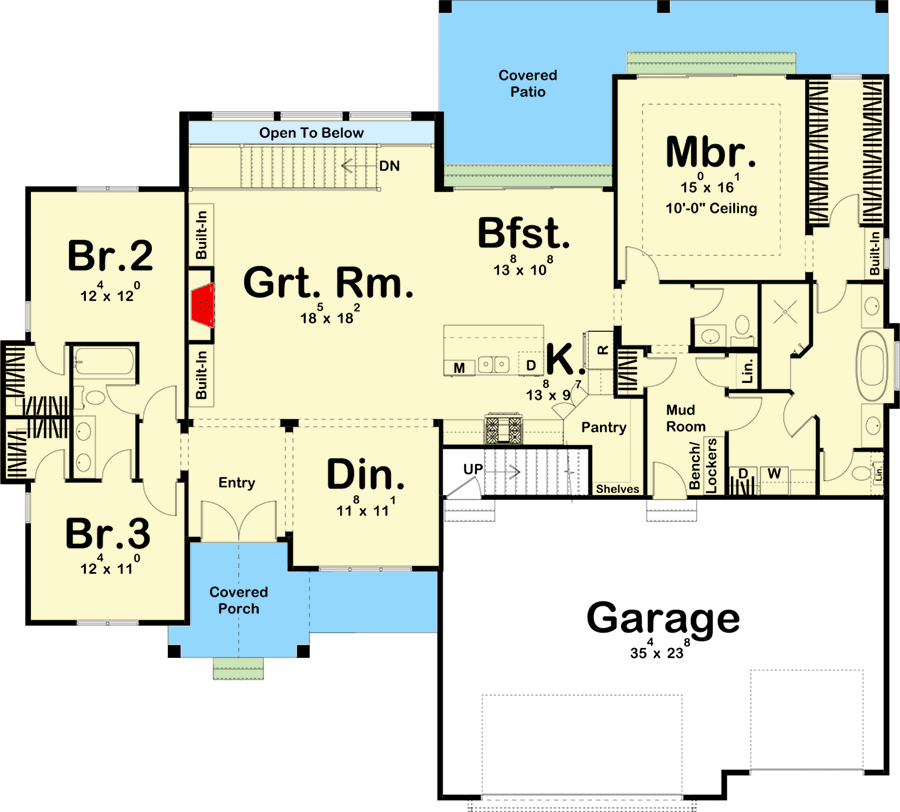

  • Main Level

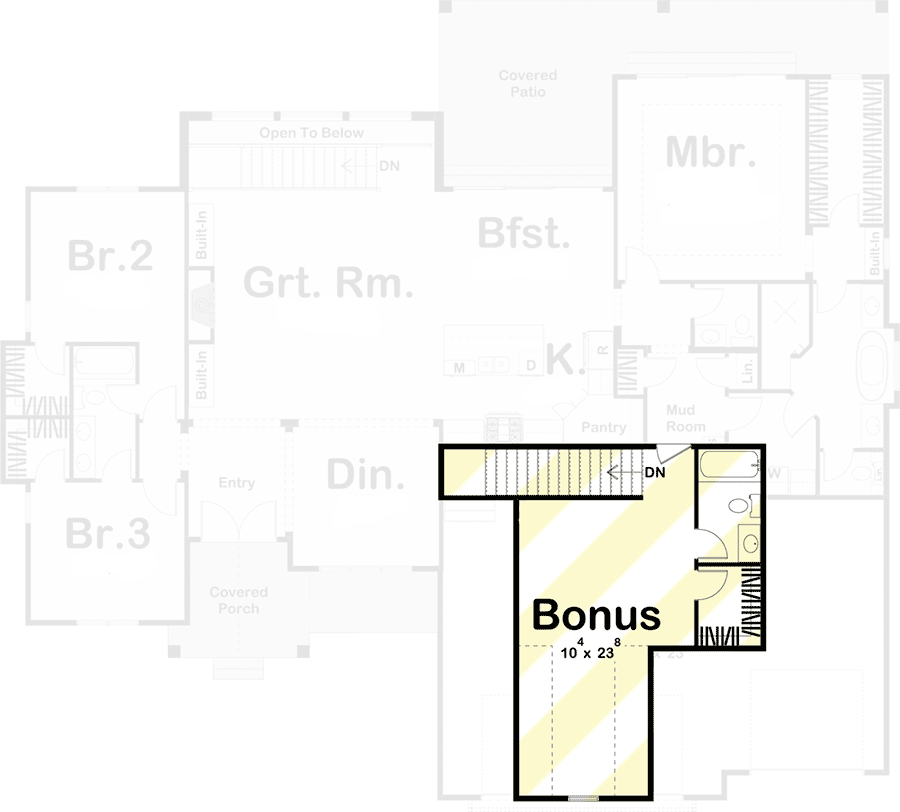

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,389 sq. ft.
  • 1st Floor: 2,389 sq. ft.

Dimensions

  • Width: 72' 0"
  • Depth: 64' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 838 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Split Bedroom New American Ranch Home Plan with Open Concept Core

  • 2,389

    Heated s.f.

  • 3

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Split Bedroom New American Ranch Home Plan with Open Concept Core

  • 2,389

    Heated s.f.

  • 3

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,389 sq. ft.
  • 1st Floor: 2,389 sq. ft.

Dimensions

  • Width: 72' 0"
  • Depth: 64' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 838 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
