Plan 51741HZ

Split Bedroom Traditional House Plan - 2506 Sq Ft

Heated S.F.
2,506
Beds
4
Baths
2.5
Stories
1
Cars
2
Client Photos

Floor Plan

Plan 51741HZ

Main Level
Main Level
Basement Stairs Location
Basement Stairs Location

Plan 51741HZ

M-F 9am-5pm EST |

1-203-761-8500

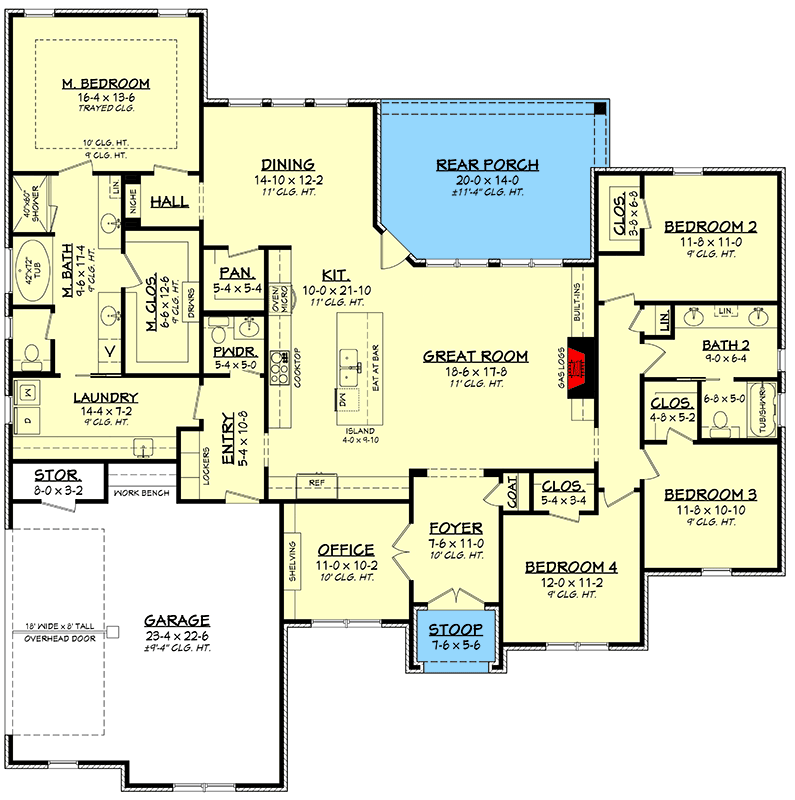

Main Level

Plan 51741HZ: Split Bedroom Traditional House Plan - 2506 Sq Ft - Floor Plan - Main Level - Acadian, French Country, Louisiana-Style, Southern, Transitional

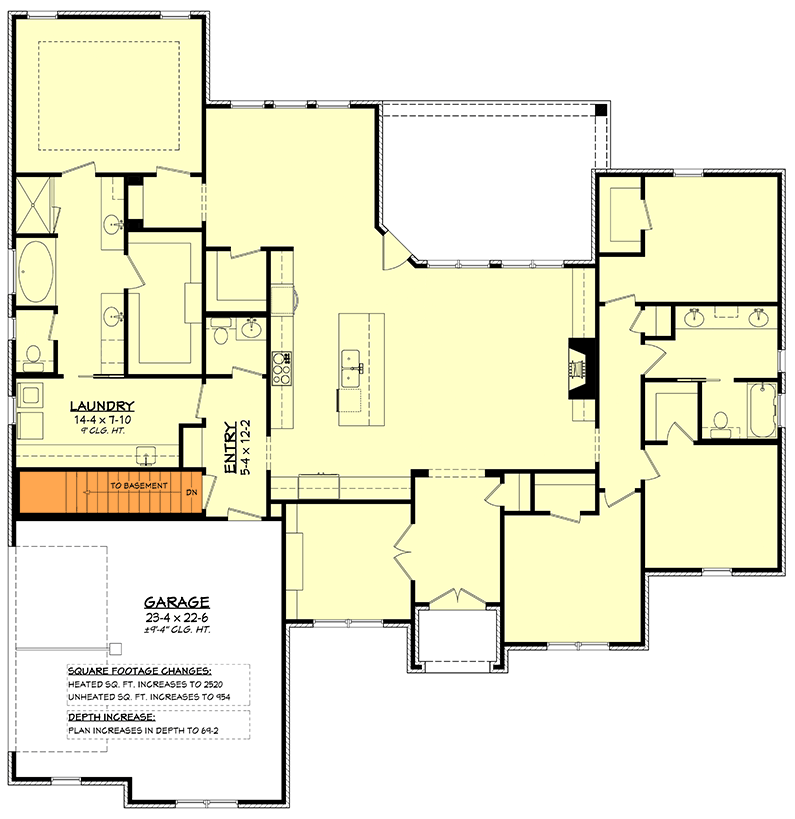

Basement Stairs Location

Plan 51741HZ: Split Bedroom Traditional House Plan - 2506 Sq Ft - Floor Plan - Basement Stairs Location - Acadian, French Country, Louisiana-Style, Southern, Transitional

Plan Details

  • Two shades of brick, a lovely hip roof line and a charming dormer set this Transitional house plan off beautifully.
  • Double doors off the foyer open to a quiet study with a wall of built-ins for storage.
  • More built-ins can be found next to the living room fireplace with an entertainment center above.
  • You can enjoy the fire right from the kitchen island, thanks to the open layout.
  • There's no closed off formal dining room - just a large eating area that also has great views.
  • The split bedroom layout affords privacy for the secluded master suite.
  • Homeowners get a spacious private bathroom that has a door directly into the laundry room - a wonderful convenience.

Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

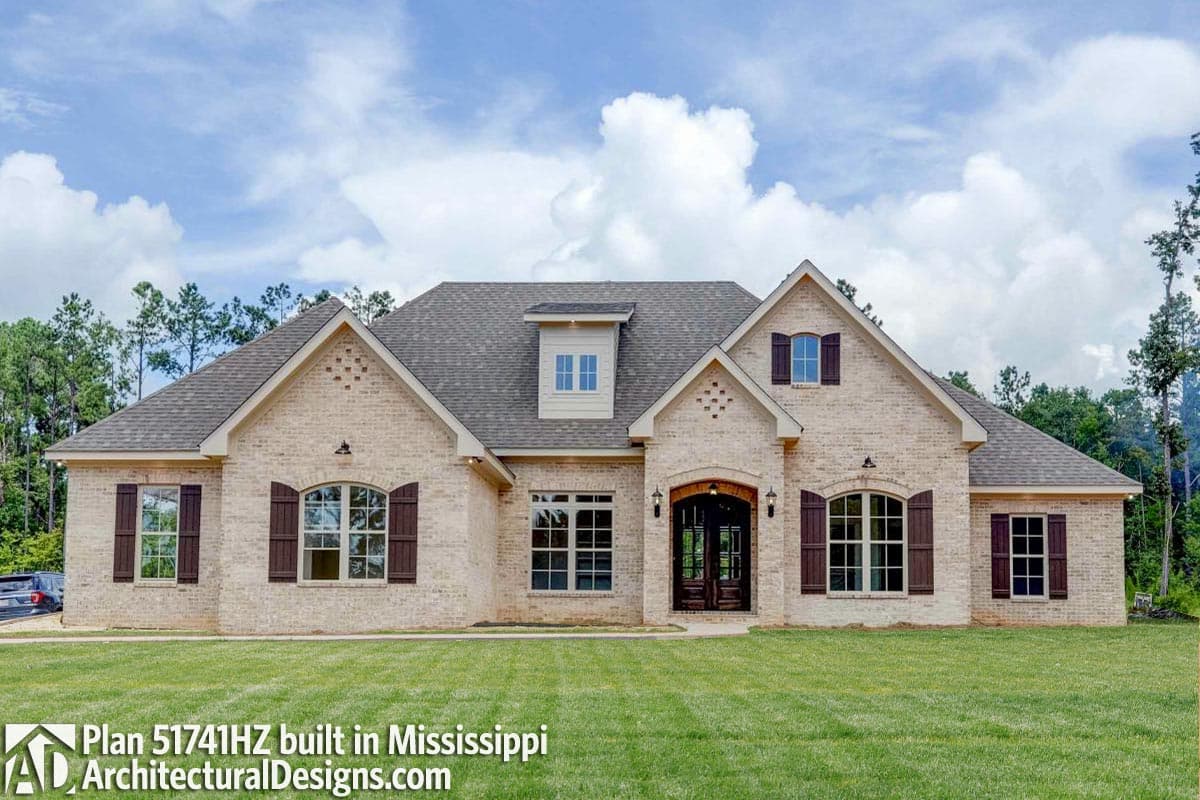

build gallery item - House Plan 51741HZ Comes to Life in Mississippi

House Plan 51741HZ Comes to Life in Mississippi

10

Photos

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

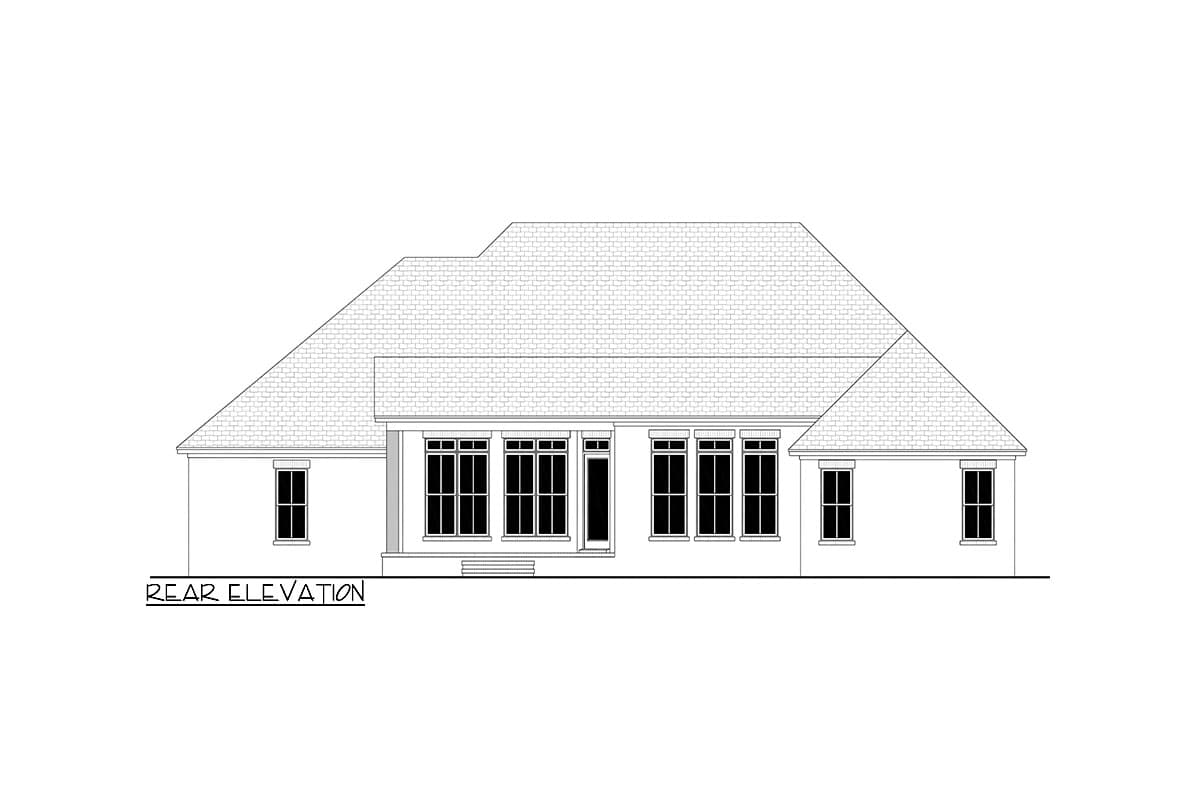

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,506 sq. ft.

1st Floor

2,506 sq. ft.

Porch, Front

43 sq. ft.

Porch, Rear

266 sq. ft.

Storage

30 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 6"

Depth

67' 8"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

593 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Room

Ceiling Type

Height

Dining Room

Flat

11' 0''

Office

Flat

10' 0''

Living Room

Flat

11' 0''

Master Bedroom

Tray

10' 0''

Roof Details

Primary Pitch

12 on 12
