Split-entrance Bungalow with Open-Concept Living Space
Heated S.F.
1,148
Beds
2
Baths
1
Stories
1
What's Included
Plan Details
  • This elegant bungalow has a split entrance and a façade of brick and wood, materials that complement the house’s modern architecture and uncluttered style.
  • The home is 32' wide by 40' deep and gives you 1,148 square feet of living area.
  • The open-concept house has abundant windows and features two bedrooms that each have large walk-in closets.
  • A set of glass sliders with backyard access are centrally located in the free-flowing living space and a prep island in the kitchen includes seating for three.
  • The bathroom features a freestanding tub and ceramic tile shower and neighbors the laundry room.
What's Included
Please note this plan is designed to the National Building Code of Canada.

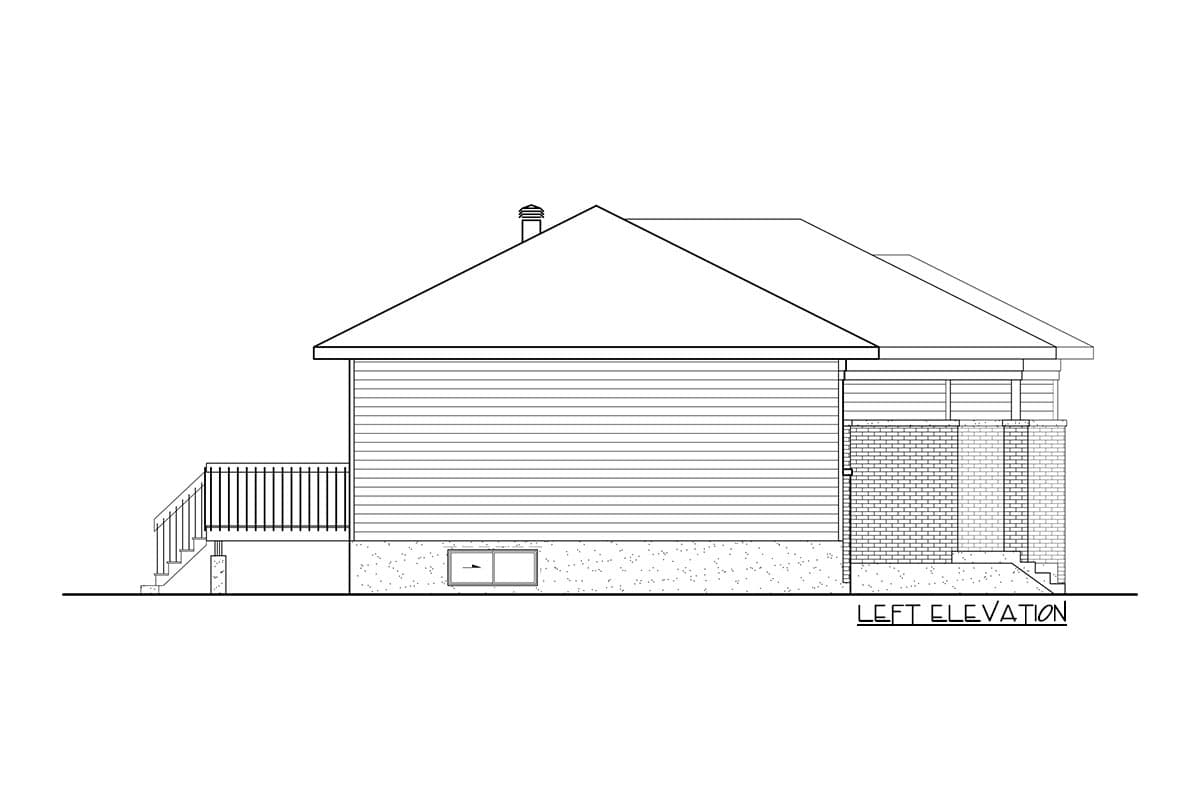

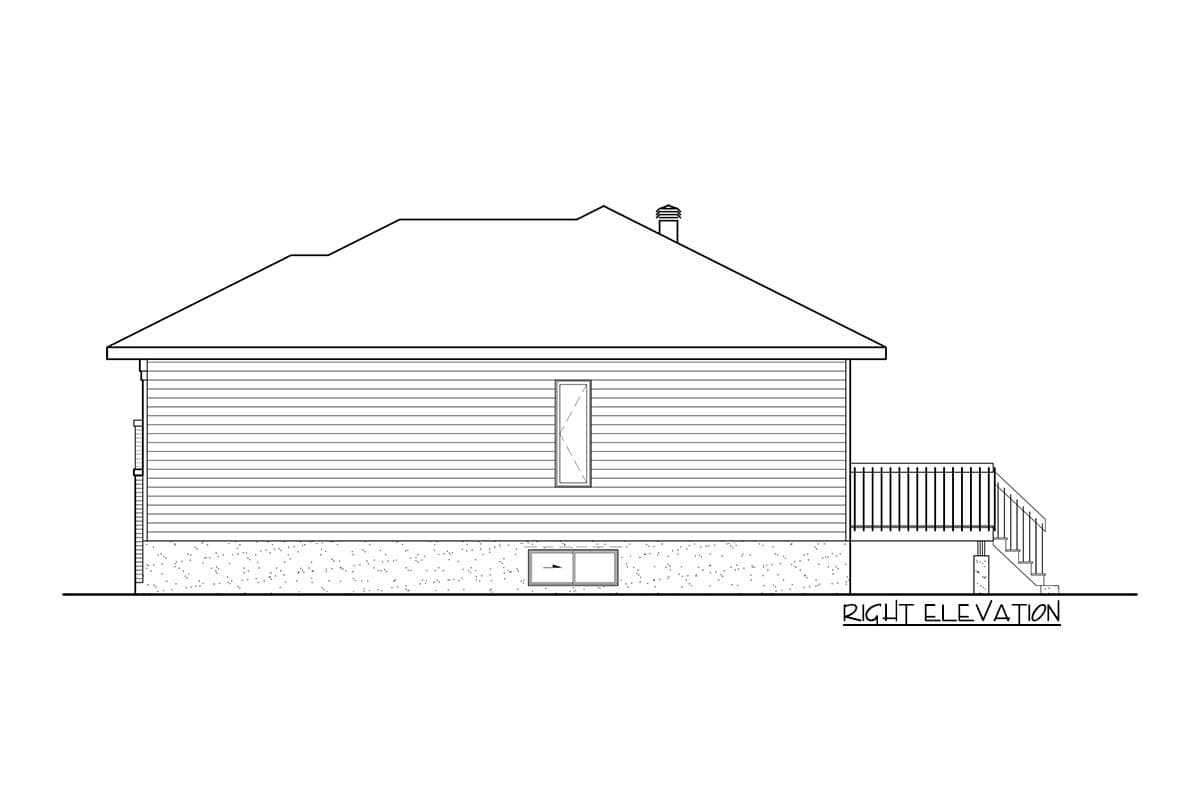

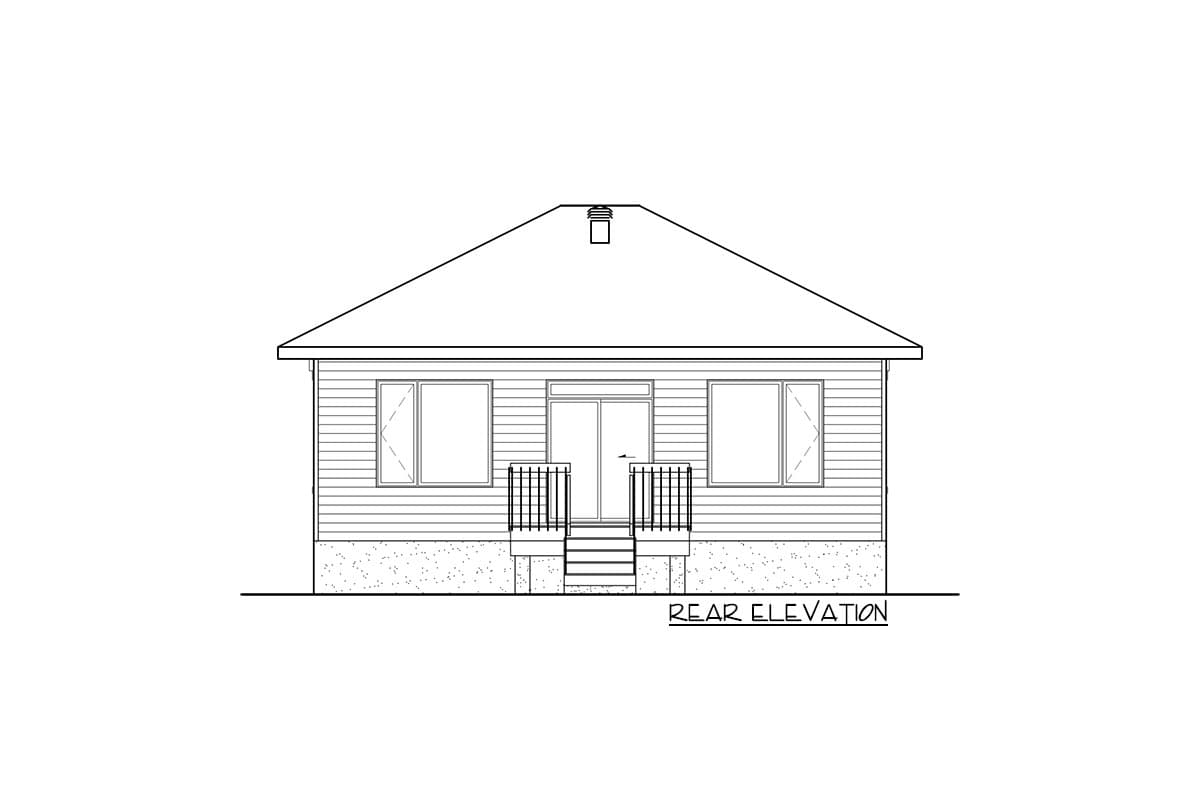

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

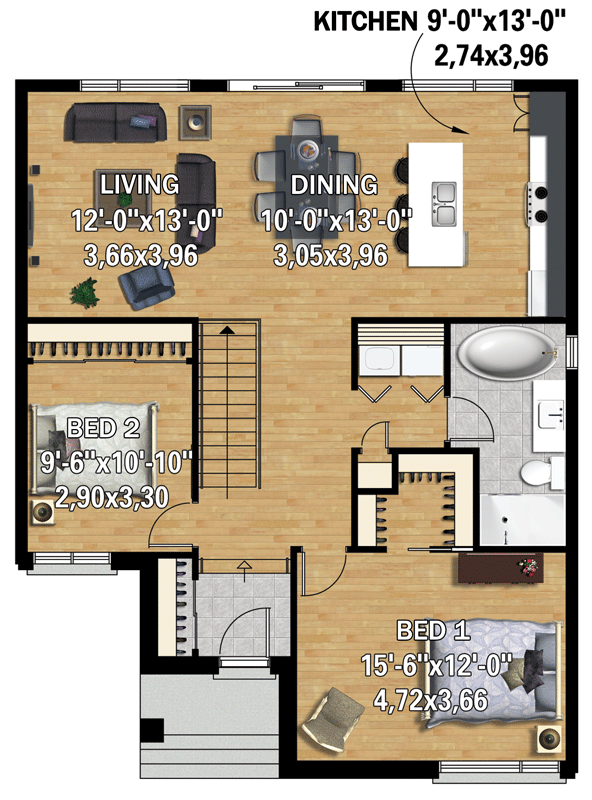

  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
