Plan 90295PD

Split Level Contemporary House Plan

Heated S.F.
1,351
Beds
2
Baths
2.5
Stories
1
Cars
1

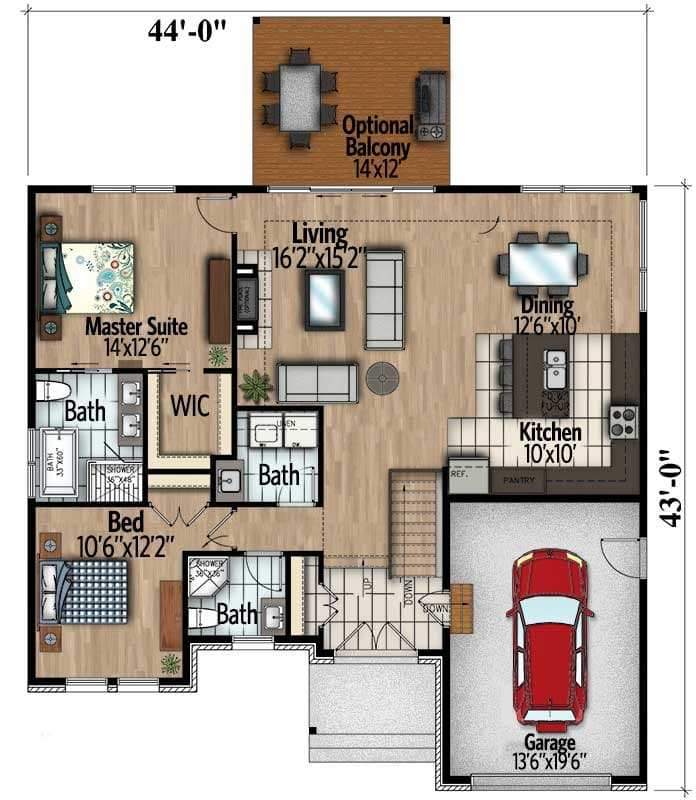

Floor Plan

Plan 90295PD

Main Level
Main Level

Plan 90295PD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 90295PD: Split Level Contemporary House Plan - Floor Plan - Main Level - Contemporary, Northwest

Plan Details

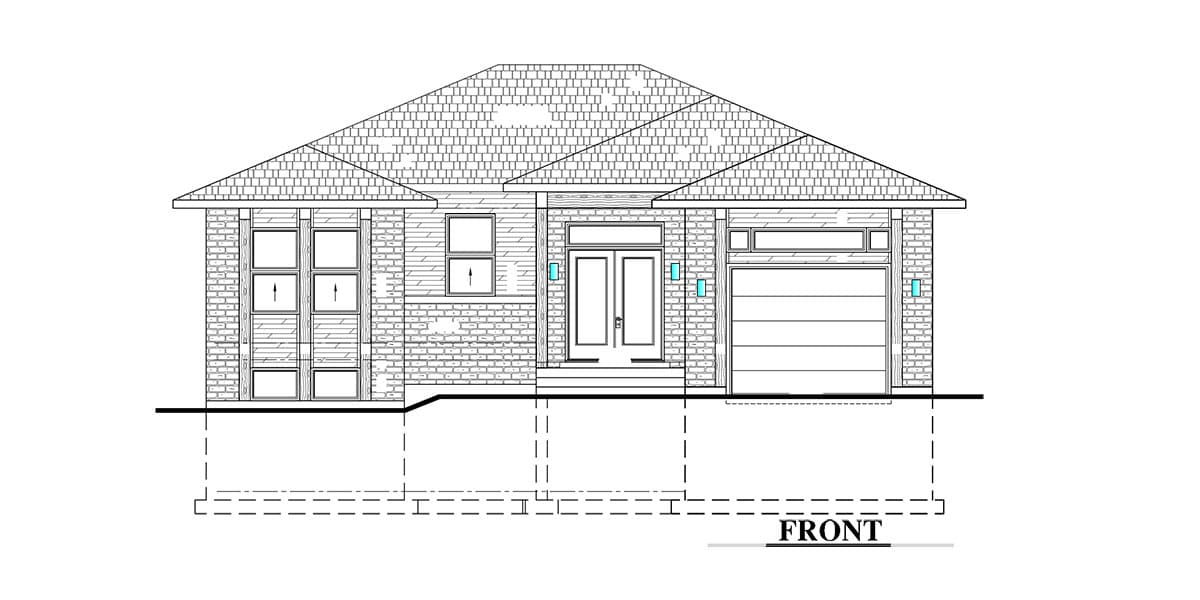

  • Double doors open to a sunken foyer in this Northwest house plan.
  • The garage is two steps down and the main living area is one step up from the foyer.
  • Or take the stairs down to the basement level.
  • Only 44' wide, the home presents a compact footprint that works well on a narrow lot.
  • The wonderful open floor plan encompasses the cooking, eating and living spaces into one huge great room so the home feels bigger.
  • The master suite lies in back with its walk-in closet and private bathroom.
  • Bedroom 2 lies facing front and is served by the hall bathroom.
  • A one car garage completes this home.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,351 sq. ft.

1st Floor

1,351 sq. ft.

Basement Unfinished

1,266 sq. ft.

Porch, Front

45 sq. ft.

Porch, Rear

224 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

43' 0"

Max Ridge Height

20' 4"

Garage

Type

Attached

Area

296 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Foyer

10' 0''

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Master Suite - 1st Floor

Split Level

Plan Collections

Split Level House Plans
