Split Level Craftsman House Plan

Plan 22478DR

  • 1,272

    Heated s.f.

  • 2-4

    Beds

  • 1 - 2

    Baths

  • 1

    Stories

  • Beautiful decorative wood trim accents front porch roof of this split level Craftsman house plan.
  • The entry foyer directs you downstairs to an unfinished basement or upstairs to the main living area.
  • Here you have one large great room area with views between the living room, dining area and kitchen.
  • Sliding glass doors in the dining area lead out to a back deck while in the kitchen you have an island and a walk-in pantry plus a big window sink.
  • Bedrooms are to the right with a laundry closet between the bedrooms.
  • The shared hall bathroom comes with two sinks and both a tub and a shower.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

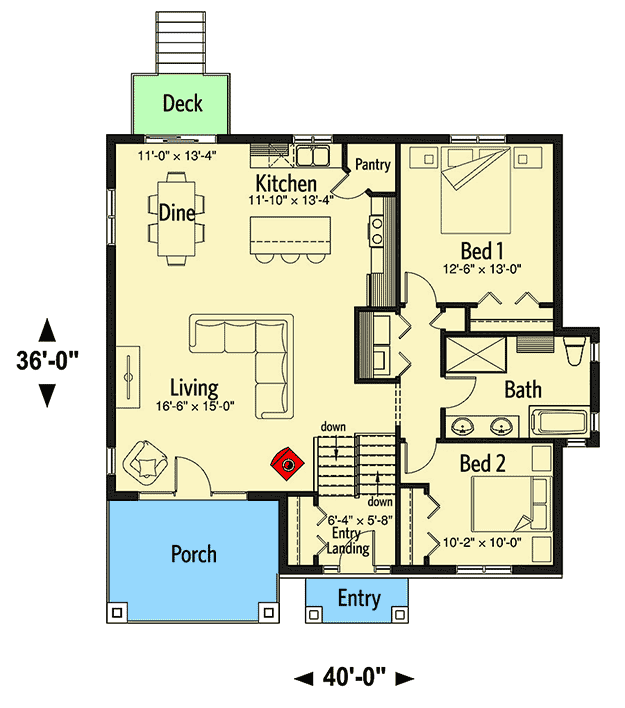

Split Level Craftsman House Plan - 22478DR floor plan - Main Level

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

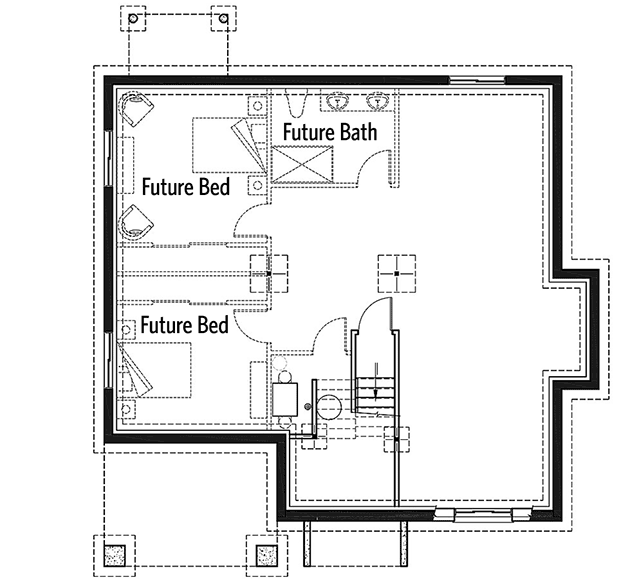

Split Level Craftsman House Plan - 22478DR floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,272 sq. ft.
  • 1st Floor: 1,272 sq. ft.
  • Basement Unfinished: 1,272 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 36' 0"
  • Max ridge height: 24' 5"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Split Level Craftsman House Plan

  • 1,272

    Heated s.f.

  • 2-4

    Beds

  • 1 - 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,300
  • 3 Sets + PDF $1,425
  • CAD + PDF - Single-Build $1,900
  • View all purchase option online

About This Plan

  • Beautiful decorative wood trim accents front porch roof of this split level Craftsman house plan.
  • The entry foyer directs you downstairs to an unfinished basement or upstairs to the main living area.
  • Here you have one large great room area with views between the living room, dining area and kitchen.
  • Sliding glass doors in the dining area lead out to a back deck while in the kitchen you have an island and a walk-in pantry plus a big window sink.
  • Bedrooms are to the right with a laundry closet between the bedrooms.
  • The shared hall bathroom comes with two sinks and both a tub and a shower.

Floor Plans

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,272 sq. ft.
  • 1st Floor: 1,272 sq. ft.
  • Basement Unfinished: 1,272 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 36' 0"
  • Max ridge height: 24' 5"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
