Split Level European House Plan

Plan 21726DR

  • 1,456

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • A stylish hip roof tops this split level European house plan.
  • Modest in size, the open layout makes the home feel larger.
  • An added plus is the big walk-in coat closet in the sunken foyer.
  • The master bedroom is a generous size and comes with a walk-in closet.
  • The large hall bathroom has two sinks and a soaking tub.
  • A pull-down attic adds 235 square feet.

Each plan includes the following:

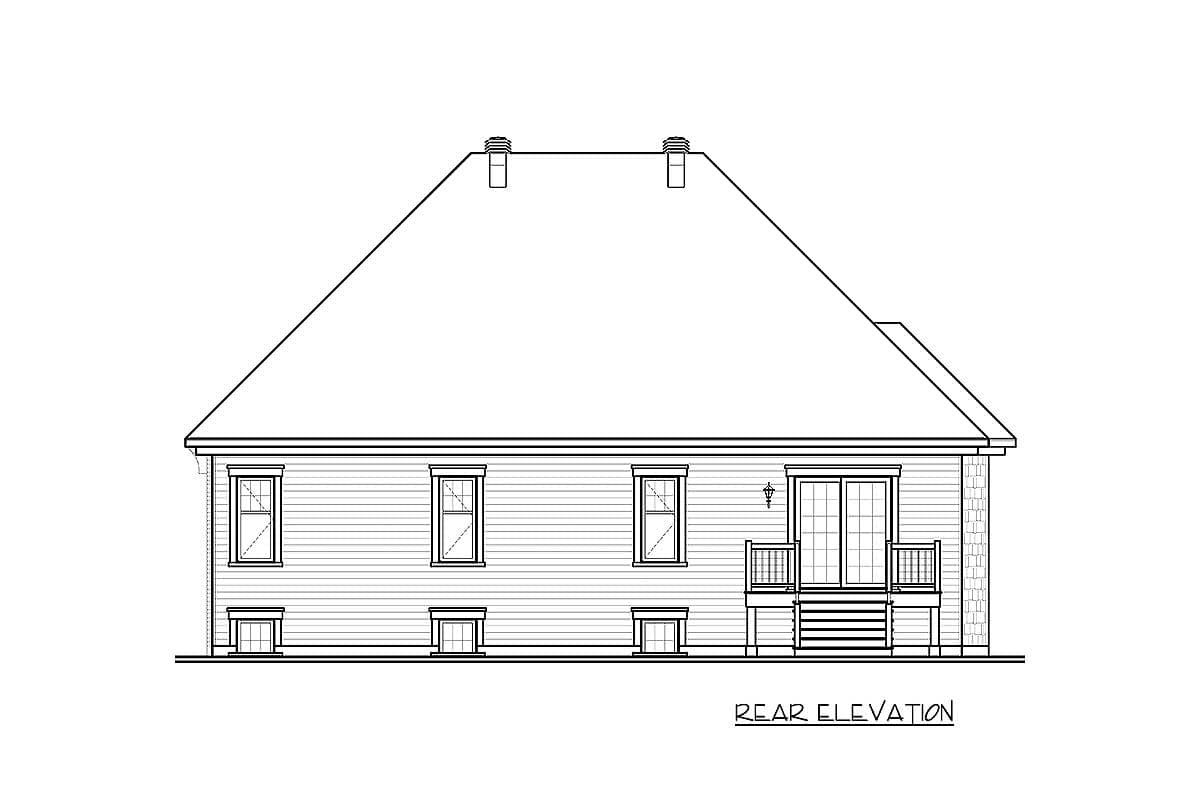

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

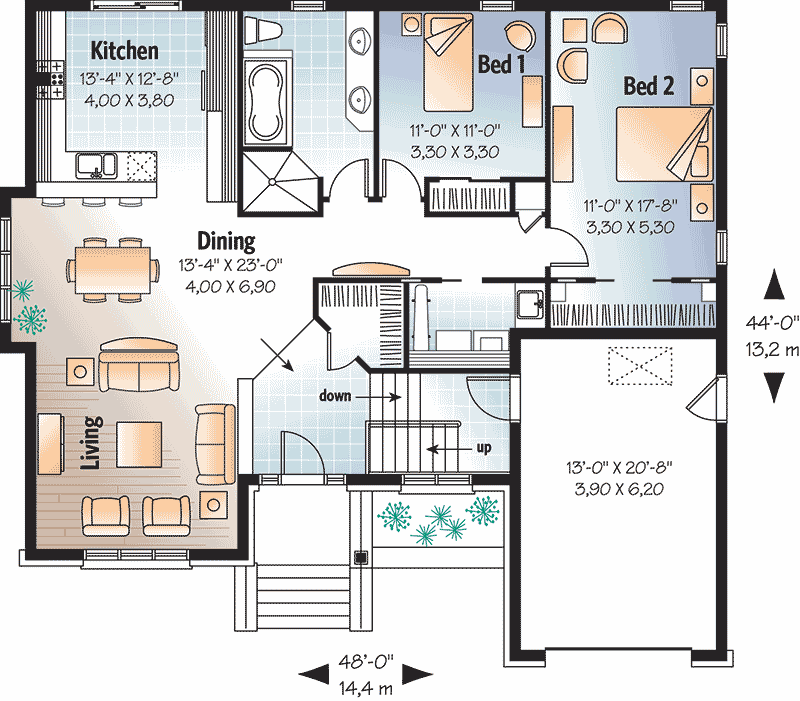

Split Level European House Plan - 21726DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

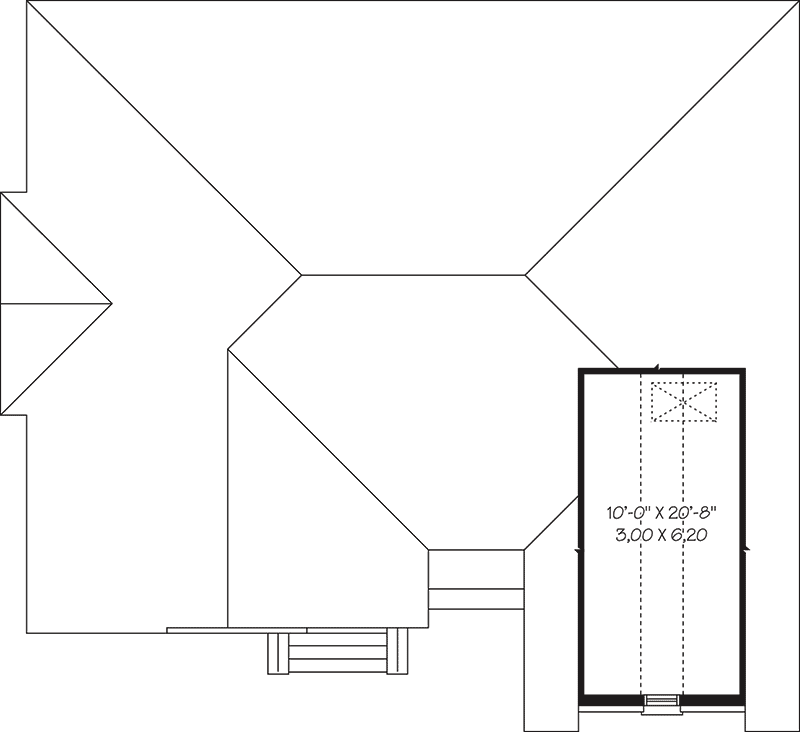

Split Level European House Plan - 21726DR floor plan - 2nd Floor

Architectural Style

Split Level European House Plan

  • 1,456

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,456 sq. ft.
  • 1st Floor: 1,456 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 44' 0"
  • Max ridge height: 30' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 309 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 10"
