Split Level Home Plan with Welcoming Front Porch

Plan 21728DR

  • 1,519

    Heated s.f.

  • 2-3

    Beds

  • 1

    Baths

  • 1-2

    Stories

  • 1

    Cars

  • This split level home plan greets you with its welcoming front porch.
  • Two beds line the left side of the home leaving the main portion open nearly front to back.
  • Stairs go up to a bonus room giving you expansion possibilities.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

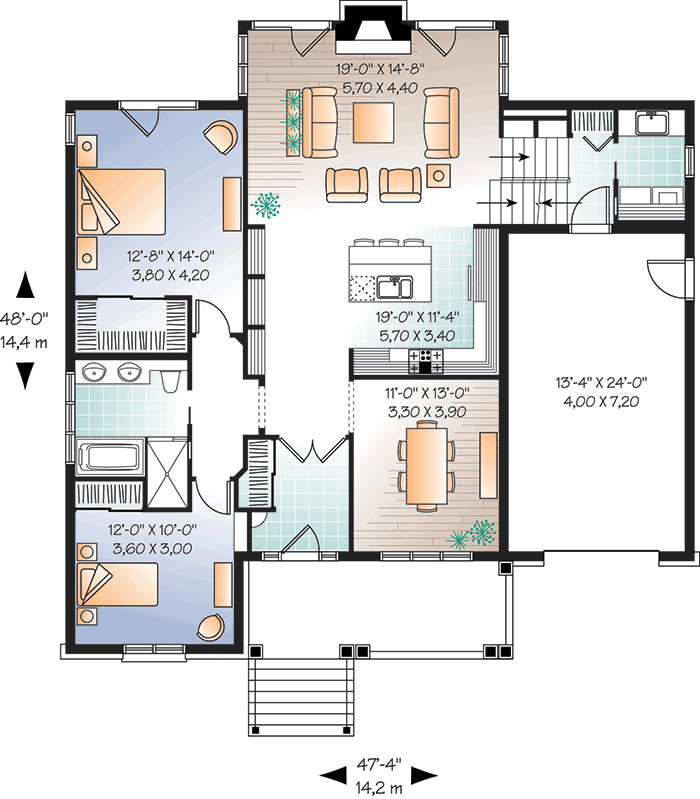

Split Level Home Plan with Welcoming Front Porch - 21728DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Split Level Home Plan with Welcoming Front Porch - 21728DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,519 sq. ft.
  • 1st Floor: 1,519 sq. ft.
  • Bonus: 345 sq. ft.
  • Basement Unfinished: 1,519 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 47' 4"
  • Depth: 48' 0"
  • Max ridge height: 31' 3"

Garage

  • Type: Attached
  • Area: 351 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Special features

Plan Collections

Split Level Home Plan with Welcoming Front Porch

  • 1,519

    Heated s.f.

  • 2-3

    Beds

  • 1

    Baths

  • 1-2

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,450
  • 3 Sets + PDF $1,575
  • CAD + PDF - Single-Build $2,050
  • View all purchase option online

About This Plan

  • This split level home plan greets you with its welcoming front porch.
  • Two beds line the left side of the home leaving the main portion open nearly front to back.
  • Stairs go up to a bonus room giving you expansion possibilities.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,519 sq. ft.
  • 1st Floor: 1,519 sq. ft.
  • Bonus: 345 sq. ft.
  • Basement Unfinished: 1,519 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 47' 4"
  • Depth: 48' 0"
  • Max ridge height: 31' 3"

Garage

  • Type: Attached
  • Area: 351 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Truss
