Plan 62624DJ

Split-Level House Plan with Open Layout - 1354 Sq Ft

Heated S.F.
1,354
Beds
3
Baths
2
Stories
1
Cars
2
Tour

Floor Plan

Plan 62624DJ

Main Level
Main Level
Lower Level
Lower Level

Plan 62624DJ

M-F 9am-5pm EST |

1-203-761-8500

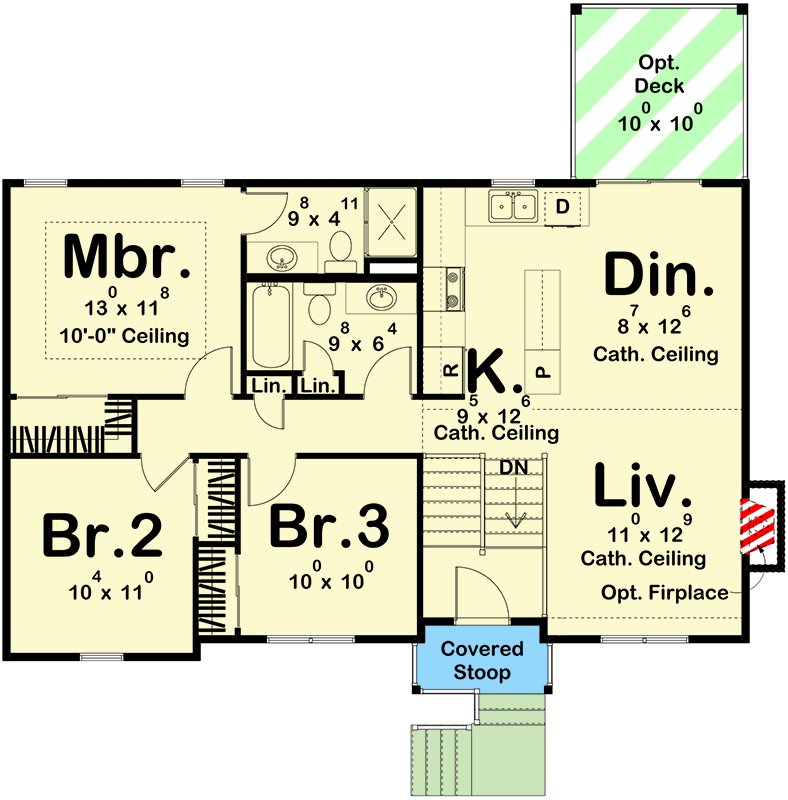

Main Level

Plan 62624DJ: Split-Level House Plan with Open Layout - 1354 Sq Ft - Floor Plan - Main Level - Modern, New American, Ranch, Traditional

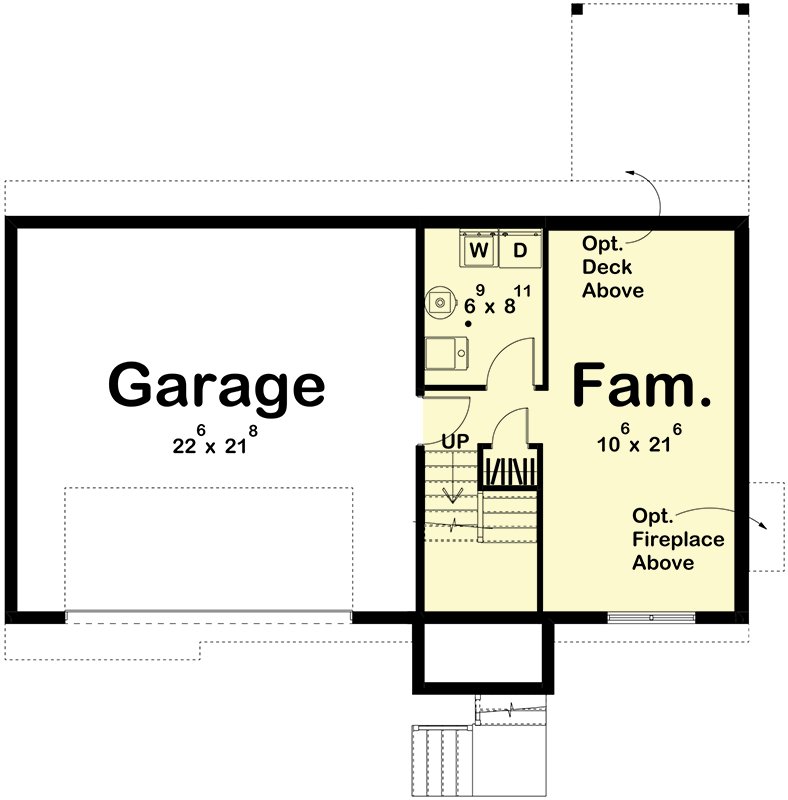

Lower Level

Plan 62624DJ: Split-Level House Plan with Open Layout - 1354 Sq Ft - Floor Plan - Lower Level - Modern, New American, Ranch, Traditional

Plan Details

  • This split-level house plan is only 42' wide which makes it an excellent choice for a narrow lot.
  • The garage level holds a laundry room and a family room that adds 258 square feet of living space.
  • A beautiful cathedral ceiling crowns the main living area upstairs so every room feels bigger.
  • Add an optional fireplace in the living room.
  • Sliding glass doors in the dining area take you out to a rear deck.
  • The bedrooms are all on the left side of the home with two bathrooms to serve your family.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,354 sq. ft.

Lower Level

258 sq. ft.

1st Floor

1,096 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

27' 0"

Max Ridge Height

19' 0"

Garage

Type

Drive Under

Area

469 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Architectural Style

Modern

New American

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Split Level

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,354 sq. ft.

Lower Level

258 sq. ft.

1st Floor

1,096 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

27' 0"

Max Ridge Height

19' 0"

Garage

Type

Drive Under

Area

469 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Architectural Style

Modern

New American

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Split Level

Plan Collections

Photo Gallery
