Plan 22171SL

Split-Level Traditional Home Plan with Mudroom

Heated S.F.
2,156
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 22171SL

Main Level
Main Level
Lower Level
Lower Level

Plan 22171SL

M-F 9am-5pm EST |

1-203-761-8500

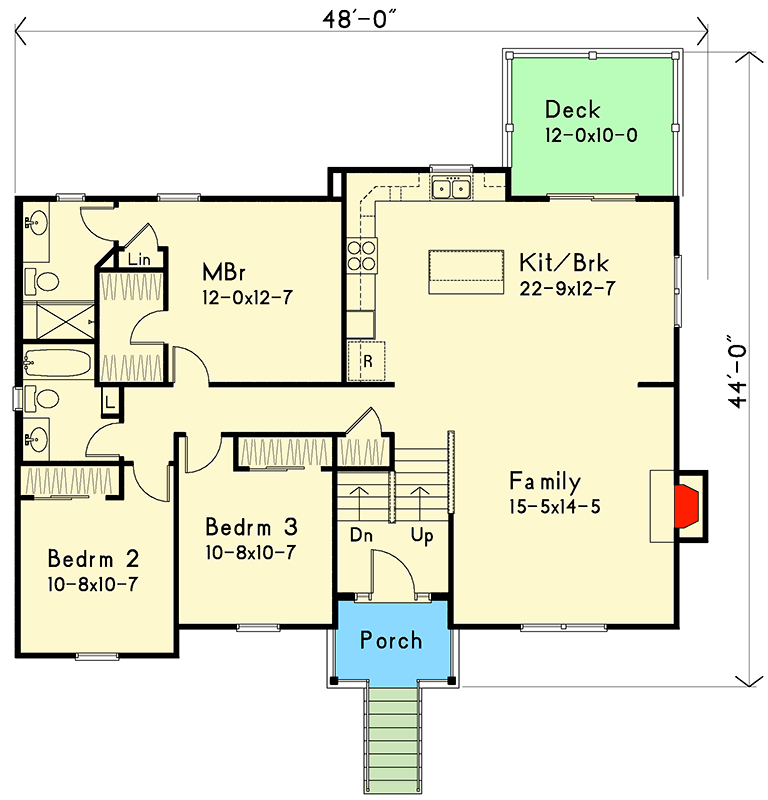

Main Level

Plan 22171SL: Split-Level Traditional Home Plan with Mudroom - Floor Plan - Main Level - Traditional

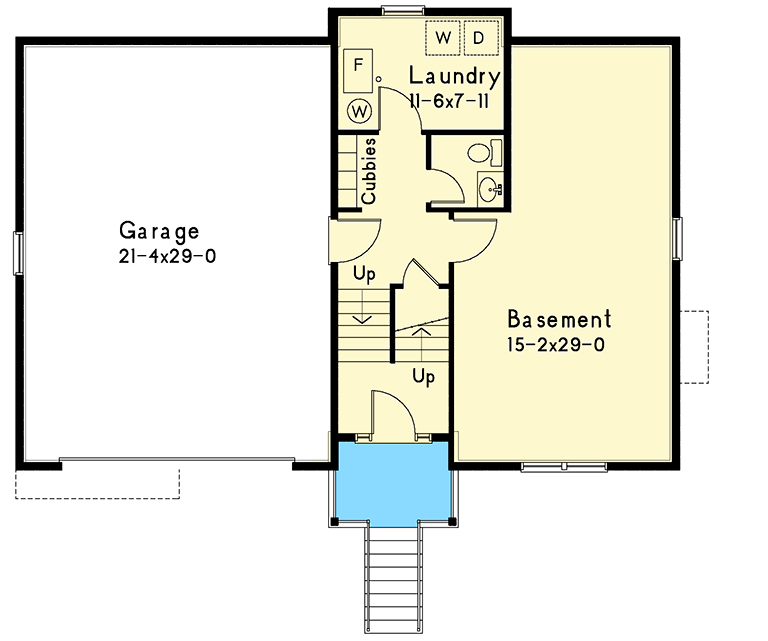

Lower Level

Plan 22171SL: Split-Level Traditional Home Plan with Mudroom - Floor Plan - Lower Level - Traditional

Plan Details

  • This Traditional home plan presents a split-level foyer that leads down to the ground level garage and recreation room, or up to the main living area.
  • The family room features a warm fireplace and opens to the kitchen and dining area. A prep island anchors the space and sliding doors lead to the perfect grilling deck.
  • Retreat to the master bedroom to find a walk-in closet, full bath, and linen closet.
  • Bedrooms 2 and 3 are identical in size and can be found across the hall, next to a shared bath.
  • Step inside from the double garage to find a mudroom and powder bath next to the laundry room. The 15' by 29' basement provides a flexible space to serve as a playroom, office, or home theater.
  • Related Plan: Get an alternate lower level layout with house plan 22170SL.

What's Included

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,156 sq. ft.

Lower Level

734 sq. ft.

1st Floor

1,422 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

48' 0"

Depth

44' 0"

Max Ridge Height

25' 7"

Garage

Type

Attached, Drive Under

Area

618 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Home Theater

Master Suite - 1st Floor

Mudroom

Playroom

Split Level

Plan Collections

Split Level House Plans
