Plan 59065ND Split Level with Privacy

1,680 3 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Split Level with Privacy

Plan 59065ND

  • 1,680

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Your dinner parties are certain to be successful in this split bedroom home plan.
  • The expansive great room with gorgeous brick fireplace aids in creating the perfect ambiance for an evening of entertaining.
  • The vaulted ceiling heightens the majestic feeling in the dining room and kitchen area.
  • When your guests leave, retreat to your master suite bathroom complete with corner whirlpool tub and glass shower, or enjoy private access to your covered porch.
  • The children will enjoy their own privacy with bedrooms on the other side of the home.
  • Related Plan: For an alternate exterior with stone and brick facing, see house plan 59399ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

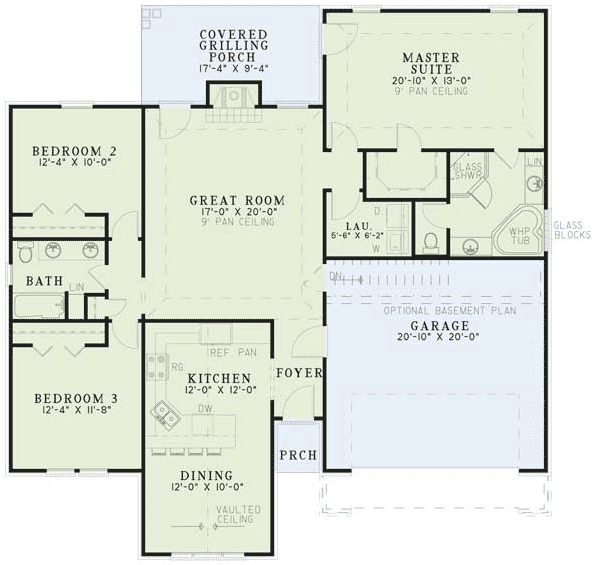

Split Level with Privacy - 59065ND floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,680 sq. ft.
  • 1st Floor: 1,680 sq. ft.
  • Entry: 73 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 51' 6"
  • Depth: 52' 4"
  • Max ridge height: 18' 11"

Garage

  • Type: Attached
  • Area: 417 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Split Level with Privacy

  • 1,680

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $800
  • 5 Sets $900
  • 5 Sets + PDF $1,150
  • PDF - Unlimited Build $1,500
  • CAD Unlimited + PDF $1,600
  • View all purchase option online

About This Plan

  • Your dinner parties are certain to be successful in this split bedroom home plan.
  • The expansive great room with gorgeous brick fireplace aids in creating the perfect ambiance for an evening of entertaining.
  • The vaulted ceiling heightens the majestic feeling in the dining room and kitchen area.
  • When your guests leave, retreat to your master suite bathroom complete with corner whirlpool tub and glass shower, or enjoy private access to your covered porch.
  • The children will enjoy their own privacy with bedrooms on the other side of the home.
  • Related Plan: For an alternate exterior with stone and brick facing, see house plan 59399ND.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,680 sq. ft.
  • 1st Floor: 1,680 sq. ft.
  • Entry: 73 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 51' 6"
  • Depth: 52' 4"
  • Max ridge height: 18' 11"

Garage

  • Type: Attached
  • Area: 417 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
Plan 59065ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/59065ND
|
