Sprawling 4-Bed Home Plan with Wraparound Porch and Game Room

Plan 36687TX

  • 6,642

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • This sprawling 4-bedroom home plan delivers a variety of outdoor living spaces on each level connected by spiral staircases.
  • Tall ceilings crown the family room, which hosts one of the three fireplaces, and opens to the kitchen where an oversized island includes a deep-bowl sink and eating bar for casual meals.
  • The master suite enjoys a sitting nook with access to a private patio, fitness room, and deluxe ensuite with an enormous wardrobe.
  • A game room and guest suite consume the right side of the main level, while the remaining two bedroom suites can be found upstairs.
  • Other notable features includes a study, dedicated storage in the garage, steel shelter, and dog room attached to the laundry room.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

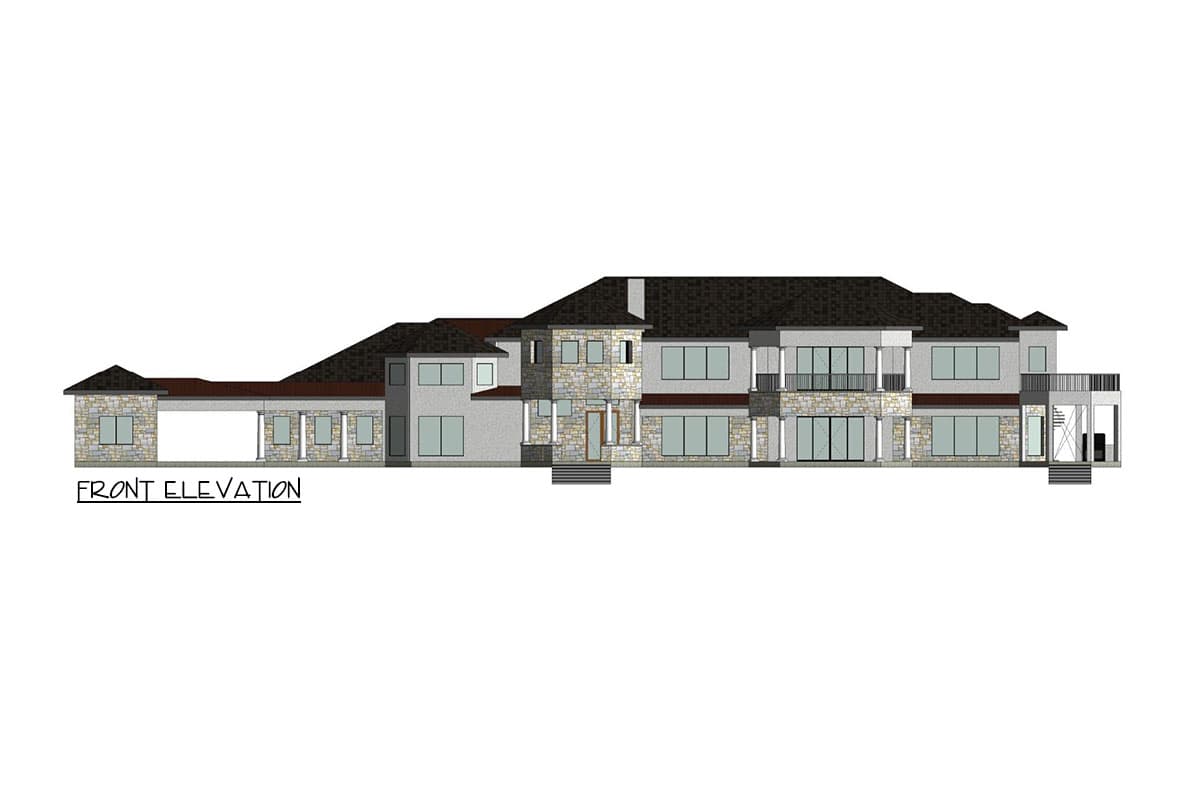

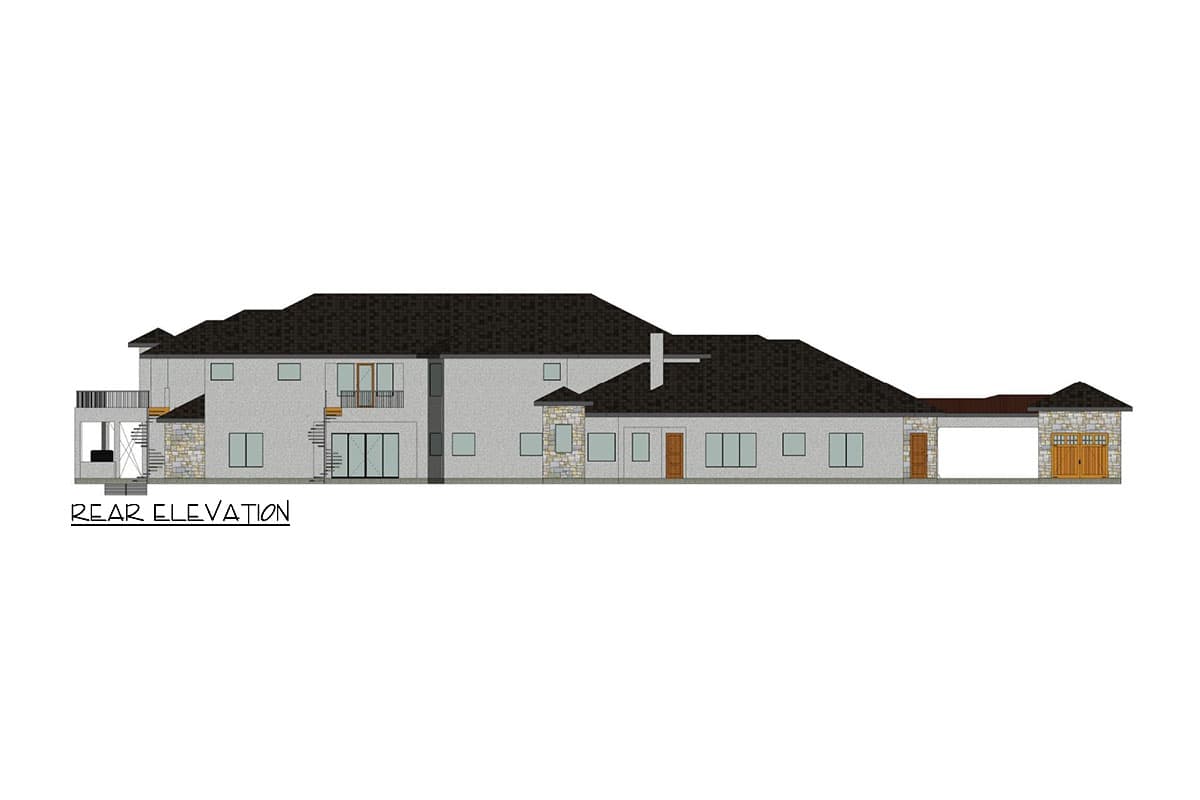

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

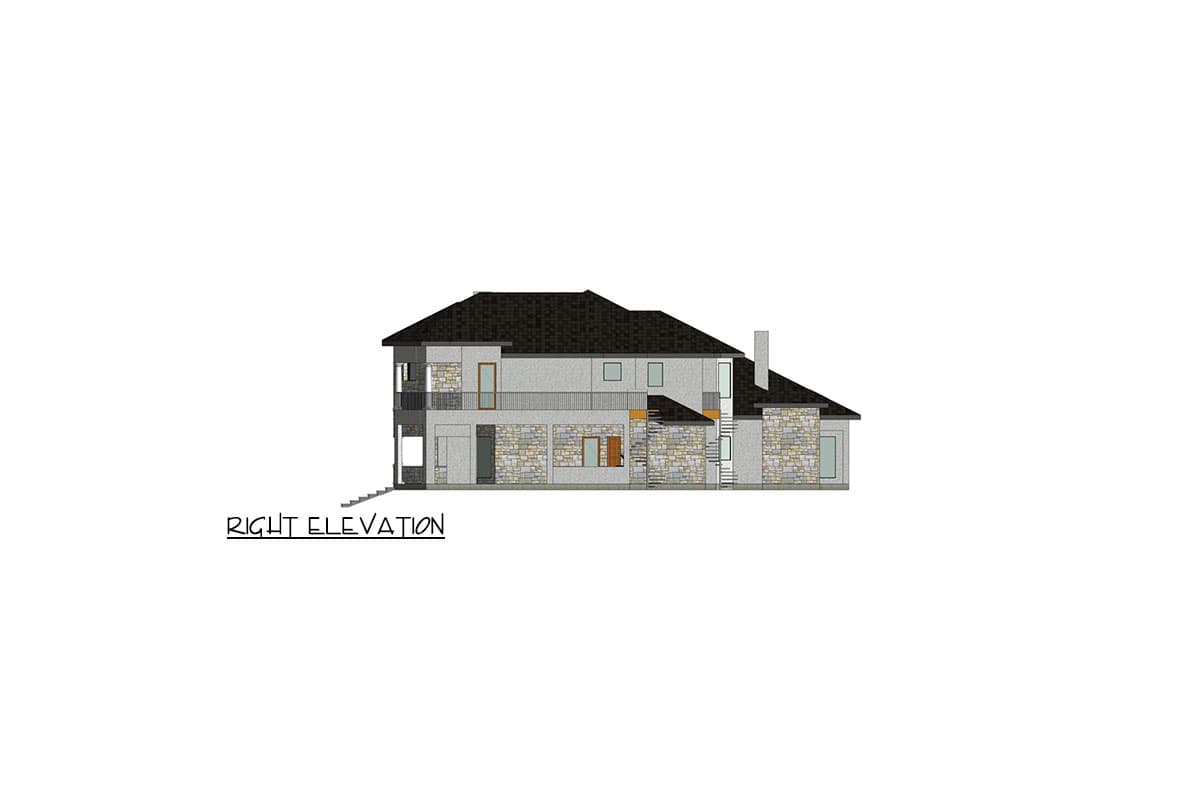

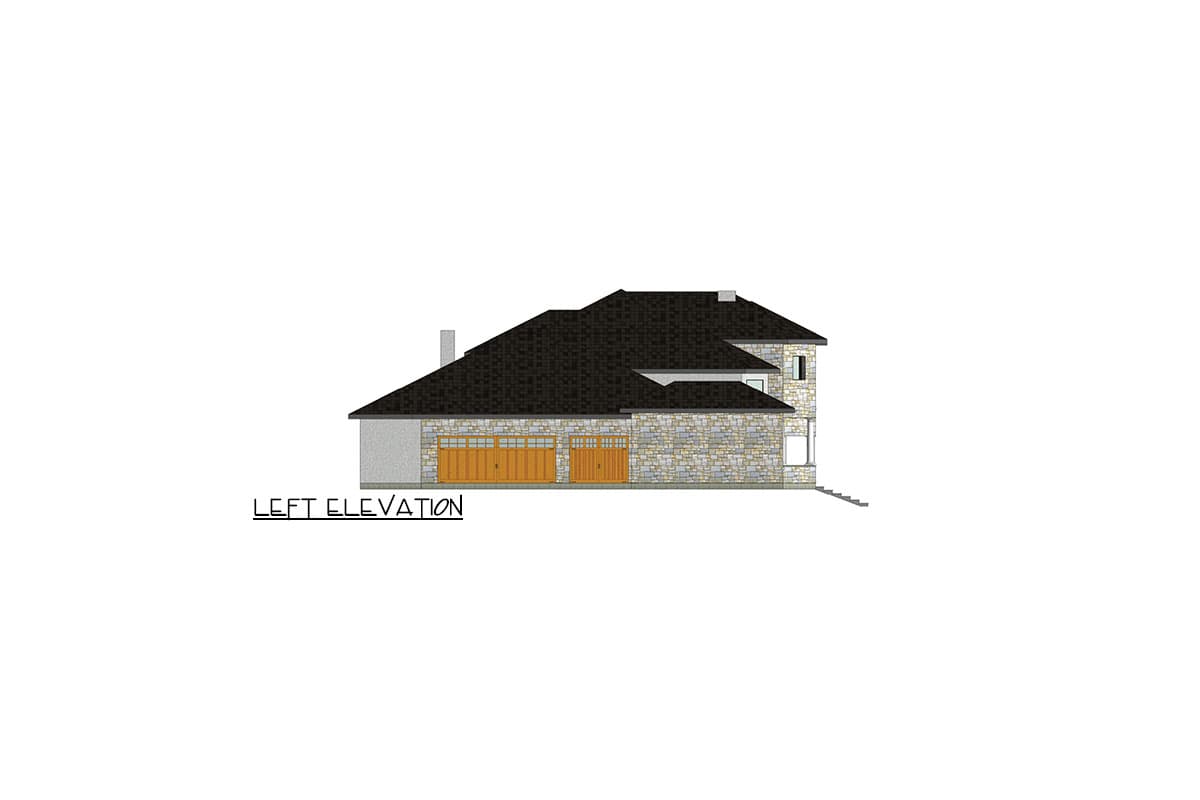

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

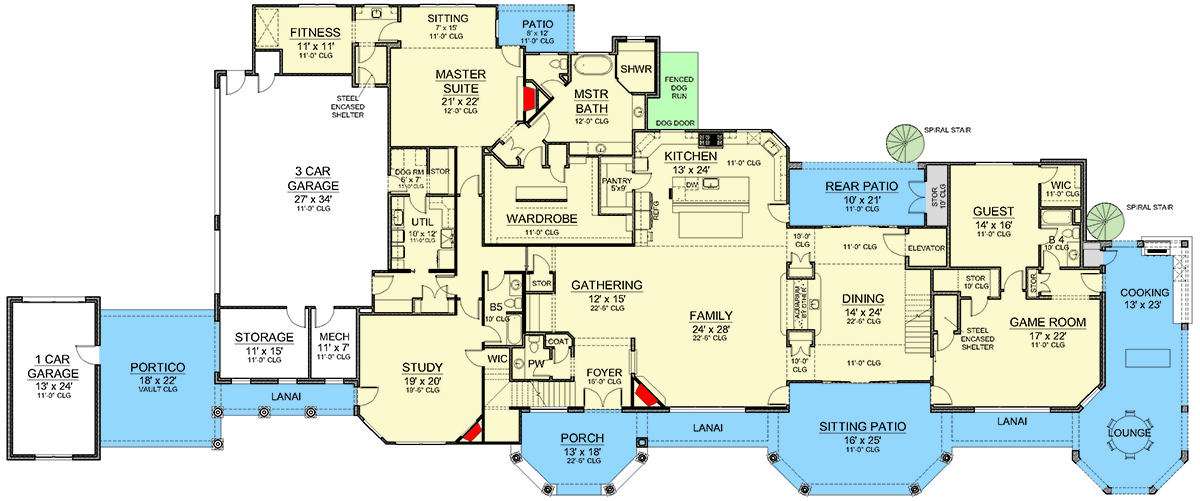

Sprawling 4-Bed Home Plan with Wraparound Porch and Game Room - 36687TX floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

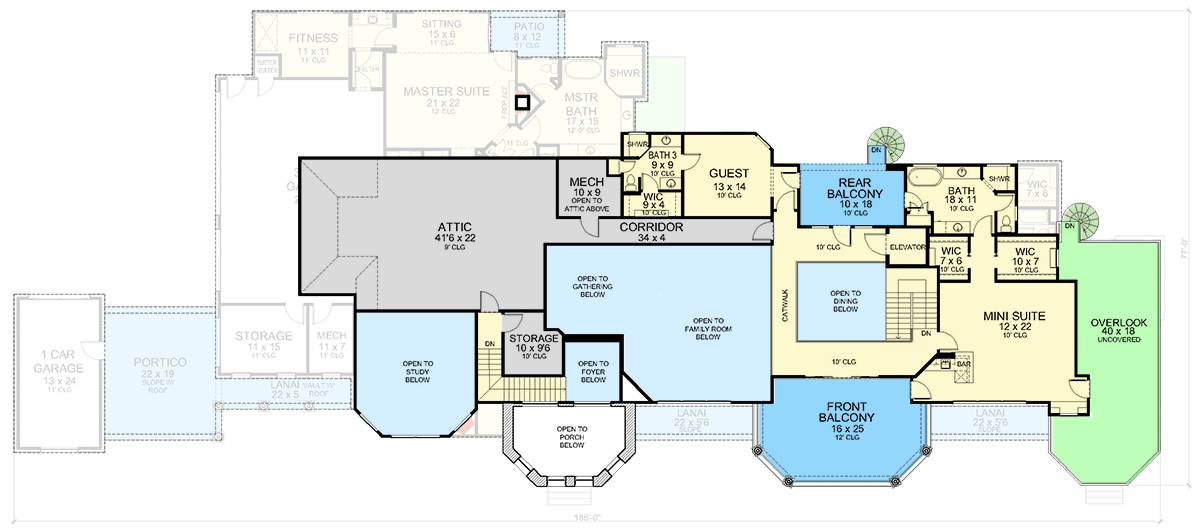

Sprawling 4-Bed Home Plan with Wraparound Porch and Game Room - 36687TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,642 sq. ft.
  • 1st Floor: 5,359 sq. ft.
  • 2nd Floor: 1,283 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 186' 0"
  • Depth: 77' 0"
  • Max ridge height: 33' 10"

Garage

  • Type: Attached
  • Area: 1402 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear, Side

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"

Architectural Style

Special features

Plan Collections

Sprawling 4-Bed Home Plan with Wraparound Porch and Game Room

  • 6,642

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $2,860
  • 5 Sets $3,060
  • CAD + PDF - Single Build $4,290
  • View all purchase option online

About This Plan

  • This sprawling 4-bedroom home plan delivers a variety of outdoor living spaces on each level connected by spiral staircases.
  • Tall ceilings crown the family room, which hosts one of the three fireplaces, and opens to the kitchen where an oversized island includes a deep-bowl sink and eating bar for casual meals.
  • The master suite enjoys a sitting nook with access to a private patio, fitness room, and deluxe ensuite with an enormous wardrobe.
  • A game room and guest suite consume the right side of the main level, while the remaining two bedroom suites can be found upstairs.
  • Other notable features includes a study, dedicated storage in the garage, steel shelter, and dog room attached to the laundry room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,642 sq. ft.
  • 1st Floor: 5,359 sq. ft.
  • 2nd Floor: 1,283 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 186' 0"
  • Depth: 77' 0"
  • Max ridge height: 33' 10"

Garage

  • Type: Attached
  • Area: 1402 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear, Side

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"
