Plan 430073LY Sprawling Contemporary Ranch with Angled 3-Car Garage

3,734 3 4 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Sprawling Contemporary Ranch with Angled 3-Car Garage

Plan 430073LY

  • 3,734

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • Sharp angles and a low-pitched roof add to the modern vibe offered with this sprawling, Contemporary Ranch house plan. A 3-car garage extends from the rear corner at an angle, providing privacy to the outdoor living space.
  • In the center of the design, discover an open and airy communal space including a living room with a fireplace, dining area, and spacious kitchen with an oversized island.
  • The serene master suite is set apart from the family bedrooms and includes a 5-fixture ensuite with his and hers closets.
  • Movie nights just got better in this secluded media room, which includes a storage closet and full bath.
  • Cozy up by the fire on the covered porch, where you will also find a built-in grill for BBQs with family and friends.

This designer's plans consist of the following:
  • Cover sheet
  • Roof plan
  • Floor plan

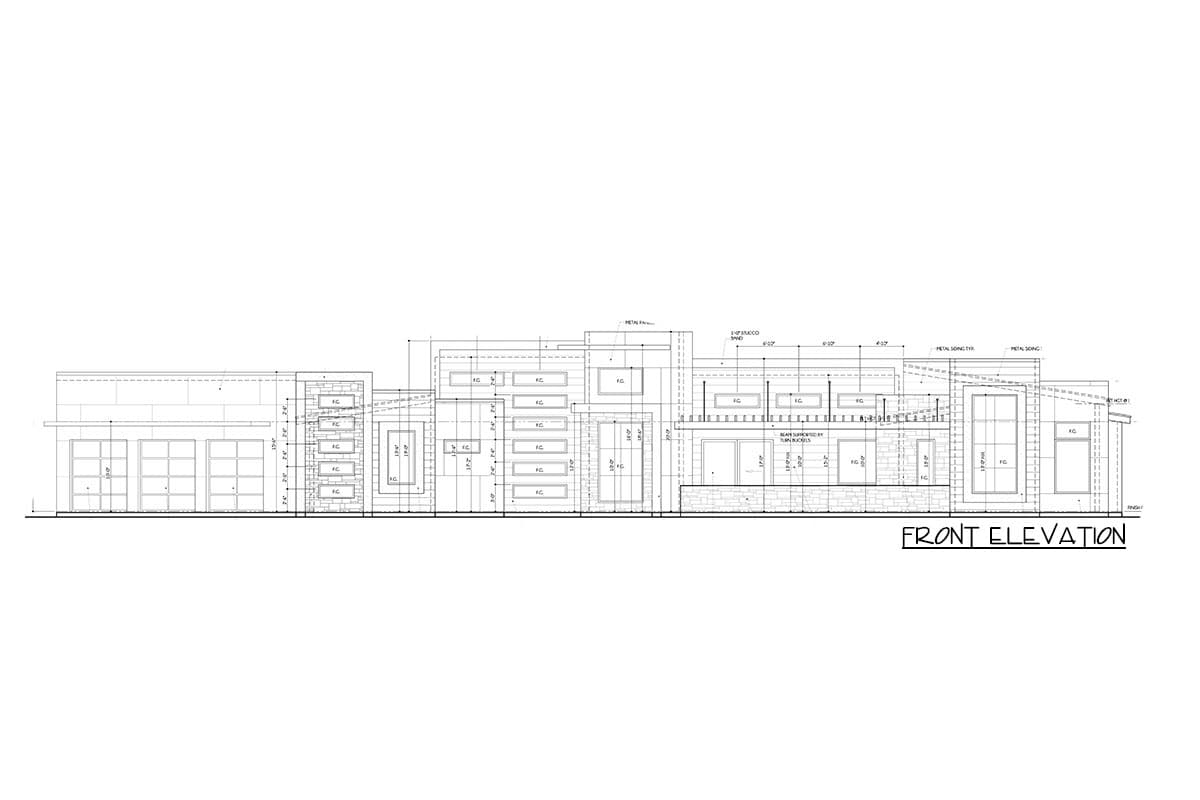

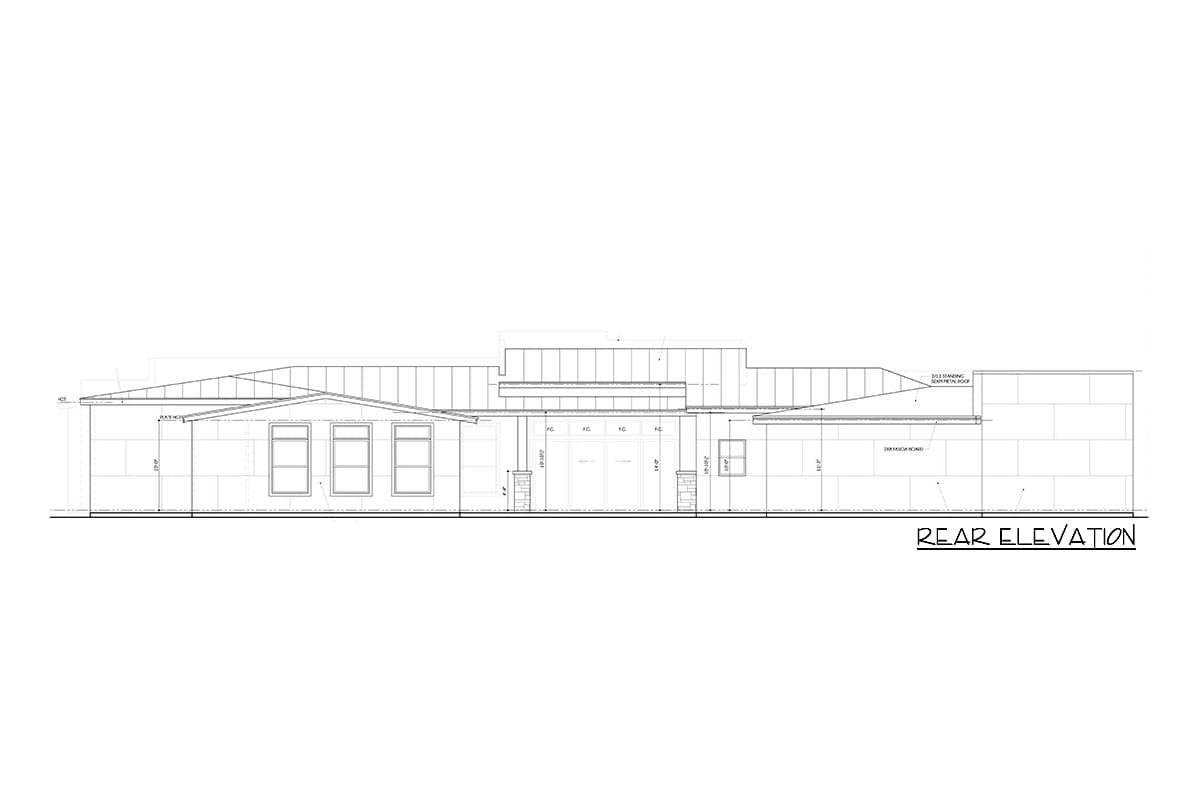

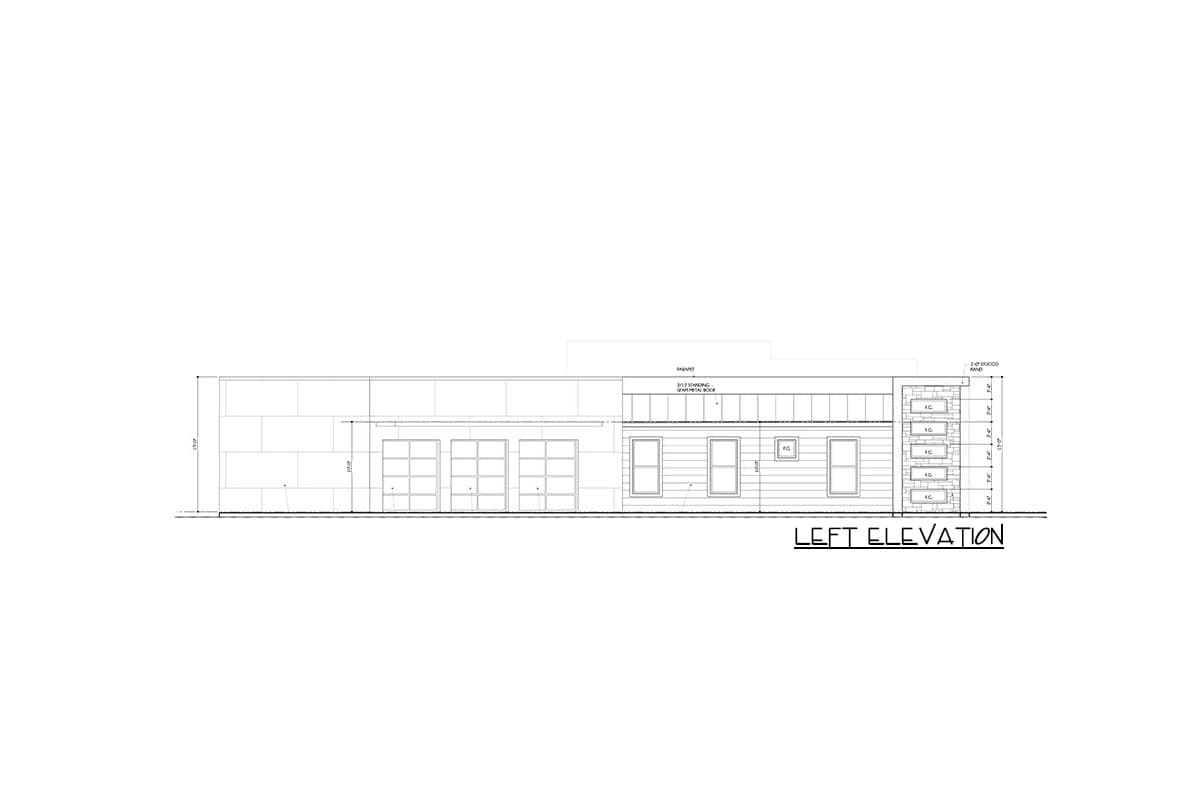

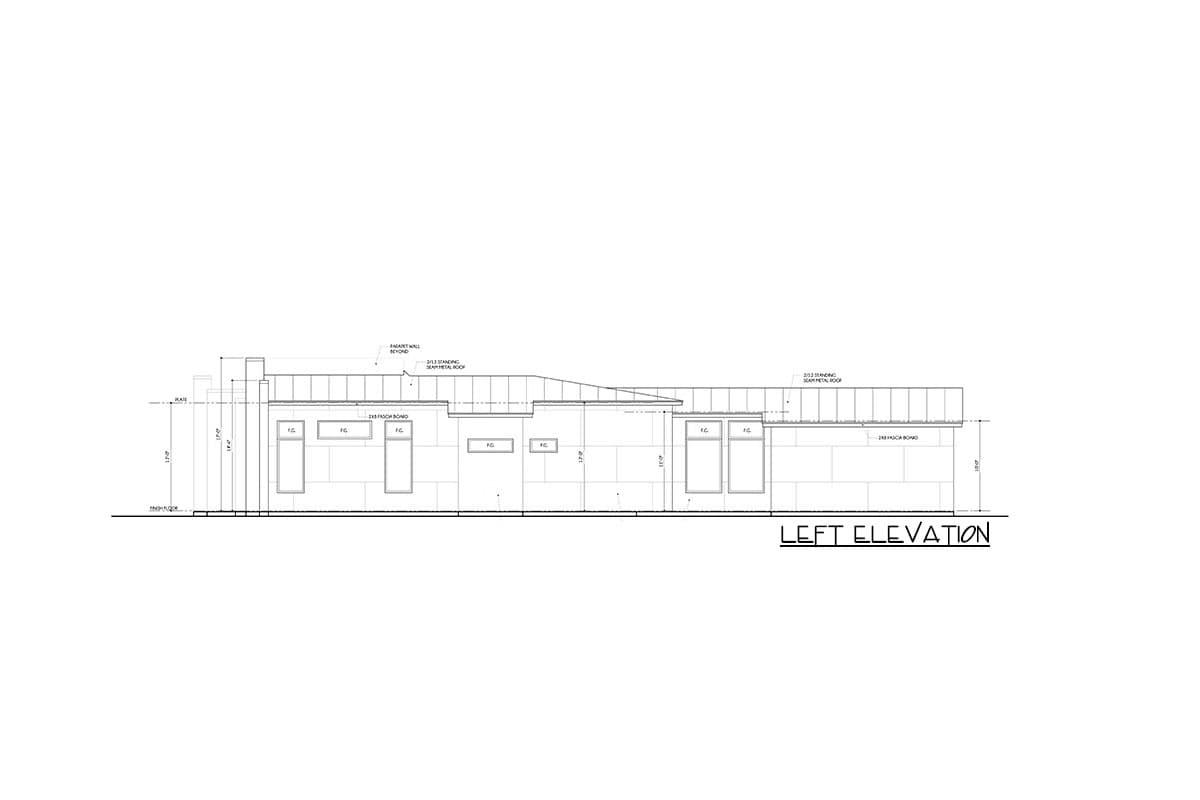

  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

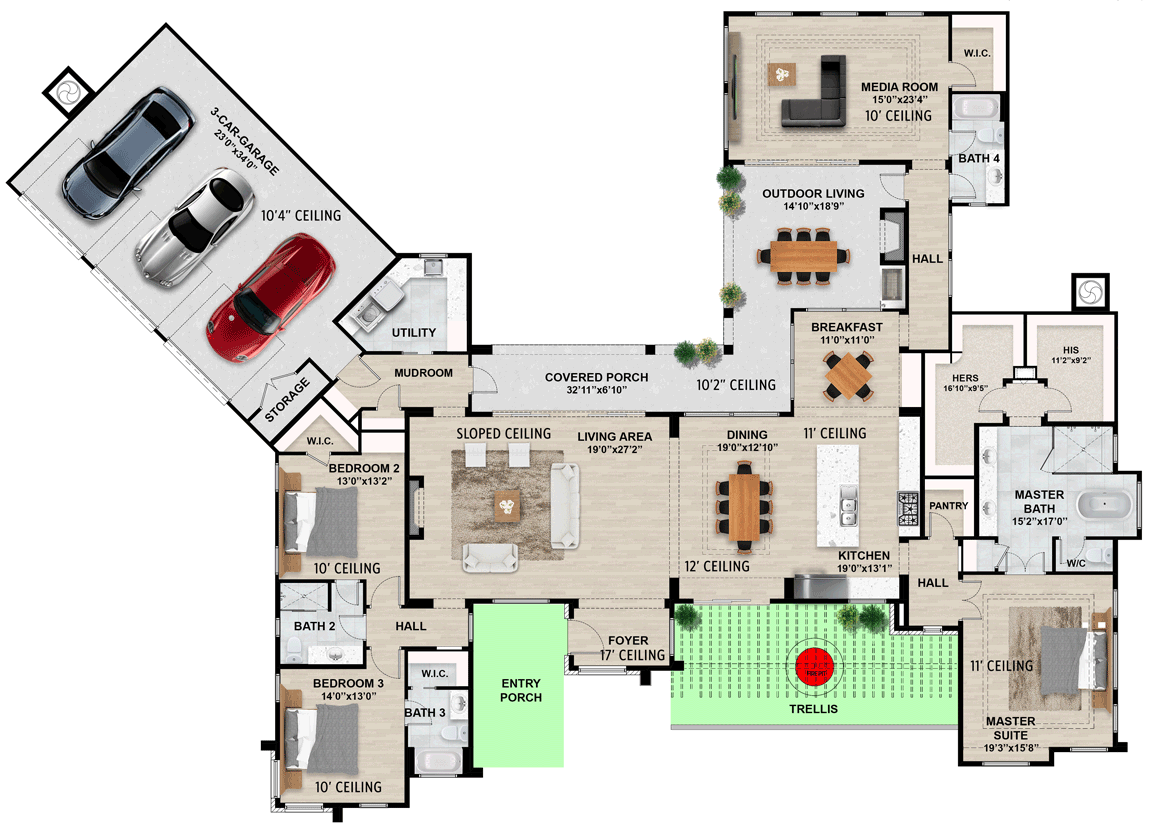

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Sprawling Contemporary Ranch with Angled 3-Car Garage - 430073LY floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,734 sq. ft.
  • 1st Floor: 3,734 sq. ft.
  • Porch, Rear: 260 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 118' 8"
  • Depth: 78' 8"

Garage

  • Type: Attached
  • Area: 875 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Roof Details

  • Primary Pitch: 2 on 12

Architectural Style

Special features

Plan Collections

Sprawling Contemporary Ranch with Angled 3-Car Garage

  • 3,734

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD+PDF+Study Set $4,668
  • View all purchase option online

About This Plan

  • Sharp angles and a low-pitched roof add to the modern vibe offered with this sprawling, Contemporary Ranch house plan. A 3-car garage extends from the rear corner at an angle, providing privacy to the outdoor living space.
  • In the center of the design, discover an open and airy communal space including a living room with a fireplace, dining area, and spacious kitchen with an oversized island.
  • The serene master suite is set apart from the family bedrooms and includes a 5-fixture ensuite with his and hers closets.
  • Movie nights just got better in this secluded media room, which includes a storage closet and full bath.
  • Cozy up by the fire on the covered porch, where you will also find a built-in grill for BBQs with family and friends.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,734 sq. ft.
  • 1st Floor: 3,734 sq. ft.
  • Porch, Rear: 260 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 118' 8"
  • Depth: 78' 8"

Garage

  • Type: Attached
  • Area: 875 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 2 on 12
