Plan 76028BS
Sprawling Mediterranean House Plan Geared Towards Outdoor Living
Heated S.F.
4,155
Beds
4
Baths
4.5
Stories
1
Cars
4
Flyer
What's Included
Plan Details
  • The center of everyday living greets you upon entering this 4-bed, Mediterranean home, featuring an open-concept layout and a retractable wall allowing for an indoor / outdoor lifestyle. A study just off the foyer provides a space for peace and solitude.
  • An oversized kitchen island offers seating for casual meals and a nearby walk-in pantry provides ample storage.
  • The expansive covered lanai features a fireplace and an outdoor kitchen for warmer seasons.
  • The left wing of the home is where the master suite resides, which showcases an elegant tray ceiling, a sitting area, access to the back lanai, and dual closets. The luxurious ensuite includes a custom shower with two shower heads, a garden tub, and a commode room.
  • On the opposite side of the home, discover bedrooms 2 and 3, each with their own full bath. A fourth bedroom neighbors a full bath, with sliding doors to the back lanai.
  • A 2-stall garage sits on either side of the covered, front porch.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.
What's Included
Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Sprawling Mediterranean House Plan Geared Towards Outdoor Living

  • 4,155

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 4

    Car garage

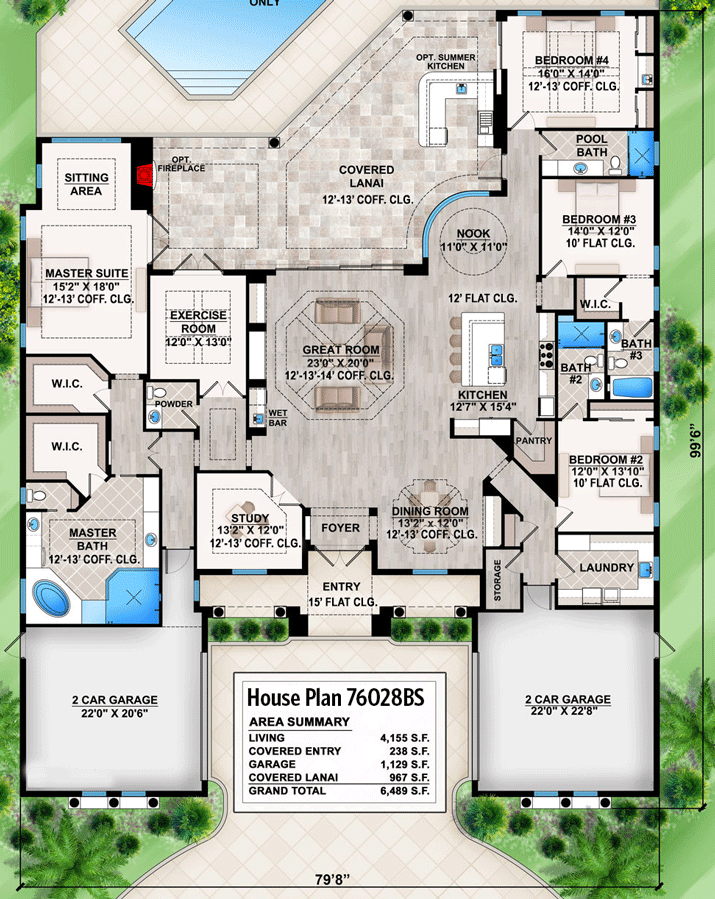

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 4,155 sq. ft.
  • 1st Floor: 4,155 sq. ft.

Dimensions

  • Width: 79' 8"
  • Depth: 99' 6"
  • Max ridge height: 28' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1129 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Sprawling Mediterranean House Plan Geared Towards Outdoor Living

  • 4,155

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Sprawling Mediterranean House Plan Geared Towards Outdoor Living

  • 4,155

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 4,155 sq. ft.
  • 1st Floor: 4,155 sq. ft.

Dimensions

  • Width: 79' 8"
  • Depth: 99' 6"
  • Max ridge height: 28' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1129 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

    Main Level
