Sprawling Mid Century Modern House Plan with Over 2,700 Square Feet of Living Space

Plan 915058CHP

  • 2,744

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This sprawling Mid Century Modern house plan gives you one-level living at its finest with a total of 2,744 square feet of living space.
  • The 3-car garage extends from the front of the home creating a motor courtyard for friends and family. Inside, clerestory windows line the family room to maximize access to natural light.
  • Move easily throughout the island kitchen and adjoining dining nook, and discover a large range and walk-in pantry, while nearby glass sliders invite you to spend time outdoors on the covered porch.
  • Separated for the utmost privacy, the master suite lines the left side of the design with a walk-in closet that connects to the laundry room.
  • Bedrooms 2 and 3 can be found along the opposite side and a home office and exercise space round out the functional layout.

Plan includes the following elements:

  • All four elevations
  • Detailed floor plans
  • Roof plans
  • Foundation plans
  • Electrical schematics
  • Cross section(s)
  • Rafter plan and ceiling joist plans
  • Interior elevations
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

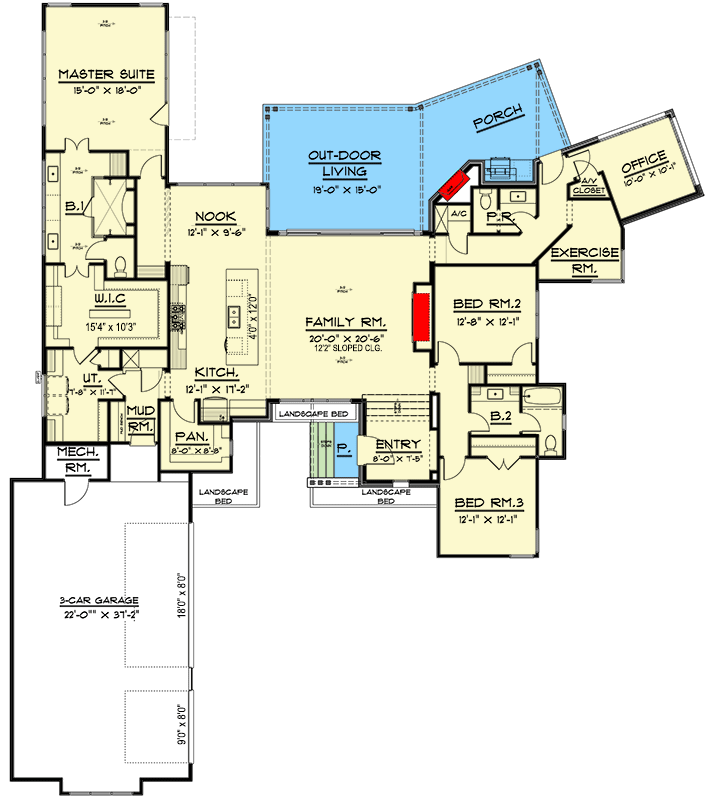

Sprawling Mid Century Modern House Plan with Over 2,700 Square Feet of Living Space - 915058CHP floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,744 sq. ft.
  • 1st Floor: 2,744 sq. ft.
  • Storage: 39 sq. ft.
  • Porch, Combined: 602 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 86' 9"
  • Depth: 99' 1"
  • Max ridge height: 18' 7"

Garage

  • Type: Attached
  • Area: 897 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0"

Roof Details

  • Primary Pitch: 12 on 3
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Sprawling Mid Century Modern House Plan with Over 2,700 Square Feet of Living Space

  • 2,744

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets $1,445
  • 5 Sets + PDF $1,545
  • CAD+PDF - Single-Build $2,495
  • View all purchase option online

About This Plan

  • This sprawling Mid Century Modern house plan gives you one-level living at its finest with a total of 2,744 square feet of living space.
  • The 3-car garage extends from the front of the home creating a motor courtyard for friends and family. Inside, clerestory windows line the family room to maximize access to natural light.
  • Move easily throughout the island kitchen and adjoining dining nook, and discover a large range and walk-in pantry, while nearby glass sliders invite you to spend time outdoors on the covered porch.
  • Separated for the utmost privacy, the master suite lines the left side of the design with a walk-in closet that connects to the laundry room.
  • Bedrooms 2 and 3 can be found along the opposite side and a home office and exercise space round out the functional layout.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,744 sq. ft.
  • 1st Floor: 2,744 sq. ft.
  • Storage: 39 sq. ft.
  • Porch, Combined: 602 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 86' 9"
  • Depth: 99' 1"
  • Max ridge height: 18' 7"

Garage

  • Type: Attached
  • Area: 897 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0"

Roof

  • Primary Pitch: 12 on 3
  • Framing Type: Stick
Plan 915058CHP
View this and more for this plan by visiting www.architechtecturaldesigns.com/915058CHP
|
