Plan 264220KMD

Stately 4-Bedroom House Plan with First-Floor Master and Gourmet Outdoor Kitchen

Name: Plan 264220KMD: Stately 4-Bedroom House Plan with First-Floor Master and Gourmet Outdoor Kitchen
Brand: Architectural Designs
SKU: 264220KMD
Price: 3277.0 USD
Availability: InStock

Heated S.F.

3,759

Beds

Baths

4.5

Stories

Cars

Floor Plan

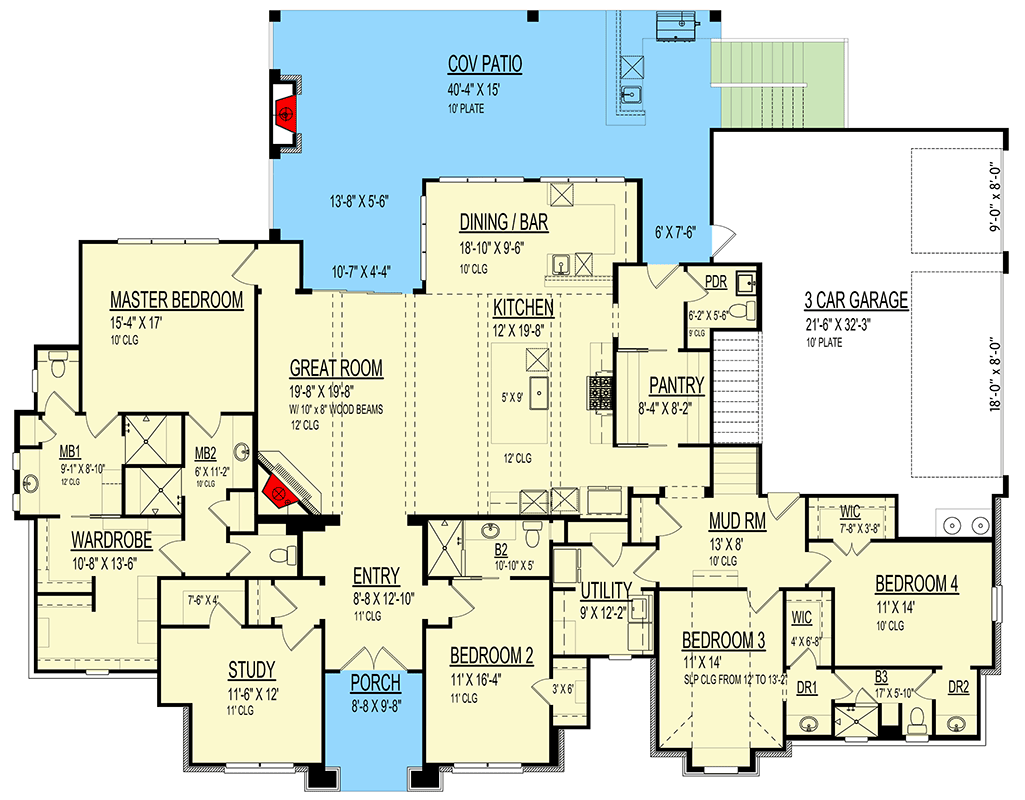

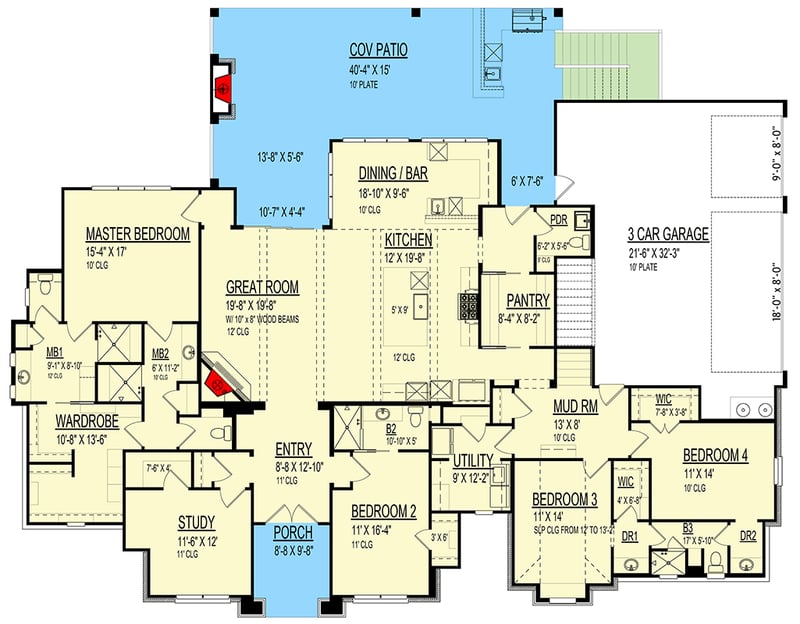

Main Level

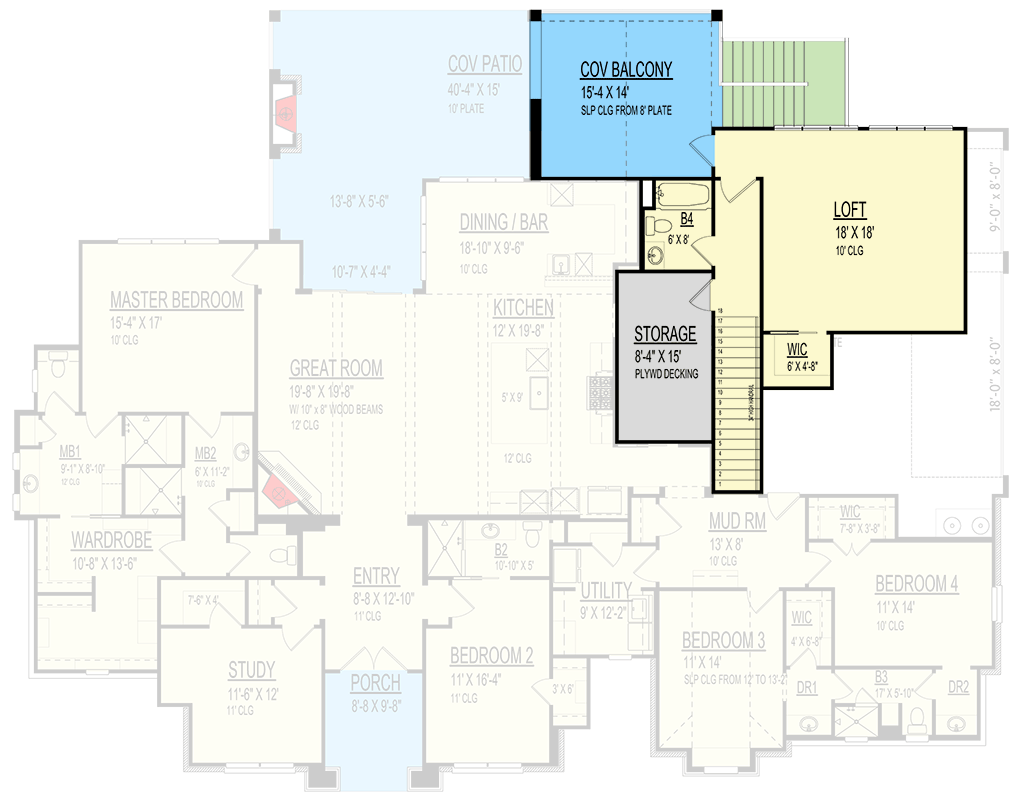

2nd Floor

Plan Details

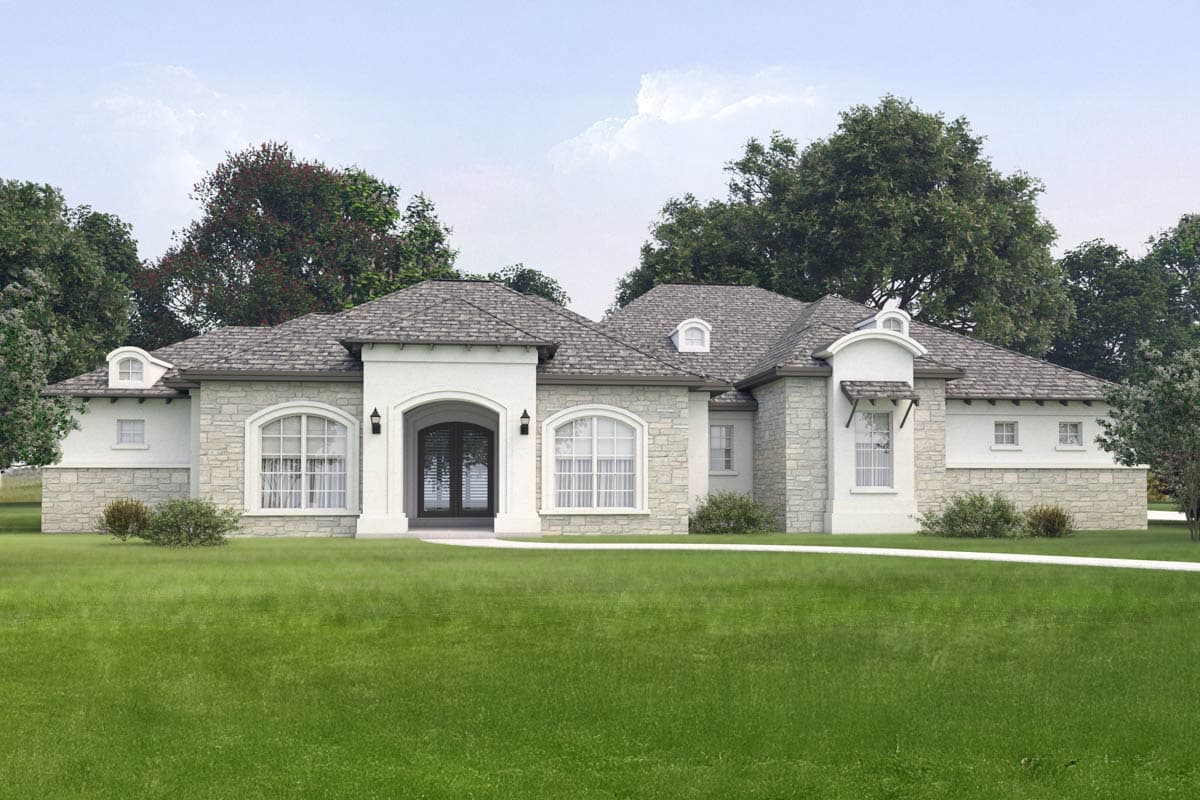

This stately 3,759 sq. ft. Traditional house plan offers 4 bedrooms, 4.5 baths, and a generous 853 sq. ft. 3-car, side-entry garage, all wrapped in a charming stone and stucco exterior with arched windows.
Step through the grand arched entry from the inviting 99 sq. ft. front porch into a spacious foyer, revealing an immediate sense of openness with sightlines extending to the great room and beyond, while a dedicated study/library offers a quiet retreat near the entrance.
The heart of the home unfolds into an expansive open-concept great room with impressive wood beams, seamlessly flowing into the gourmet kitchen featuring a large island and a butler's walk-in pantry, and further into the elegant dining area with an integrated wet bar, perfect for sophisticated gatherings.
Designed for ultimate comfort, the first-floor master suite is a private sanctuary, boasting a luxurious en-suite bath with two separate vanities, a large soaking tub, a spacious shower, and an expansive walk-in wardrobe, thoughtfully separated from the two additional first-floor bedrooms which share a convenient Jack & Jill bath, while a fourth bedroom enjoys privacy on the opposite side of the home.
Beyond the main living, a practical mudroom connects to the garage, and a dedicated home office provides an ideal space for productivity. Upstairs, a versatile loft overlooks the activities below, accompanied by an additional full bath.
Embrace outdoor living on the sprawling 767 sq. ft. covered patio, complete with an outdoor kitchen and a cozy fireplace, offering an ideal setting for al fresco dining and relaxation, while a private covered balcony on the second floor provides an elevated escape.

What's Included

Foundation Plan: Includes the complete foundation with dimensions, plumbing locations for slabs and reference details for foundation construction. Also includes any specific construction notes or requirements to ensure proper installation. Does not include Structural Engineering stamp due to regional specification and requirements per local conditions. Typically, structural requirements can be obtained by local lumber supplier for little or no cost.

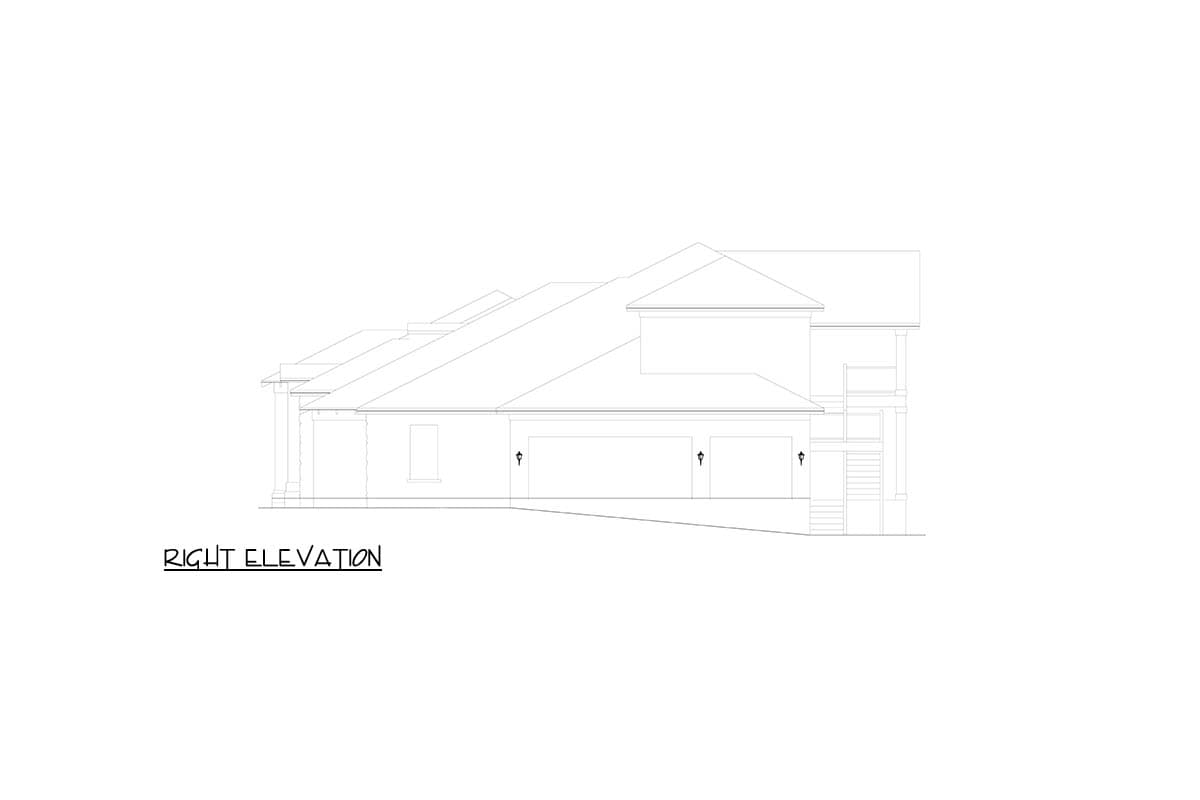

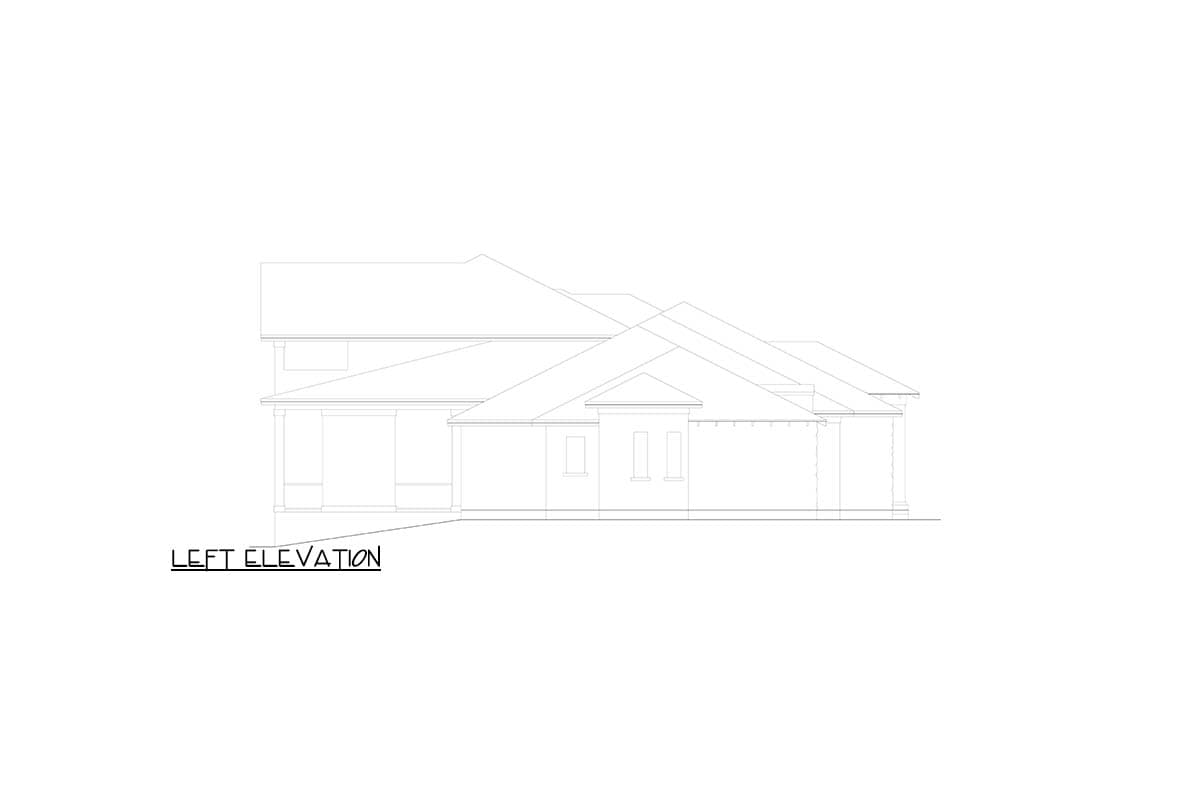

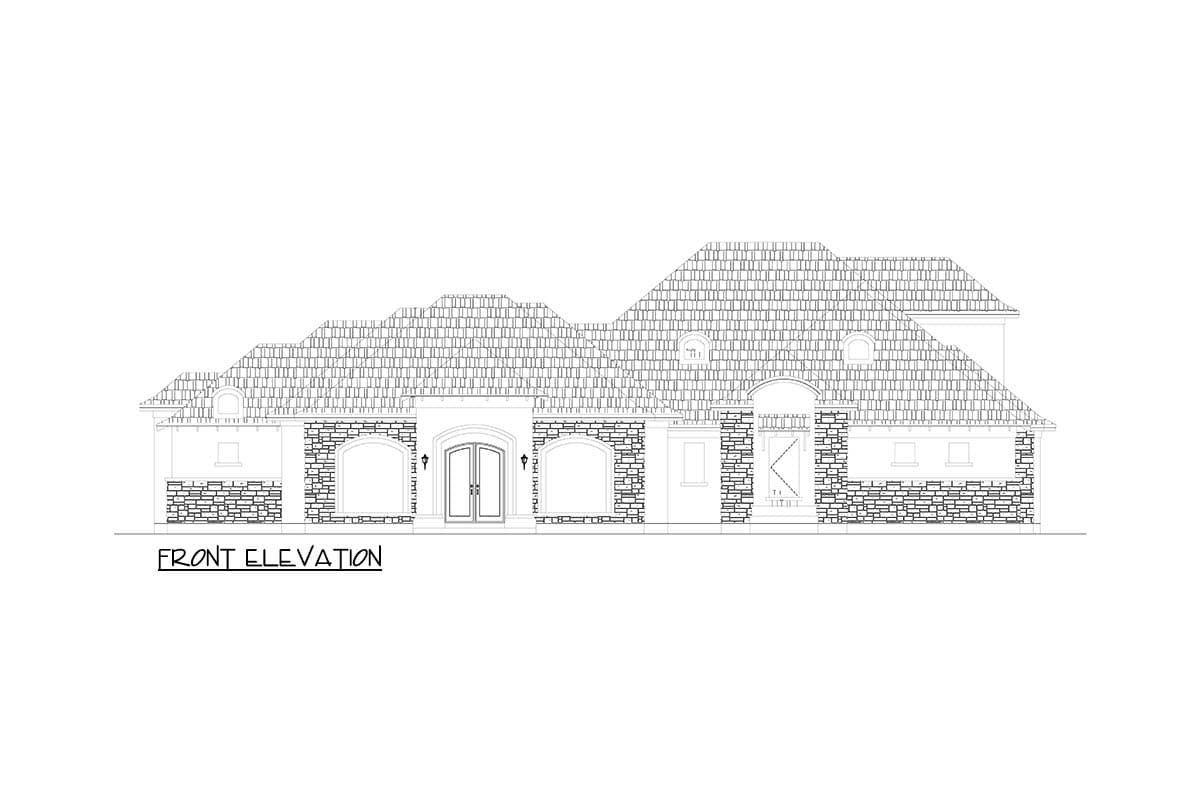

Elevations: Exterior views from all four directions that includes dimensions, height dimensions including finished floor to highest point of the structure. Also includes all special construction notes, finishes and applicable elements that need extra detail to convey the design intent to construct in the field correctly.
Floor Plan(s): Complete with dimensions of wall locations, windows, doors, cabinetry, and special construction elements. Notes including standard and special conditions tailored for the tradesmen in mind. We strive to give your contractor more dimensions than they need.
Roof Plan: Complete with overhang dimensions, plate heights which remove the guesswork of how the roof is properly constructed. Also includes roof pitches, notes for special conditions, roof square footage which is a big help estimating roof materials and reducing job site waste.
Details: All relevant details including Cornice (eave) which are designed directly from each plan "we do not reuse details with each plan." we also include applicable enlarged details which need even more magnification in order to properly explain the design intent.
Interior Elevations: Inside views of the structure, including cabinetry, electrical and any applicable special construction that needs that extra level of detail.
Sections: Also known as a cut through the entire structure. This explains in further detail how the structure is built and properly braced to ensure a safe home. Our practice also includes complete dimensions, notes, and any required special attention needed.
Electrical Plan: Complete with layout and location of lights, switches and plugs. When we include wall plugs, we go beyond the code standards, which gives you more walls to choose to plug up your appliance.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
