Plan 80056PM

Stately Facade

2,731 4 2.5+ 2 2
Pageloader

Stately Facade

Plan 80056PM

  • 2,731

    Heated s.f.

  • 4

    Beds

  • 2.5+

    Baths

  • 2

    Stories

  • 2

    Cars

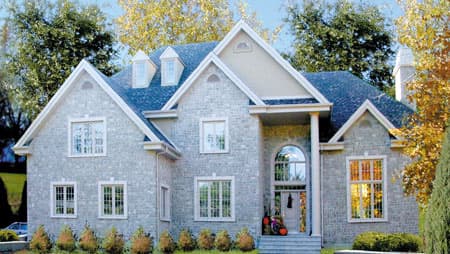

  • Resembling a stately mansion, this house plan is striking with its large windows and elegant facade. This model is 57 feet wide by 40 feet deep and has 2,731 square feet living area as well as a 471 square feet two-car garage.

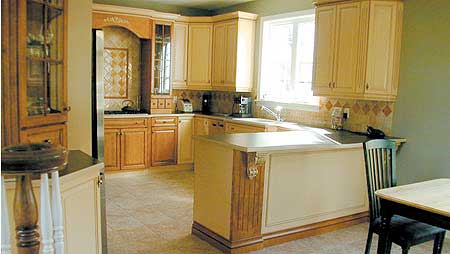

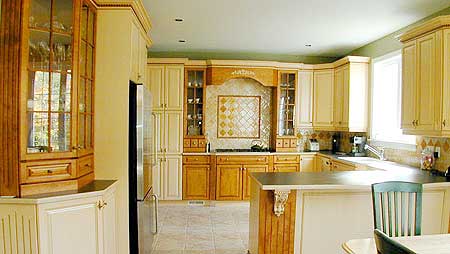

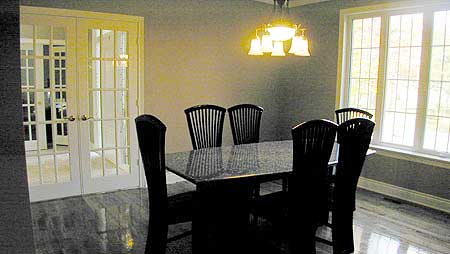

  • The main floor covers 1,299 square feet and includes a den, a reading room, a kitchen, a breakfast nook, a dining room, a powder room, a laundry room, and living room with a fireplace and large French doors that open onto the back terrace.

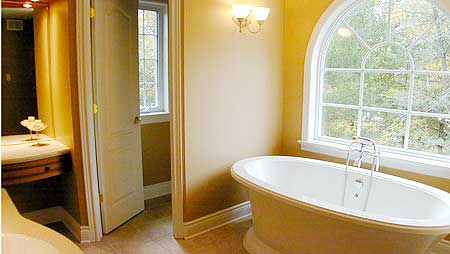

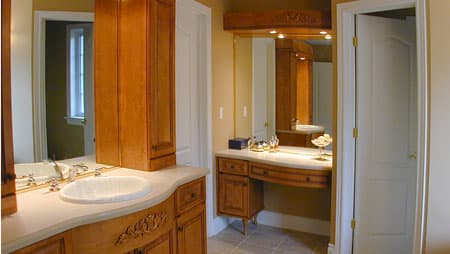

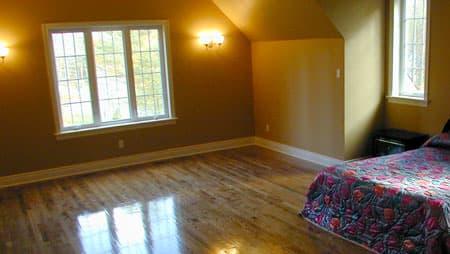

  • The second floor as a living area of 1,432 square feet and includes three bedrooms and a large bathroom, as well as a master bedroom that occupies almost half of the floor's living area with a reading area, a huge private bathroom and an impressive walk-in closet.

Plan sets include the following:

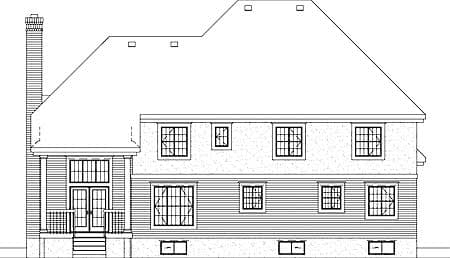

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.
  • **Plans DO NOT include electrical, HVAC or plumbing details (other than the location of plumbing fixtures)**


Floor Plan

Plan details



Stately Facade

  • 2,731

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,135
  • 8 Sets $1,180
  • Reproducible Set $1,335
  • PDF - single-use $1,335
  • CAD $2,010
  • View all purchase option online

About This Plan

  • Resembling a stately mansion, this house plan is striking with its large windows and elegant facade. This model is 57 feet wide by 40 feet deep and has 2,731 square feet living area as well as a 471 square feet two-car garage.
  • The main floor covers 1,299 square feet and includes a den, a reading room, a kitchen, a breakfast nook, a dining room, a powder room, a laundry room, and living room with a fireplace and large French doors that open onto the back terrace.
  • The second floor as a living area of 1,432 square feet and includes three bedrooms and a large bathroom, as well as a master bedroom that occupies almost half of the floor's living area with a reading area, a huge private bathroom and an impressive walk-in closet.

Floor Plans

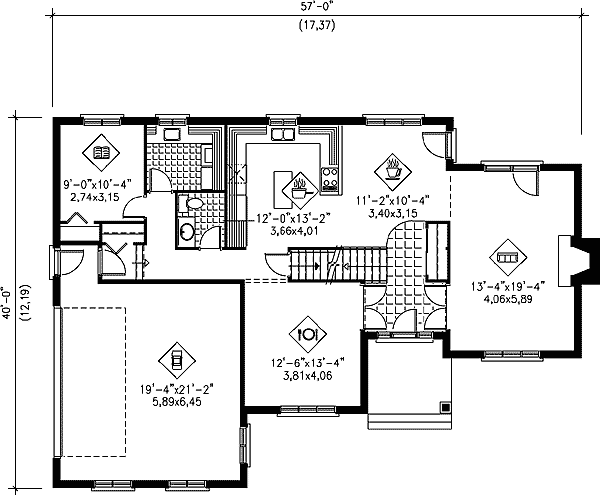

  • Main Level

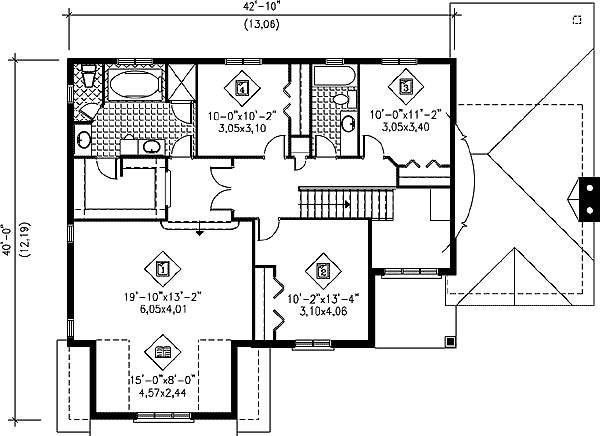

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,731 sq. ft.
  • 1st Floor: 1,299 sq. ft.
  • 2nd Floor: 1,432 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 57' 0"
  • Depth: 40' 0"
  • Max ridge height: 37' 6"

Garage

  • Type: Attached
  • Area: 471 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
