Plan 36133TX Stately Luxury Home Plan

5,889 5 5.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Stately Luxury Home Plan

Plan 36133TX

  • 5,889

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

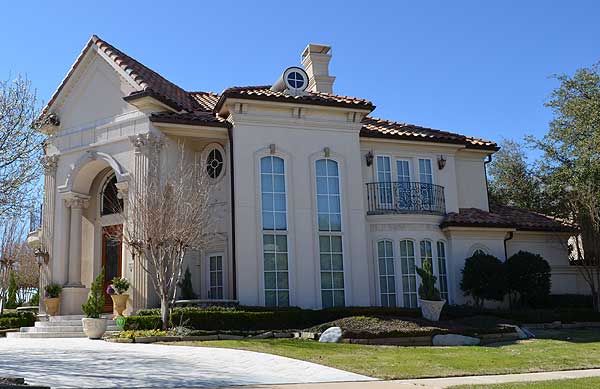

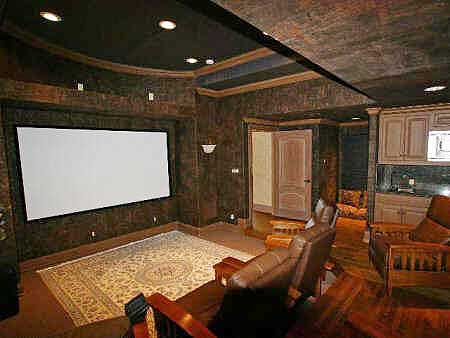

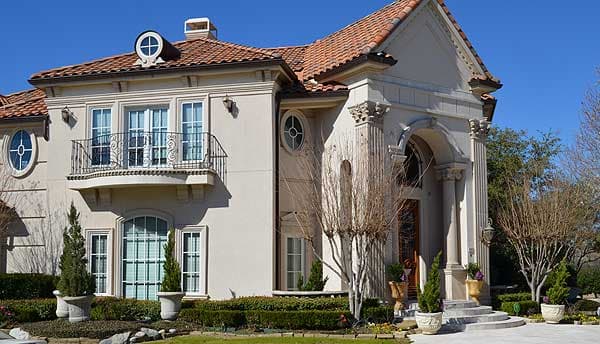

  • Made for entertaining, this European luxury home plan with a classic exterior can accommodate large crowds with both a media room and a spacious game room on the second floor.

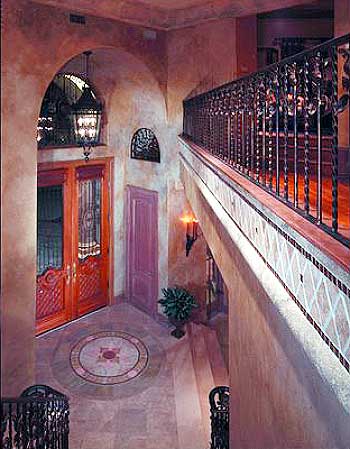

  • A foyer with 22' ceiling creates a grand impression as you enter the home.

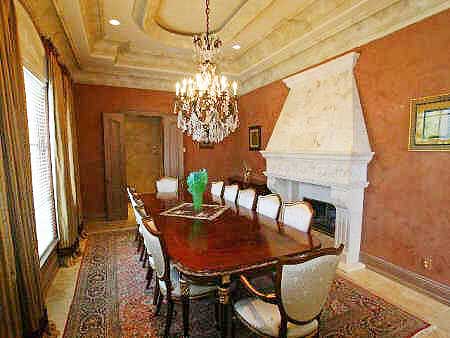

  • The spacious formal dining room with tray ceiling can hold a table large enough for any dinner party.

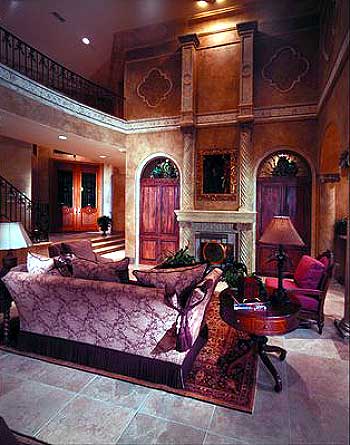

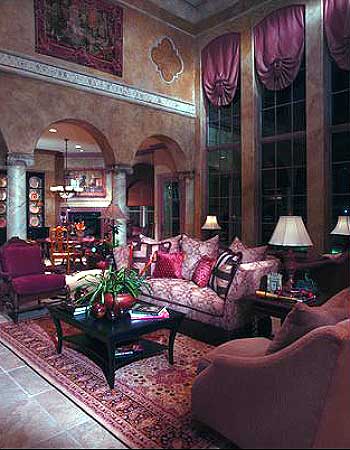

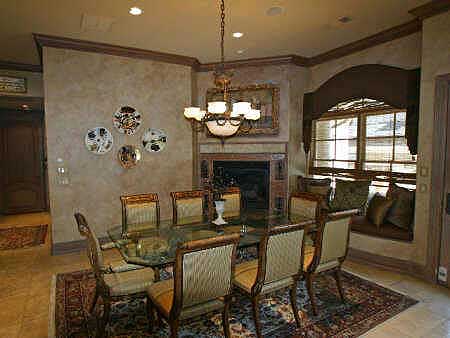

  • The family room is enormous and opens to the breakfast nook with fireplace and window seat.
  • An extra special master suite awaits the owners with unusual ceiling treatments and a sitting area set in a bay.

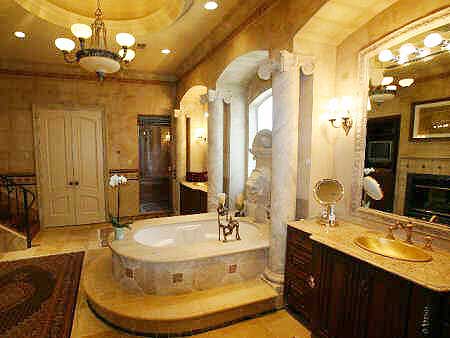

  • A dome ceiling in the huge master bath with step up tub adds elegance. Stairs lead up to a master retreat on the upper level.
  • Three over-sized bedrooms can be found on the second floor. One bedroom is off by itself reached by a loggia that overlooks both the family room and the foyer.
  • Related Plans: See these alternate versions - 36123TX, 36171TX and 36205TX.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

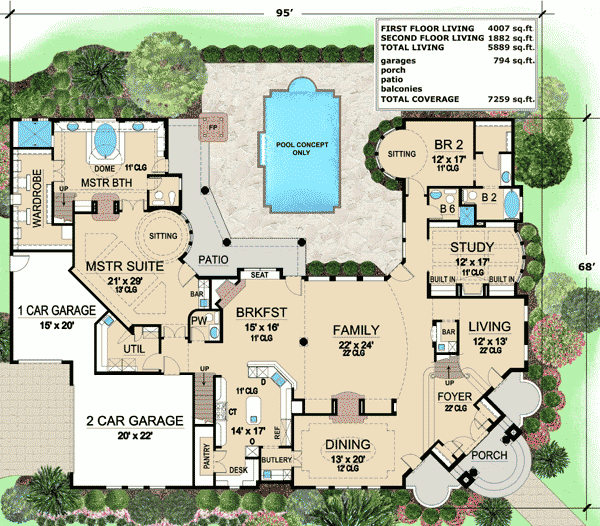

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Stately Luxury Home Plan - 36133TX floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

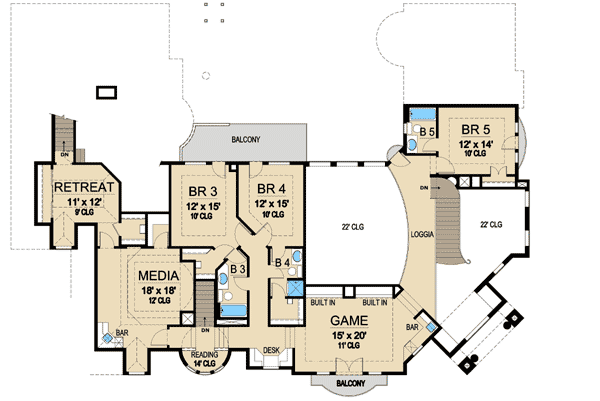

Stately Luxury Home Plan - 36133TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,889 sq. ft.
  • 1st Floor: 4,007 sq. ft.
  • 2nd Floor: 1,882 sq. ft.
  • Balcony / Veranda: 215 sq. ft.
  • Covered Patio: 304 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 95' 0"
  • Depth: 68' 0"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 794 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"

Architectural Style

Special features

Plan Collections

Stately Luxury Home Plan

  • 5,889

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,420
  • 5 Sets $2,620
  • CAD + PDF - Single Build $3,630
  • View all purchase option online

About This Plan

  • Made for entertaining, this European luxury home plan with a classic exterior can accommodate large crowds with both a media room and a spacious game room on the second floor.
  • A foyer with 22' ceiling creates a grand impression as you enter the home.
  • The spacious formal dining room with tray ceiling can hold a table large enough for any dinner party.
  • The family room is enormous and opens to the breakfast nook with fireplace and window seat.
  • An extra special master suite awaits the owners with unusual ceiling treatments and a sitting area set in a bay.
  • A dome ceiling in the huge master bath with step up tub adds elegance. Stairs lead up to a master retreat on the upper level.
  • Three over-sized bedrooms can be found on the second floor. One bedroom is off by itself reached by a loggia that overlooks both the family room and the foyer.
  • Related Plans: See these alternate versions - 36123TX, 36171TX and 36205TX.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,889 sq. ft.
  • 1st Floor: 4,007 sq. ft.
  • 2nd Floor: 1,882 sq. ft.
  • Balcony / Veranda: 215 sq. ft.
  • Covered Patio: 304 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 95' 0"
  • Depth: 68' 0"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 794 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"
Plan 36133TX
View this and more for this plan by visiting www.architechtecturaldesigns.com/36133TX
|
Need Help? 800-854-7852
|
Plan 36133TX
