Stately Traditional Home Plan

Heated S.F.
3,873
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 80690PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 80690PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

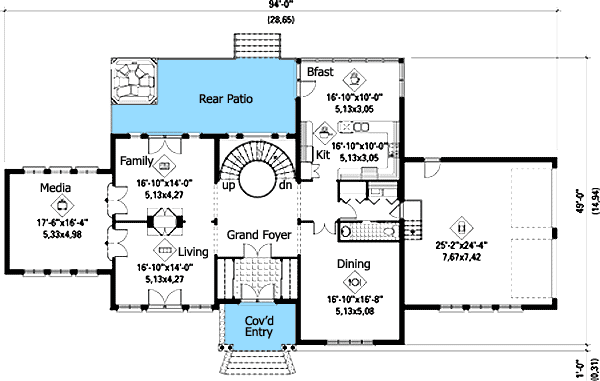

Plan 80690PM: Stately Traditional Home Plan - Floor Plan - Main Level - European, Traditional

2nd Floor

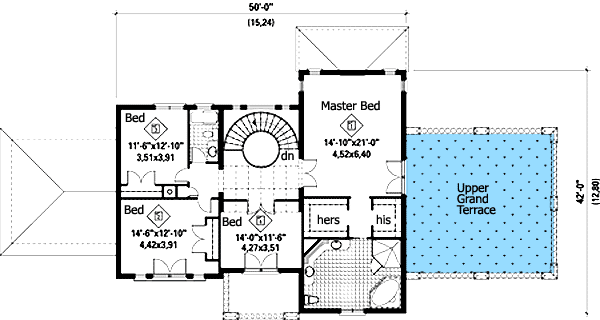

Plan 80690PM: Stately Traditional Home Plan - Floor Plan - 2nd Floor - European, Traditional

Plan Details

  • Two sets of double doors open to the Grand Foyer with its sweeping views of the elaborate curved staircase.
  • The left wing of the home has three spacious living areas.
  • A banquet-sized formal dining room will make for memorable holiday meals.
  • Windows on three sides of the breakfast nook brighten the whole area.
  • All the bedrooms are on the upper level including the huge master suite with its own private upper terrace.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,873 sq. ft.

1st Floor

2,164 sq. ft.

2nd Floor

1,709 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

94' 0"

Depth

49' 0"

Max Ridge Height

35' 8"

Garage

Type

Attached

Area

676 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

European

Traditional

Special Features

Breakfast Nook

Formal Dining

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Luxury

Metric

Square Footage Breakdown

Total Heated Area

3,873 sq. ft.

1st Floor

2,164 sq. ft.

2nd Floor

1,709 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

94' 0"

Depth

49' 0"

Max Ridge Height

35' 8"

Garage

Type

Attached

Area

676 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

European

Traditional

Special Features

Breakfast Nook

Formal Dining

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Luxury

Metric
