Plan 80838PM

Stately Traditional House Plan

Heated S.F.
2,208
Beds
3
Baths
1.5
Stories
2
Cars
2

Floor Plan

Plan 80838PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 80838PM

M-F 9am-5pm EST |

1-203-761-8500

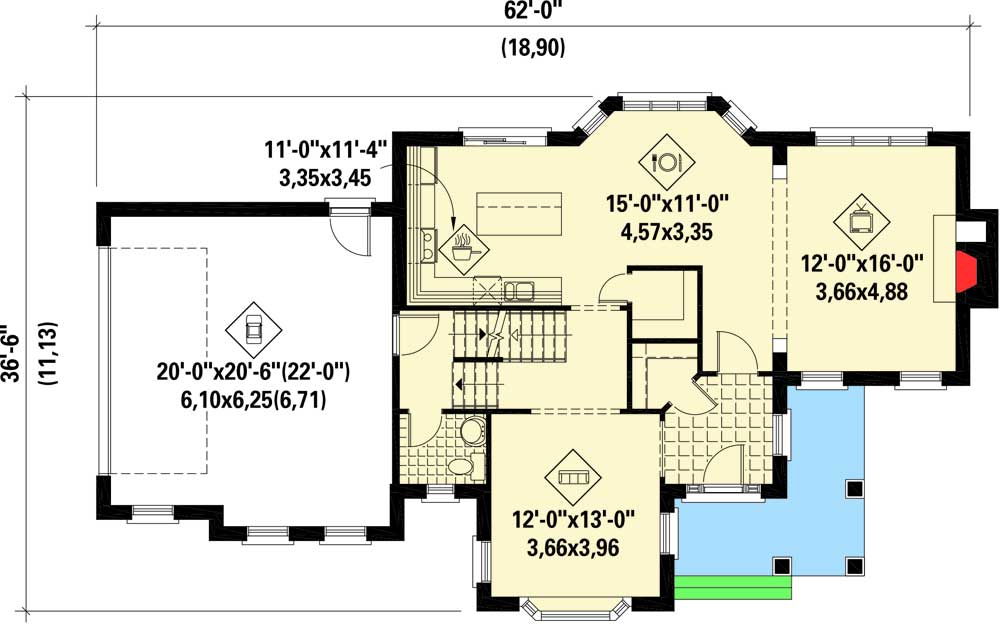

Main Level

Plan 80838PM: Stately Traditional House Plan - Floor Plan - Main Level - Southern, Traditional

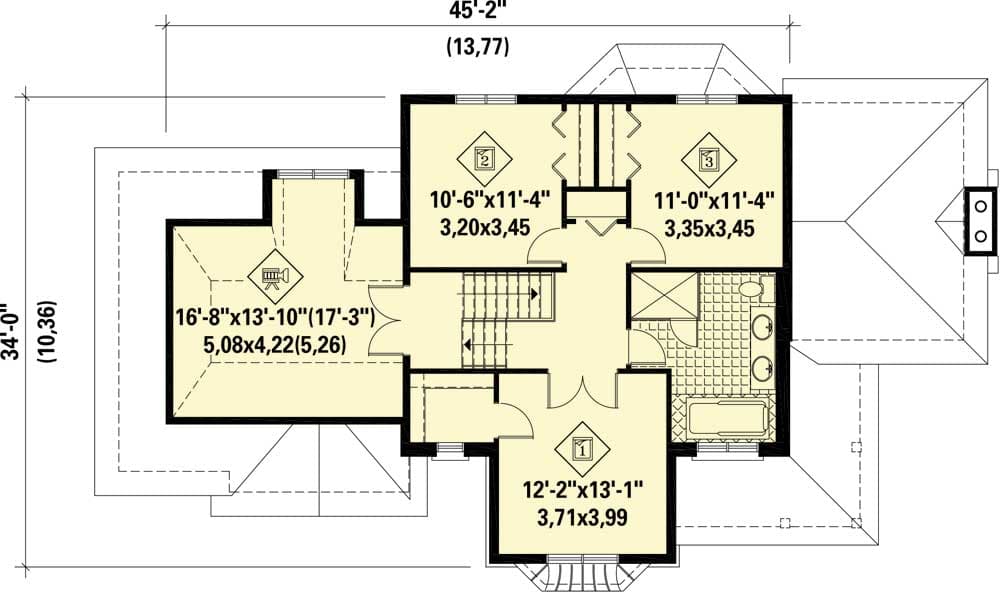

2nd Floor

Plan 80838PM: Stately Traditional House Plan - Floor Plan - 2nd Floor - Southern, Traditional

Plan Details

  • An elegant hip roof and stately exterior enhance this Traditional house plan.
  • The interior is well laid out and has both a formal living room and a big informal family room.
  • Generous closets include a walk-in coat closet off the foyer, a walk-in pantry in the kitchen and a walk-in closet for the master suite.
  • The wonderful open layout means you can see from the kitchen through the dining area and right into the family room with its fireplace.
  • The three bedrooms upstairs share a large five piece bathroom.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,208 sq. ft.

1st Floor

1,101 sq. ft.

2nd Floor

1,107 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

36' 6"

Max Ridge Height

37' 4"

Garage

Type

Attached

Area

494 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

2,208 sq. ft.

1st Floor

1,101 sq. ft.

2nd Floor

1,107 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

36' 6"

Max Ridge Height

37' 4"

Garage

Type

Attached

Area

494 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Canadian House Plans

Metric
