Stellar Acadian House Plan with Private Master Suite - 3582 Sq Ft

Plan 510071WDY

  • 3,582

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Bright-white siding makes the contrasting dark window sashes and metal roof pop, while shutters and brick accents add to the charming character of this Acadian house plan.
  • Flanking the foyer sits an office and formal dining room; continuing straight will take you to the open living room and kitchen. Guests can find a seat at the multi-use island or slide onto the built-in bench in the breakfast nook.
  • One of two fireplaces is located on the back porch, where family and friends can appreciate the outdoors.
  • The main level includes the master suite and a guest suite, while secondary bedrooms can be found upstairs. Both suites feature a sitting nook, and the luxurious master bathroom boasts an oversized closet and commode room.
  • A children's den greets you at the top of the stairs, and a Jack-and-Jill bath rests between bedrooms 3 and 4.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

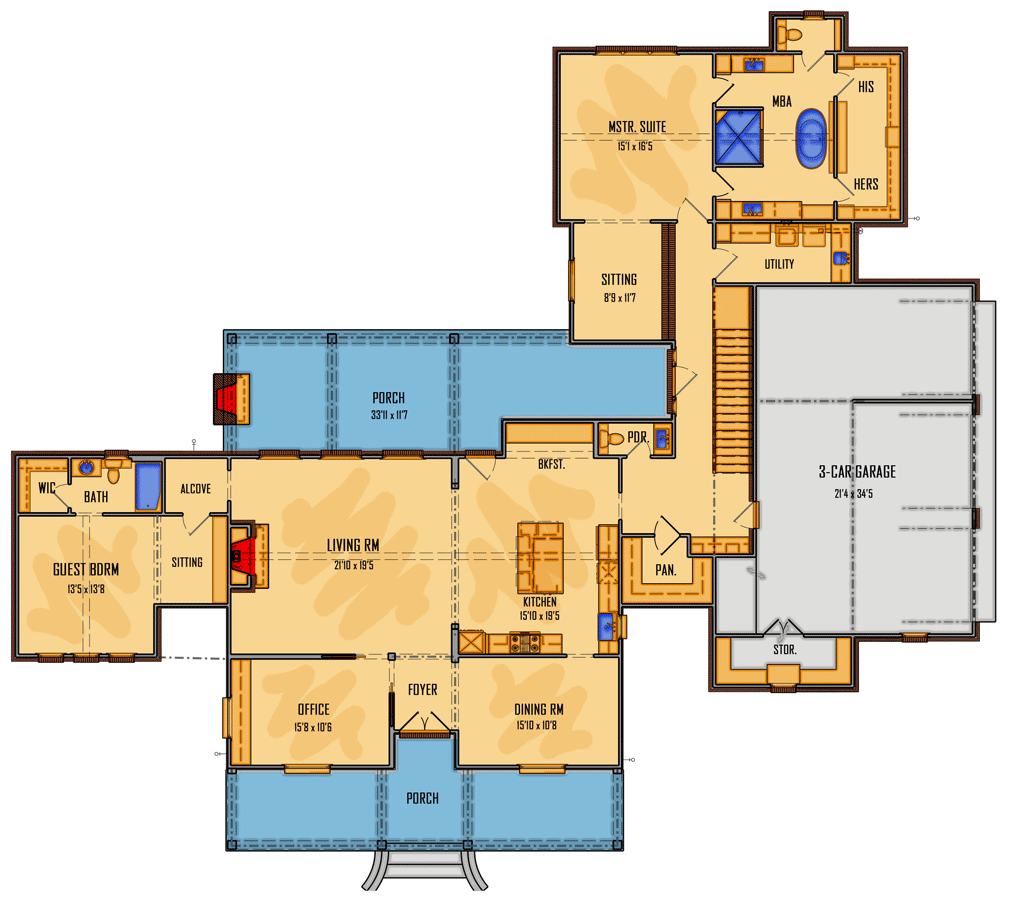

Stellar Acadian House Plan with Private Master Suite - 3582 Sq Ft - 510071WDY floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

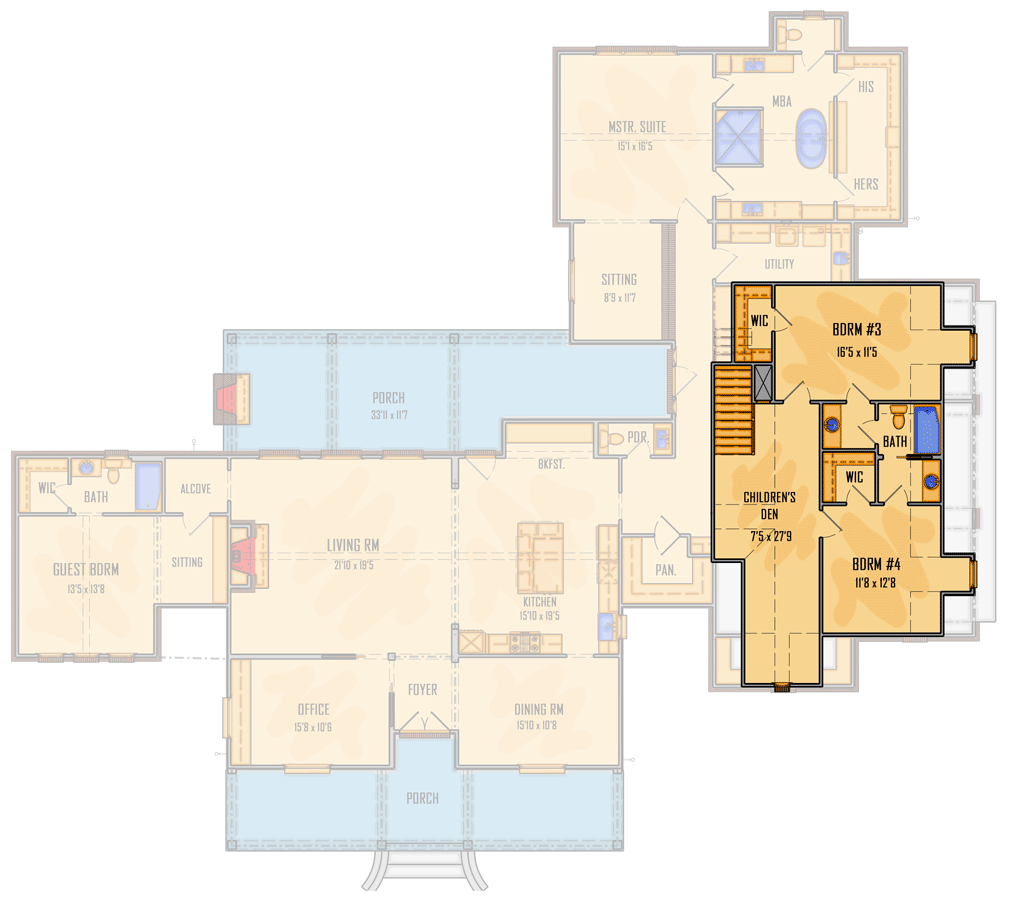

Stellar Acadian House Plan with Private Master Suite - 3582 Sq Ft - 510071WDY floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,582 sq. ft.
  • 1st Floor: 2,790 sq. ft.
  • 2nd Floor: 792 sq. ft.
  • Porch, Combined: 784 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 95' 10"
  • Depth: 83' 4"

Garage

  • Type: Attached
  • Area: 860 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 14 on 12
  • Framing Type: Stick

Architectural Style
