Plan 80170PM

Stone Accents

Heated S.F.

1,957

Beds

4

Baths

2

Stories

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

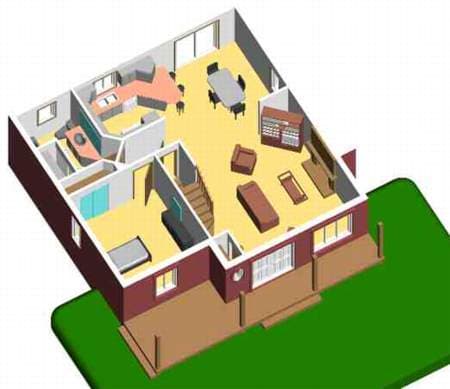

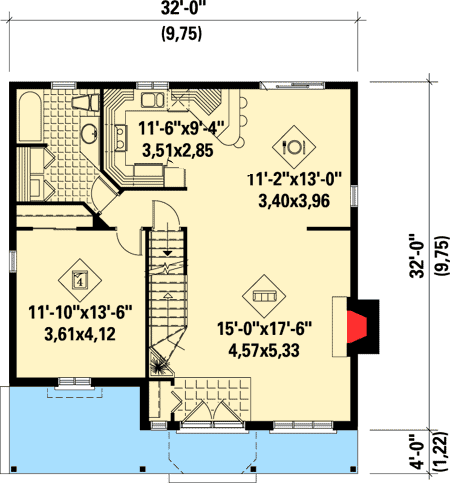

Stone Accents - 80170PM floor plan - Main Level

Main Level

Reverse Floor Plan

Stone Accents - 80170PM floor plan - Main Level

2nd Floor

Reverse Floor Plan

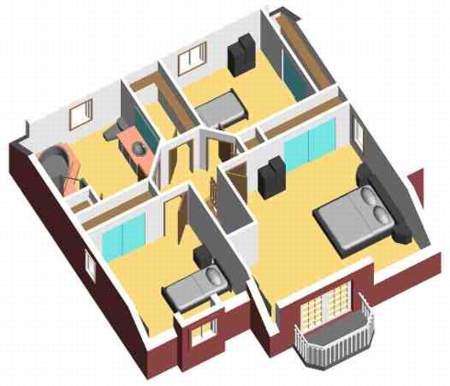

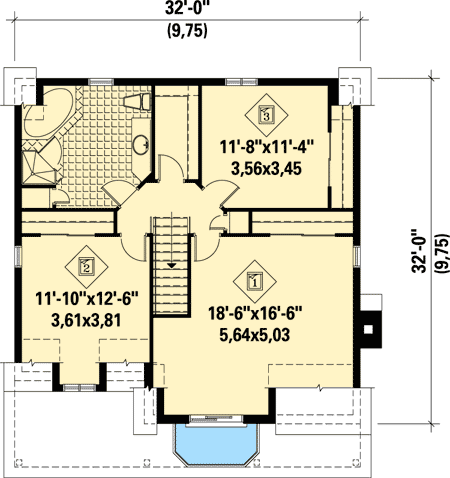

Stone Accents - 80170PM floor plan - 2nd Floor

2nd Floor

Reverse Floor Plan

Stone Accents - 80170PM floor plan - 2nd Floor

Plan Details

Accented by stone across the front, this attractive Country house plan has a wonderful curb appeal.
The juliette balcony across the front of the master adds even more interest.
Inside, an open floor makes makes the best of the space with views from one room to the next.
A big fireplace warms the living room with its front facing windows.
One bedroom is on the main floor and the other three, including the master suite, are up on the second floor.

What's Included

Please note this plan is designed to the National Building Code of Canada.

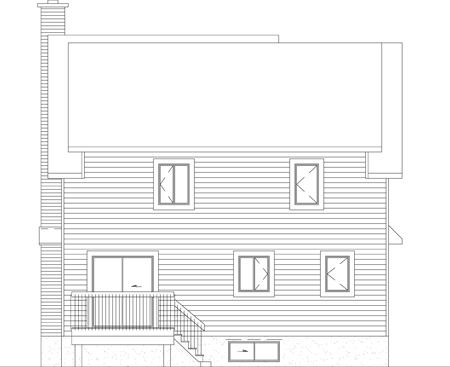

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,957 sq. ft.

1st Floor:

976 sq. ft.

2nd Floor:

981 sq. ft.

Beds/Baths

Bedrooms:

4

Full bathrooms:

2

Foundation Type

Standard Foundations:

Basement

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

32' 0"

Depth:

32' 0"

Max Ridge Height:

30' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch:

10 on 12

Secondary Pitch:

8 on 12

Framing Type:

Truss

Architectural Style

Special Features

Master Suite - 2nd Floor

Plan Collections
