Stone-clad Home Plan with Main-level Mini Suite and Fitness Room

Plan 36680TX

  • 6,179

    Heated s.f.

  • 4-5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Arched elements and a Juliet balcony soften the stone-clad front elevation of this beautiful home plan. Three garage bays extend from the front of the home to create a motor court, while double doors welcome you inside.
  • The family room and kitchen blend together to provide one cohesive space for family and friends to gather. The rear glass wall retracts to extend the living space onto a sizable covered porch with a built-in grill.
  • The gourmet kitchen delights in an adjacent pass-through pantry for ease and flow.
  • A mini suite on the main level is perfect for guests and includes a kitchenette and access to the back patio. A fitness room is located down the hall.
  • The staircase or elevator will guide you upstairs to find the owner's suite to the left, next to a home office. Each of the second-level bedrooms provide access to a balcony for outdoor enjoyment.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

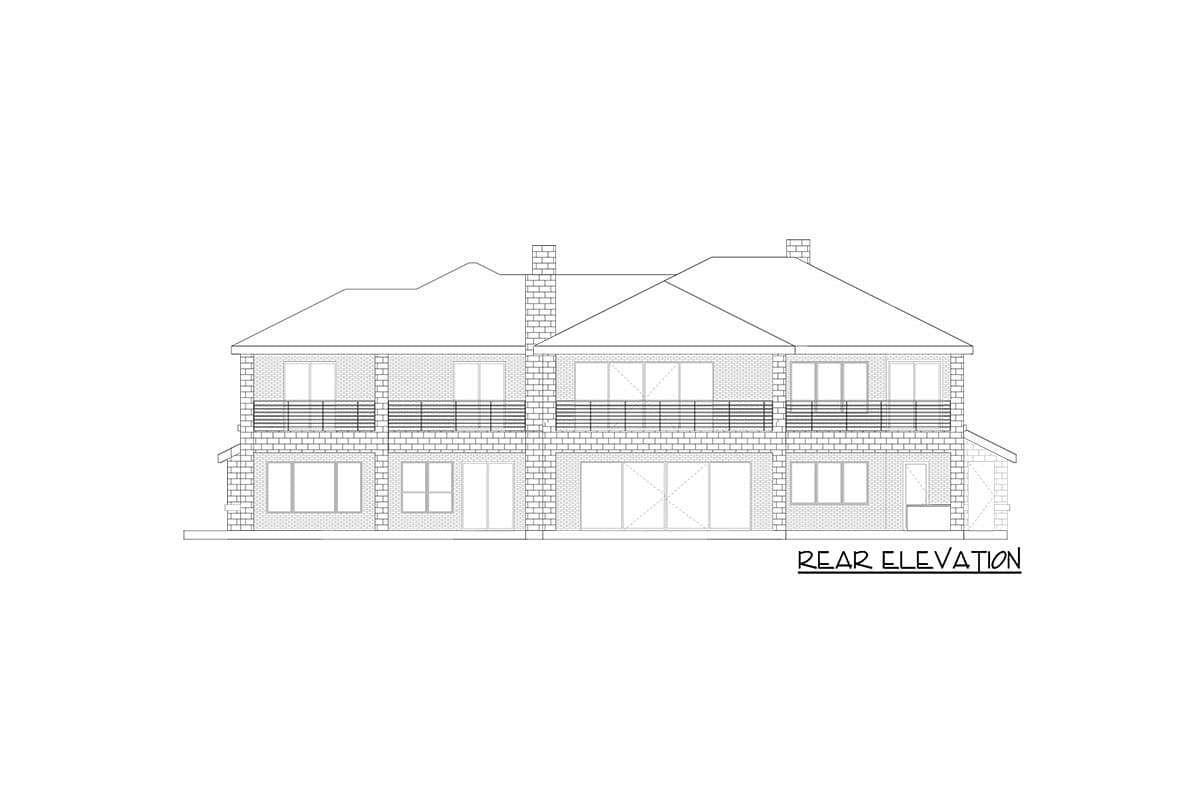

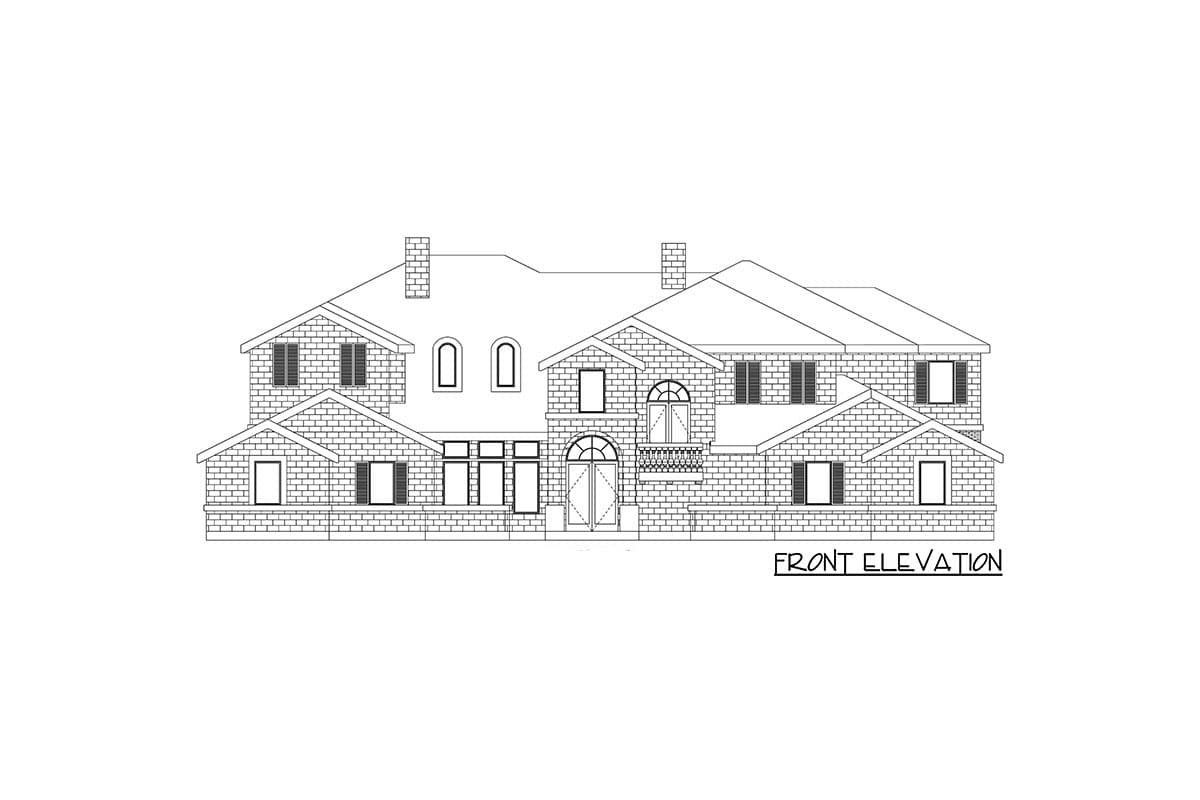

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

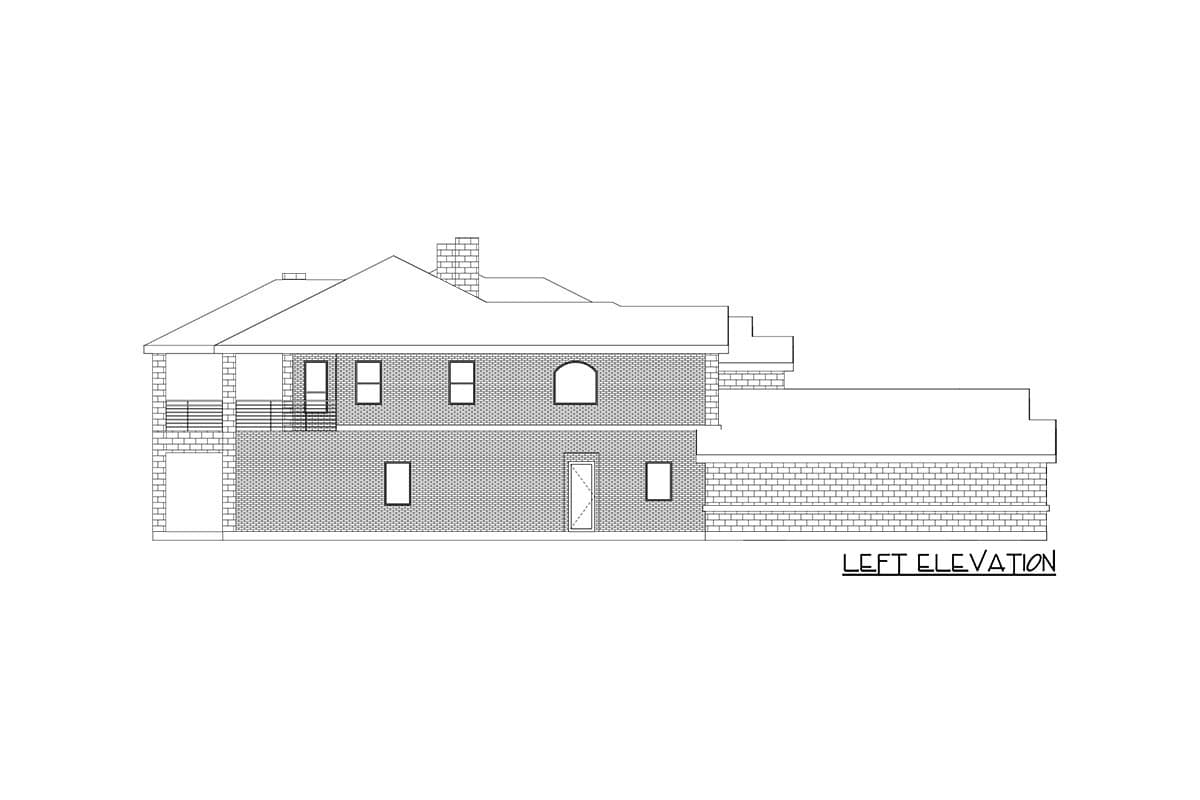

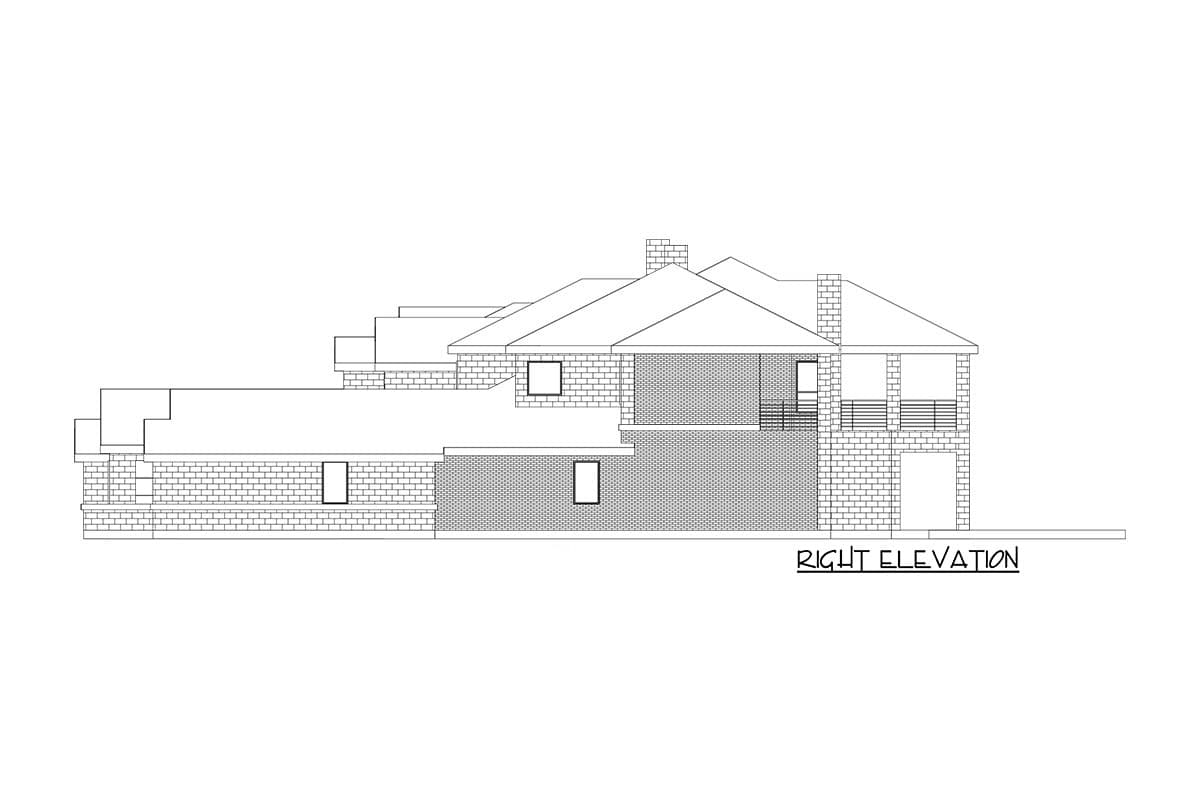

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

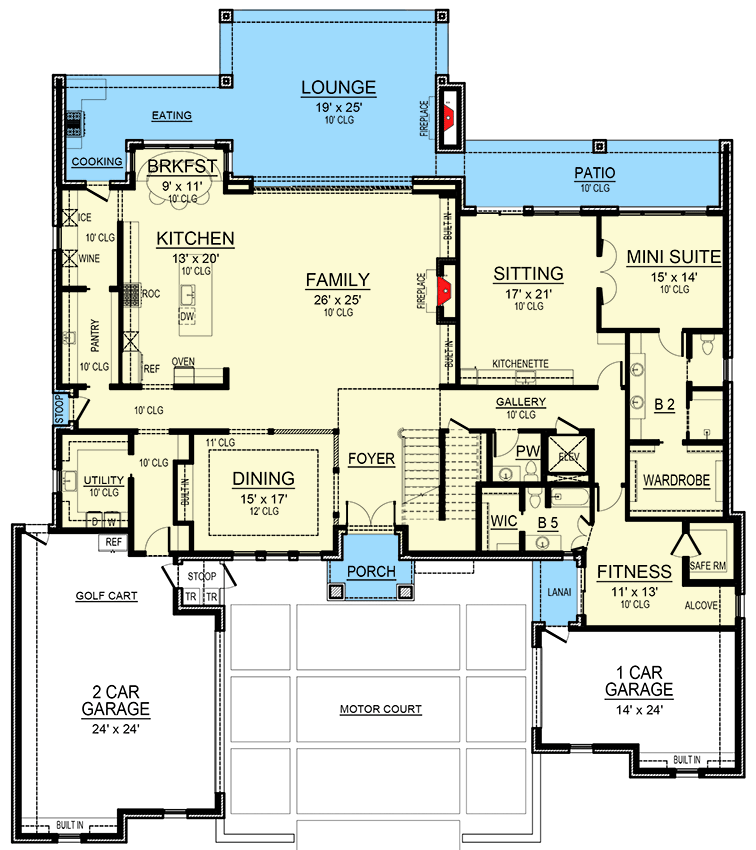

Stone-clad Home Plan with Main-level Mini Suite and Fitness Room - 36680TX floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

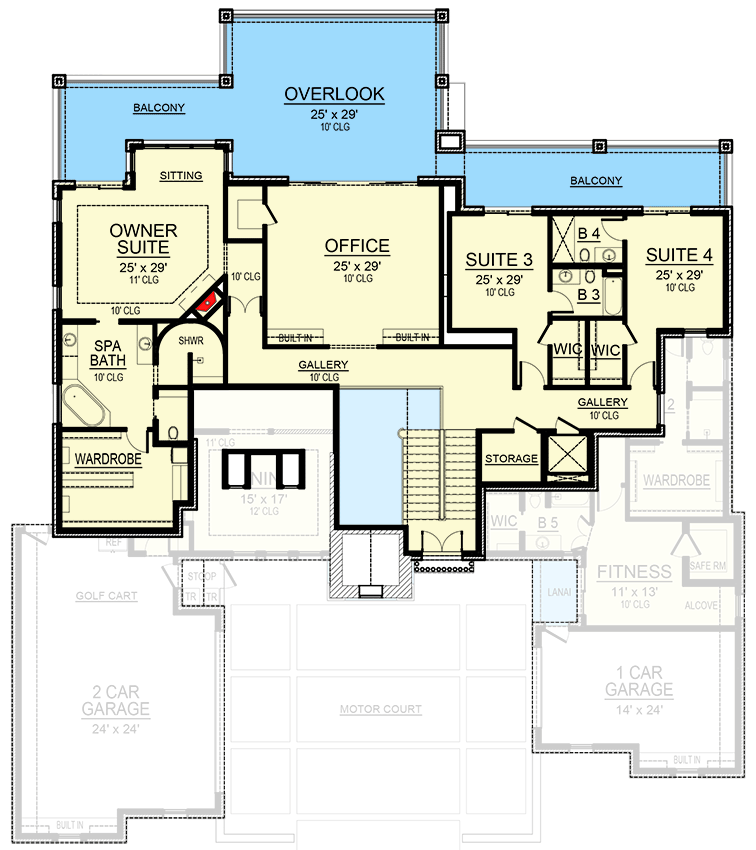

Stone-clad Home Plan with Main-level Mini Suite and Fitness Room - 36680TX floor plan - 2nd Floor

Stone-clad Home Plan with Main-level Mini Suite and Fitness Room

  • 6,179

    Heated s.f.

  • 4-5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 6,179 sq. ft.
  • 1st Floor: 3,818 sq. ft.
  • 2nd Floor: 2,361 sq. ft.

Dimensions

  • Width: 90' 0"
  • Depth: 102' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1266 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"
