Plan 16892WG Stone Clad House Plan with 2 Bonus Rooms

3,880 3-4 3 1-2 3
watch
video Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Stone Clad House Plan with 2 Bonus Rooms

Plan 16892WG

  • 3,880

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • 3

    Cars

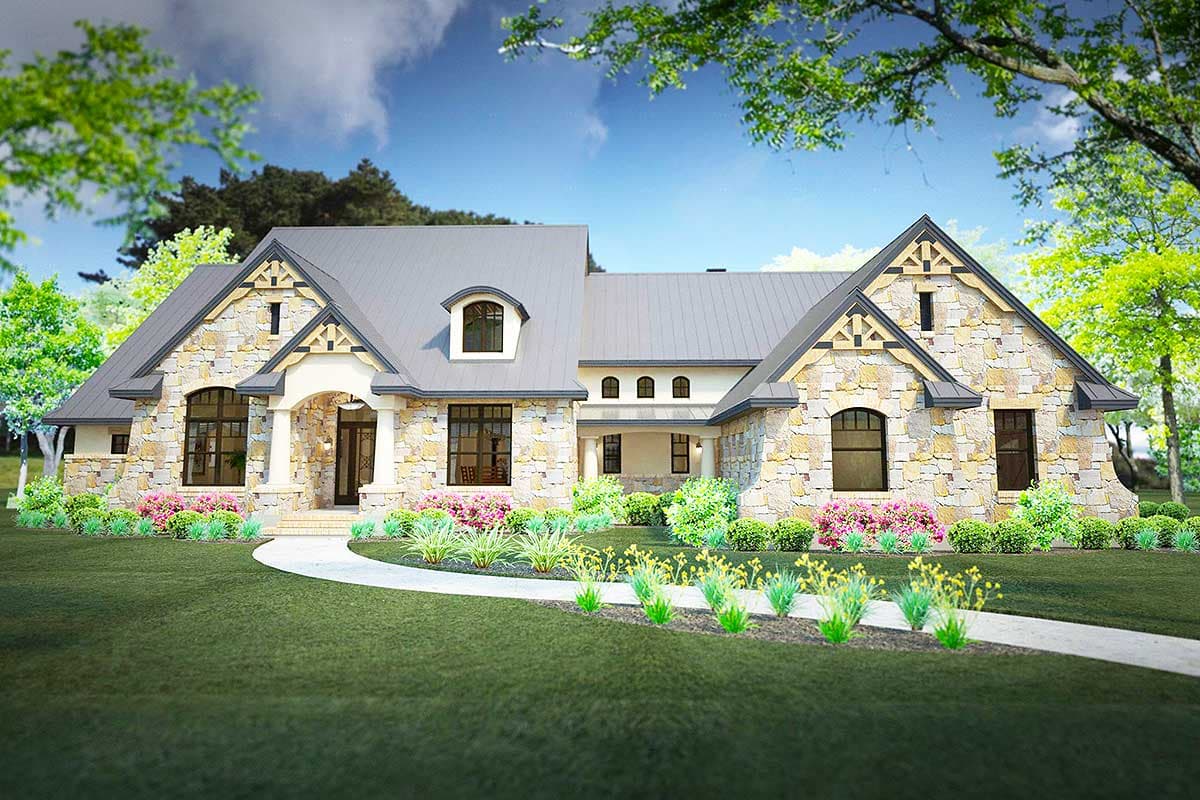

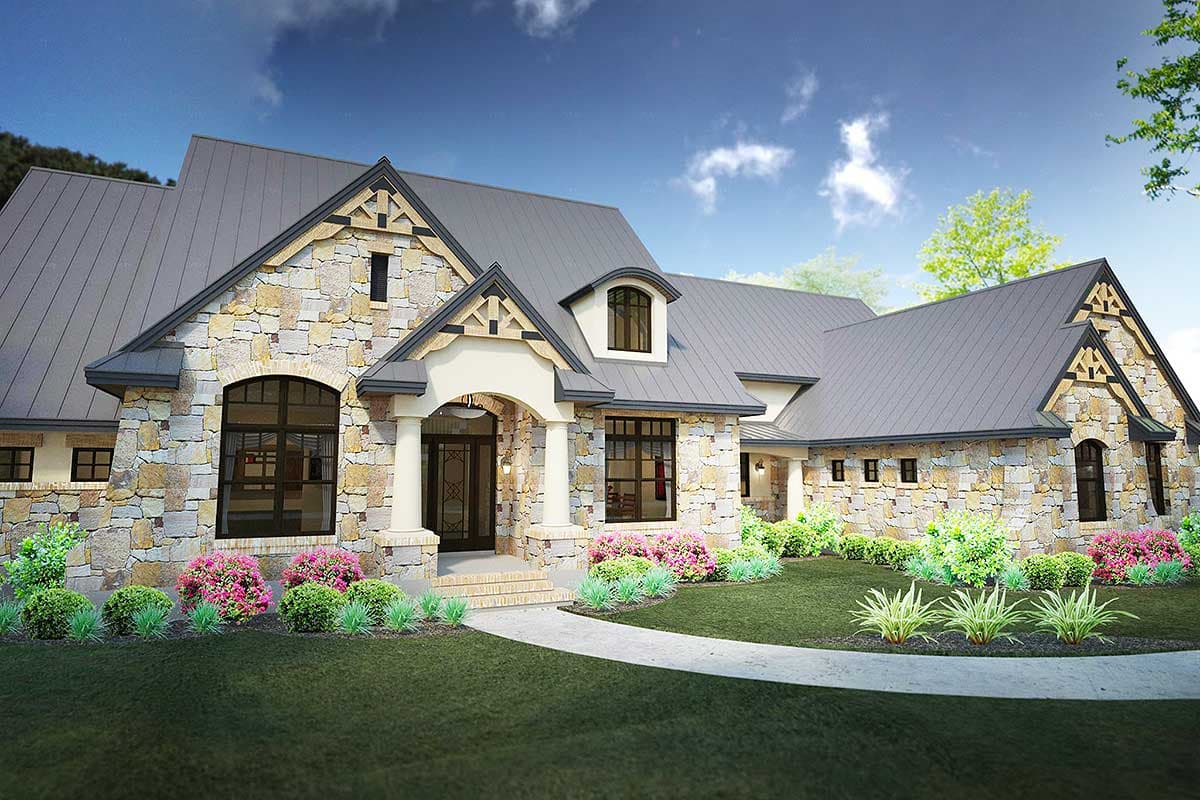

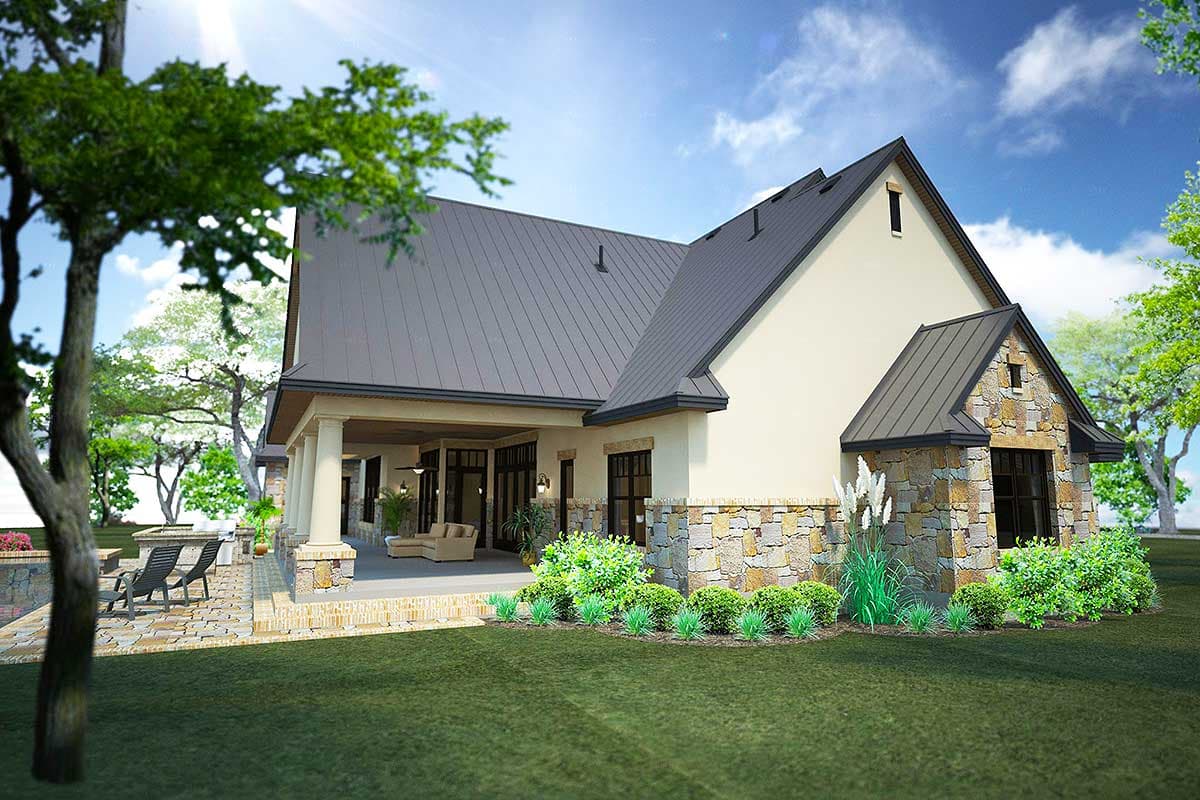

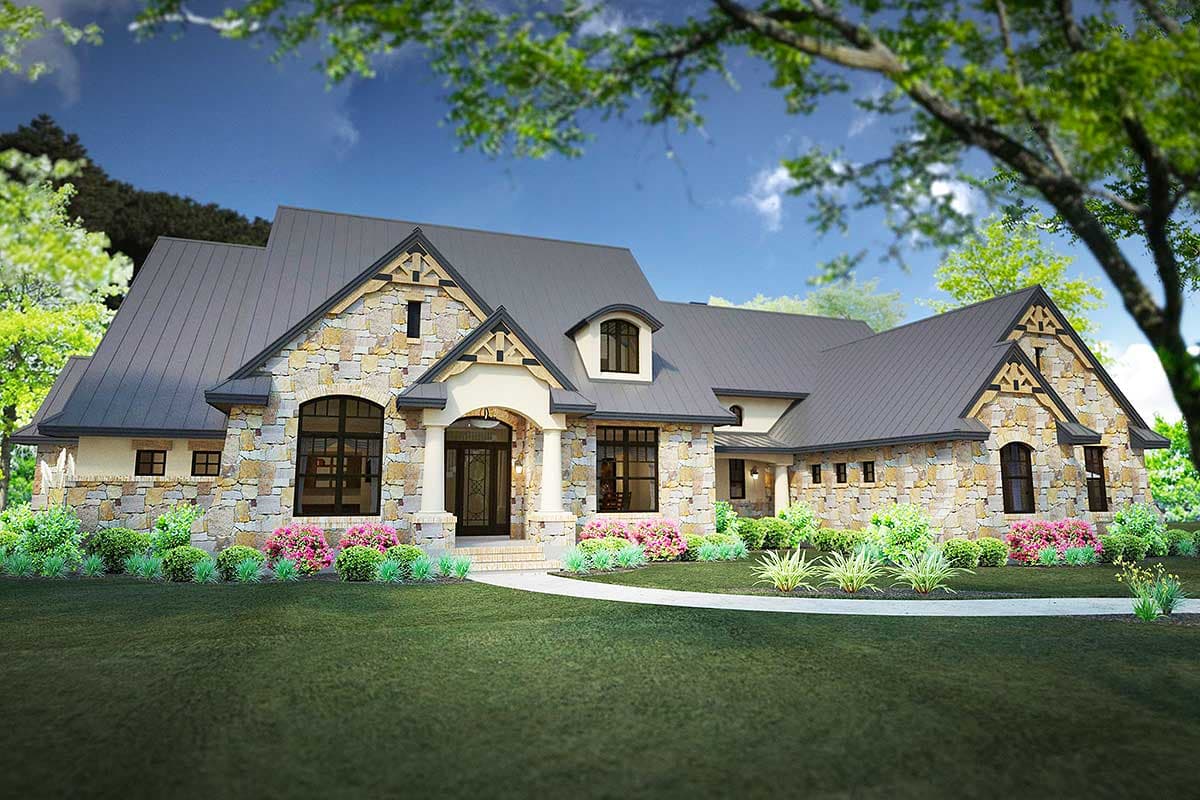

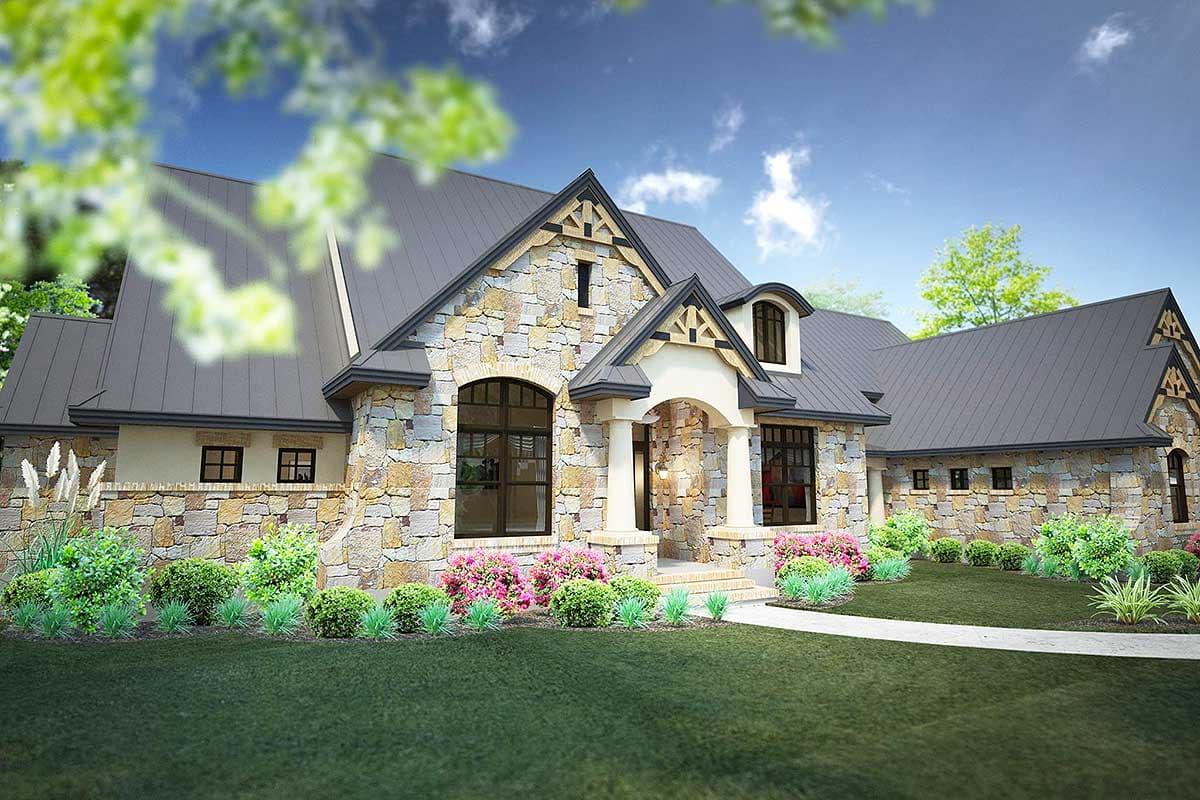

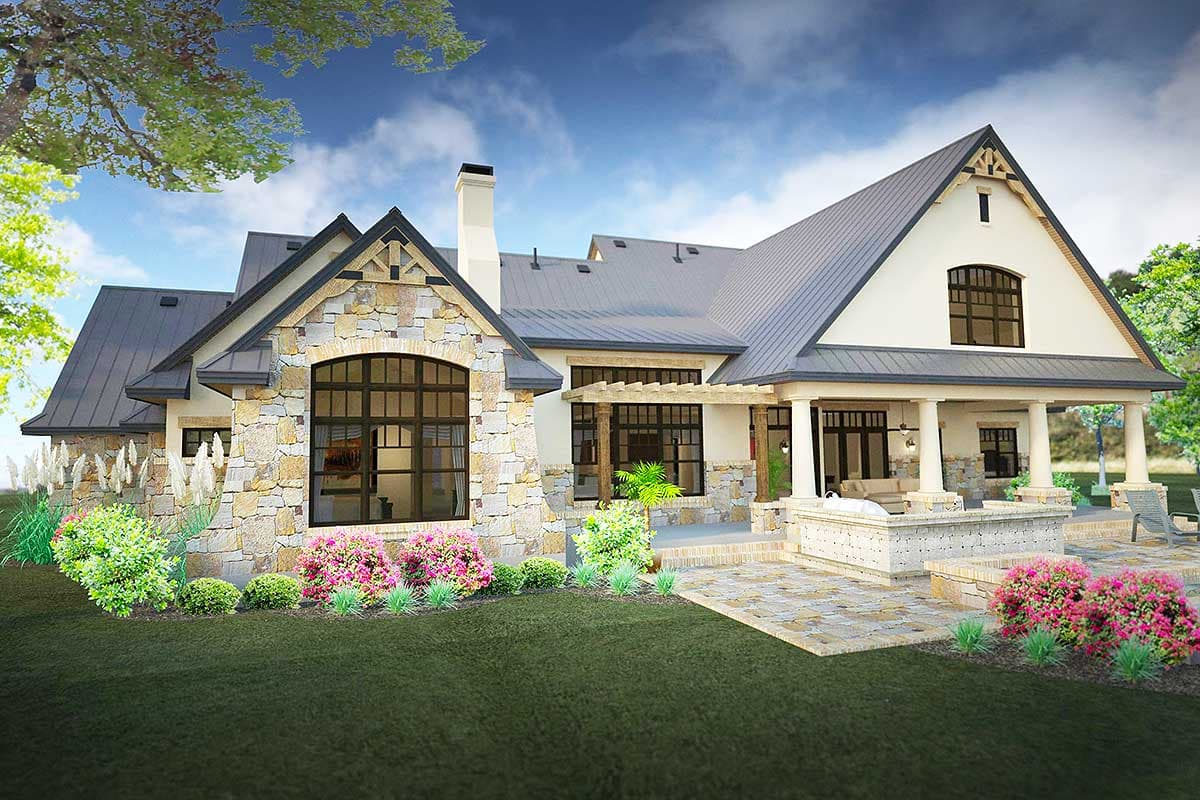

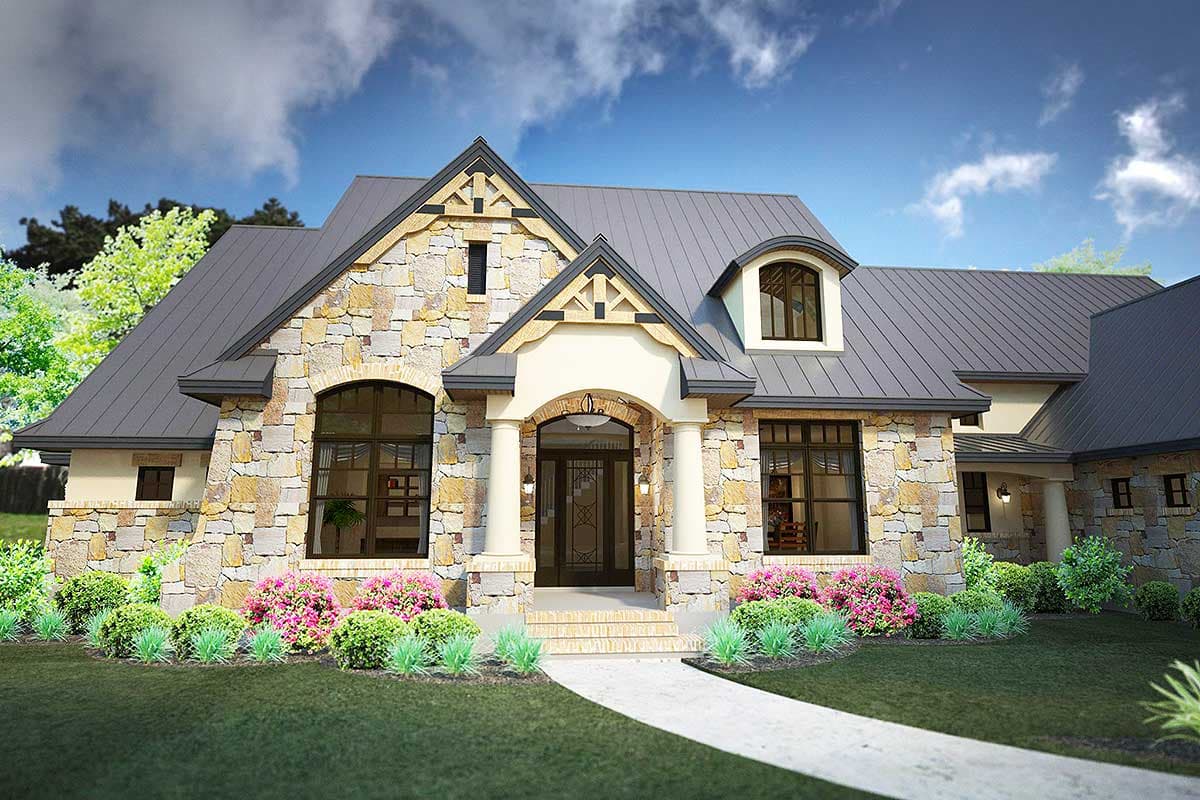

  • This stone and stucco European house plan is topped with a handsome metal roof and has eye-catching decorative wood trim under each gable.
  • The floor plan is well laid out and filled with luxurious touches like a butler's pantry, built-ins and a striking curved staircase visible from the central rotunda.
  • Both the family room and the kitchen have ceilings that rise up to 15' so they feel even larger.
  • Note the trendy barn doors that close off the den near the nook.
  • The master suite is utterly fabulous with a display niche in the private vestibule, a vaulted ceiling and a coffee bar near the dressing room.
  • All the other bedrooms are on the opposite side of the home.
  • Use the study as a fourth bedroom if desired.
  • Snuggle up in the second floor book loft that has a walk-in storage closet, a window seat and walls lined with bookshelves.
  • This luxurious house even gives you two bonus rooms, one raised up a step.

Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.

Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.

Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,

Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.

Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.

Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.


These items are NOT included:

Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

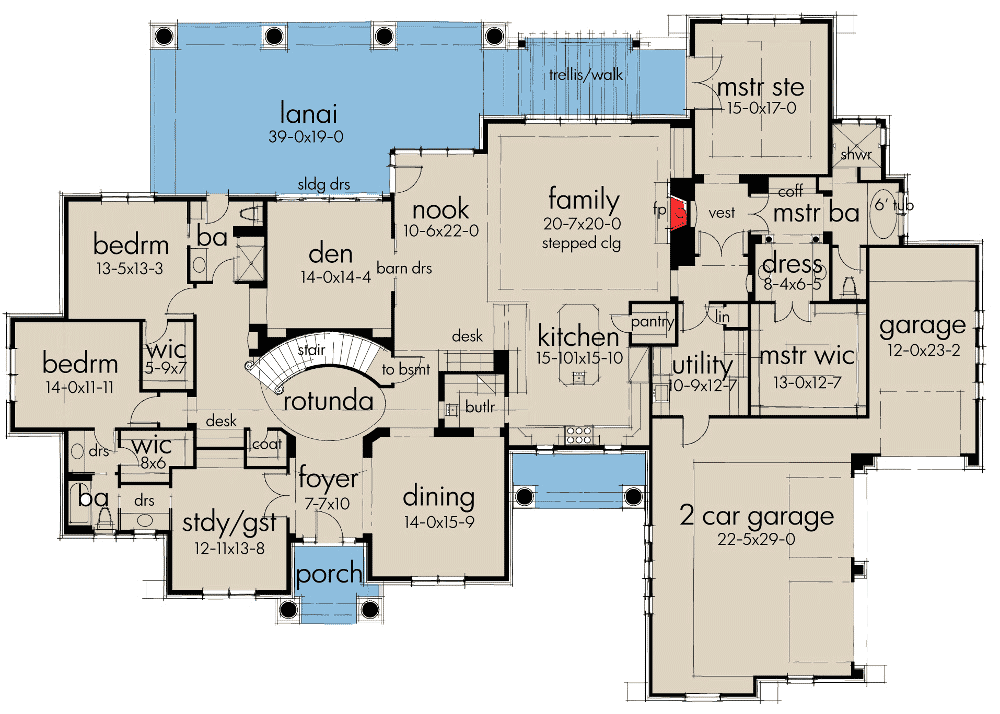

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Stone Clad House Plan with 2 Bonus Rooms - 16892WG floor plan - Main Level

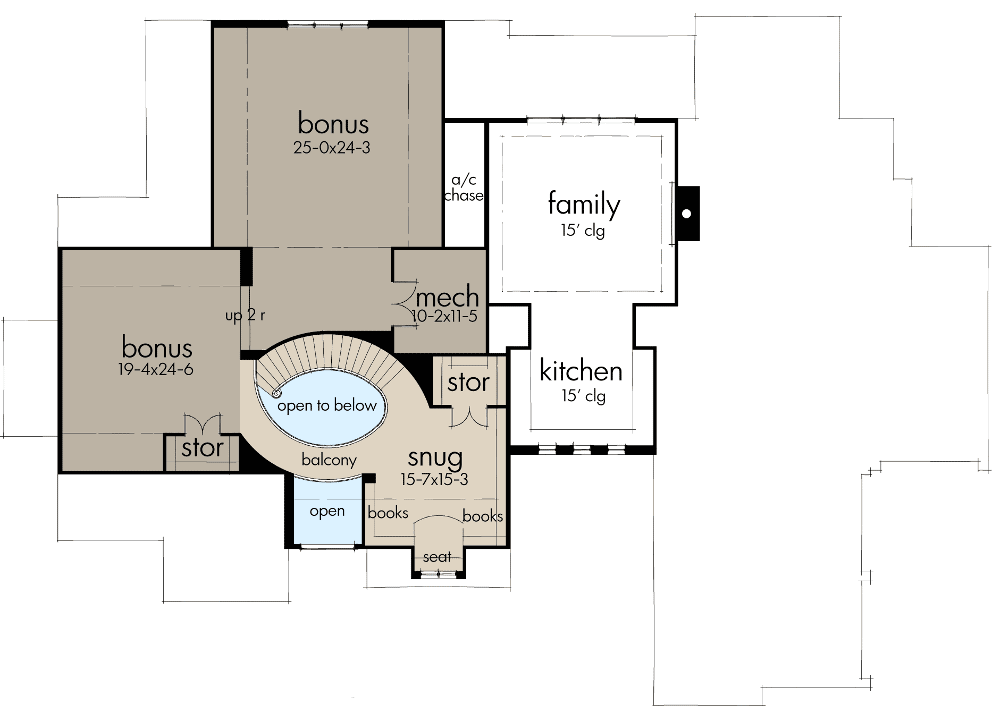

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Stone Clad House Plan with 2 Bonus Rooms - 16892WG floor plan - 2nd Floor

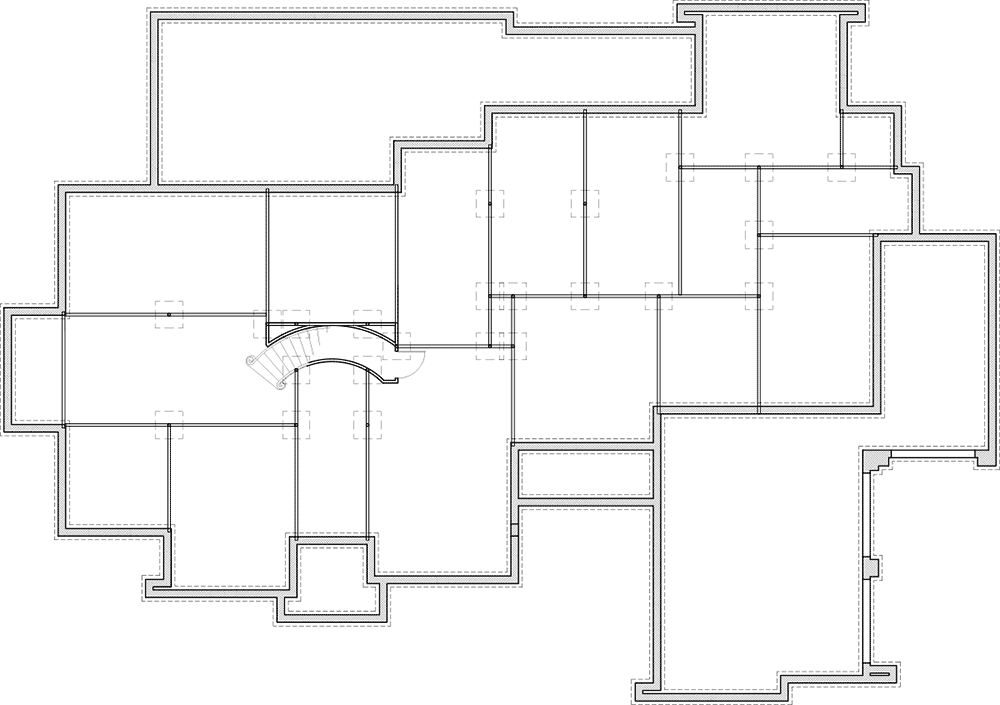

Unfinished Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Stone Clad House Plan with 2 Bonus Rooms - 16892WG floor plan - Unfinished Basement

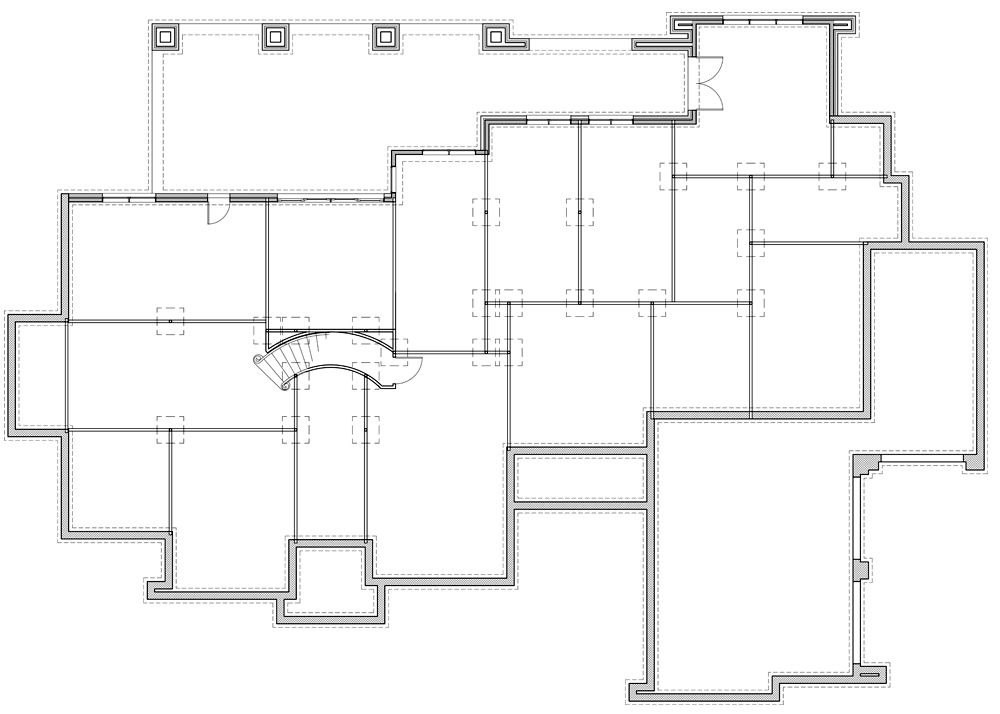

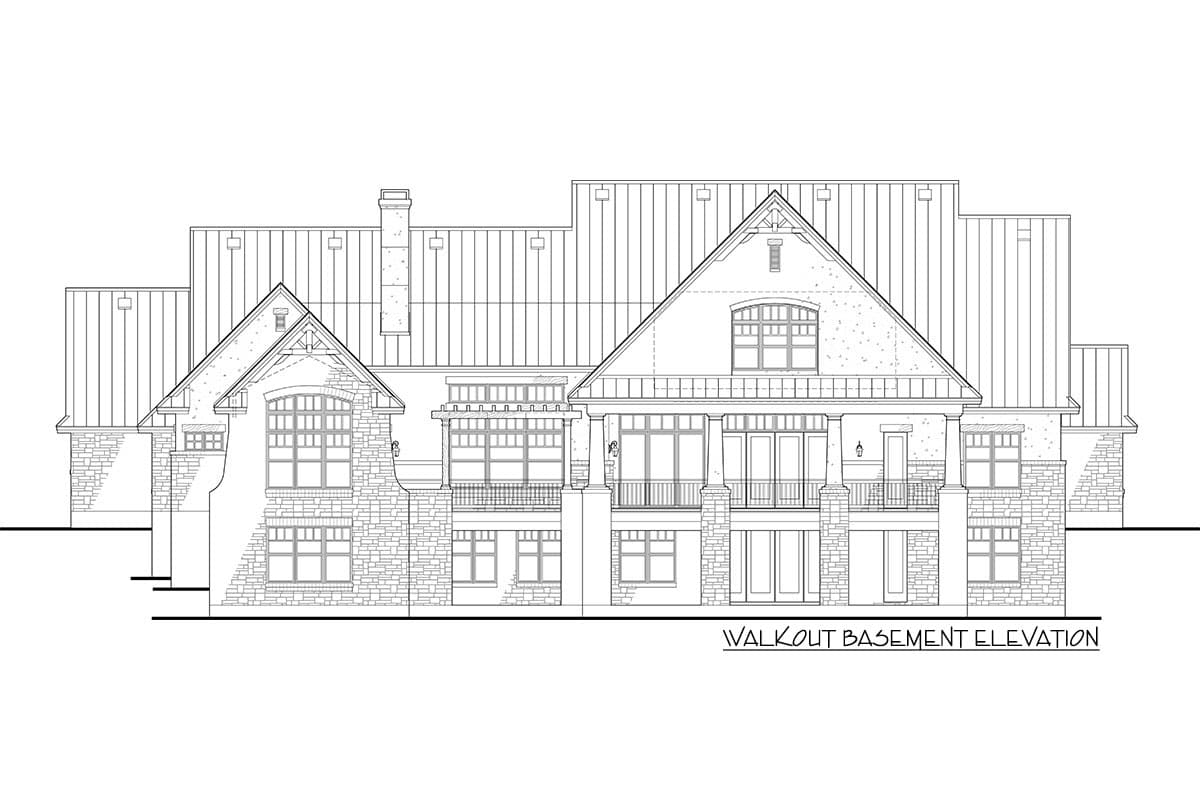

Unfinished Walkout Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Stone Clad House Plan with 2 Bonus Rooms - 16892WG floor plan - Unfinished Walkout Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,880 sq. ft.
  • 1st Floor: 3,880 sq. ft.
  • Bonus: 1,742 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Crawl, Slab
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 109' 9"
  • Depth: 77' 1"
  • Max ridge height: 34' 3"

Garage

  • Type: Attached
  • Area: 930 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"
Room Type Height
Family Room Step 15' 0"
Kitchen 15' 0"
Master Bedroom Vaulted

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Stone Clad House Plan with 2 Bonus Rooms

  • 3,880

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,595
  • 5 Sets $1,745
  • 5 Sets + PDF $1,845
  • PDF - Unlimited Build $1,990
  • CAD + PDF - Single-Build $2,395
  • CAD + PDF - Unlimited Build $2,790
  • View all purchase option online

About This Plan

  • This stone and stucco European house plan is topped with a handsome metal roof and has eye-catching decorative wood trim under each gable.
  • The floor plan is well laid out and filled with luxurious touches like a butler's pantry, built-ins and a striking curved staircase visible from the central rotunda.
  • Both the family room and the kitchen have ceilings that rise up to 15' so they feel even larger.
  • Note the trendy barn doors that close off the den near the nook.
  • The master suite is utterly fabulous with a display niche in the private vestibule, a vaulted ceiling and a coffee bar near the dressing room.
  • All the other bedrooms are on the opposite side of the home.
  • Use the study as a fourth bedroom if desired.
  • Snuggle up in the second floor book loft that has a walk-in storage closet, a window seat and walls lined with bookshelves.
  • This luxurious house even gives you two bonus rooms, one raised up a step.

Floor Plans

  • Main Level

  • 2nd Floor

  • Unfinished Basement

  • Unfinished Walkout Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,880 sq. ft.
  • 1st Floor: 3,880 sq. ft.
  • Bonus: 1,742 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 109' 9"
  • Depth: 77' 1"
  • Max ridge height: 34' 3"

Garage

  • Type: Attached
  • Area: 930 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
Plan 16892WG
View this and more for this plan by visiting www.architechtecturaldesigns.com/16892WG
|
