Plan 36301TX

Straight From Europe

Pageloader

Straight From Europe

Plan 36301TX

  • 4,396

    Heated s.f.

  • 3

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • A stunning exterior on this French Country home looks as if it came straight from Europe.
  • Only 50' wide, this beautiful home would work well on a narrow lot.
  • The formal dining room enjoys a two-sided fireplace with the coffered family room.
  • This home is set on a slab foundation with a raised foyer, study and living room.
  • The dramatic family room and kitchen drop down to the slab foundation level and share one huge space.
  • Luxurious extras include the wine closet and large wet bar that has pass-through windows to the rear patio.
  • Special features of the second floor include a cheerful sunroom and a lavish master suite with fireplace and sitting area.
  • Her closet includes built-ins, a huge skylight and space enough for all your clothes.
  • A stack washer/dryer is built right into the master bathroom for the ultimate in convenience.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Straight From Europe

  • 4,396

    Heated s.f.

  • 3

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,515
  • 5 Sets $1,715
  • CAD $2,275
  • View all purchase option online

About This Plan

  • A stunning exterior on this French Country home looks as if it came straight from Europe.
  • Only 50' wide, this beautiful home would work well on a narrow lot.
  • The formal dining room enjoys a two-sided fireplace with the coffered family room.
  • This home is set on a slab foundation with a raised foyer, study and living room.
  • The dramatic family room and kitchen drop down to the slab foundation level and share one huge space.
  • Luxurious extras include the wine closet and large wet bar that has pass-through windows to the rear patio.
  • Special features of the second floor include a cheerful sunroom and a lavish master suite with fireplace and sitting area.
  • Her closet includes built-ins, a huge skylight and space enough for all your clothes.
  • A stack washer/dryer is built right into the master bathroom for the ultimate in convenience.

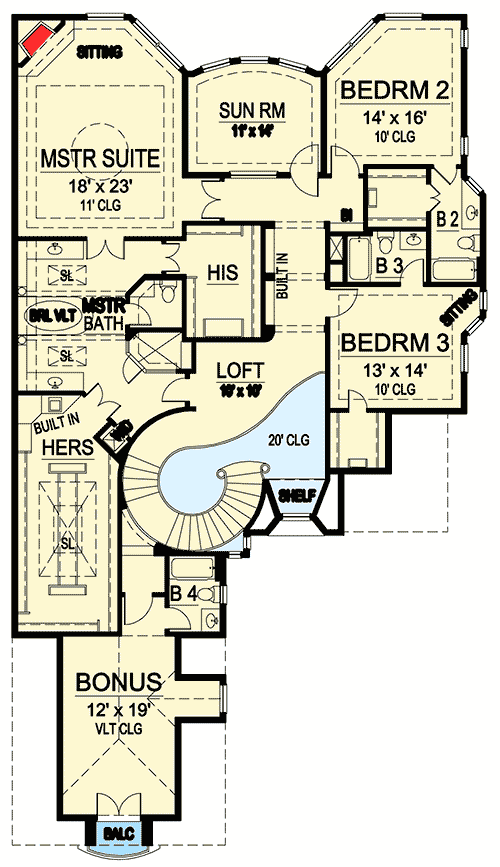

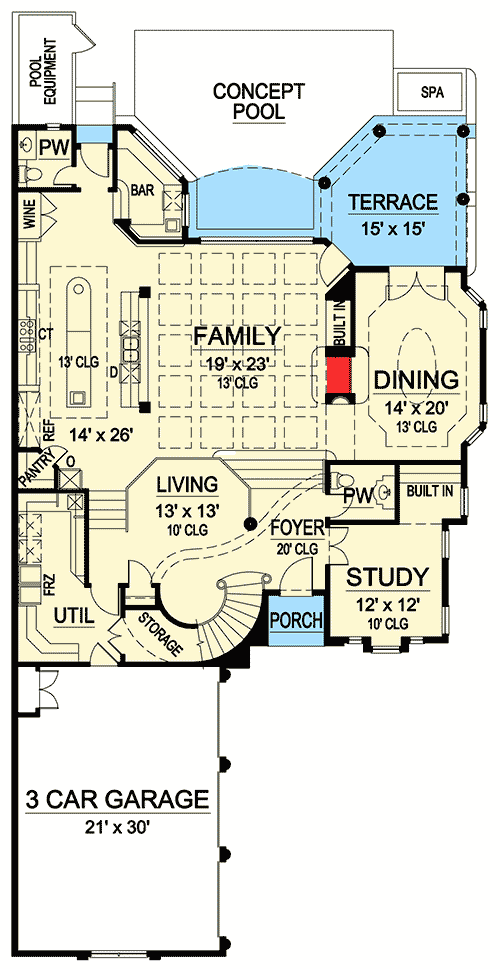

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,396 sq. ft.
  • 1st Floor: 2,260 sq. ft.
  • 2nd Floor: 2,136 sq. ft.
  • Bonus: 387 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 0"
  • Depth: 88' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 713 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 9' 0"
Pageloader
