Plan 36554TX Striking Hill Country Home Plan with Drive-Under Garage

7,918 5 6.5+ 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Striking Hill Country Home Plan with Drive-Under Garage

Plan 36554TX

  • 7,918

    Heated s.f.

  • 5

    Beds

  • 6.5+

    Baths

  • 2

    Stories

  • 4

    Cars

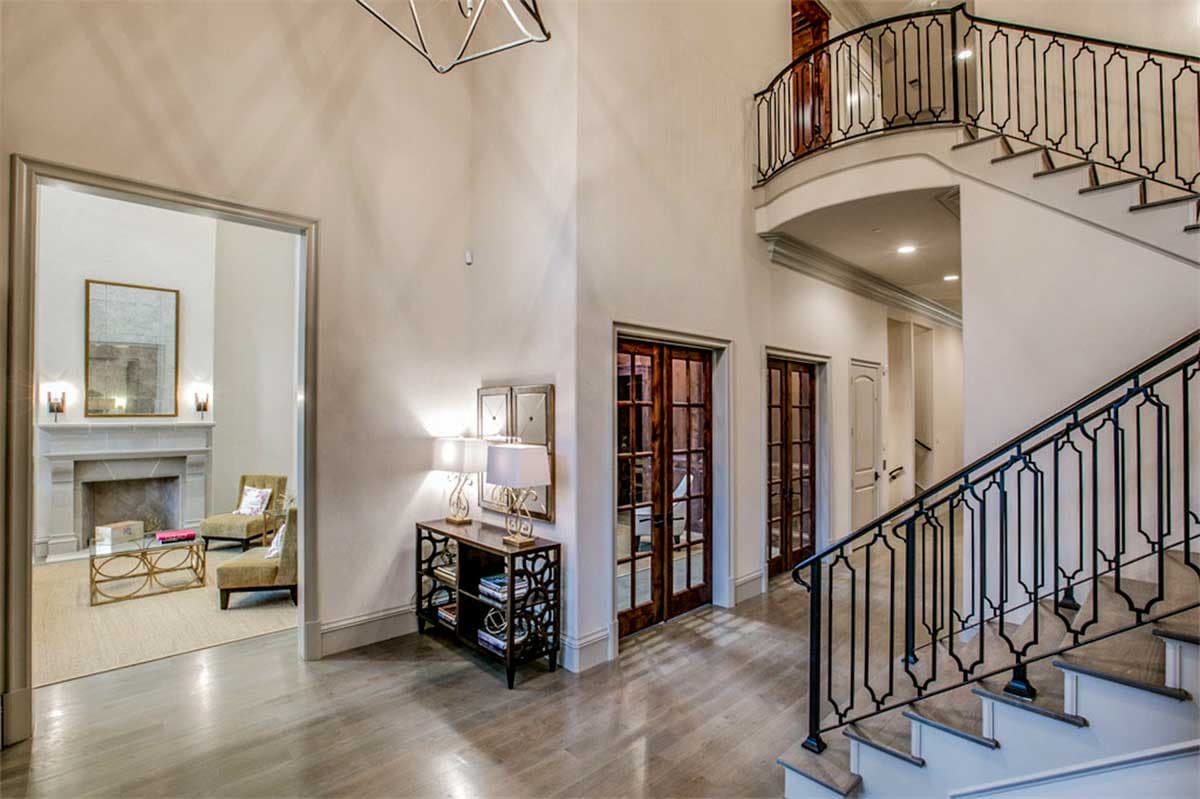

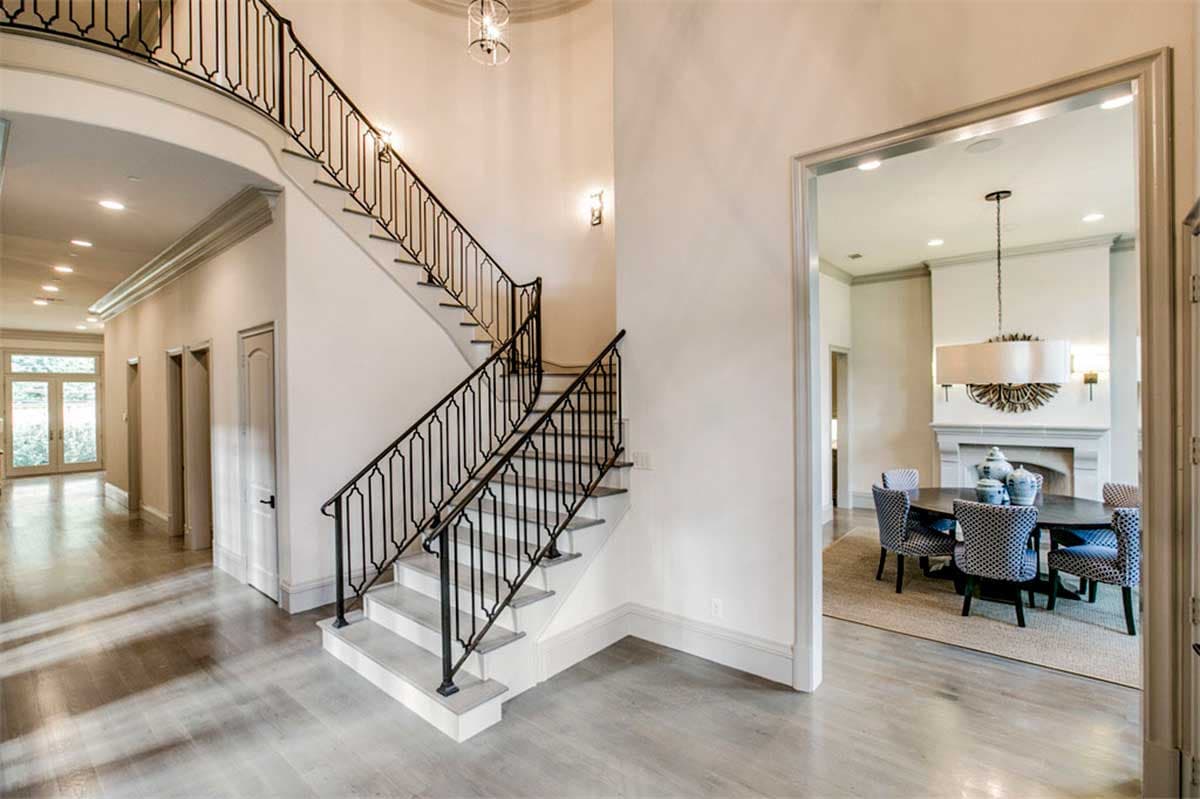

  • This striking Hill Country house plan is loaded with luxuries and amenities including a residential elevator, wet bar, a game room, first floor master suite and a gorgeous curved staircase.

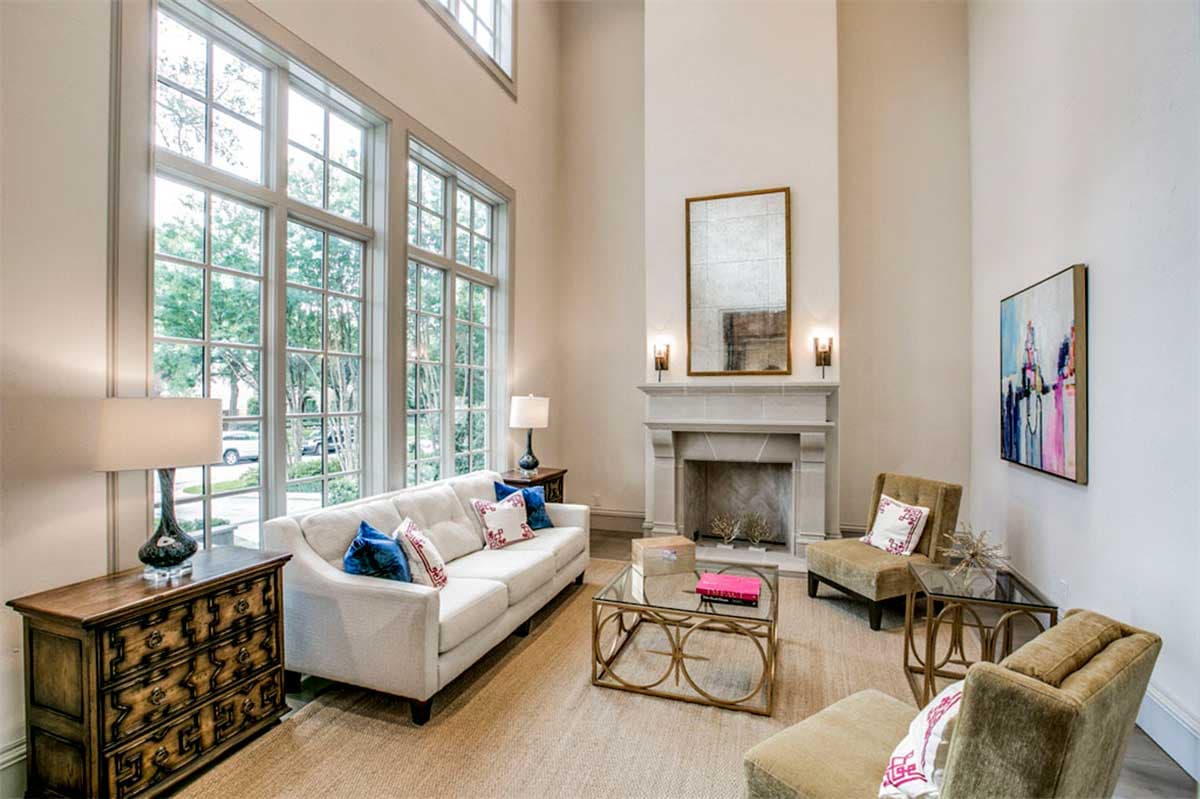

  • The standard ceiling height on the first floor is 12' but the formal living room and foyer have two-story ceilings for a dramatic effect.

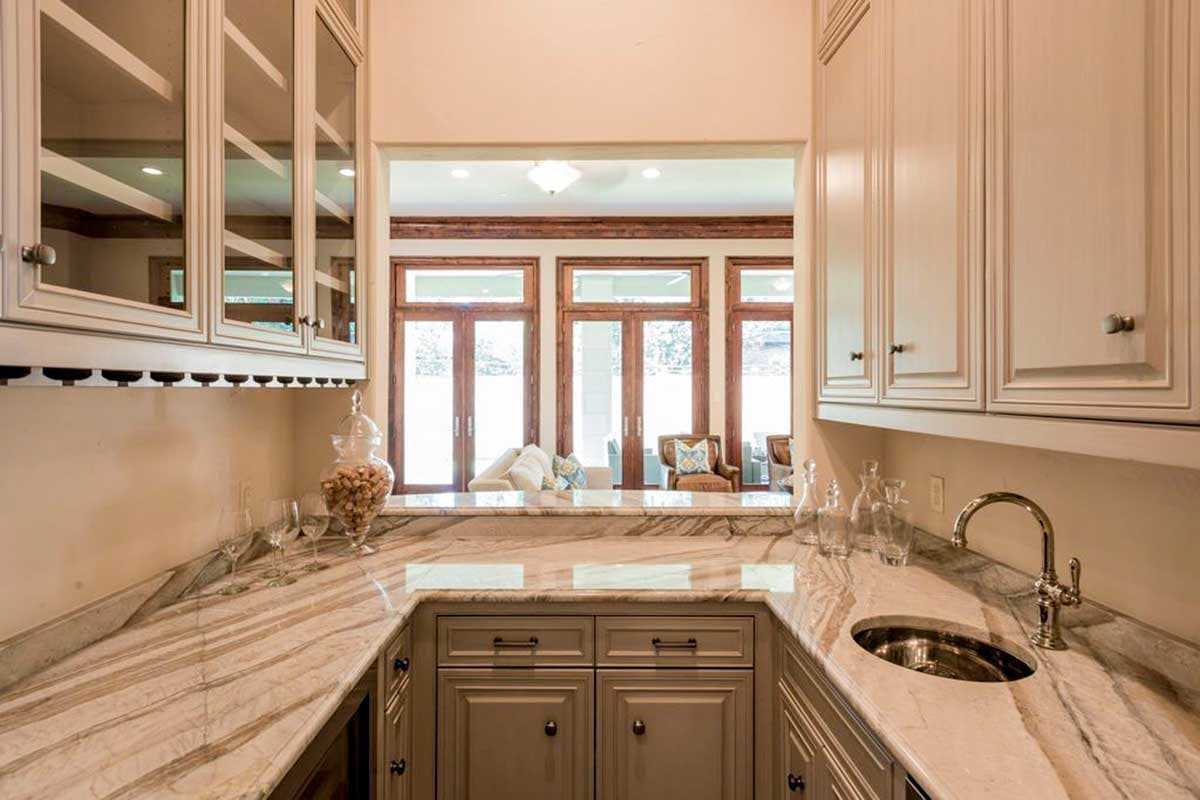

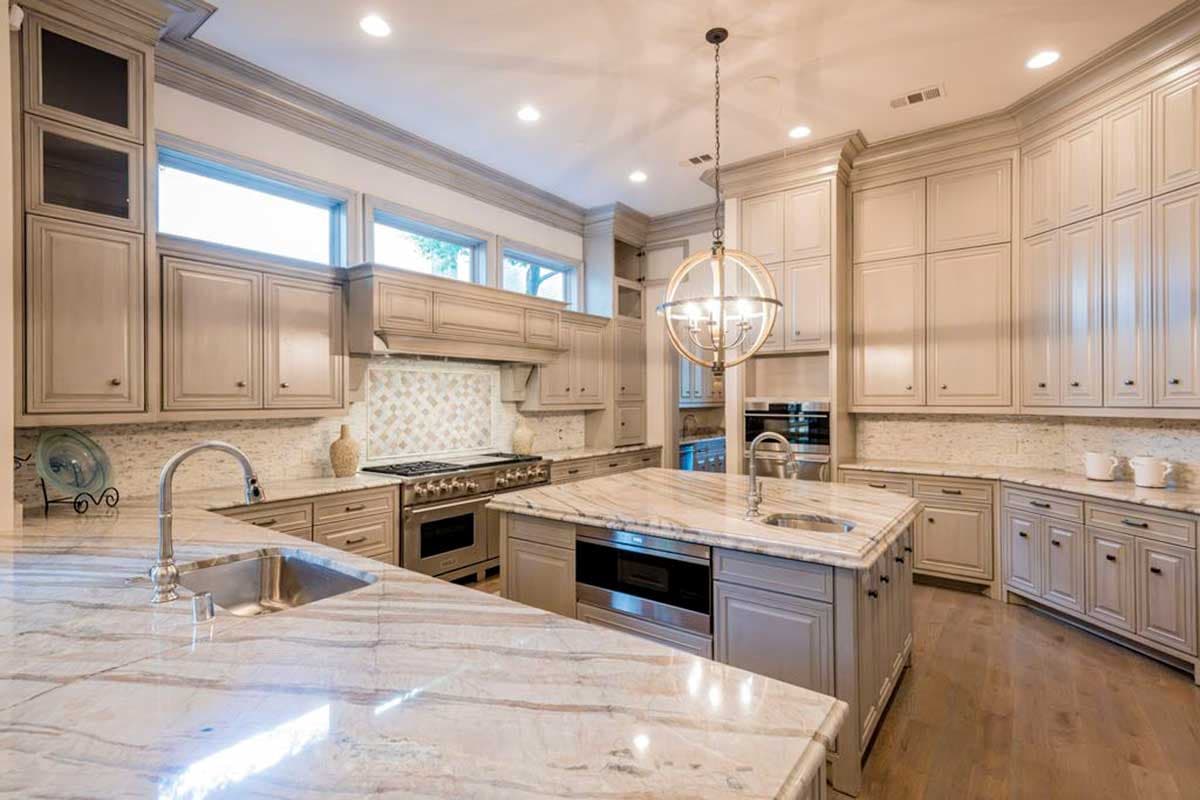

  • In the upscale kitchen, not only do you have tons of counter space, there are two dishwashers for large scale entertaining.

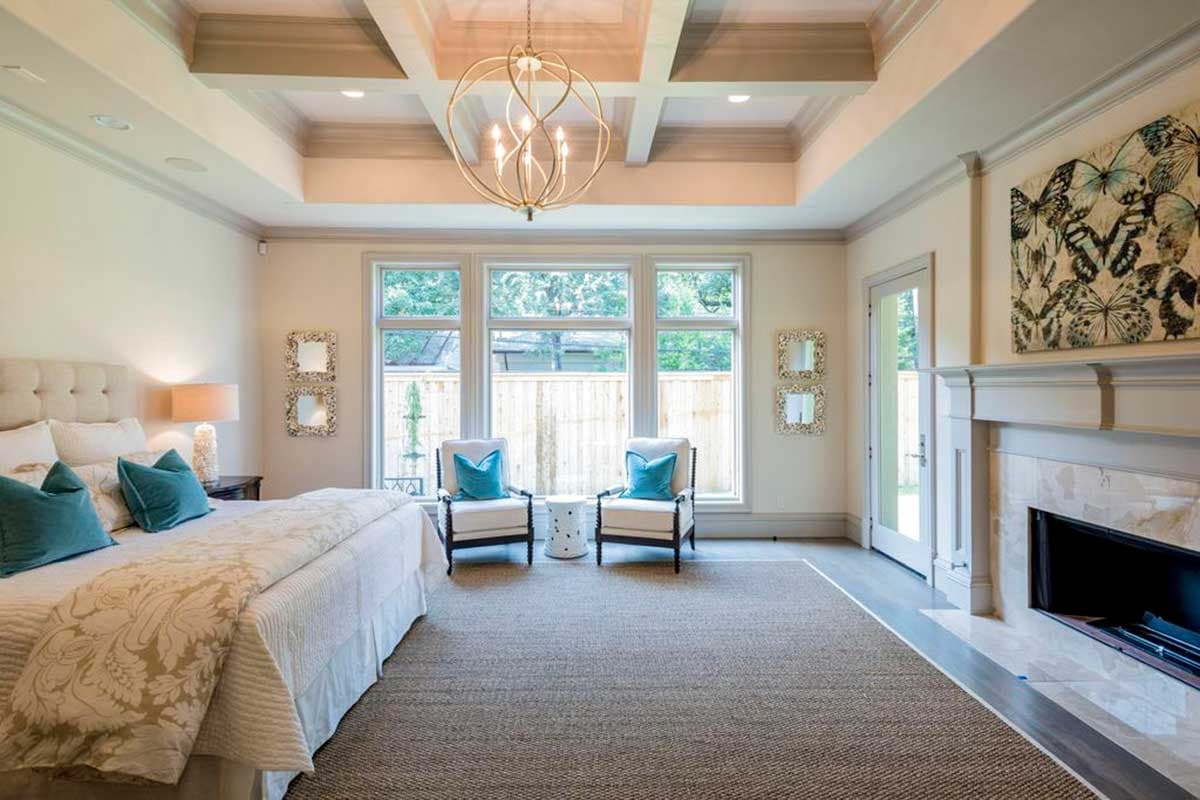

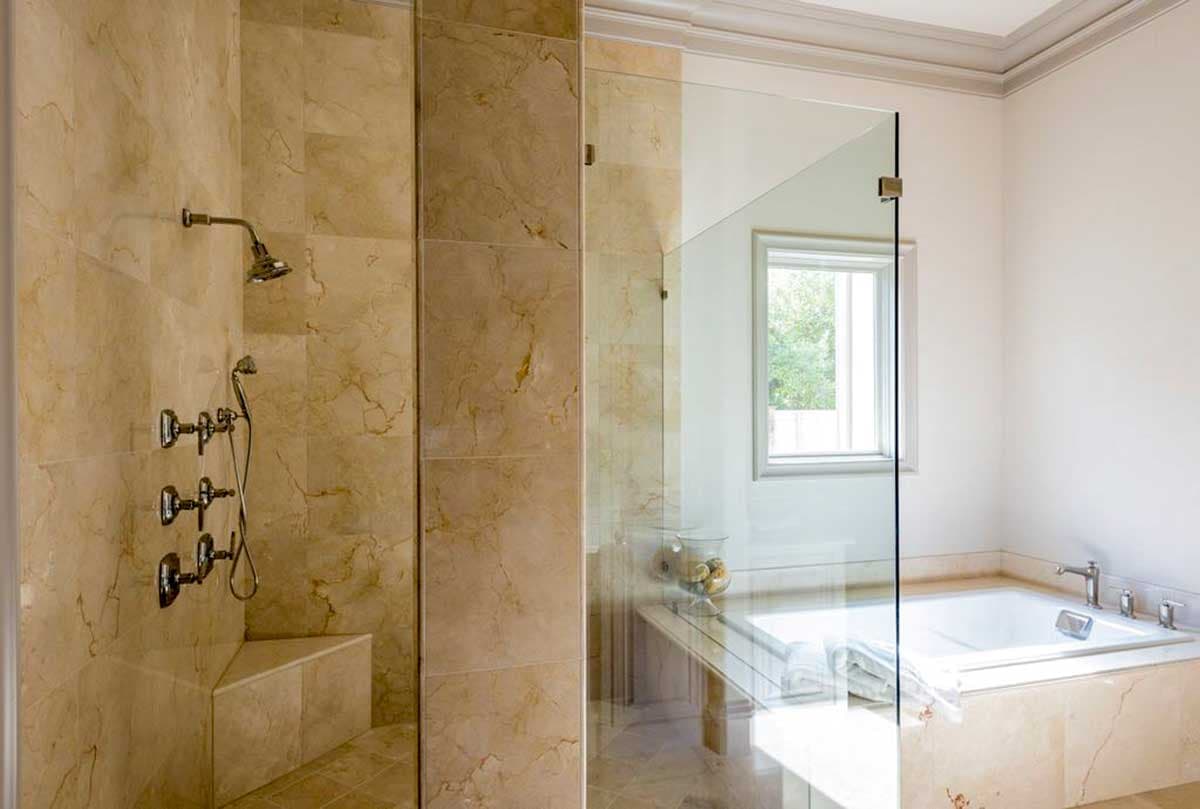

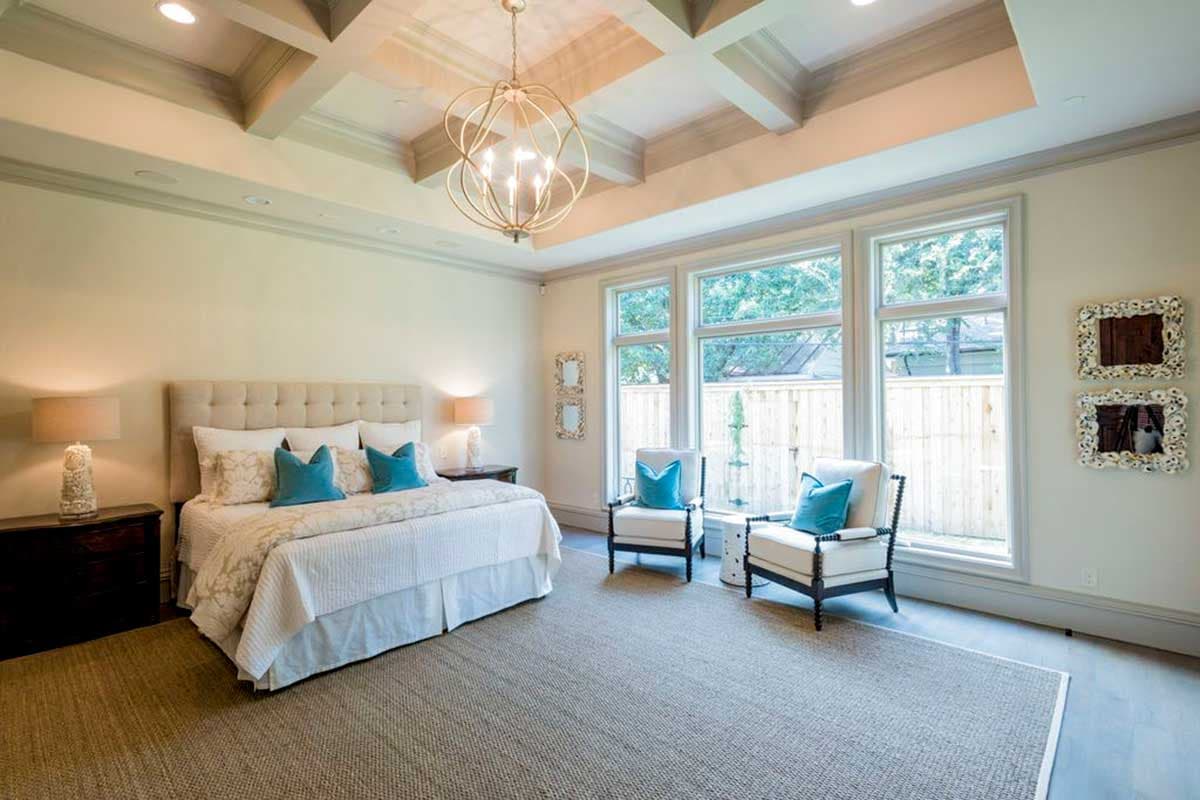

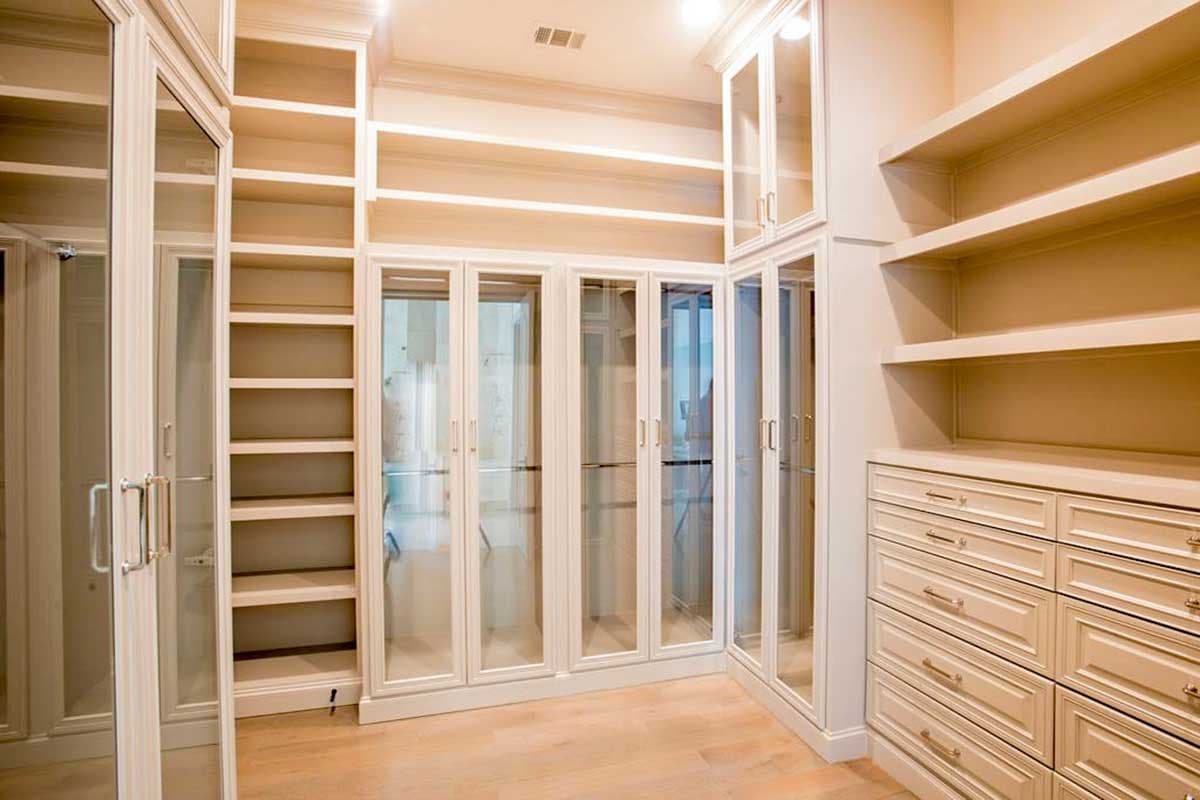

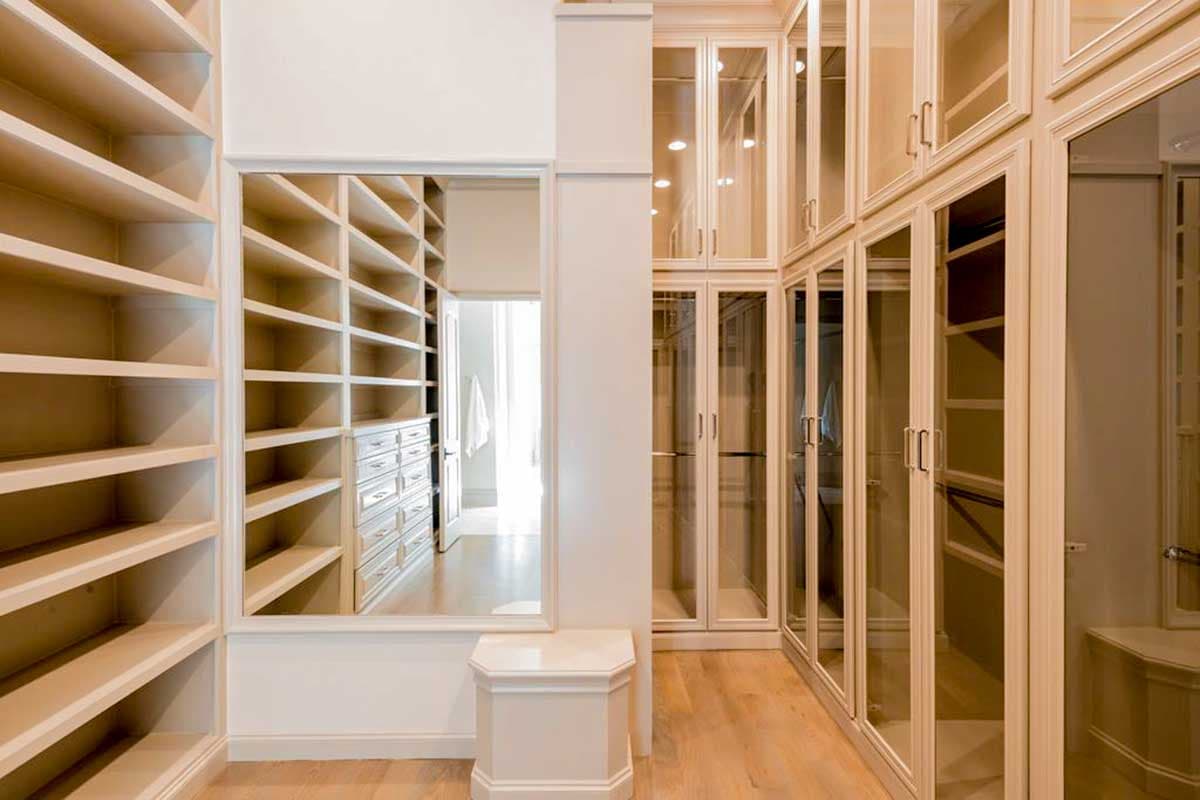

  • An opulent first floor master suite awaits homeowners with huge his and her walk-in closets and even a suitcase storage walk-in closet.

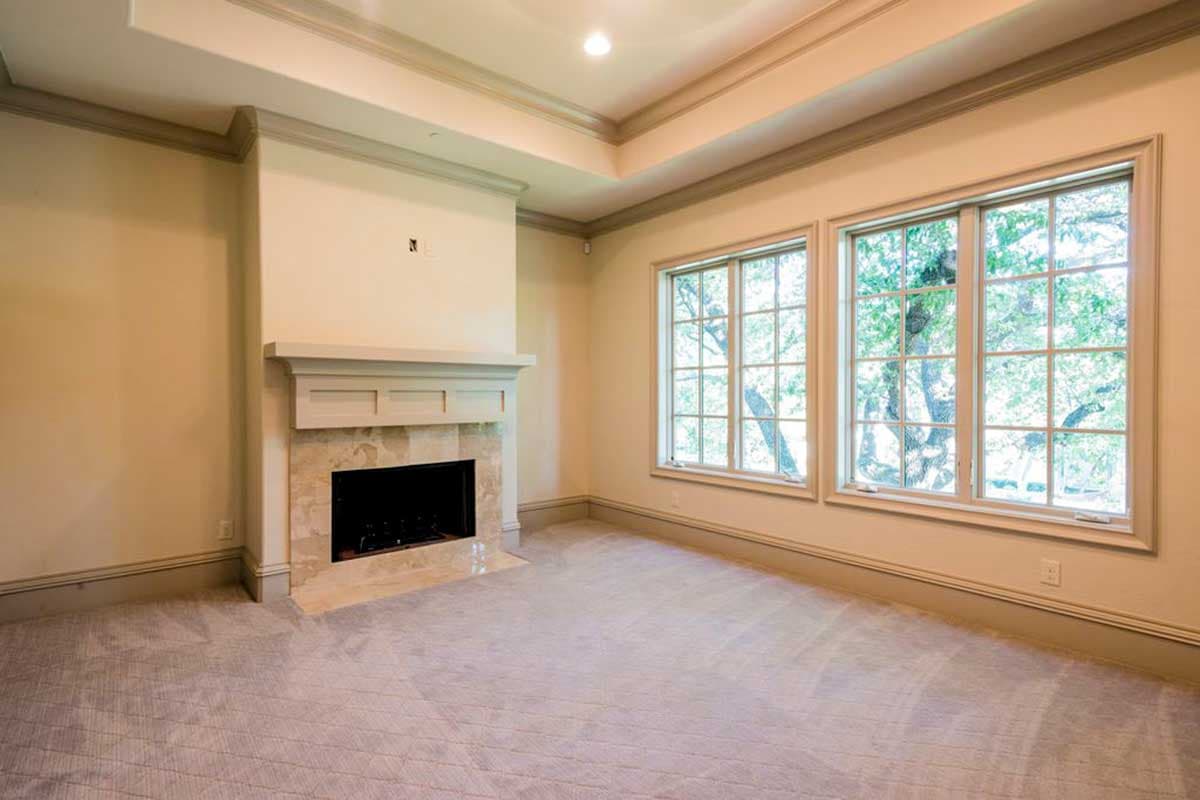

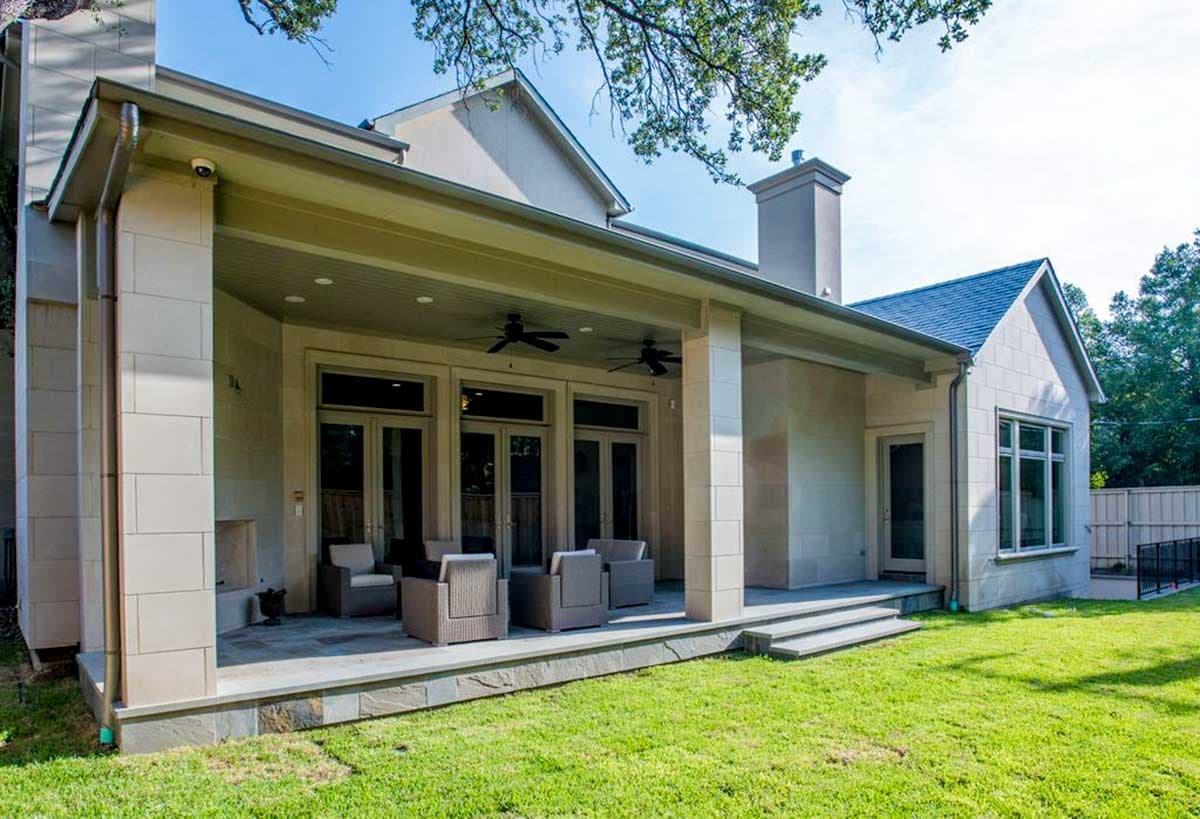

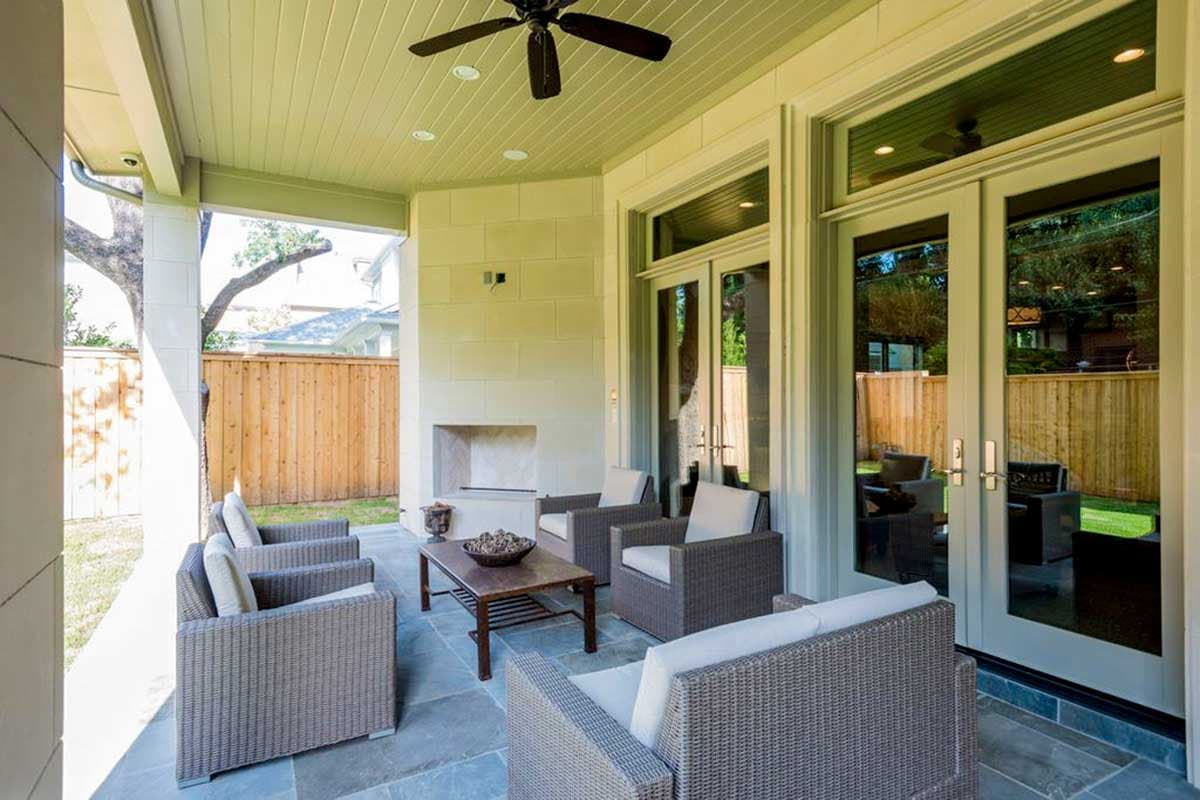

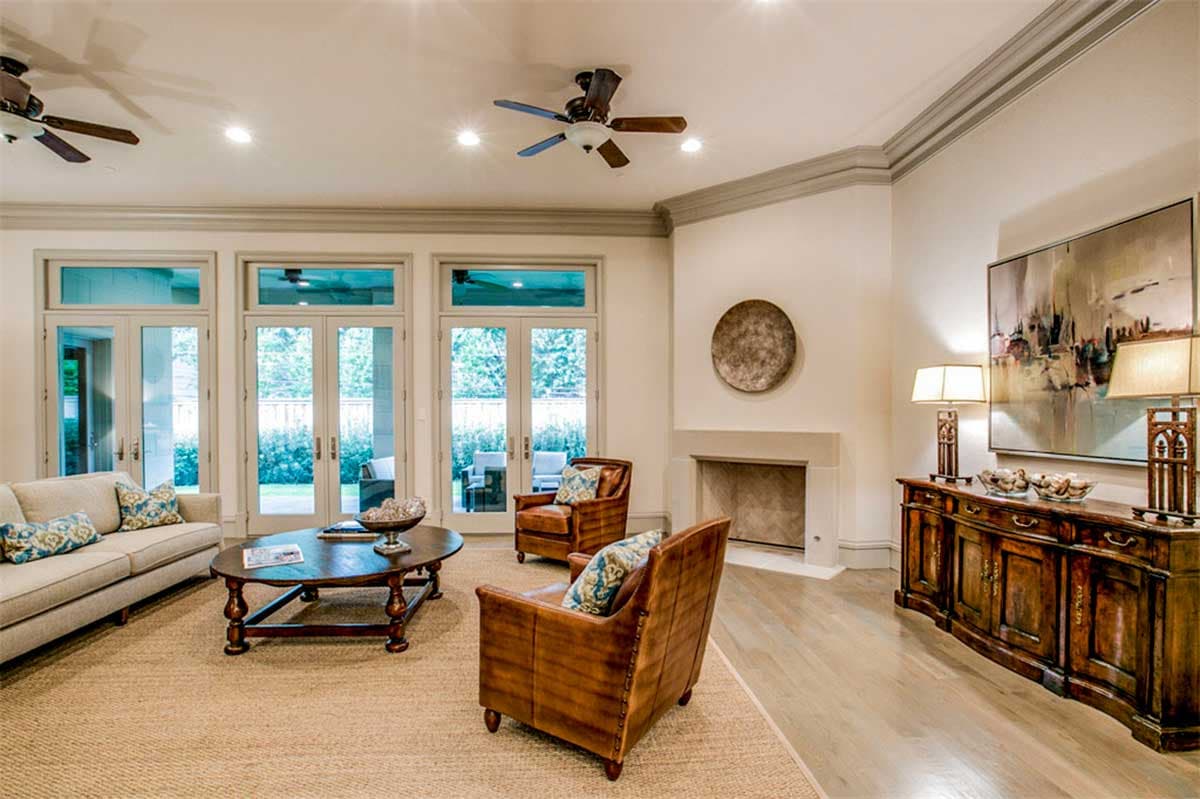

  • There are four fireplaces on the main floor and a big outdoor fireplace as well.
  • On the upper floor, double doors open to reveal a large game room with tray ceiling.

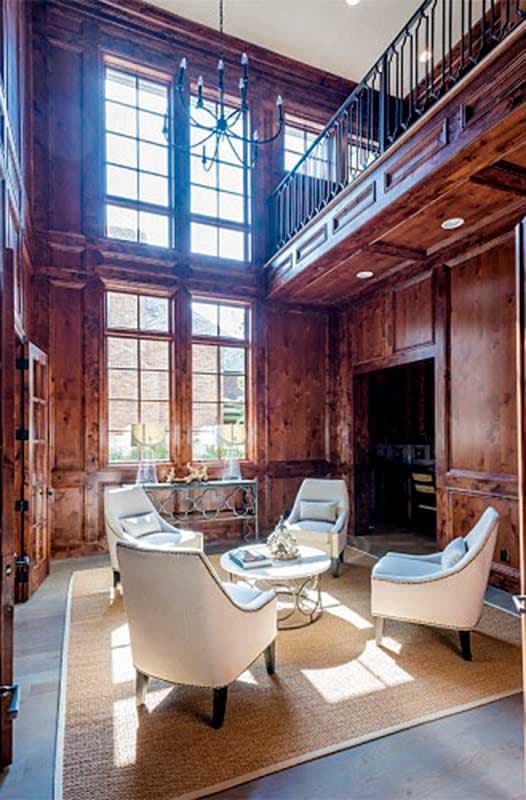

  • Built-ins line the loft that overlooks the living room below.

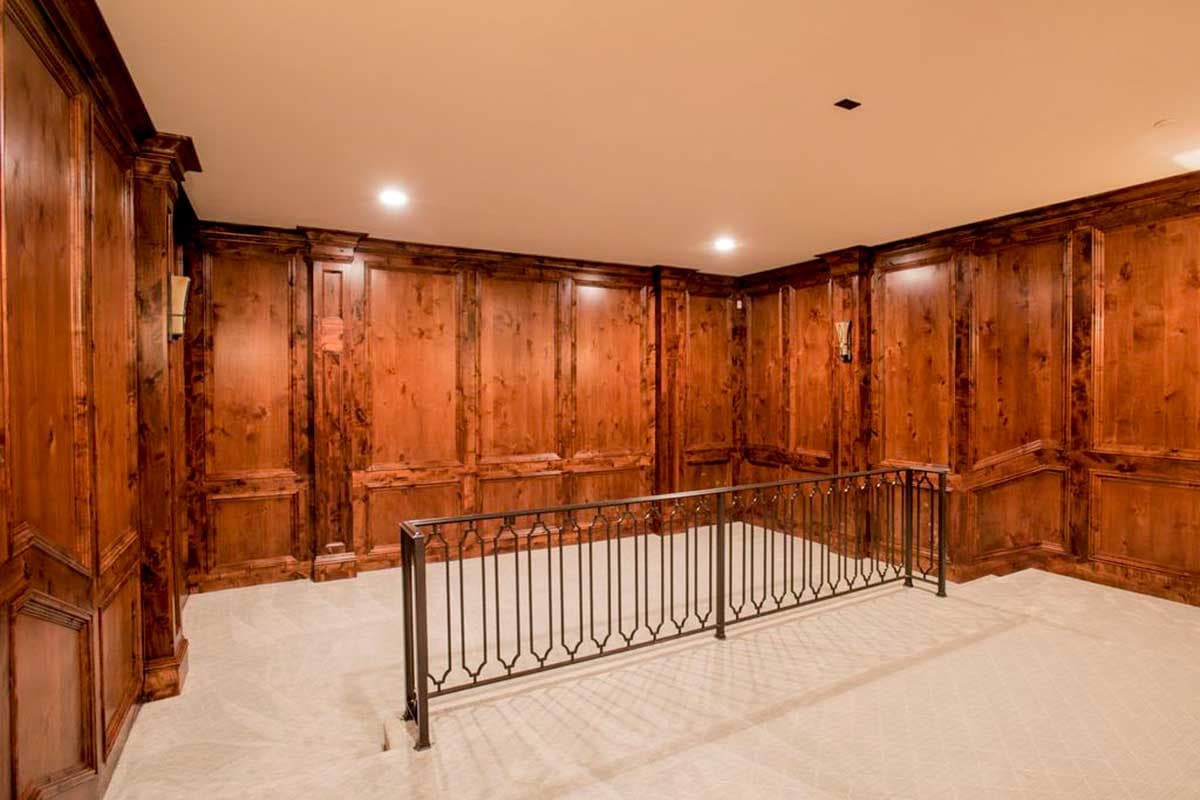

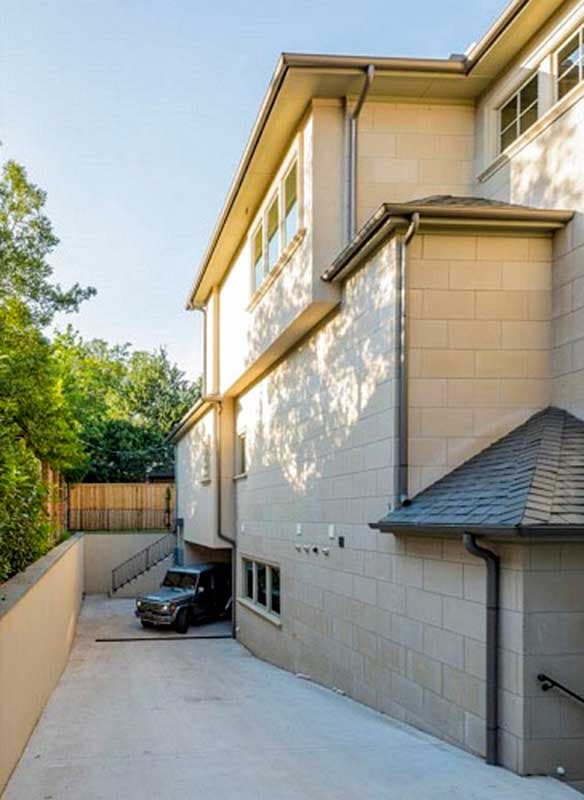

  • The 4-car drive-under garage leads to an optional finished lower level with a wine room, wet bar and enormous media room with platform seating.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

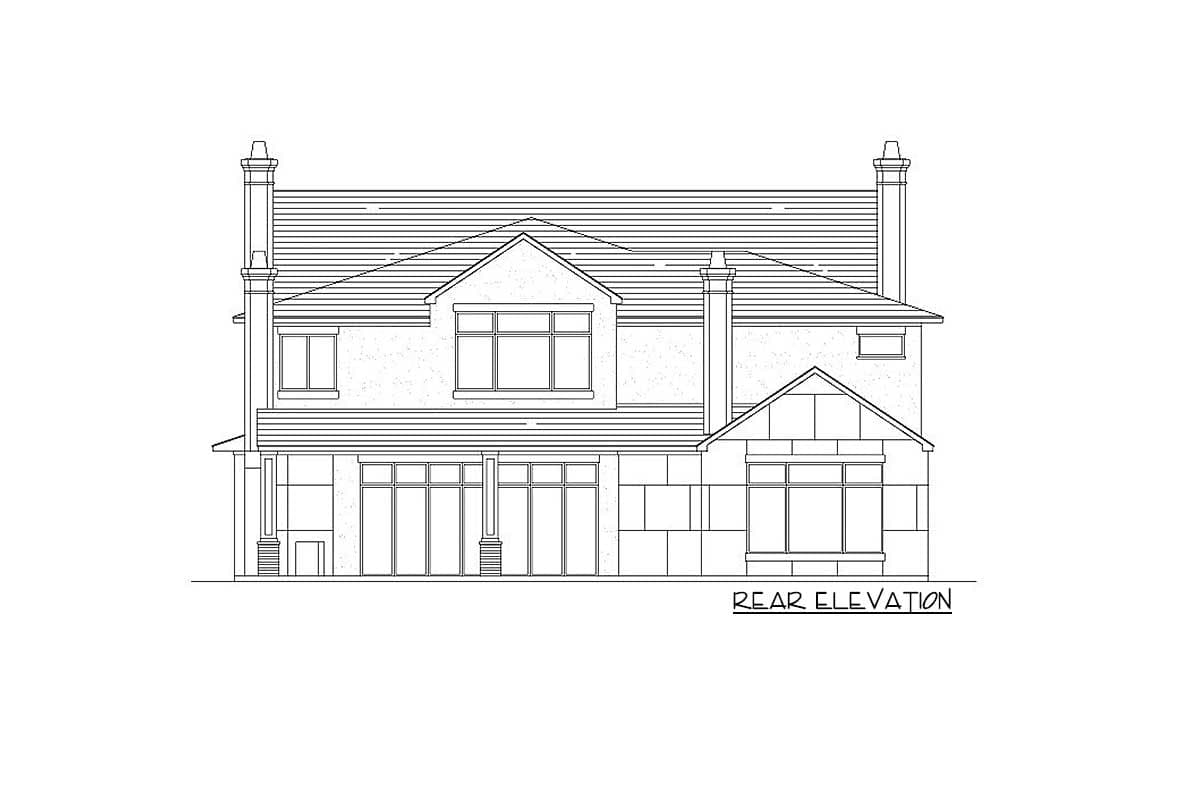

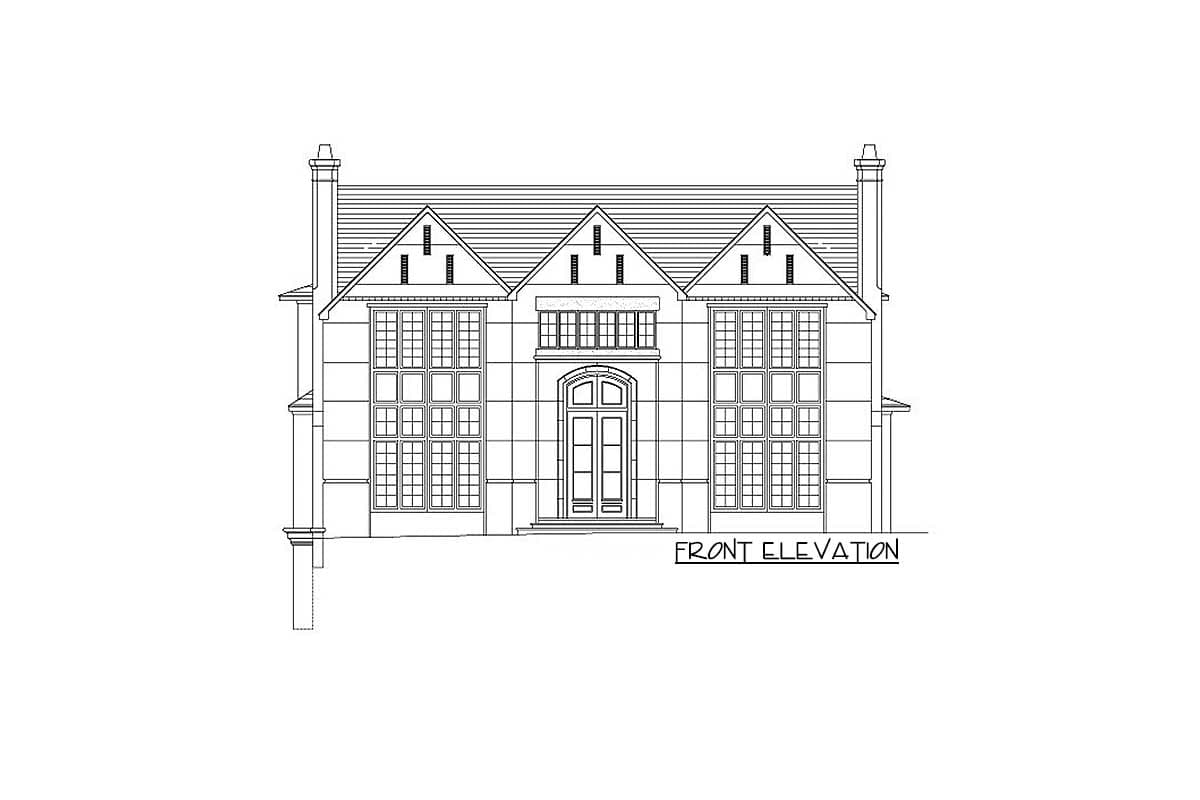

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

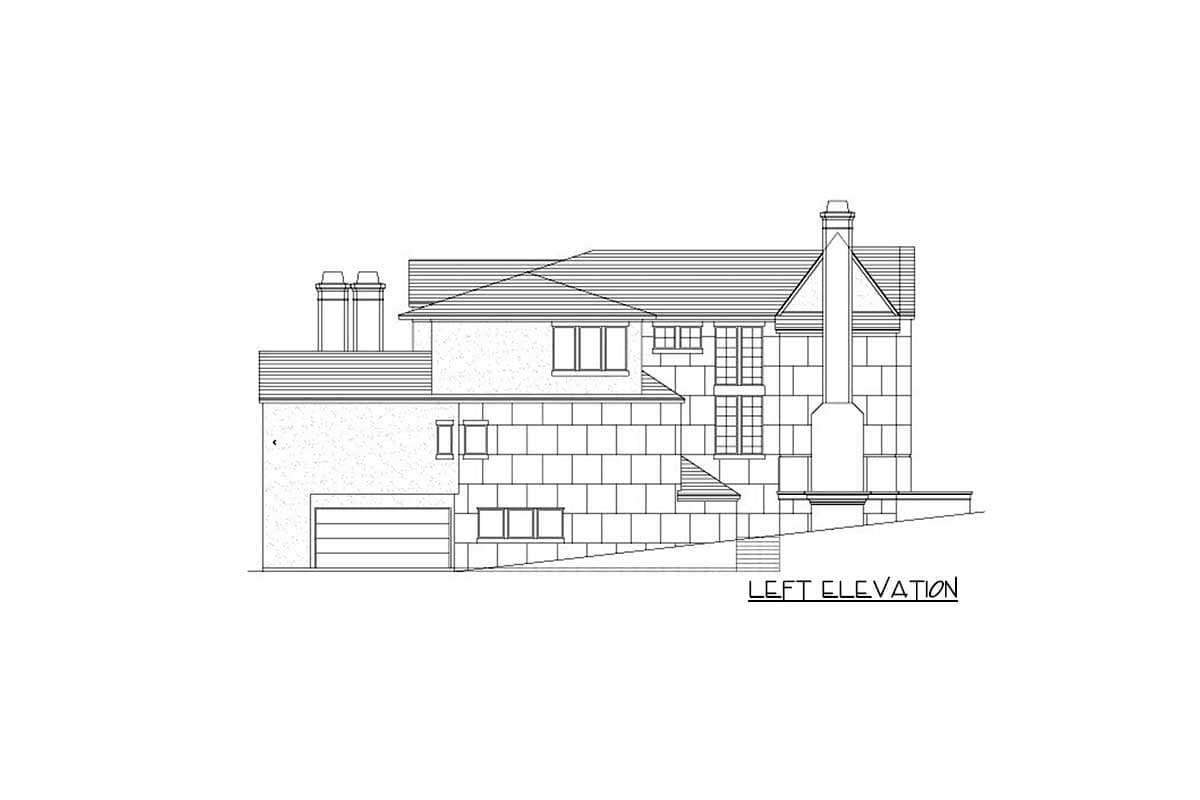

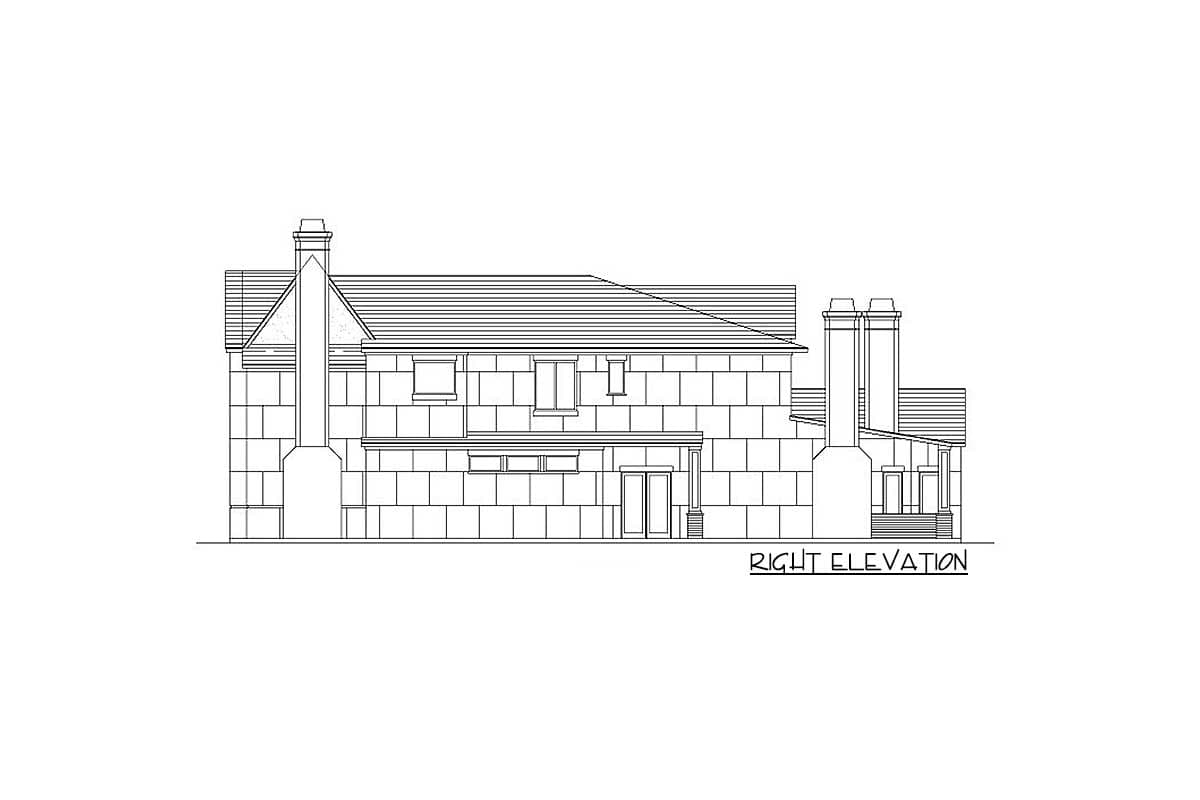

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

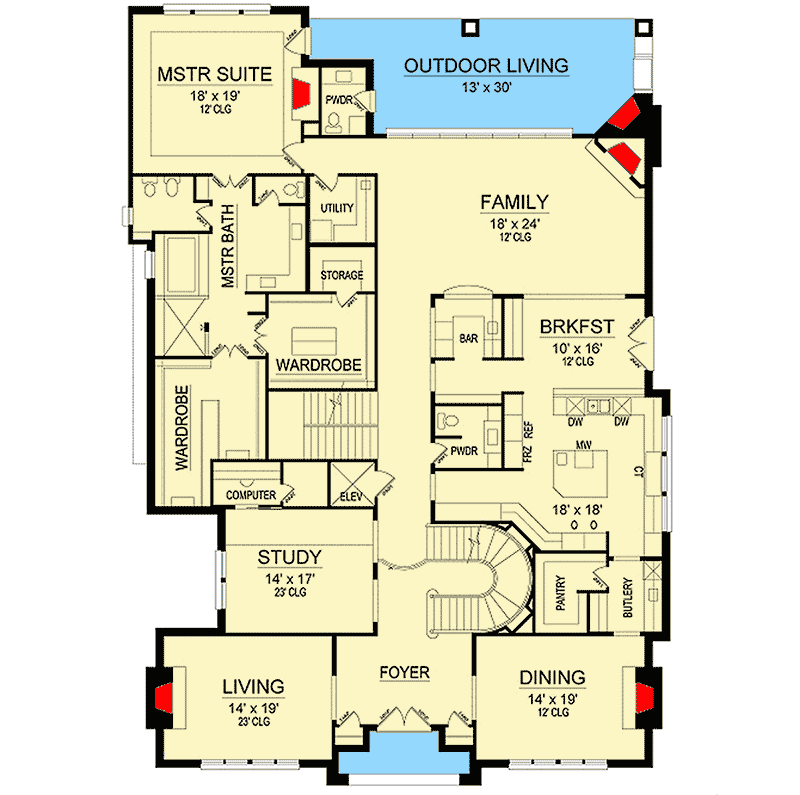

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Striking Hill Country Home Plan with Drive-Under Garage - 36554TX floor plan - Main Level

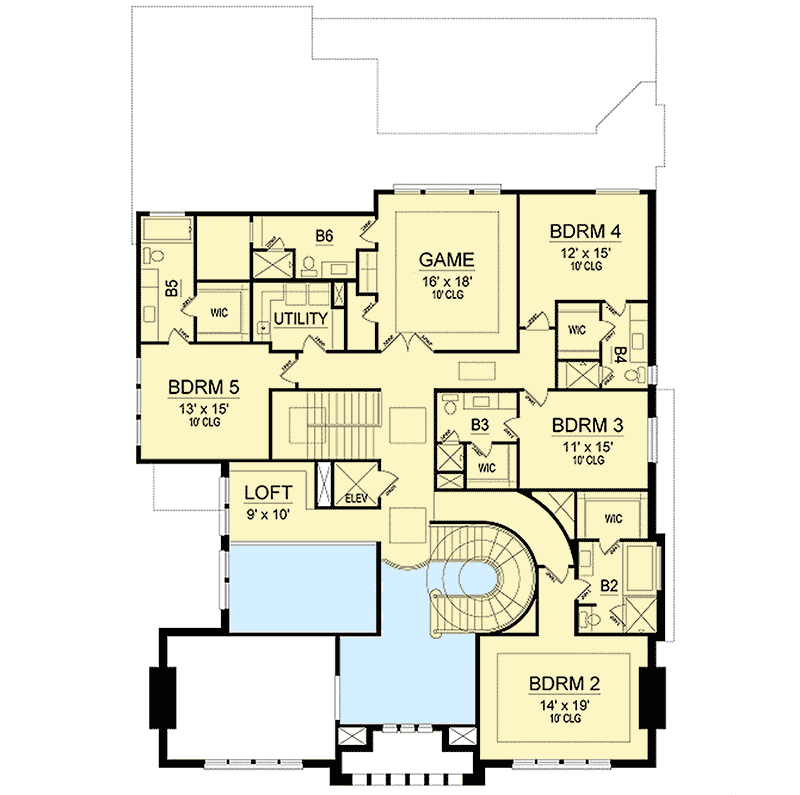

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Striking Hill Country Home Plan with Drive-Under Garage - 36554TX floor plan - Second Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

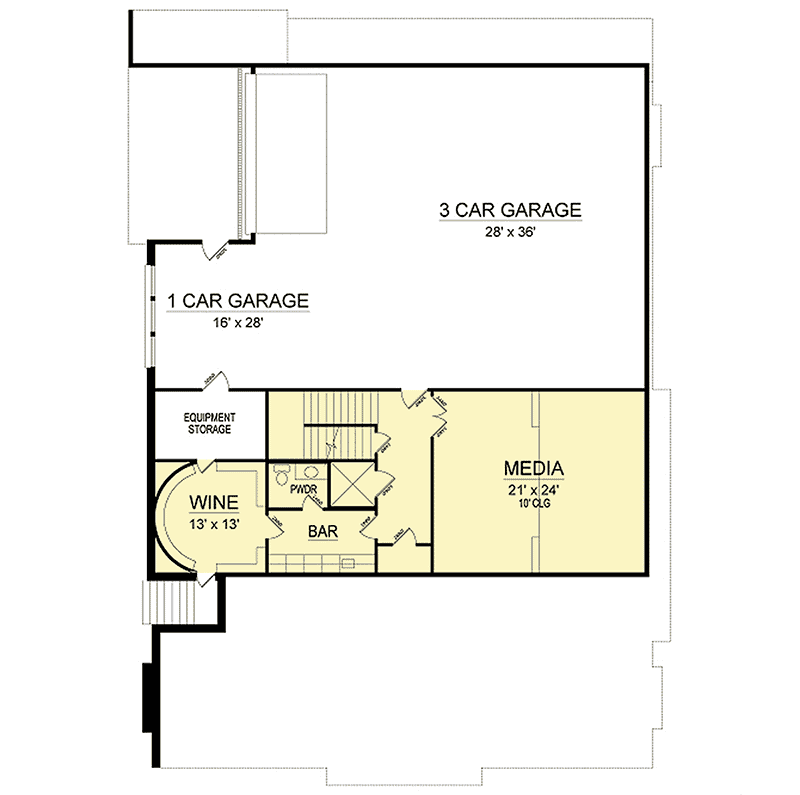

Striking Hill Country Home Plan with Drive-Under Garage - 36554TX floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 7,918 sq. ft.
  • 1st Floor: 3,846 sq. ft.
  • 2nd Floor: 3,061 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 6
  • Half bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 57' 0"
  • Depth: 85' 0"
  • Max ridge height: 40' 0"

Garage

  • Type: Drive Under
  • Area: 1778 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 12' 0" Second Floor / 10' 0"

Architectural Style

Special features

Plan Collections

Striking Hill Country Home Plan with Drive-Under Garage

  • 7,918

    Heated s.f.

  • 5

    Beds

  • 6.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $3,295
  • 5 Sets $3,495
  • CAD + PDF - Single Build $4,950
  • View all purchase option online

About This Plan

  • This striking Hill Country house plan is loaded with luxuries and amenities including a residential elevator, wet bar, a game room, first floor master suite and a gorgeous curved staircase.
  • The standard ceiling height on the first floor is 12' but the formal living room and foyer have two-story ceilings for a dramatic effect.
  • In the upscale kitchen, not only do you have tons of counter space, there are two dishwashers for large scale entertaining.
  • An opulent first floor master suite awaits homeowners with huge his and her walk-in closets and even a suitcase storage walk-in closet.
  • There are four fireplaces on the main floor and a big outdoor fireplace as well.
  • On the upper floor, double doors open to reveal a large game room with tray ceiling.
  • Built-ins line the loft that overlooks the living room below.
  • The 4-car drive-under garage leads to an optional finished lower level with a wine room, wet bar and enormous media room with platform seating.

Floor Plans

  • Main Level

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,918 sq. ft.
  • 1st Floor: 3,846 sq. ft.
  • 2nd Floor: 3,061 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 6
  • Half bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 57' 0"
  • Depth: 85' 0"
  • Max ridge height: 40' 0"

Garage

  • Type: Drive Under
  • Area: 1778 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 12' 0" Second Floor / 10' 0"
Plan 36554TX
View this and more for this plan by visiting www.architechtecturaldesigns.com/36554TX
|
