Striking Mediterranean Mansion
Heated S.F.
5,508
Beds
5
Baths
5.5+
Stories
2
Cars
4
What's Included
Plan Details
  • Beautiful arches and towers plus a tile roof give this Mediterranean house plan a striking appearance.
  • Spacious, comfortable rooms inside give you lots of room to move around.
  • Special amenities include a wine vault, a second floor nanny suite and lakeside lounge that opens to a covered veranda.
  • The heavenly master suite has a bayed sitting area, a romantic fireplace and a stunning master bathroom.
  • The master walk-in closet is huge and comes with an island for extra storage.
  • The four car garage is divided by a large workshop and has a side load entry.
  • Finish the optional lower level and gain a large home theater, exercise studio, billards room and a game room with large wet bar, perfect for entertaining in grand style.
  • Use the nanny quarters as an in-law suite if desired.
What's Included
Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

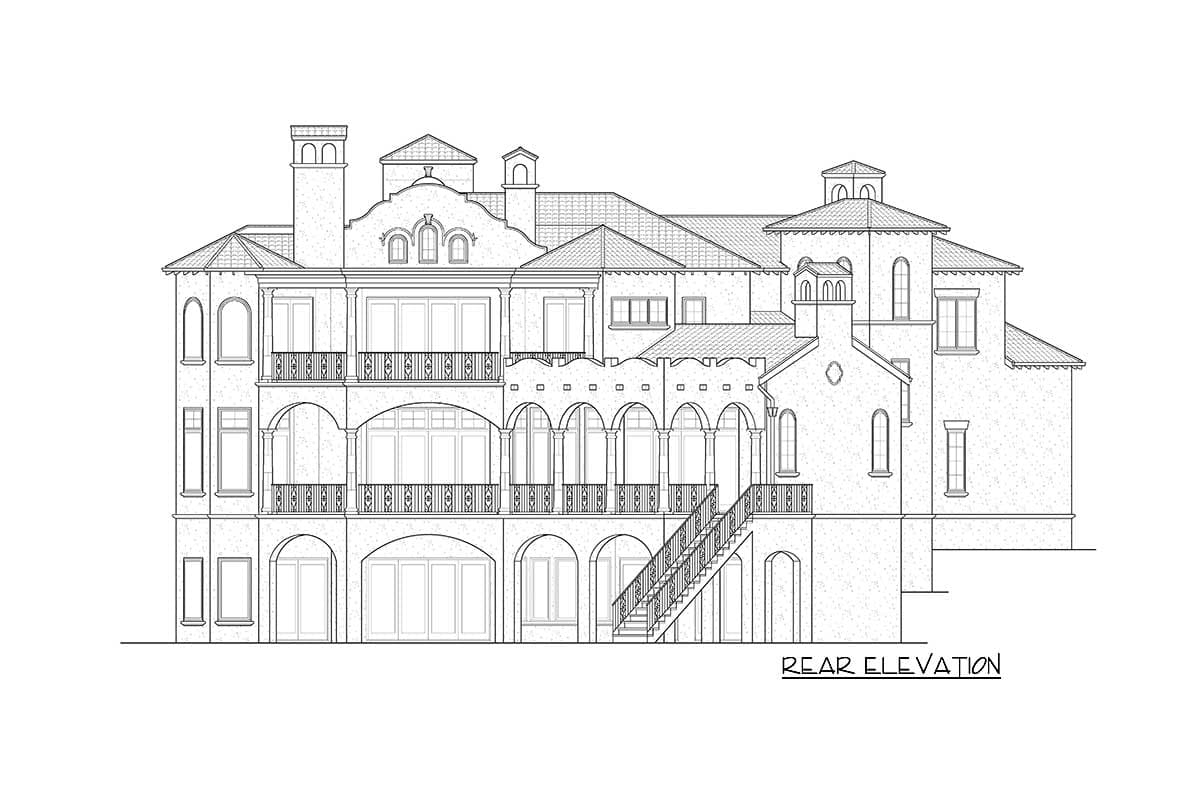

  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Striking Mediterranean Mansion

  • 5,508

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

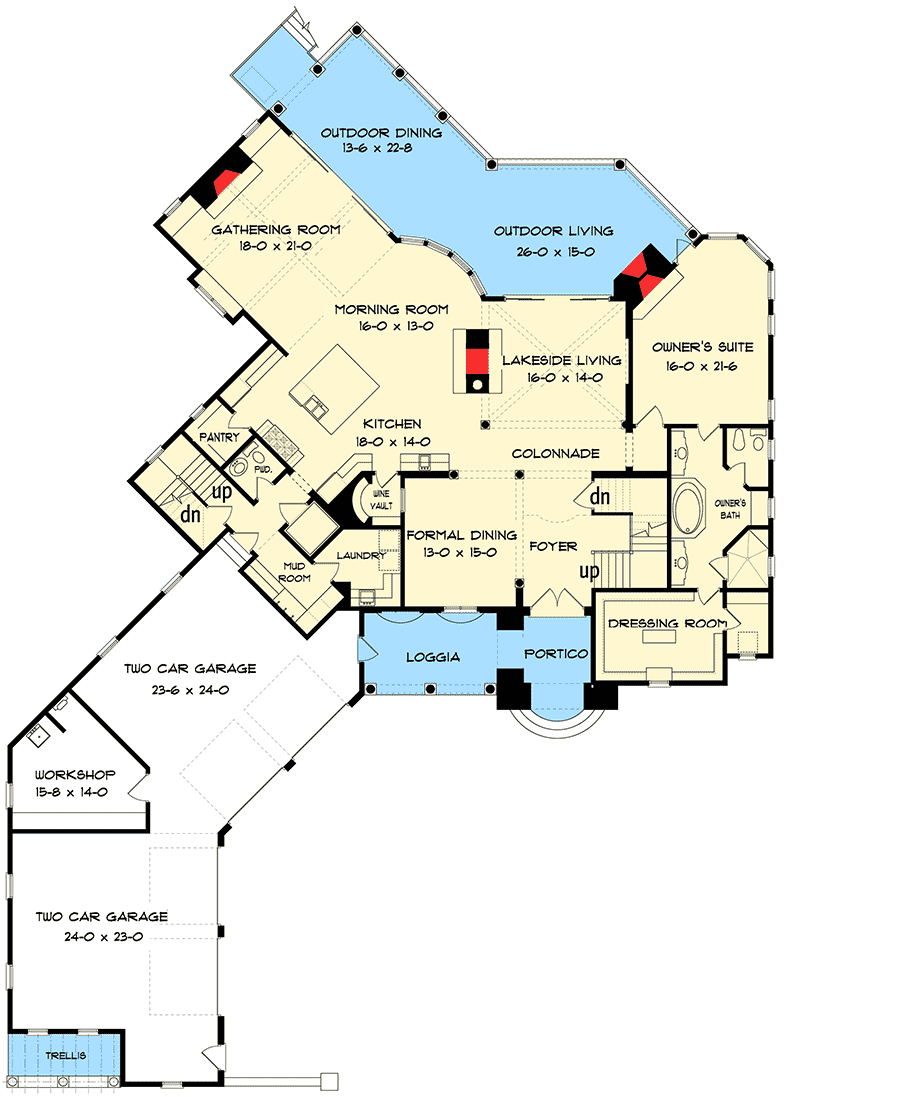

  • Main Level

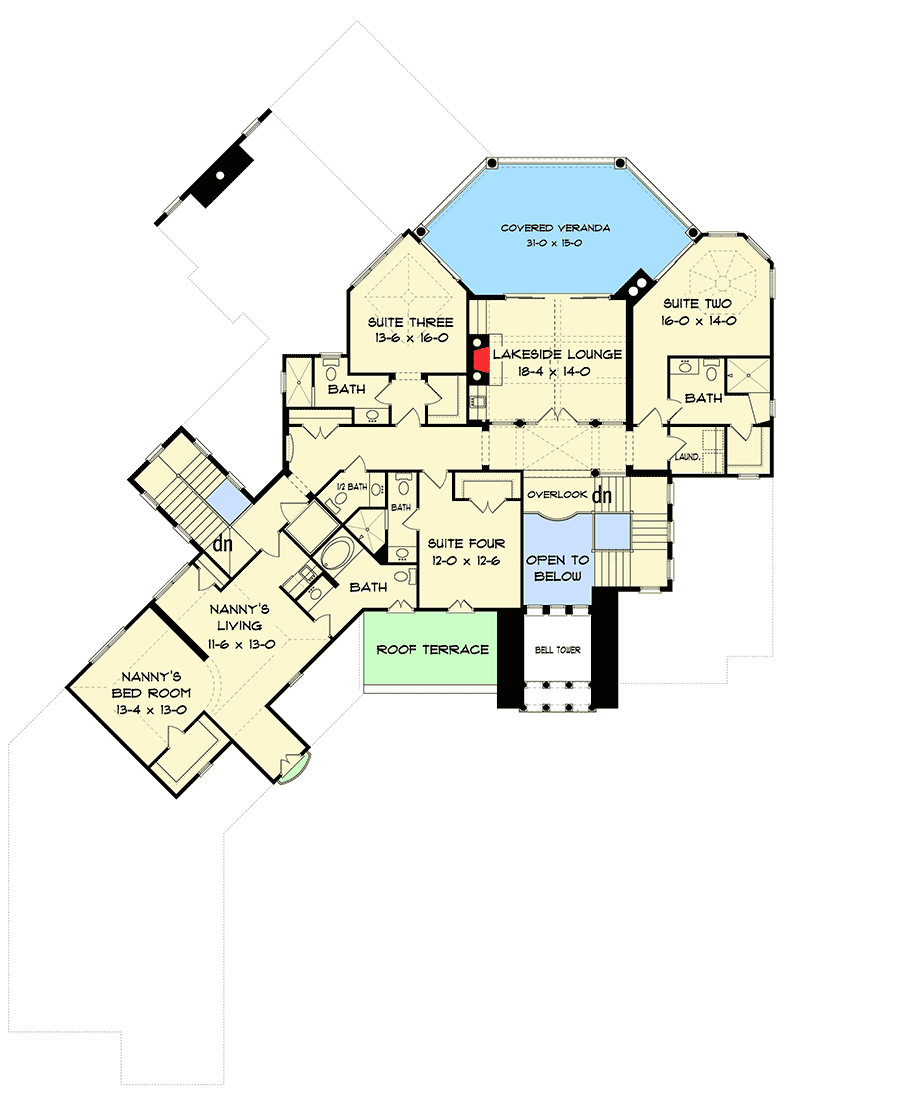

  • 2nd Floor

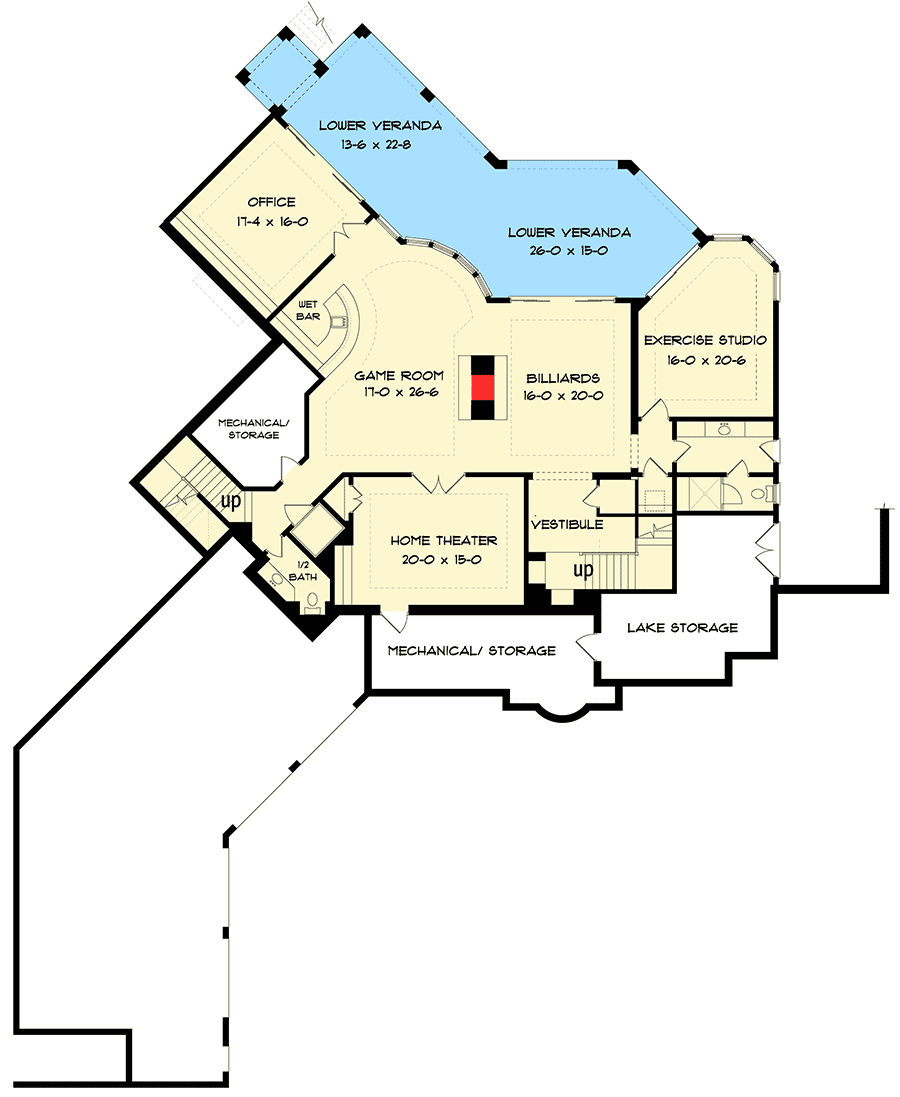

  • Lower Level
