Striking New American House Plan with Built-in Seats in the Living Room

Plan 22594DR

  • 1,953

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 1

    Cars

  • Striking exterior features, complete with metal roof accents, stand out on this one-story New American house plan. Inside, discover an open-concept living space and 3 bedrooms.
  • A fireplace and built-in window seats line the rear wall of the sizable living room, which opens to the kitchen and dining area. The oversized island houses a deep-bowl sink and provides casual seating, while a nearby walk-in pantry maximizes storage space.
  • The covered porch is located behind the garage, and is open on two sides.
  • The master suite occupies the left side of the home. Barn doors part to reveal dual closets lining the hallway that leads to the 5-fixture ensuite, complete with a freestanding tub. Across the home, Beds 2 and 3 share a bath with a shower. The laundry room is conveniently located in the center of the bedrooms.
  • Related Plans: Get a version with a 2-car garage with house plan 22583DR and remove the garage with house plan 22628DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

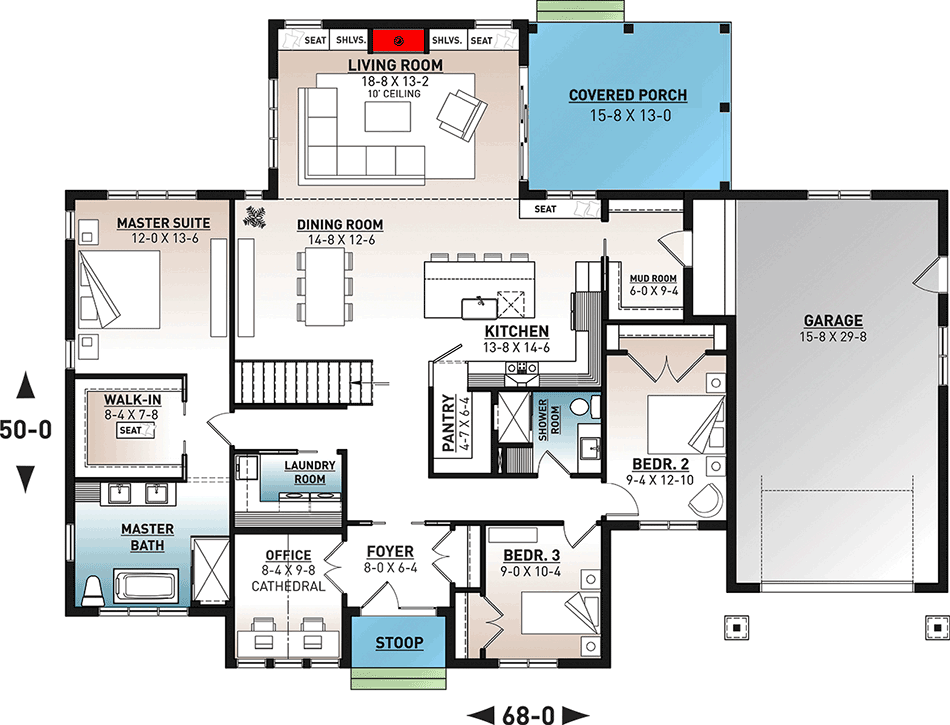

Striking New American House Plan with Built-in Seats in the Living Room - 22594DR floor plan - Main Level

Basement Unfinished

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Striking New American House Plan with Built-in Seats in the Living Room - 22594DR floor plan - Basement Unfinished

Striking New American House Plan with Built-in Seats in the Living Room

  • 1,953

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • Basement Unfinished

Plan Details

Square Footage Breakdown

  • Total: 1,953 sq. ft.
  • 1st Floor: 1,953 sq. ft.

Dimensions

  • Width: 68' 0"
  • Depth: 50' 0"
  • Max ridge height: 23' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 542 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Monolithic Slab, Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
