Plan 42575DB

Striking Shingle House Plan with Second-Level Master Bedroom

Pageloader

Striking Shingle House Plan with Second-Level Master Bedroom

Plan 42575DB

  • 6,672

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A blanket of shingles rest on this 5-bedroom house plan and deep overhangs, topped by shed roofs, are supported by large brackets. A cupola serves as the cherry on top.
  • A spacious dining room and library border the grand foyer. A wall of windows in the family room provides plenty of natural light to filter in, while a fireplace adds a sense of warmth.
  • A roomy kitchen provides not one, but two islands, and the double bowl kitchen sink overlooks the back patio. A dining area for casual meals sits adjacent the kitchen, with access to the patio.
  • Privately tucked away behind the family room is a bedroom with a full bathroom.
  • Upstairs, french doors give way to a sprawling owner's suite, which features a luxurious ensuite with a standalone tub, oversized shower, toilet room, and two sinks along with a makeup vanity. A massive walk-in closet includes a dresser island, and a second door leading to the top of the stairs.
  • The second level also boasts three additional suites, each with their own full bathroom and walk-in closet. A large laundry room sits at the end of the hall.
  • The 3-car garage entrance leads to a mudroom with built-in lockers, next to the second laundry room.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



Striking Shingle House Plan with Second-Level Master Bedroom

  • 6,672

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $2,230
  • PDF - single-use $3,380
  • 5 Sets $3,530
  • 5 Sets PLUS $3,575
  • 8 Sets $3,655
  • PDF - multi-use $3,880
  • CAD $5,070
  • CAD - multi-use $5,570
  • View all purchase option online

About This Plan

  • A blanket of shingles rest on this 5-bedroom house plan and deep overhangs, topped by shed roofs, are supported by large brackets. A cupola serves as the cherry on top.
  • A spacious dining room and library border the grand foyer. A wall of windows in the family room provides plenty of natural light to filter in, while a fireplace adds a sense of warmth.
  • A roomy kitchen provides not one, but two islands, and the double bowl kitchen sink overlooks the back patio. A dining area for casual meals sits adjacent the kitchen, with access to the patio.
  • Privately tucked away behind the family room is a bedroom with a full bathroom.
  • Upstairs, french doors give way to a sprawling owner's suite, which features a luxurious ensuite with a standalone tub, oversized shower, toilet room, and two sinks along with a makeup vanity. A massive walk-in closet includes a dresser island, and a second door leading to the top of the stairs.
  • The second level also boasts three additional suites, each with their own full bathroom and walk-in closet. A large laundry room sits at the end of the hall.
  • The 3-car garage entrance leads to a mudroom with built-in lockers, next to the second laundry room.

Floor Plans

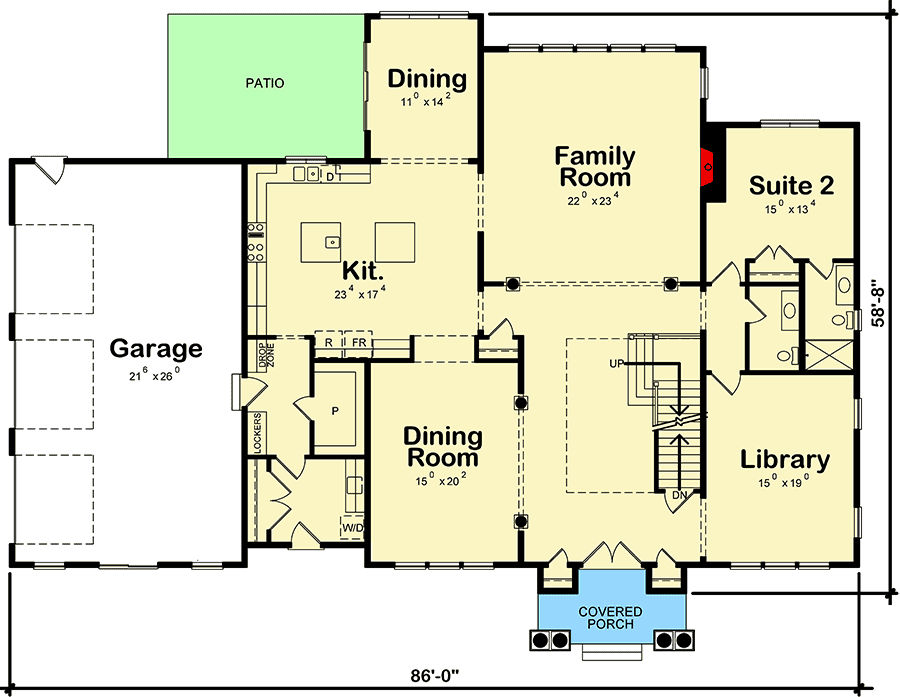

  • Main Level

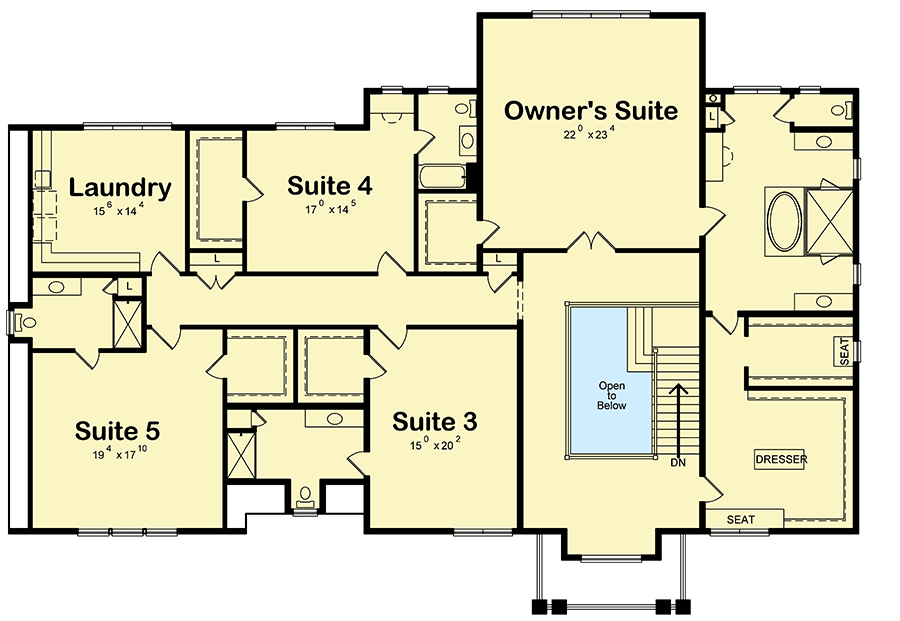

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,672 sq. ft.
  • 1st Floor: 3,065 sq. ft.
  • 2nd Floor: 3,607 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 86' 0"
  • Depth: 63' 8"
  • Max ridge height: 35' 10"

Garage

  • Type: Attached
  • Area: 972 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
