Striking Tuscan Home with Vaulted Great Room

Plan 54208HU

  • 3,574

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • The striking Tuscan exterior will take your breath away as you approach this one level home.
  • Terraces, a courtyard and a covered outdoor living area with fireplace encourage you to spend time outdoors.
  • A 16' high entry tower guides you into the home.
  • The first thing you see from the foyer is the magnificent vaulted great room with sliding glass doors to the covered porch.
  • The kitchen and dining room also sit beneath a vaulted ceiling matching the one over the great room, but it runs east and west instead of north and south.
  • An open layout lets you also see the dining room and huge kitchen with two islands, one of which has an eating bar with room for 4 seats.
  • Three master suite will pamper every family member and guest.
  • Every bedroom has sliding doors to an outdoor terrace, two of them covered by lovely pergolas.
  • Side entry split garages give you room for three cars.

Each plan set includes the following:

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan
  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

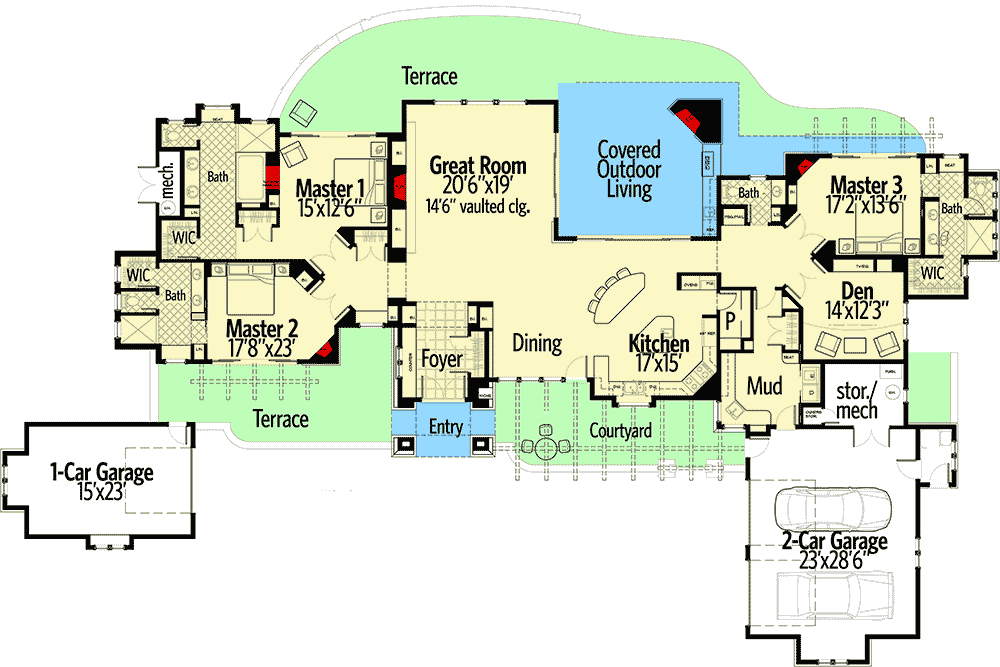

Striking Tuscan Home with Vaulted Great Room - 54208HU floor plan - Main Level
