Strong Brick Facade

Plan 39179ST

  • 2,304

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The strong brick facade of this beautiful two-story home plan includes a boxed window, curved roof line, and covered entry which offers protection from the weather.
  • The exciting kitchen includes an island with seating, wall oven and pantry cabinet.
  • Combining the great room and dining area creates a large gathering area that enjoys a gas fireplace and access to the rear covered porch.
  • A second floor master bedroom offers a raised center ceiling height to 9' and the master bath showcases a whirlpool tub, dual vanities and walk-in closet. Three additional bedrooms and a second floor laundry add to the convenience of this exciting home.
  • Room for a third car can be found in a large tandem bay that could also be used for boat storage or spacious work area.

  • General notes and specifications

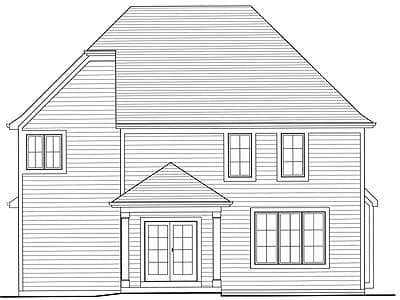

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

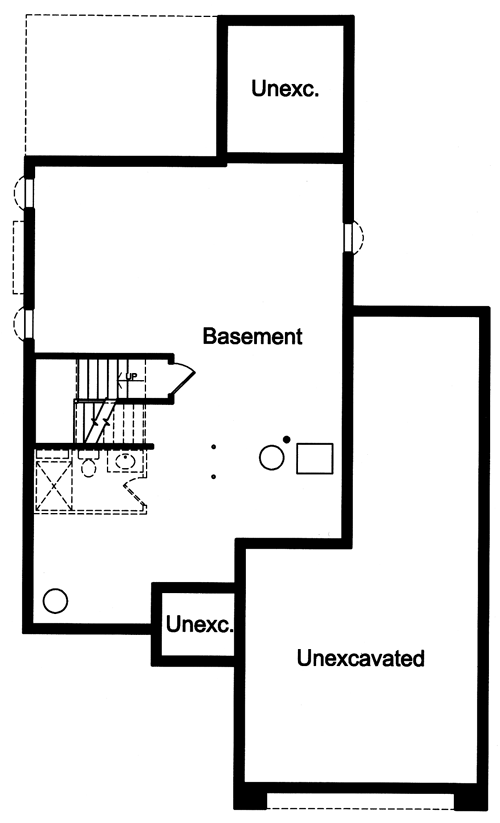

Strong Brick Facade - 39179ST floor plan - Basement
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

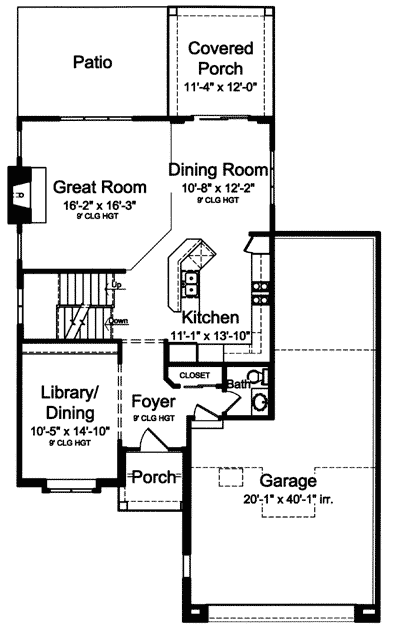

Strong Brick Facade - 39179ST floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

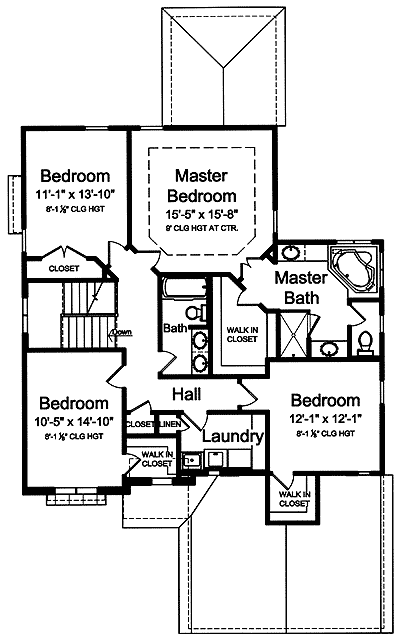

Strong Brick Facade - 39179ST floor plan - 2nd Floor

Architectural Style

Special features

Strong Brick Facade

  • 2,304

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,304 sq. ft.
  • 1st Floor: 1,002 sq. ft.
  • 2nd Floor: 1,302 sq. ft.

Dimensions

  • Width: 39' 0"
  • Depth: 66' 8"
  • Max ridge height: 39' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 625 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Truss
