Plan 86070BW
Stunning 4-Bed One-Story Coastal Contemporary Home Plan for the Indoor Outdoor Lifestyle
Heated S.F.
3,733
Beds
4
Baths
4.5
Stories
1
Cars
3
What's Included
Plan Details
  • Maximize your outdoor living experience with this one-story home plan which boasts 4 bedrooms and an open-concept, floor plan which extends to the covered, back lanai through a wall of retractable doors.

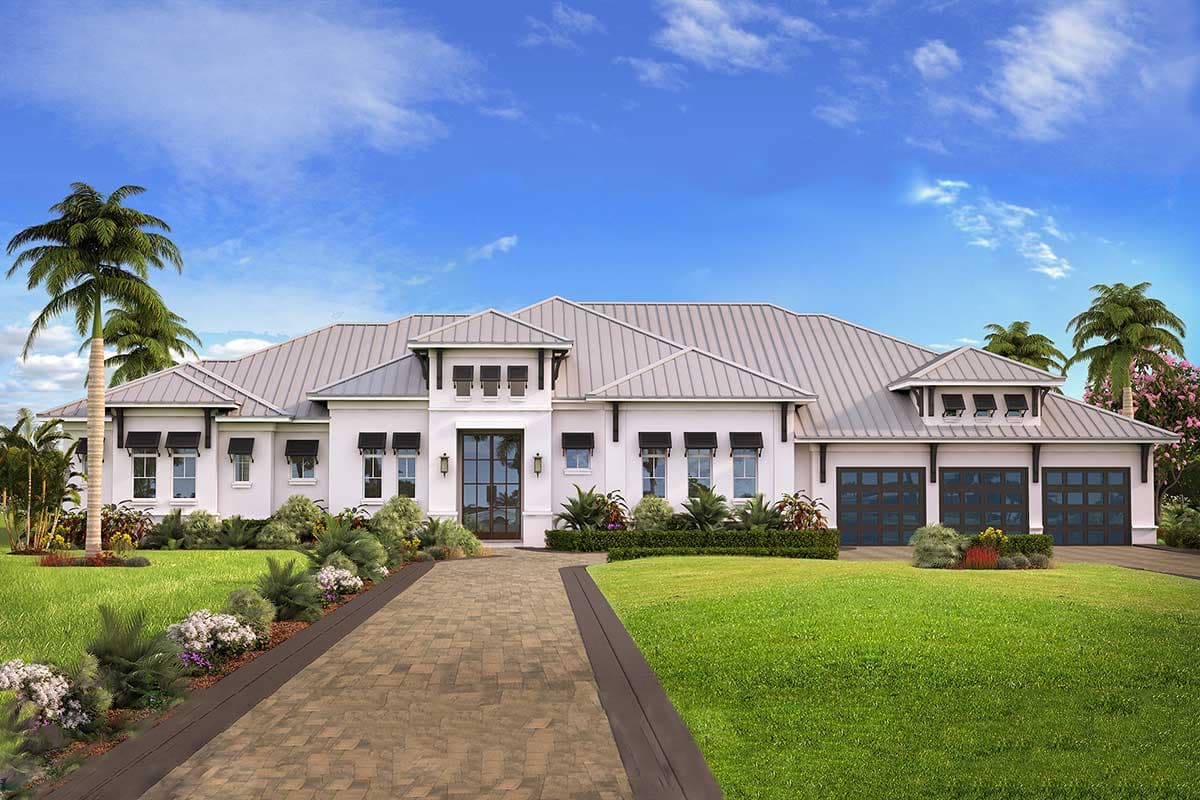

  • The front exterior features an oversized, front doors (each measures 3' by 11') made of glass, a modern metal roof atop pyramid and hip roof lines, and chic window awnings.
  • The heart of this home remains entirely open and includes high, decorative ceilings atop the great room, dining room and kitchen. Plenty of kitchen workspace is provided by the oversized island and counters. A walk-in pantry helps remain organized.

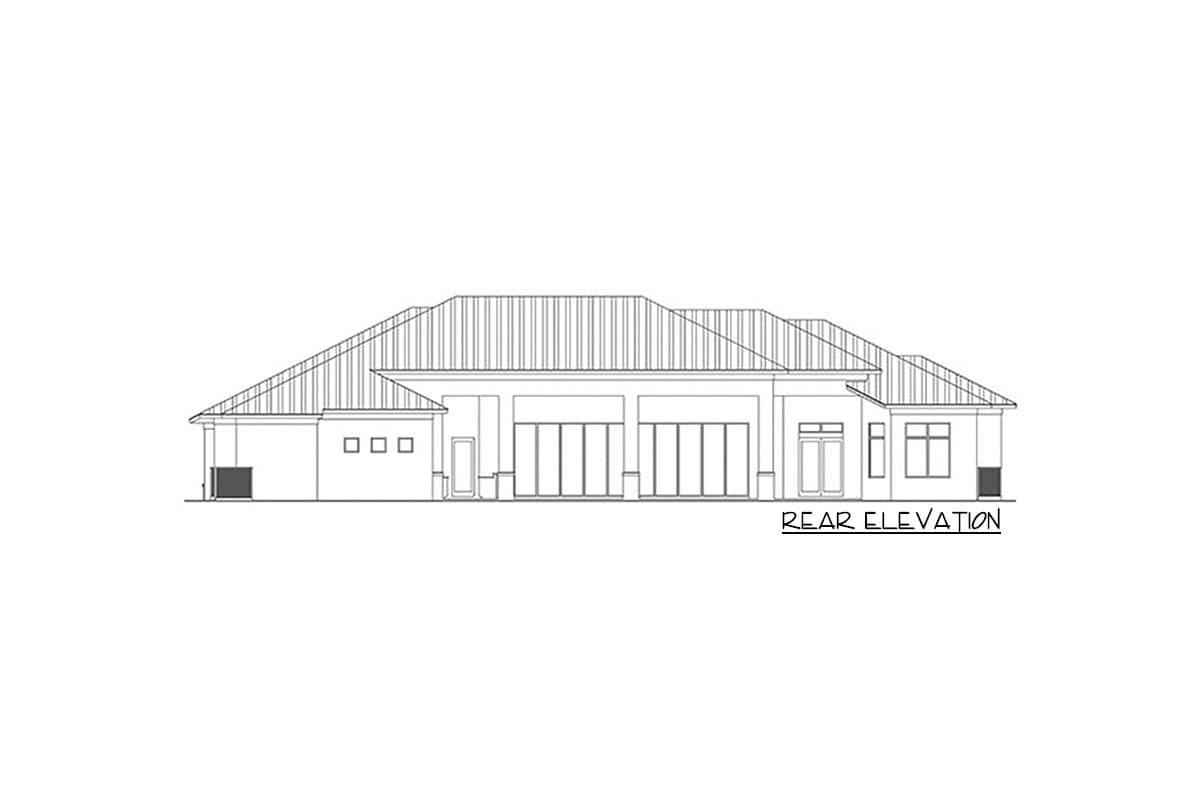

  • A wall of retractable, sliding doors leads to an expansive covered lanai with space for seating and dining, along with an outdoor kitchen.
  • Split bedrooms maximize privacy for the homeowner and guests. Your master suite resides through double doors on one side of the home and includes an elegant ceiling design, dual closets, and a large, 5-fixture, master bathroom.
  • Behind the 3-car garage, discover two bedrooms with full bathrooms and walk-in closets, along with a third bedroom with access to the back patio and pool area.
What's Included

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)


These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Stunning 4-Bed One-Story Coastal Contemporary Home Plan for the Indoor Outdoor Lifestyle

  • 3,733

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

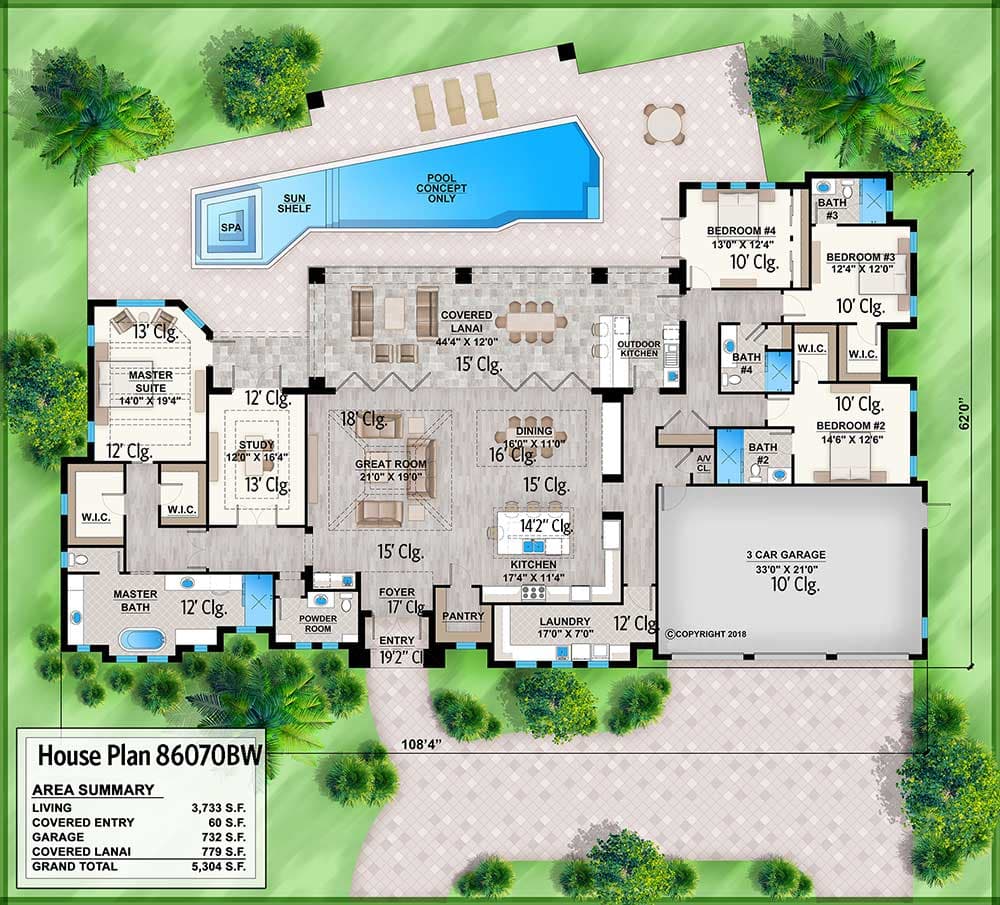

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,733 sq. ft.
  • 1st Floor: 3,733 sq. ft.

Dimensions

  • Width: 108' 4"
  • Depth: 62' 0"
  • Max ridge height: 27' 3"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 732 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
