Plan 666035RAF

Stunning Contemporary House Plan

Heated S.F.
6,901
Beds
5
Baths
5.5+
Stories
2
Cars
3

Floor Plan

Plan 666035RAF

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 666035RAF

M-F 9am-5pm EST |

1-203-761-8500

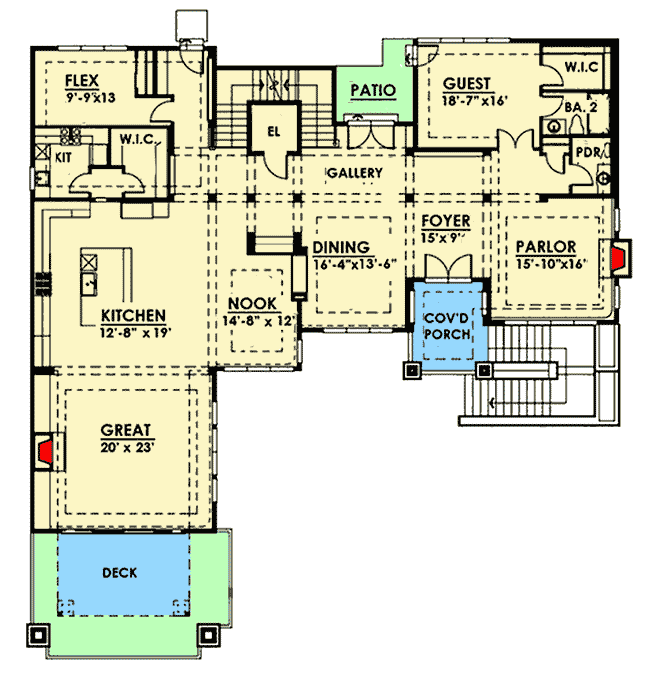

Main Level

Plan 666035RAF: Stunning Contemporary House Plan - Floor Plan - Main Level - Contemporary, Modern, Northwest

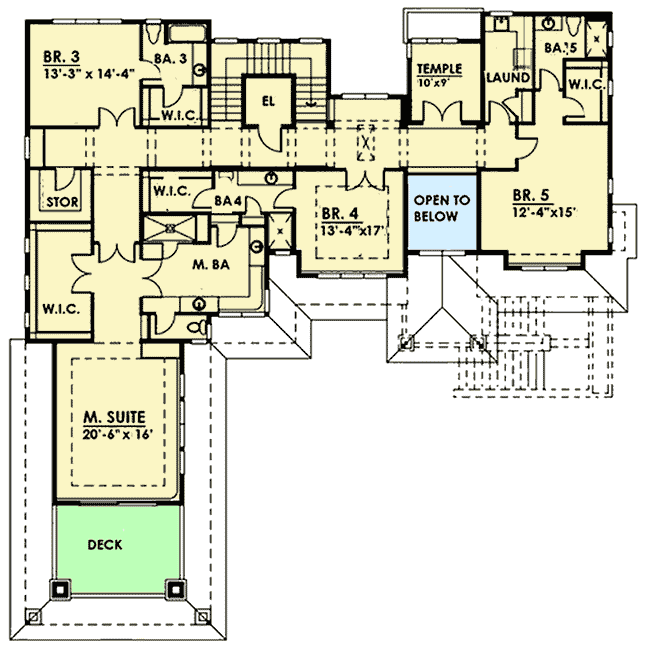

2nd Floor

Plan 666035RAF: Stunning Contemporary House Plan - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

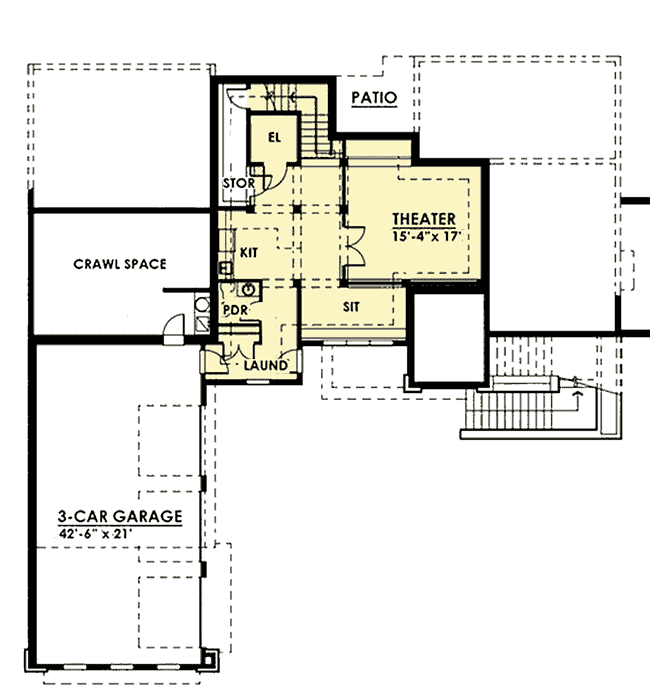

Lower Level

Plan 666035RAF: Stunning Contemporary House Plan - Floor Plan - Lower Level - Contemporary, Modern, Northwest

Plan Details

  • Walls of glass and a big, open floor plan suit this stunning Contemporary house plan to a T.
  • Designed for a lot that slopes to the front, this home has a finished lower level with a large home theater, a kitchenette and residential elevator.
  • The spacious main floor uses interior columns instead of walls that block the views.
  • Sliding glass doors off the huge great room open to a covered deck that faces front.
  • In addition to the main kitchen, there is a second kitchen and large walk-in pantry that come in handy when entertaining.
  • The main floor guest suite has a door to a patio and a private bathroom.
  • On the top floor, the master suite also has a private covered deck.
  • There's even a meditation room or yoga studio in this unique home.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

6,901 sq. ft.

Lower Level

983 sq. ft.

1st Floor

3,250 sq. ft.

2nd Floor

2,668 sq. ft.

Porch, Front

115 sq. ft.

Deck

440 sq. ft.

Covered Patio

86 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 0"

Depth

79' 5"

Max Ridge Height

41' 0"

Garage

Type

Attached

Area

866 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

12'

First Floor

12'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Elevator

Home Theater

Laundry - Upstairs

Master Suite - Sitting Area

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Luxury

Sloping Lot
