Stunning Contemporary Show-Stopper

Plan 9545RW

  • 6,495

    Heated s.f.

  • 4-5

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • Three levels of living are yours to enjoy in this Contemporary masterpiece.
  • The unique layout and open floor plan allows views from all rooms.
  • Even the kitchen island is a unique shape that enhances the Contemporary style.
  • The workout room on this level will encourage you to exercise while enjoying the views.
  • The raised study is reached by a two-sided staircase offering quiet and privacy.
  • In the master suite, a romantic fireplace and your own private deck will please homeowners.
  • Three more bedrooms and a large loft occupy the second floor.
  • The lower level is an entertainment dream with a mini-kitchen, home theater and large billiards area.

The following details are included with this house plan:
  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

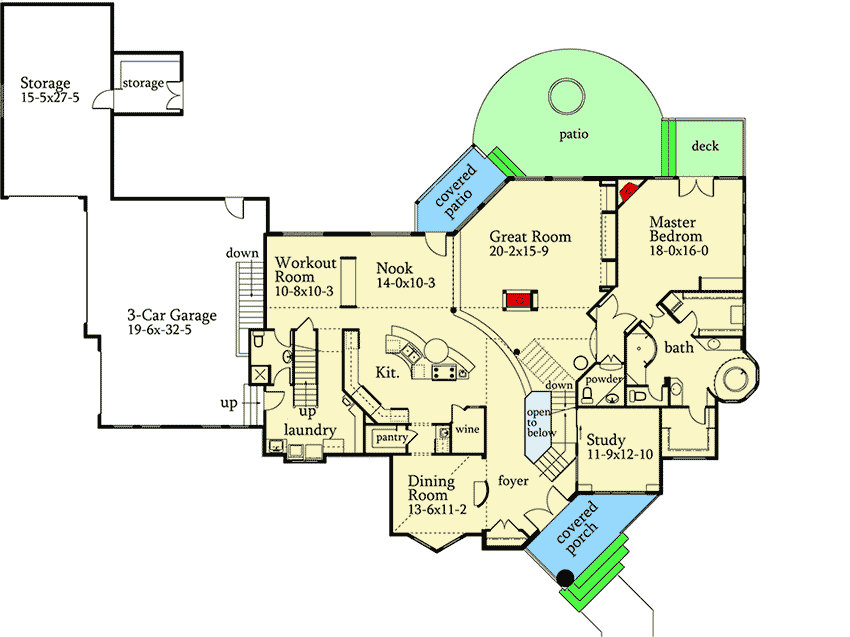

Stunning Contemporary Show-Stopper - 9545RW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

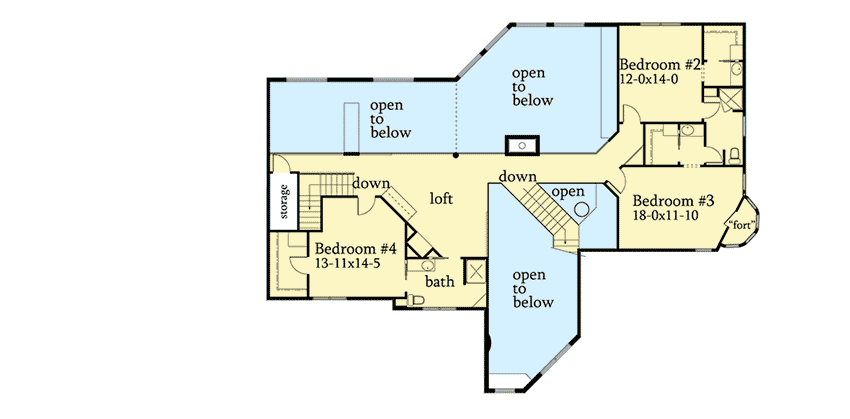

Stunning Contemporary Show-Stopper - 9545RW floor plan - Second Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

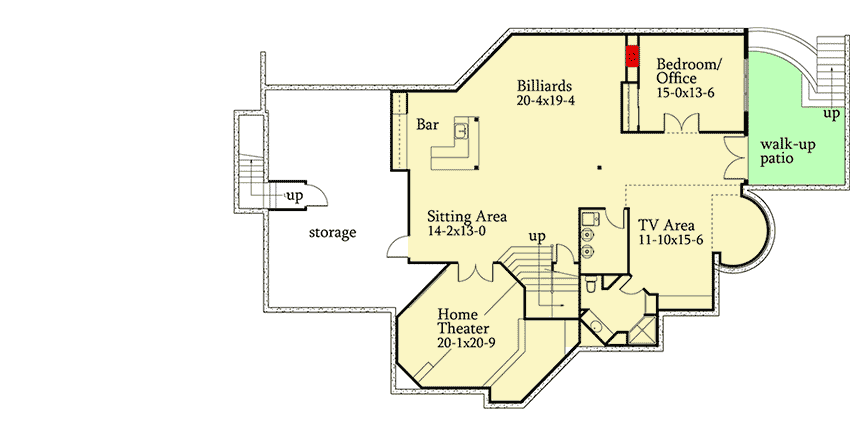

Stunning Contemporary Show-Stopper - 9545RW floor plan - Lower Level

Stunning Contemporary Show-Stopper

  • 6,495

    Heated s.f.

  • 4-5

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 6,495 sq. ft.
  • Lower Level: 2,215 sq. ft.
  • 1st Floor: 2,920 sq. ft.
  • 2nd Floor: 1,360 sq. ft.

Dimensions

  • Width: 109' 0"
  • Depth: 84' 6"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1362 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
