Stunning European House Plan Loaded with Special Details

Plan 500000VV

  • 6,186

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • All sorts of extras come with this spacious European house plan designed with luxuries and large families in mind.
  • There's a quiet office for Dad, a huge walk-in pantry for the family chef, a first floor guest suite and a screened porch the whole family will love.
  • Take the elegant curved staircase to the upper floor where the giant master suite has three walk-in closets and a door directly into the laundry room.
  • A wonderful playroom for the kids is just down the hall or use it as a reading nook for teens.
  • Bedroom 3 even gets a hidden secret cave!
  • The fully finished lower level features a wine cellar, dedicated exercise room and a massive game room with kitchenette and sliders to the patio in back.

This house plan includes the following:
  • Cover sheet with notes
  • Foundation
  • Floor plans
  • Elevations
  • Sections
  • Framing plans
  • Electrical plans
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

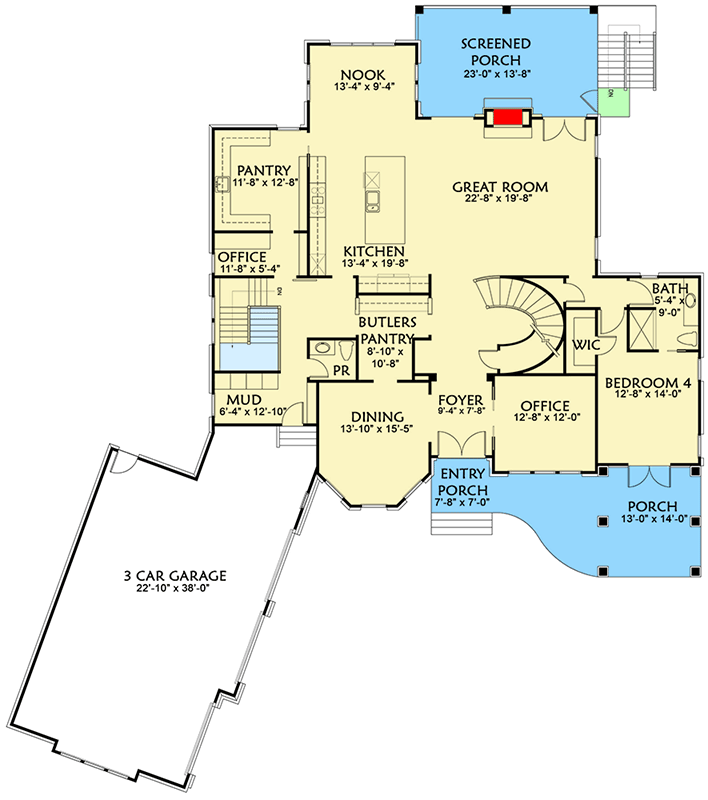

Stunning European House Plan Loaded with Special Details - 500000VV floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

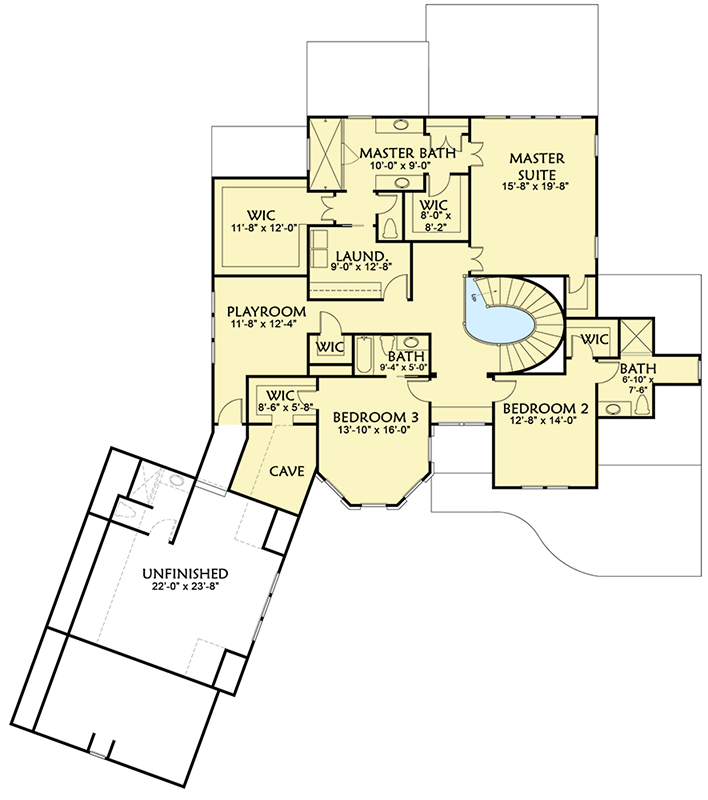

Stunning European House Plan Loaded with Special Details - 500000VV floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

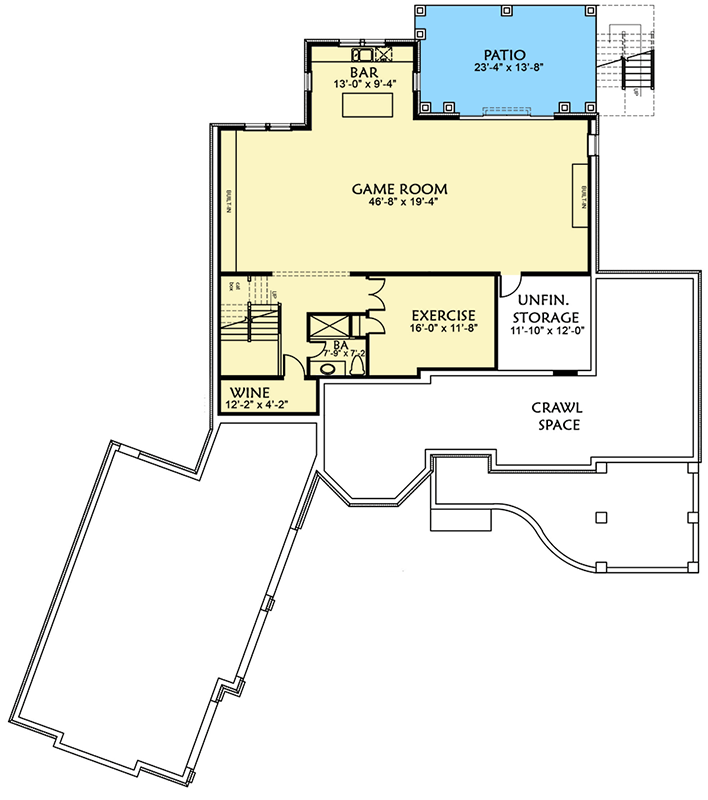

Stunning European House Plan Loaded with Special Details - 500000VV floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,186 sq. ft.
  • Lower Level: 1,594 sq. ft.
  • 1st Floor: 2,564 sq. ft.
  • 2nd Floor: 2,028 sq. ft.
  • Storage: 906 sq. ft.
  • Porch, Rear: 308 sq. ft.
  • Porch, Front: 353 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 87' 2"
  • Depth: 98' 9"
  • Max ridge height: 48' 0"

Garage

  • Type: Attached
  • Area: 1071 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Stunning European House Plan Loaded with Special Details

  • 6,186

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,195
  • CAD - Single-Build $2,895
  • CAD - Unlimited Build $3,395
  • View all purchase option online

About This Plan

  • All sorts of extras come with this spacious European house plan designed with luxuries and large families in mind.
  • There's a quiet office for Dad, a huge walk-in pantry for the family chef, a first floor guest suite and a screened porch the whole family will love.
  • Take the elegant curved staircase to the upper floor where the giant master suite has three walk-in closets and a door directly into the laundry room.
  • A wonderful playroom for the kids is just down the hall or use it as a reading nook for teens.
  • Bedroom 3 even gets a hidden secret cave!
  • The fully finished lower level features a wine cellar, dedicated exercise room and a massive game room with kitchenette and sliders to the patio in back.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,186 sq. ft.
  • Lower Level: 1,594 sq. ft.
  • 1st Floor: 2,564 sq. ft.
  • 2nd Floor: 2,028 sq. ft.
  • Storage: 906 sq. ft.
  • Porch, Rear: 308 sq. ft.
  • Porch, Front: 353 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 87' 2"
  • Depth: 98' 9"
  • Max ridge height: 48' 0"

Garage

  • Type: Attached
  • Area: 1071 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick And Truss
