Plan 36154TX
Stunning European-style Home Plan
Heated S.F.
7,823
Beds
5
Baths
5.5+
Stories
2
Cars
4
What's Included
Plan Details

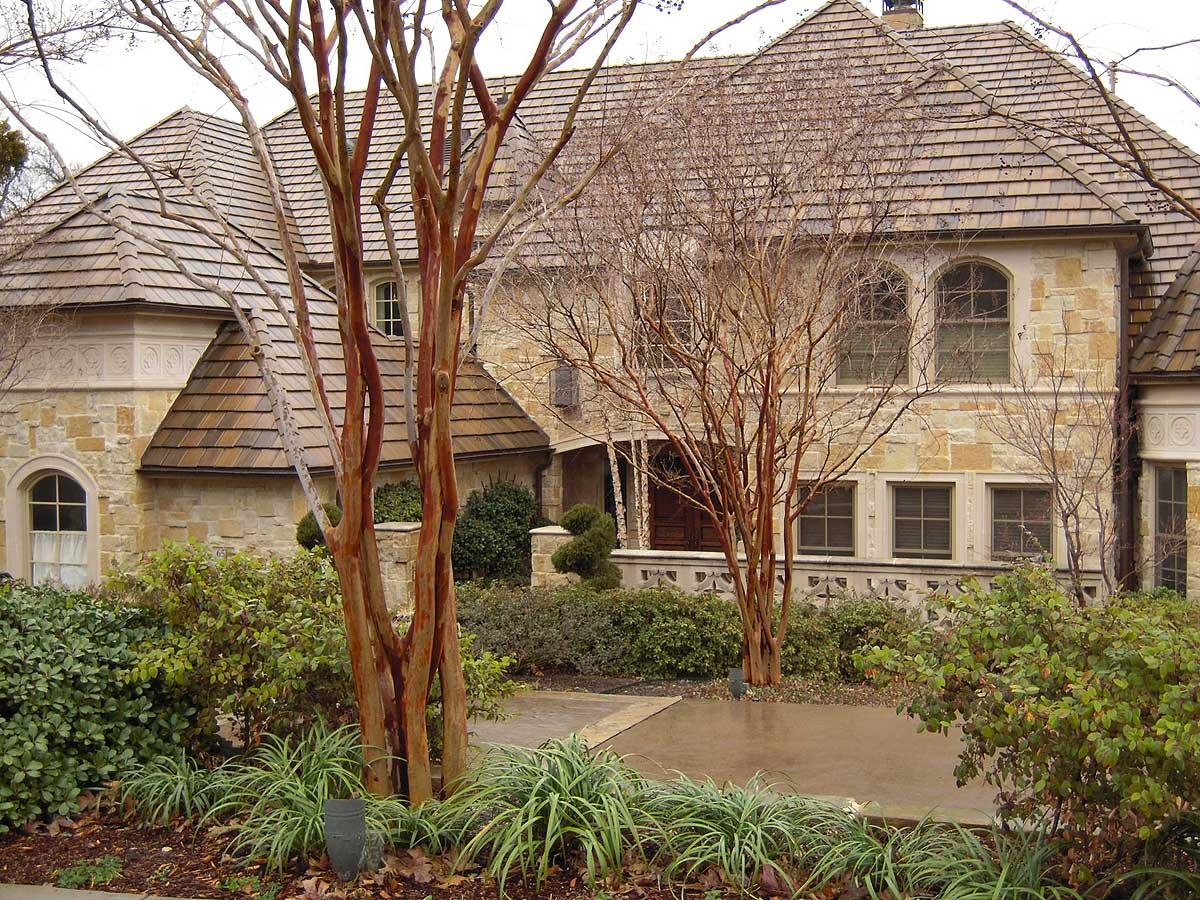

  • Your home will be the envy of the neighborhood with its stunning European facade.

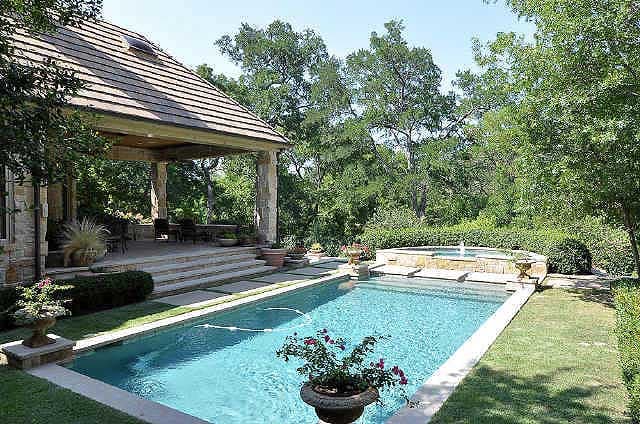

  • Spacious rooms and a courtyard off the dining room are but a few of the hallmarks of this well-planned design.

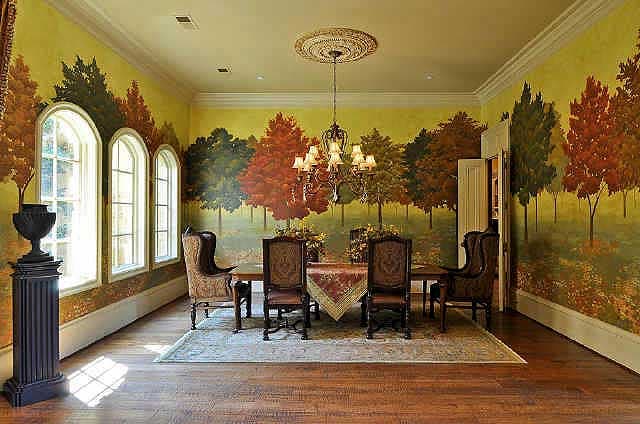

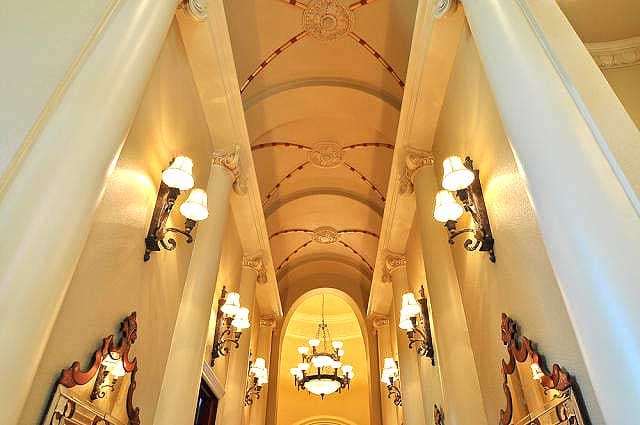

  • Inside, double front doors open to a huge foyer with 20' ceiling and immediate views of the dining room and formal living room that shares a fireplace with the quiet study next door.

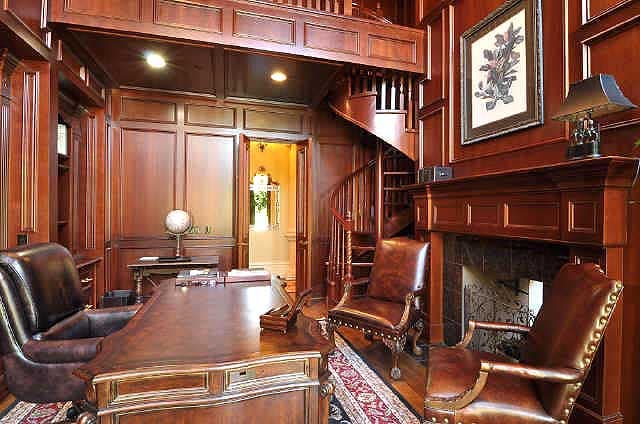

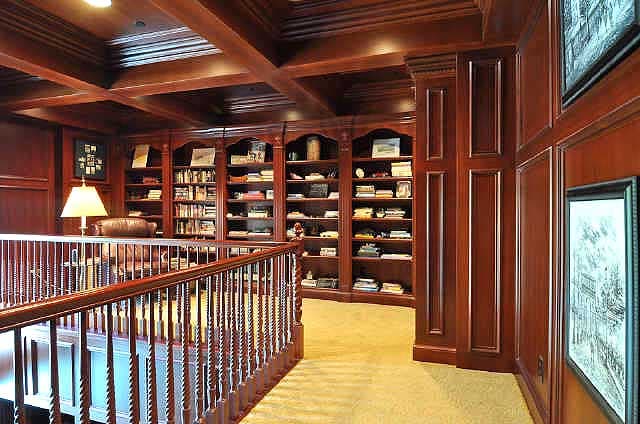

  • Spiral stairs lead to the second floor library above the study.

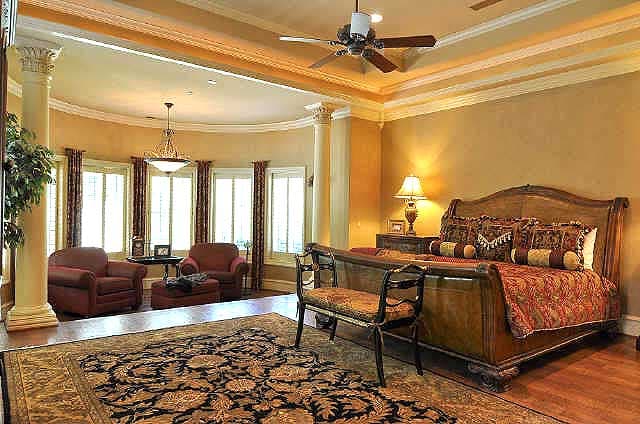

  • A circular rotunda leads to the first floor master suite with a tray ceiling and large sitting area set in a bay.
  • The rotunda also opens to an exercise room with two windows for wonderful views while you work out.
  • A front-facing media room with fireplace lies close to a private guest bedroom that could function as an in-law suite.

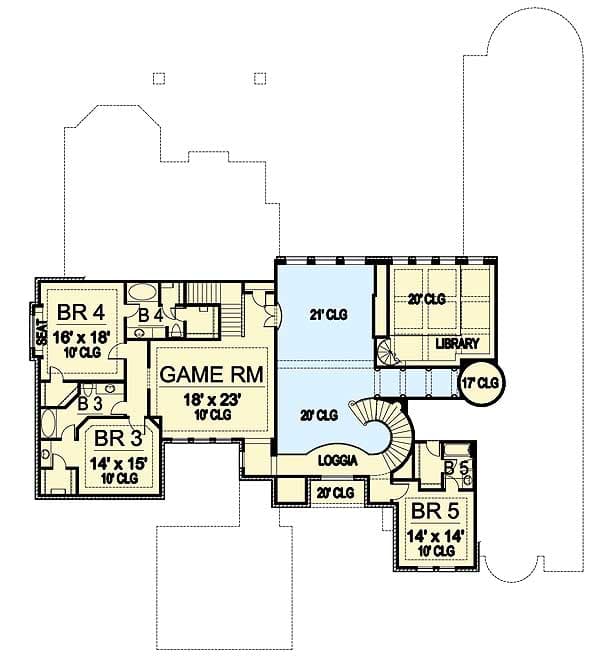

  • On the second floor, a loggia overlooks the living room below and leads to three bedrooms each with their own bath and walk-in closet.
  • The game room has a Juliet balcony that also overlooks the living room below.
What's Included
  • Cover sheet
  • Foundation Plan
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Stunning European-style Home Plan

  • 7,823

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

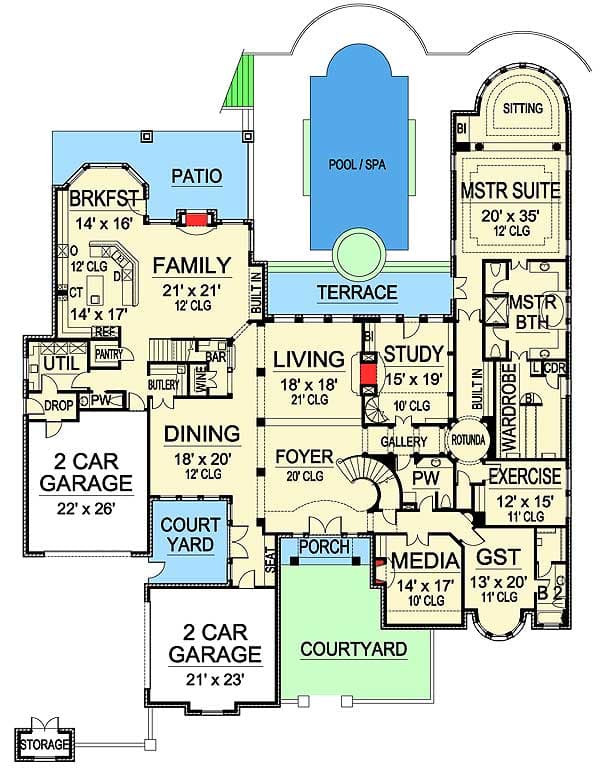

Floor Plan
