Plan 9322EL Stunning Exterior

3,797 4 3.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

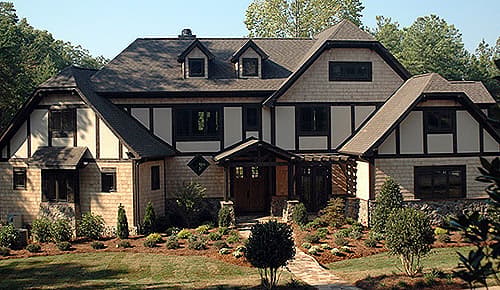

Stunning Exterior

Plan 9322EL

  • 3,797

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A stunning exterior is just part of the charm of this elegant house plan. The downstairs master suite features a private terrace.
  • A vaulted family room, large gourmet kitchen and formal dining area, plus an outdoor terrace, make this home great for entertaining.
  • There's a large bonus room and loft upstairs, plus three suites with plenty of storage space.
  • The garage with 3-car dimensions features room to add some workspace ... or the ultimate man cave.
  • An optional basement is also available.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

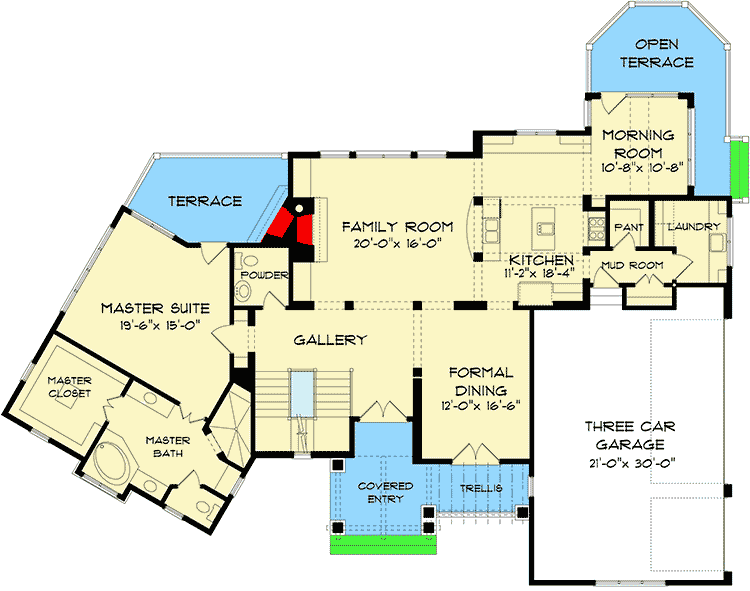

Stunning Exterior - 9322EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Stunning Exterior - 9322EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,797 sq. ft.
  • 1st Floor: 2,052 sq. ft.
  • 2nd Floor: 1,745 sq. ft.
  • Porch, Combined: 297 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Basement, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 80' 2"
  • Depth: 64' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 630 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Stunning Exterior

  • 3,797

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • CAD+PDF - Single-Build $2,750
  • PDF - Unlimited Build $2,945
  • CAD - Unlimited Build $3,600
  • View all purchase option online

About This Plan

  • A stunning exterior is just part of the charm of this elegant house plan. The downstairs master suite features a private terrace.
  • A vaulted family room, large gourmet kitchen and formal dining area, plus an outdoor terrace, make this home great for entertaining.
  • There's a large bonus room and loft upstairs, plus three suites with plenty of storage space.
  • The garage with 3-car dimensions features room to add some workspace ... or the ultimate man cave.
  • An optional basement is also available.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,797 sq. ft.
  • 1st Floor: 2,052 sq. ft.
  • 2nd Floor: 1,745 sq. ft.
  • Porch, Combined: 297 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 80' 2"
  • Depth: 64' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 630 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
Plan 9322EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/9322EL
|
Need Help? 800-854-7852
|
Plan 9322EL
