Plan 23791JD

Stunning Modern House Plan with Great Outdoor Spaces - 3668 Sq Ft

Name: Plan 23791JD: Stunning Modern House Plan with Great Outdoor Spaces - 3668 Sq Ft
Brand: Architectural Designs
SKU: 23791JD
Price: 2400.0 USD
Availability: InStock

Heated S.F.

3,668

Beds

4 - 5

Baths

Stories

Cars

Floor Plan

Main Level

2nd Floor

Lower Level

Plan Details

Floor to ceiling windows and numerous covered decks allow for the homeowner to take advantage of the beautiful surrounding views with this 3,668 square foot modern house plan that gives you 4 or 5 bedrooms. A dramatically sloped roof, panel siding, and stone accents provide a fresh, modern exterior.
The main floor offers an open layout, combining the kitchen, dining and living rooms, and a large, angled island anchors the shared living space.
A quiet den, or bedroom, sits behind the kitchen, next to a full bathroom.
The master bedroom is located on the second level, and features a large covered deck, 5-fixture bathroom, and a walk-in closet. Across the hall, two additional bedrooms share a bathroom with dual vanities. A spacious, upstairs laundry room is centrally located for added convenience.
The lower level includes a 2-car garage, media room with a wet bar, and additional bedroom with a walk-out patio.
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

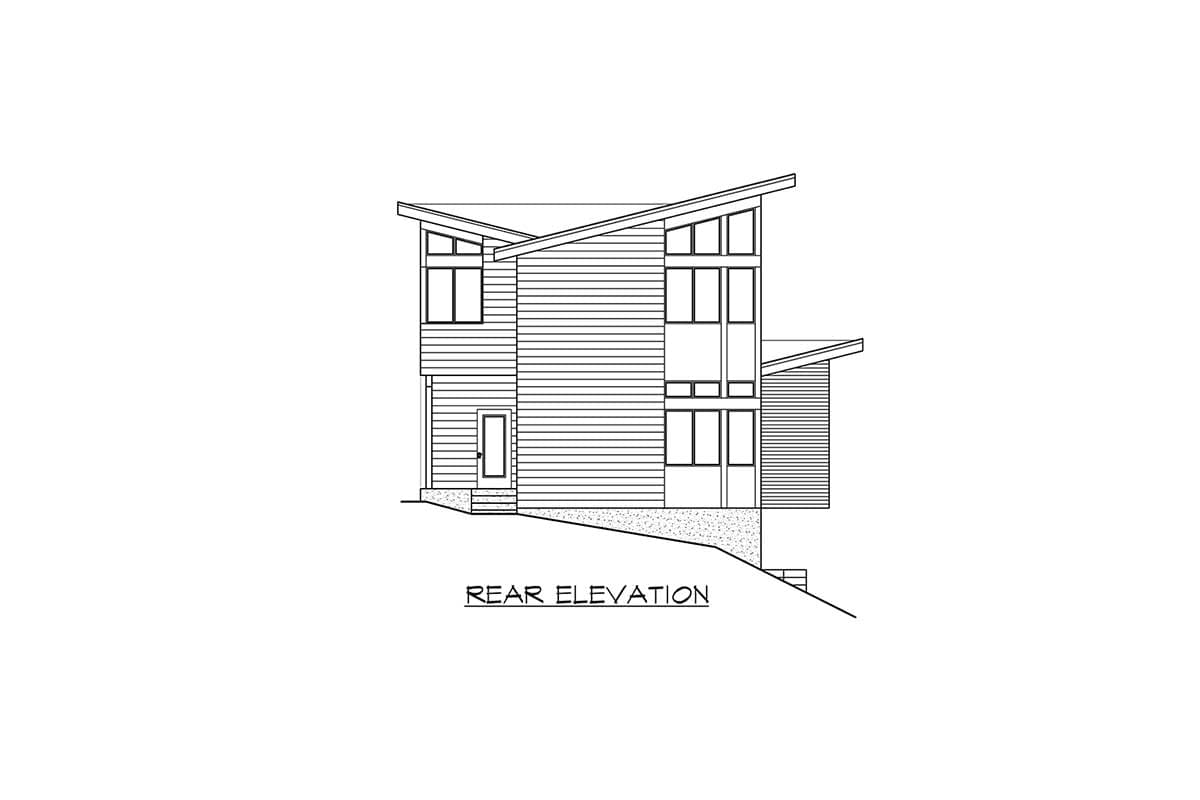

Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

View Sample Plan

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
