Sturdy Craftsman Home

Plan 23435JD

  • 2,190

    HEATED S.F.

  • 3

    BEDS

  • 3

    BATHS

  • 2

    FLOORS

  • 2

    CAR GARAGE

About this Plan

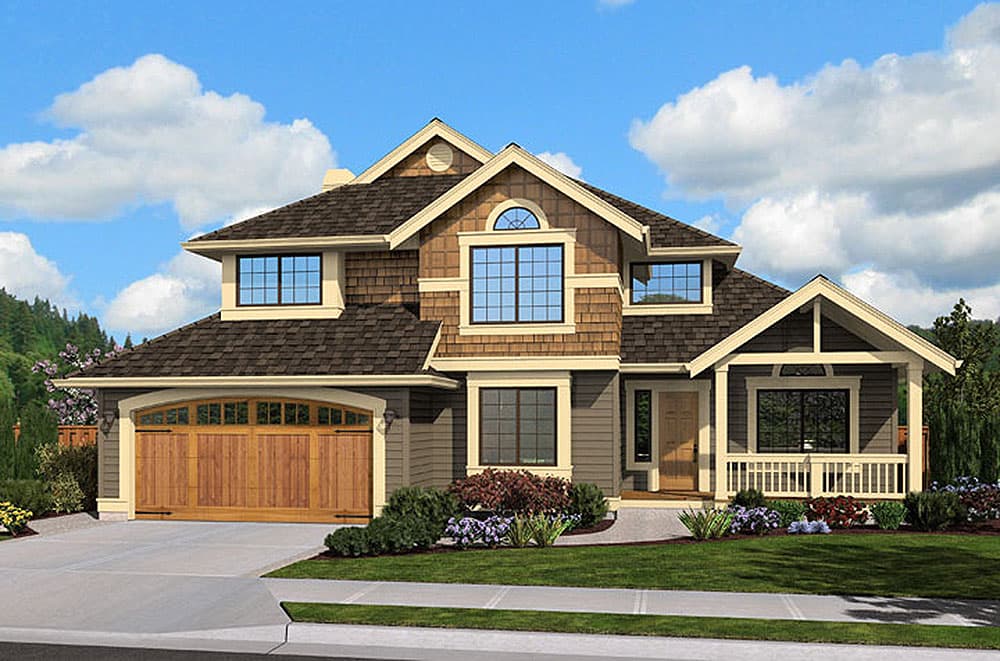

  • A beautiful Craftsman exterior makes for great curb appeal in this narrow lot home that is only 50' wide.
  • Double doors open to the quiet den off the two-story foyer.
  • Two columns separate the formal living room from the dining room.
  • In the kitchen, an open floor plan allows expansive views all the way down to the fireplace at the end of the family room.
  • Three bedrooms on the second floor enjoy the convenience of an upstairs laundry center.
  • Related Plans: For a similar home with a different second floor layout, see house plans 23433JD (1,990 sq. ft.) and house plan 23434JD (2,010 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

See What's Included in this Plan...

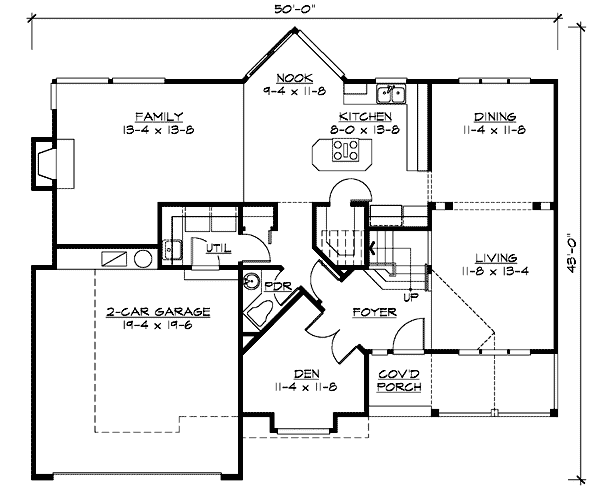

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,190 sq. ft.
  • 1st Floor: 1,190 sq. ft.
  • 2nd Floor: 1,000 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Dimensions

  • Width: 50' 0"
  • Depth: 43' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 420 sq. ft.
  • Details: 2 Cars
  • Location: Front

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick and Truss

Architectural Style
