Stylish Beach House Plan

3,465 4-5 4 2-3 2
Pageloader

Stylish Beach House Plan

Plan 86008BW

  • 3,465

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2-3

    Stories

  • 2

    Cars

  • A gorgeous T-shaped staircase brings you up to the main level of this stylish Beach house plan.

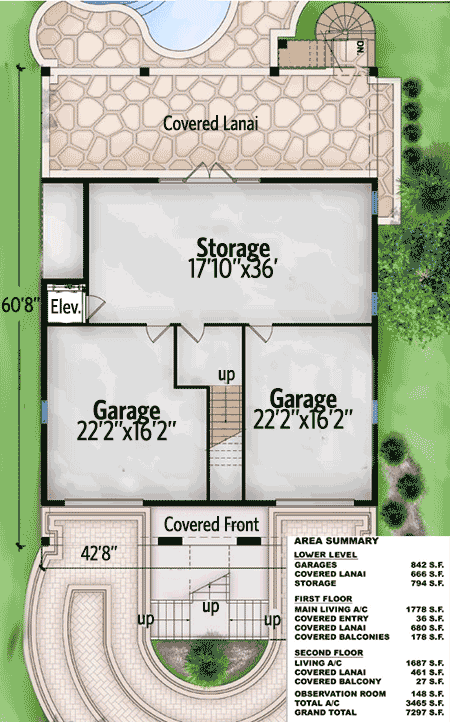

  • From the foyer, you go down to the garage and storage level or up to the main living area.

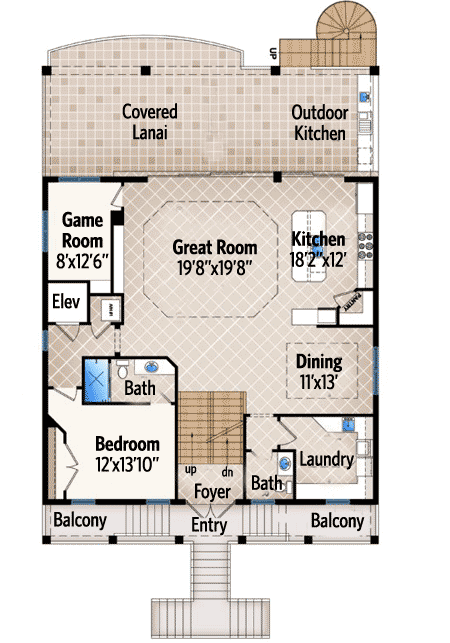

  • Here, the kitchen, great room and dining room all flow together, with wonderful views of the rear covered lanai and outdoor kitchen.
  • A cozy game room keeps the noise out of the great room and there is also a guest bedroom on this level.

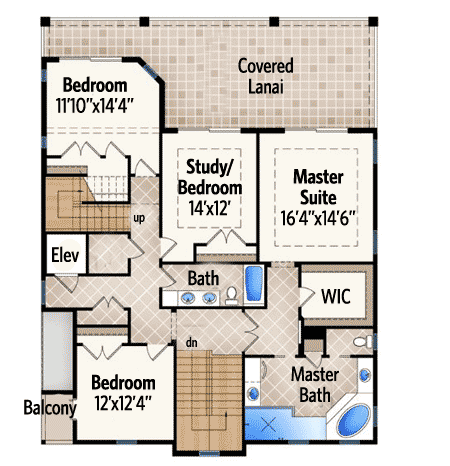

  • Take the residential elevator or walk up to the bedroom level with four more bedrooms and another covered lanai where you can catch the ocean breezes.
  • The third floor observation room overlooks an open deck.
