Sun Deck and Bonus Room

Plan 81635AB

  • 3,162

    Heated s.f.

  • 4-5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A side entry garage suits this stylish Northwest home for a corner lot.
  • The two-story foyer makes a wonderful first impression.
  • Coffered ceilings top both the formal dining room and the kitchen.
  • A walk-through pantry unites the kitchen with the large mud room.
  • From the kitchen island, you can see all the way through the nook to the back of the great room.
  • Choose from an open sun deck or a covered deck to enjoy the outdoors.
  • The second floor holds all the bedrooms including the deluxe master suite with a light-filled sitting area.
  • The bonus room has a delightful vaulted ceiling.
  • A laundry room on this level saves steps.

Plans include the following:

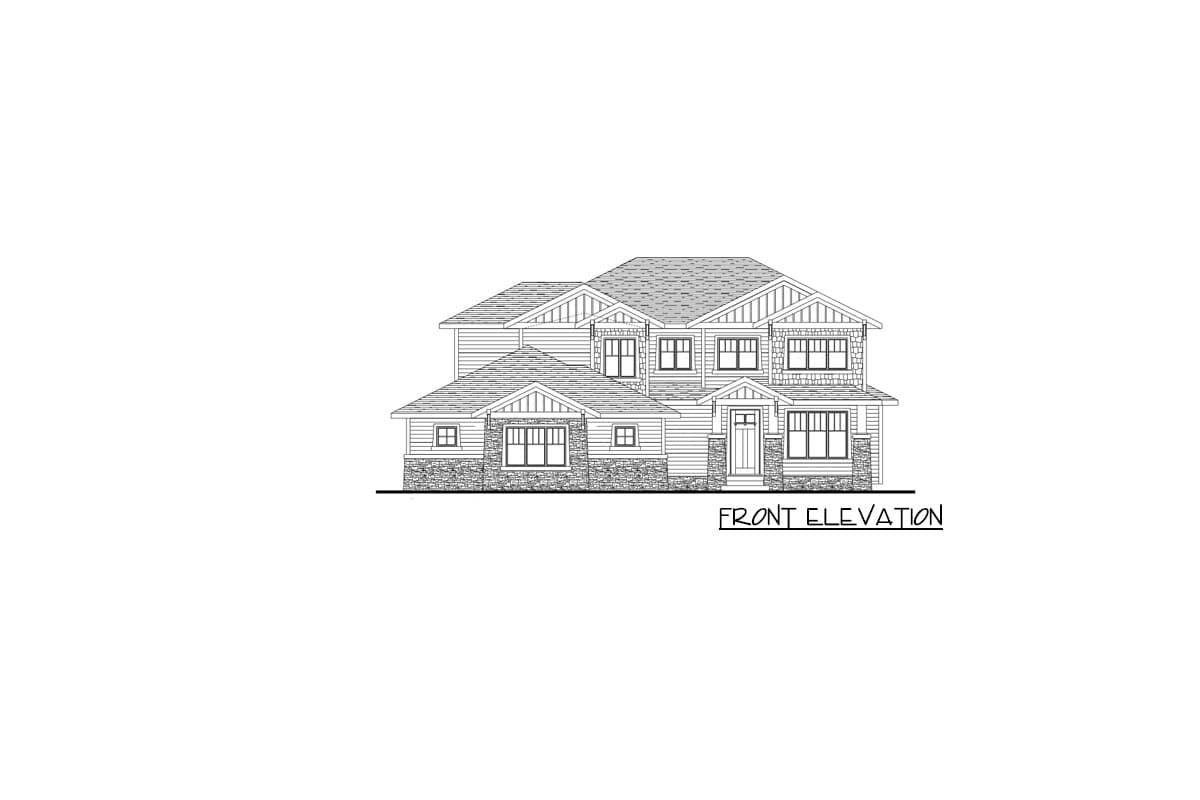

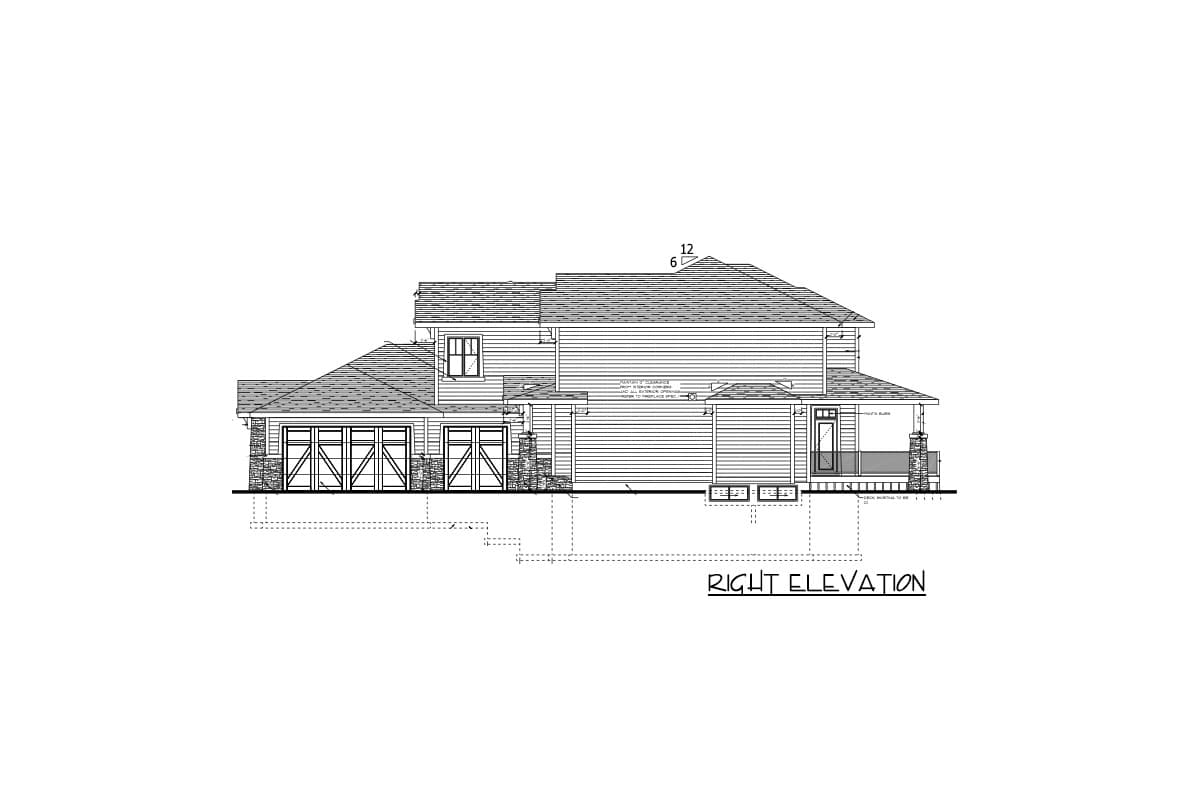

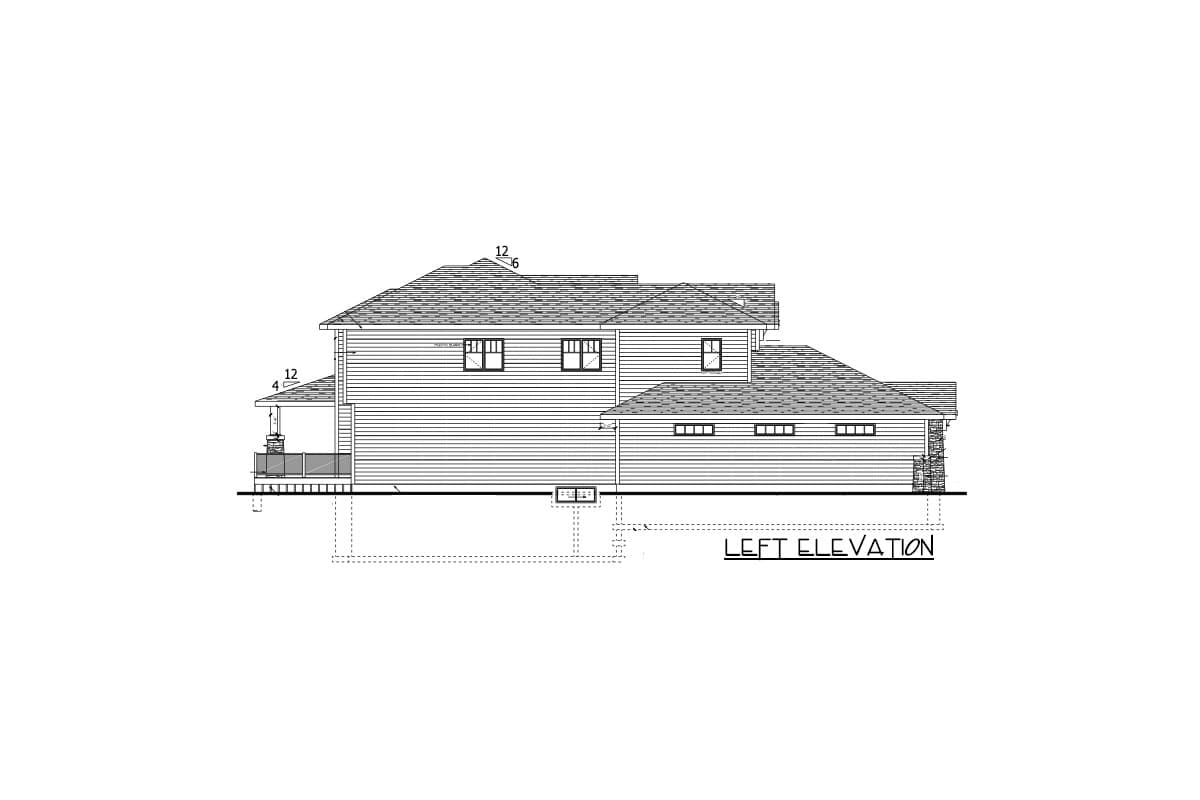

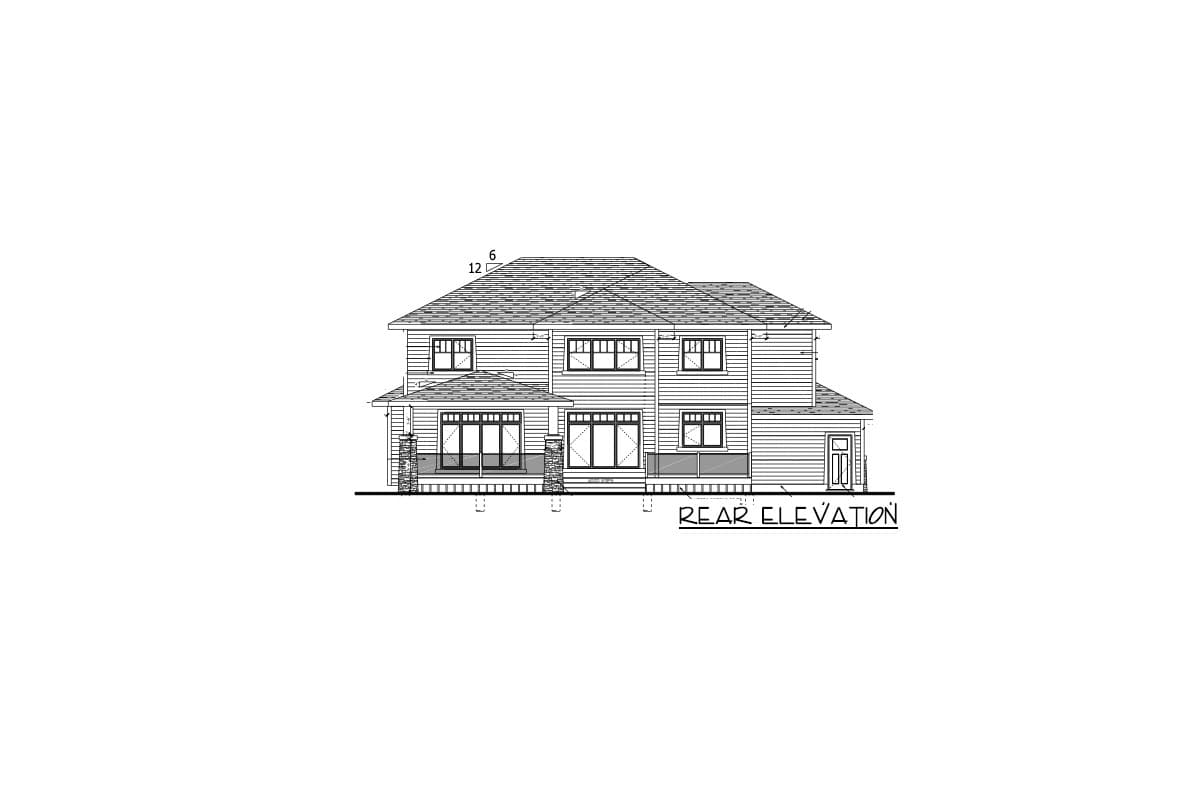

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

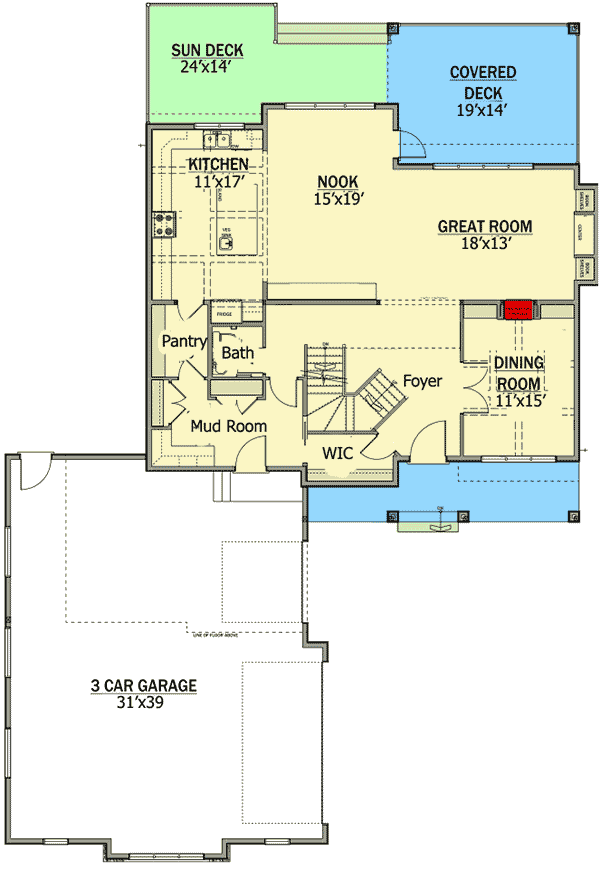

Sun Deck and Bonus Room - 81635AB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

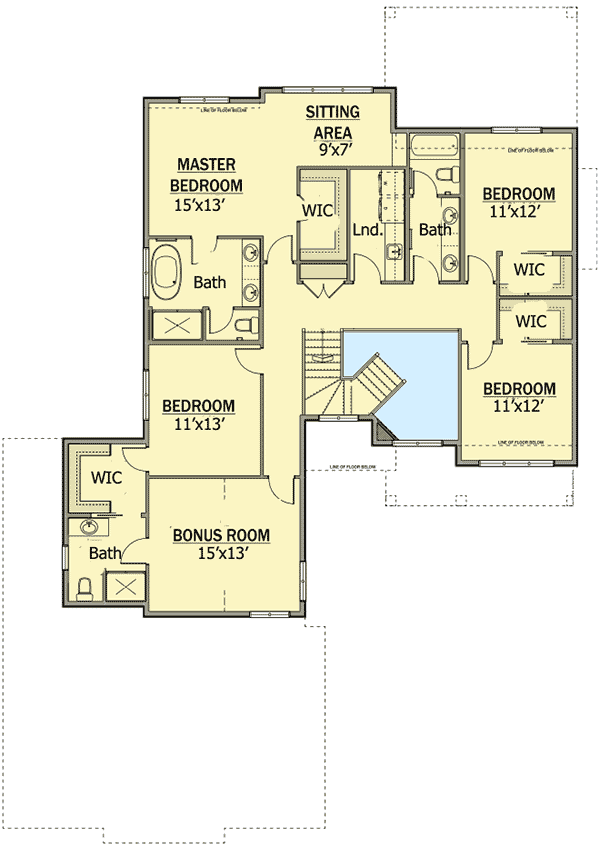

Sun Deck and Bonus Room - 81635AB floor plan - 2nd Floor
