  • Double doors in the entry reveal a large foyer with a bench on one side and a sunken den on the other.
  • Pocket doors close the den off and a beautiful tray ceiling will delight your eyes.
  • Windows on two sides brighten the great room with its big fireplace.
  • The open floor plan lets you walk right into the eating nook and kitchen with no walls to block views.
  • A walk-through pantry lets you get from the garage entry to the kitchen with your groceries.
  • The three car garage is enormous with extra space on the side.
  • A vaulted ceiling tops the huge master suite on the second floor.
  • Homeowners have a private bathroom and a walk-in closet.
  • Each of the other three bedrooms are quite large as well.
  • The bonus room has a vaulted ceiling and can be used however you wish.
What's Included
Plans include the following:

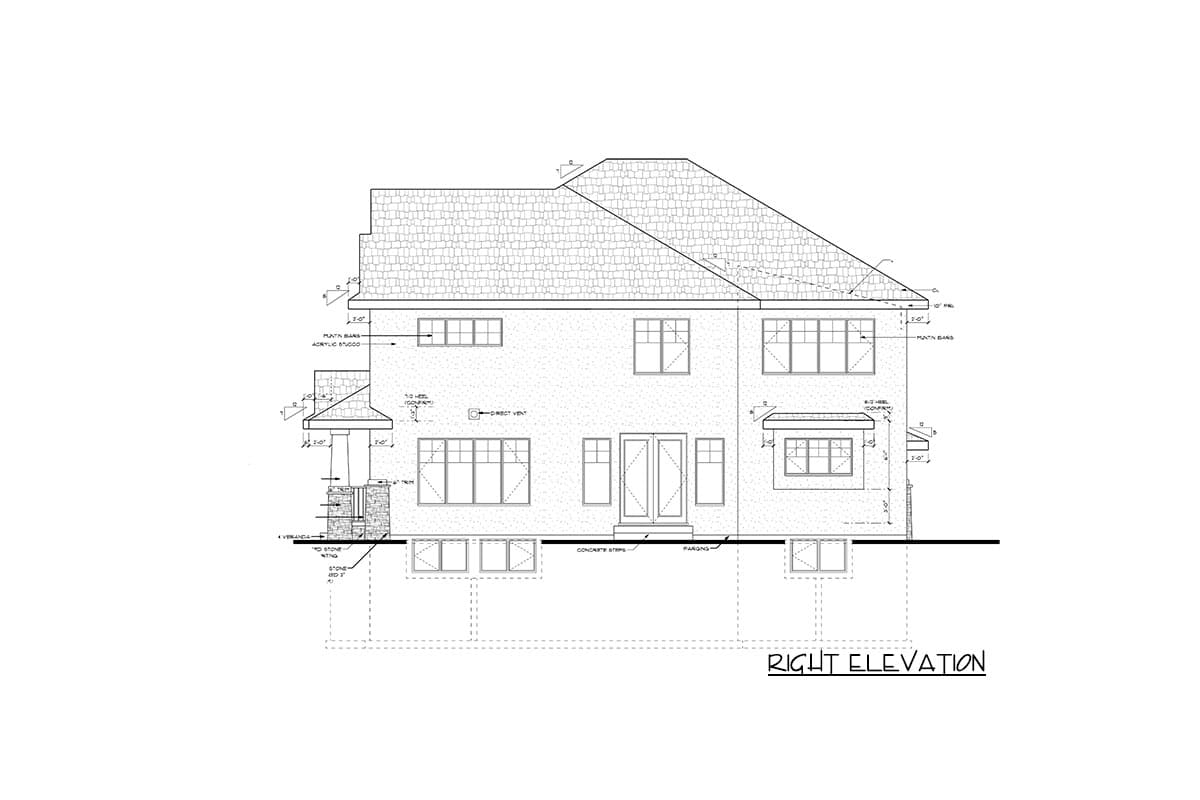

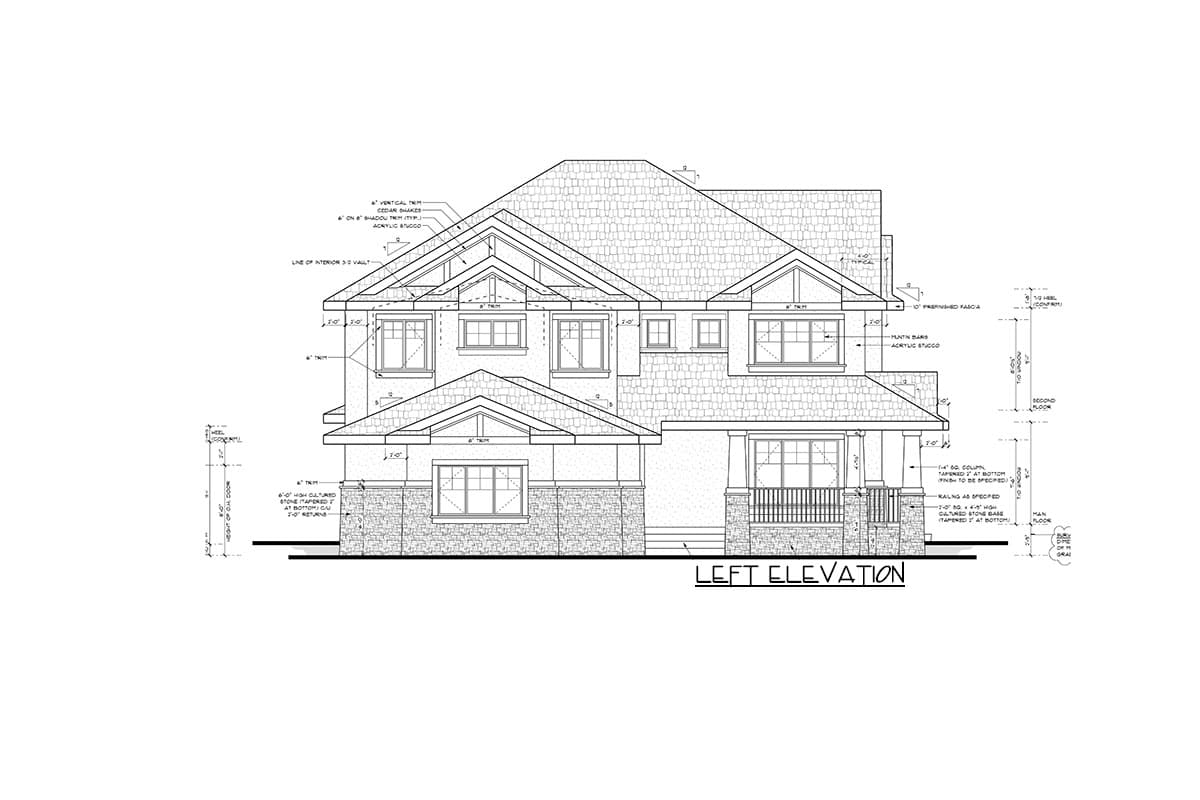

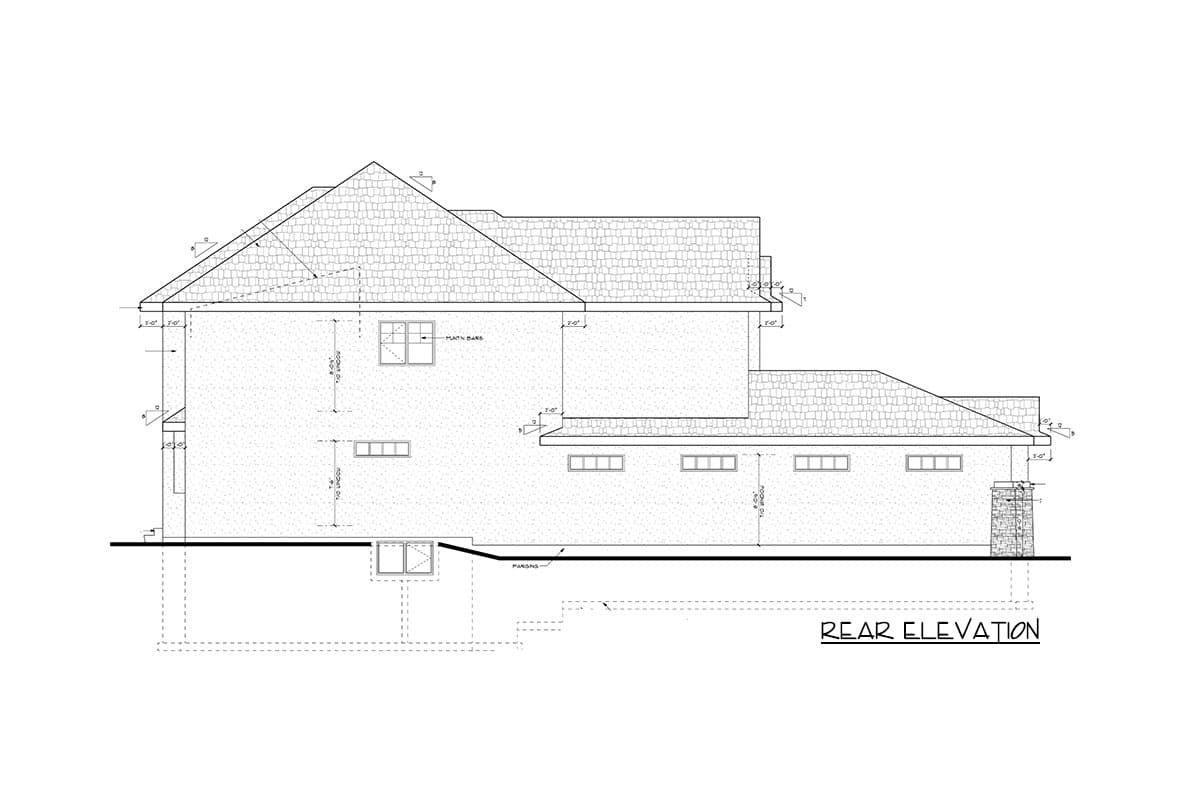

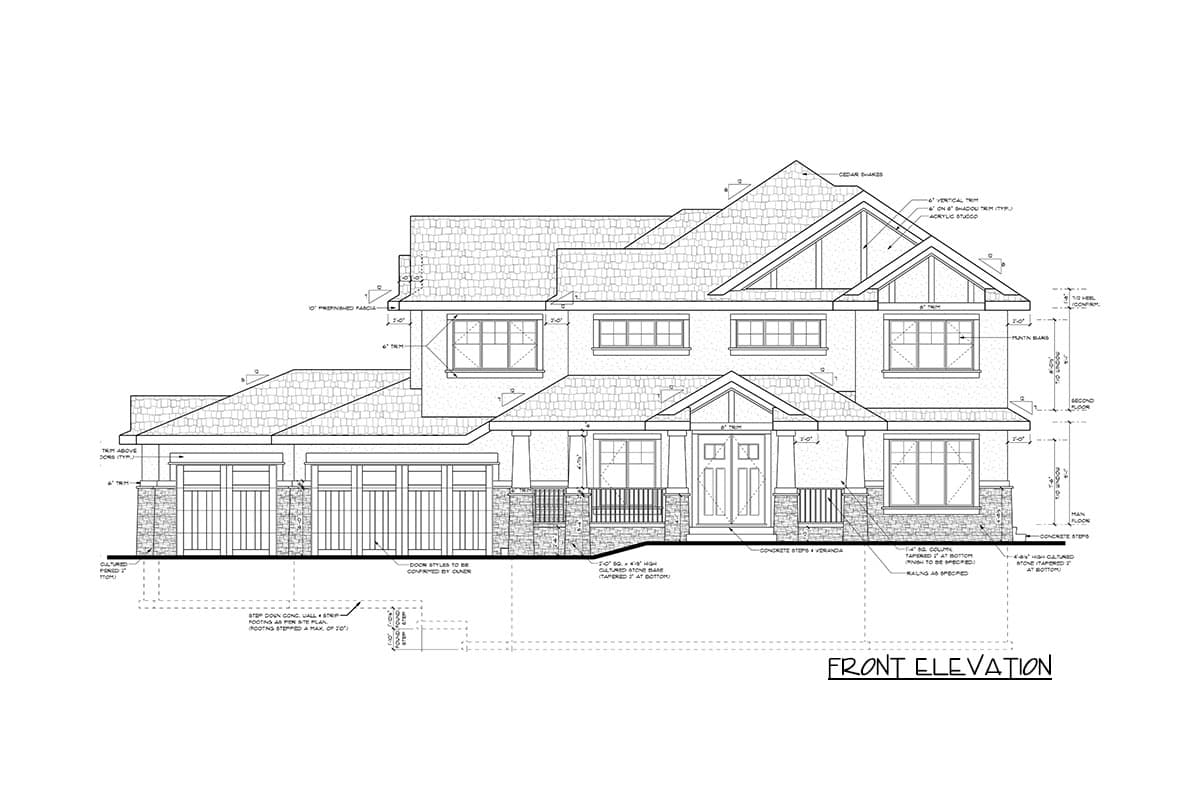

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Sunken Den

  • 3,589

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

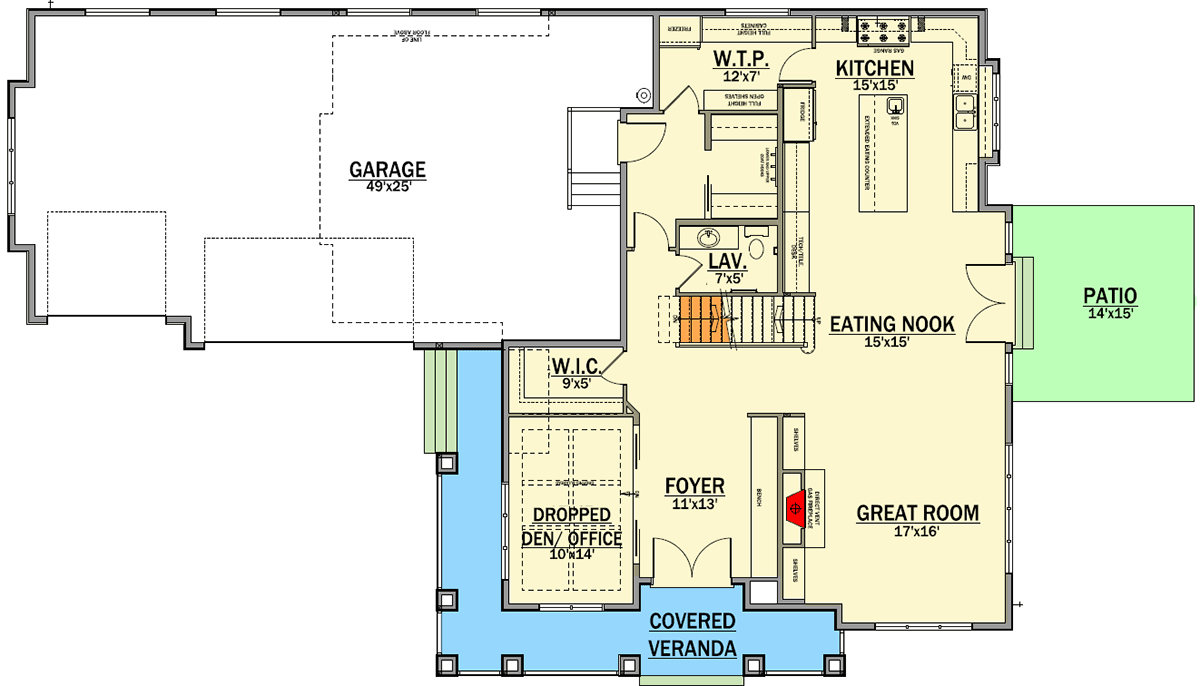

  • Main Level

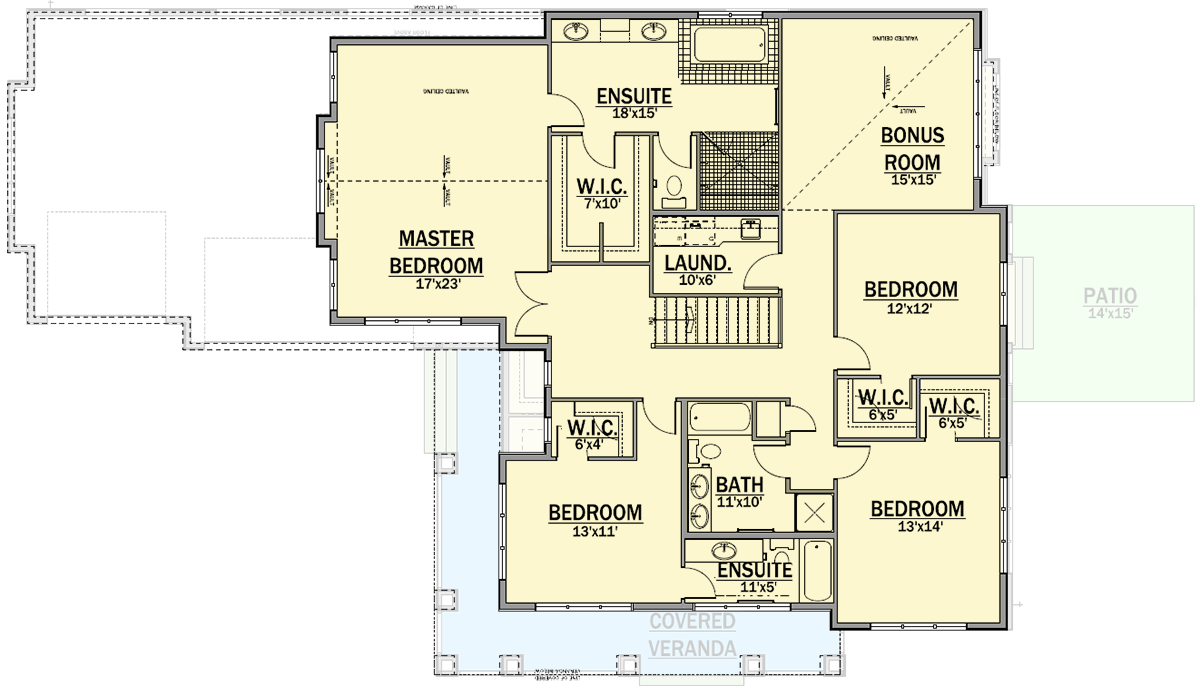

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,589 sq. ft.
  • 1st Floor: 1,530 sq. ft.
  • 2nd Floor: 2,059 sq. ft.

Dimensions

  • Width: 52' 0"
  • Depth: 91' 0"
  • Max ridge height: 33' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1202 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
