Plan 9510RW

Sunken Family Room and Raised Study

Heated S.F.
5,711
Beds
5
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 9510RW

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 9510RW

M-F 9am-5pm EST |

1-203-761-8500

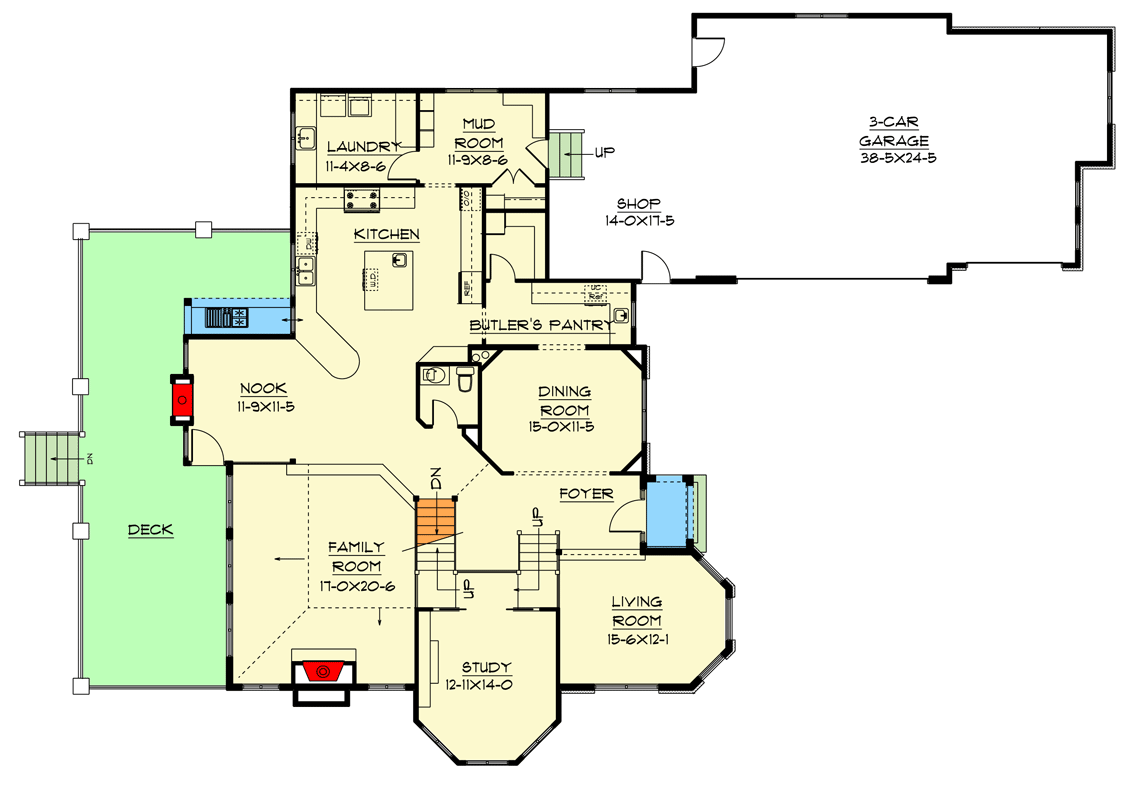

Main Level

Plan 9510RW: Sunken Family Room and Raised Study - Floor Plan - Main Level - European, Rustic

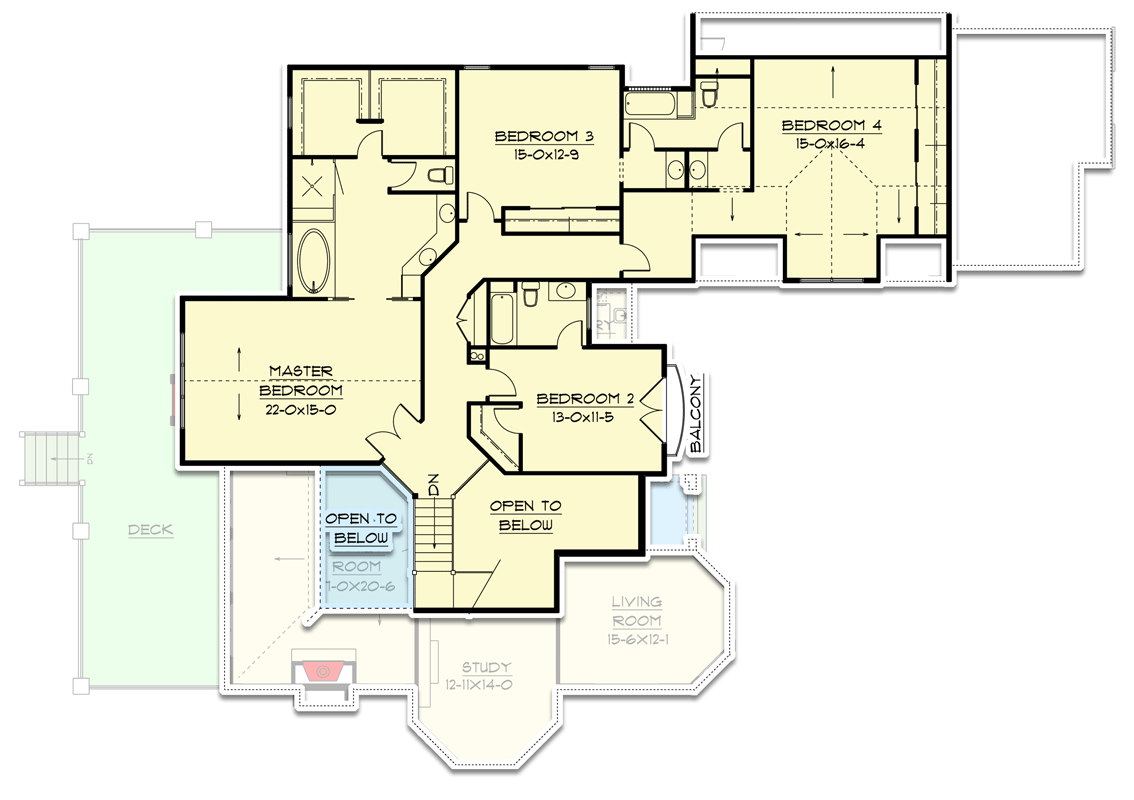

2nd Floor

Plan 9510RW: Sunken Family Room and Raised Study - Floor Plan - 2nd Floor - European, Rustic

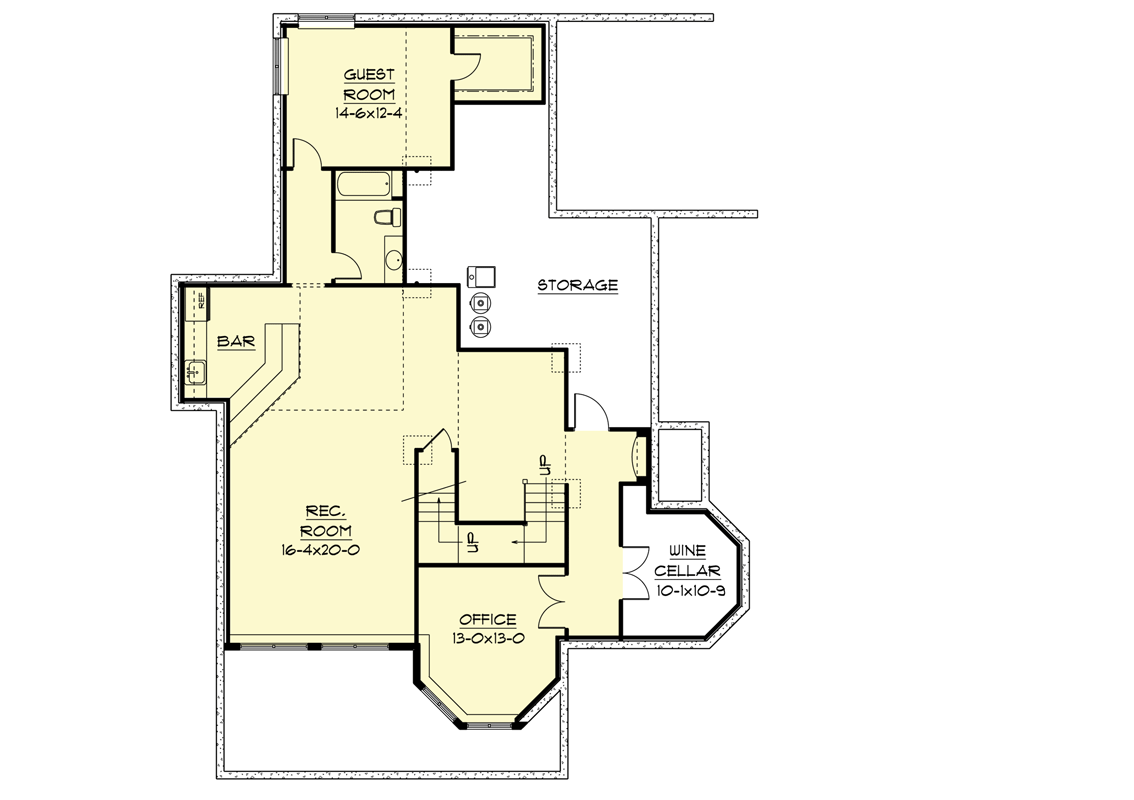

Lower Level

Plan 9510RW: Sunken Family Room and Raised Study - Floor Plan - Lower Level - European, Rustic

Plan Details

  • A sunken family room and dramatic raised study distinguishes this amazing European home plan.
  • The home was designed for ease of movement from room to room, with both formal and informal areas being showcased.
  • A large butler's pantry aids in entertaining and the huge deck out back can keep the party going.
  • An oversized three car garage has a large shop area with stairs that lead to the handy mud room.
  • While most of the bedrooms are up on the upper level, a comfortable guest suite on the finished lower level would make wonderful in-law accommodations.
  • The home office is separated from the huge rec room with wet bar in case you want to work from home.
  • A nearby wine cellar is a special touch in this beautifully designed home.

What's Included

  • Cover Page

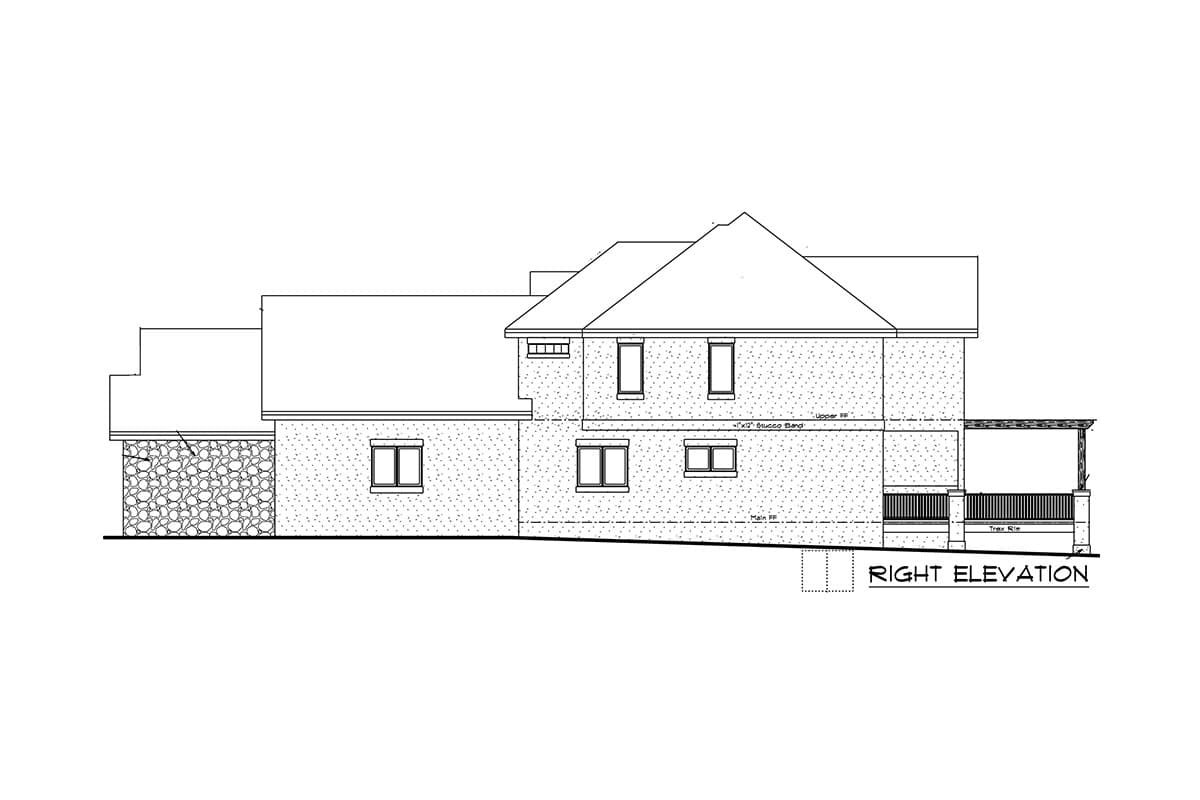

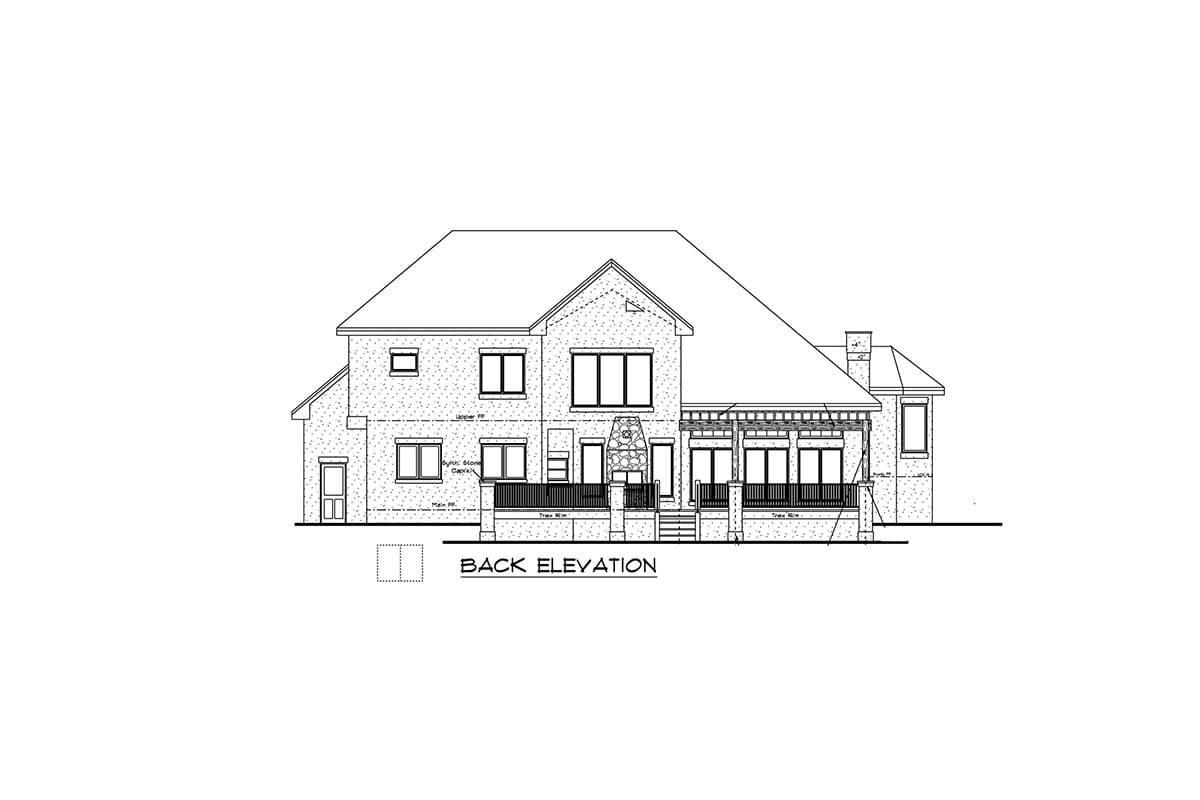

  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

5,711 sq. ft.

Lower Level

1,636 sq. ft.

1st Floor

2,123 sq. ft.

2nd Floor

1,952 sq. ft.

Deck

631 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

70' 0"

Depth

86' 6"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

1162 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

European

Rustic

Special Features

Breakfast Nook

Den

Formal Dining

Game/Rec Room

Home Office

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - Upstairs

Mudroom

Two Kitchen Islands

Walk-in Pantry

Wet Bar

Wine Room
