Sunken Great Room and Raised Master Suite

Plan 81641AB

  • 3,870

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Sturdy stone bases, each with four columns, support the front veranda on this Northwest home plan.
  • Unique features await you inside, from the piano room off the foyer to a wine cellar area with iron gates.
  • The sunken great room has a gorgeous coffered ceiling and a two way fireplace that warms the formal dining room too.
  • Coming in from the garage, the home gives you a spacious and practical mud room, handy half bath and a large walk-in pantry in the kitchen.
  • Don't forget to spend time out on the rear sun decks that stretch across the back of the house.
  • The second floor is just as amazing as the main level and boasts a kids rec area between bedrooms 2 and 3, a second floor laundry room and a bright home office that faces front.
  • Homeowners will be thoroughly pampered with a raised master suite with its separate sitting area and giant bathroom with a two way fireplace.

Plans include the following:

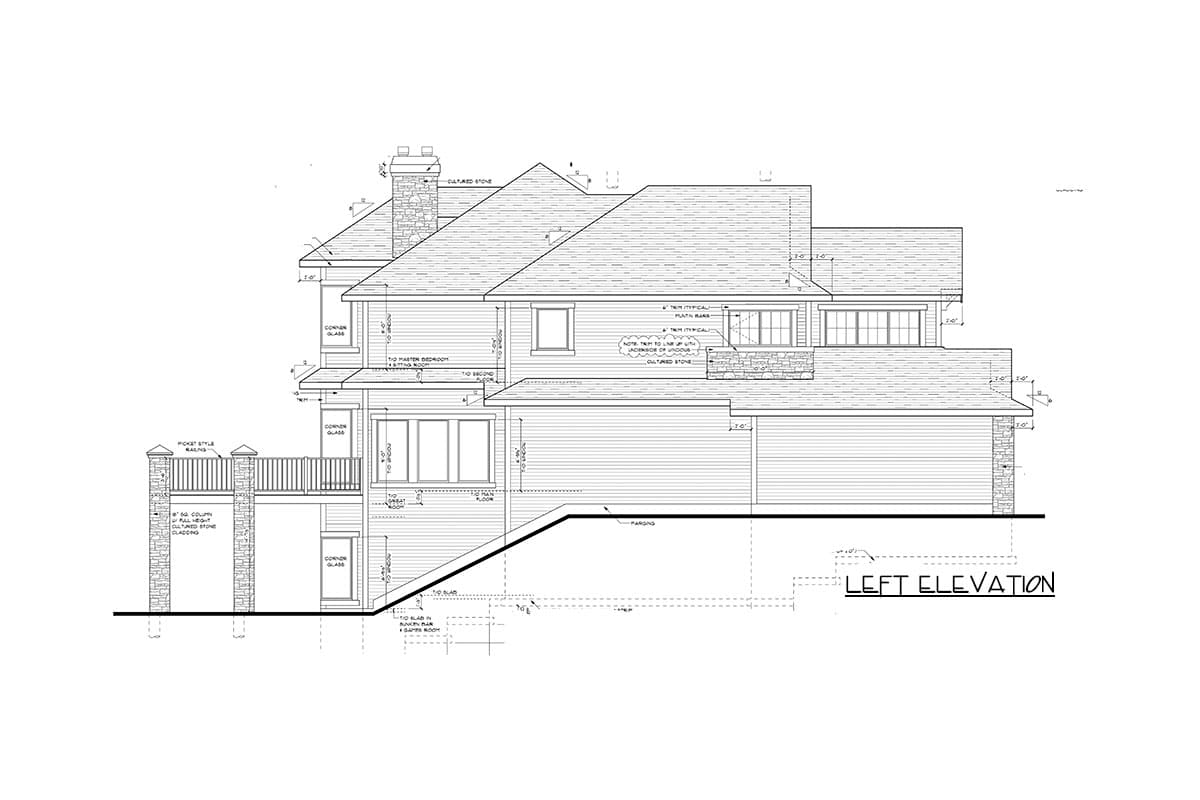

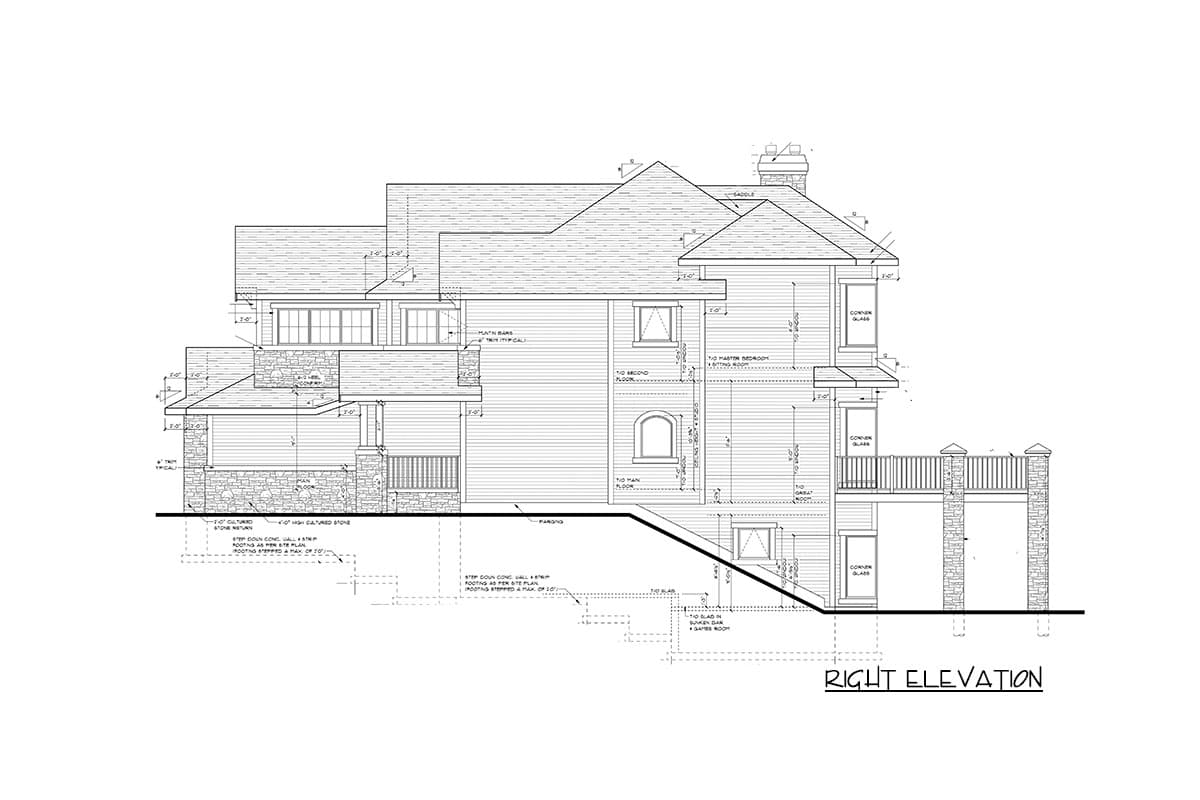

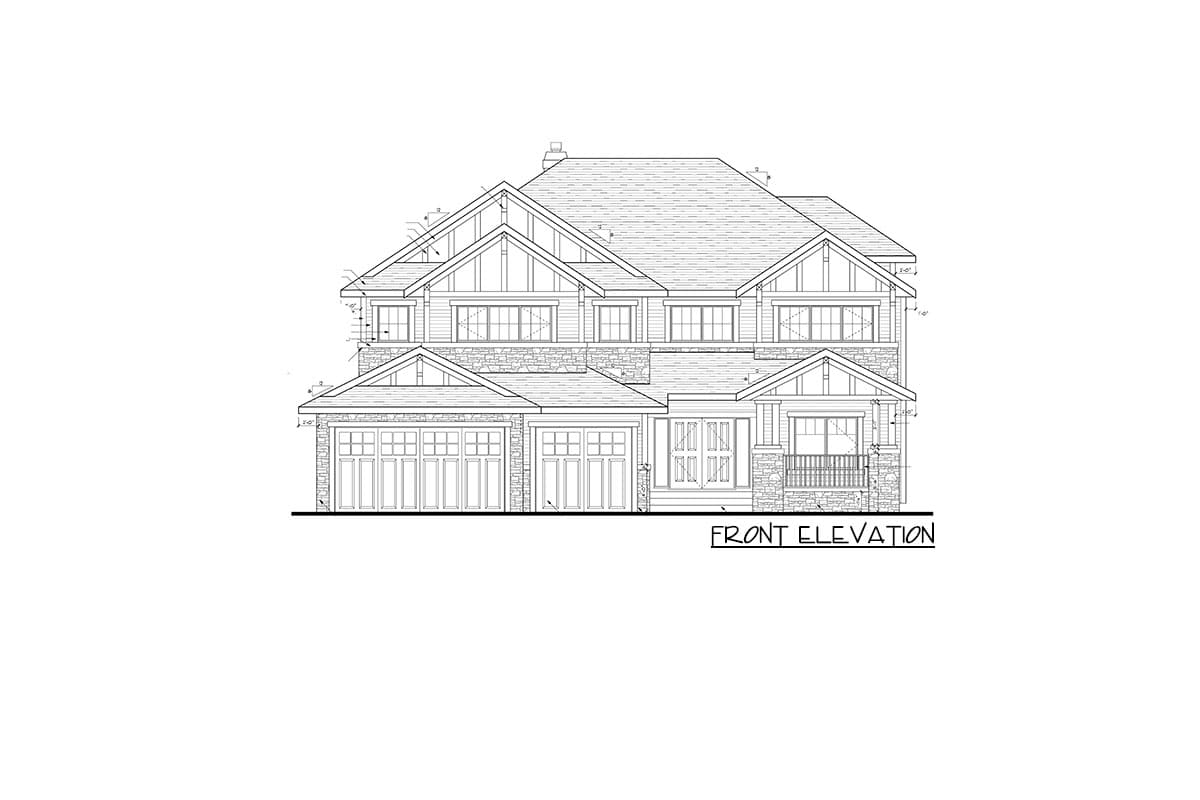

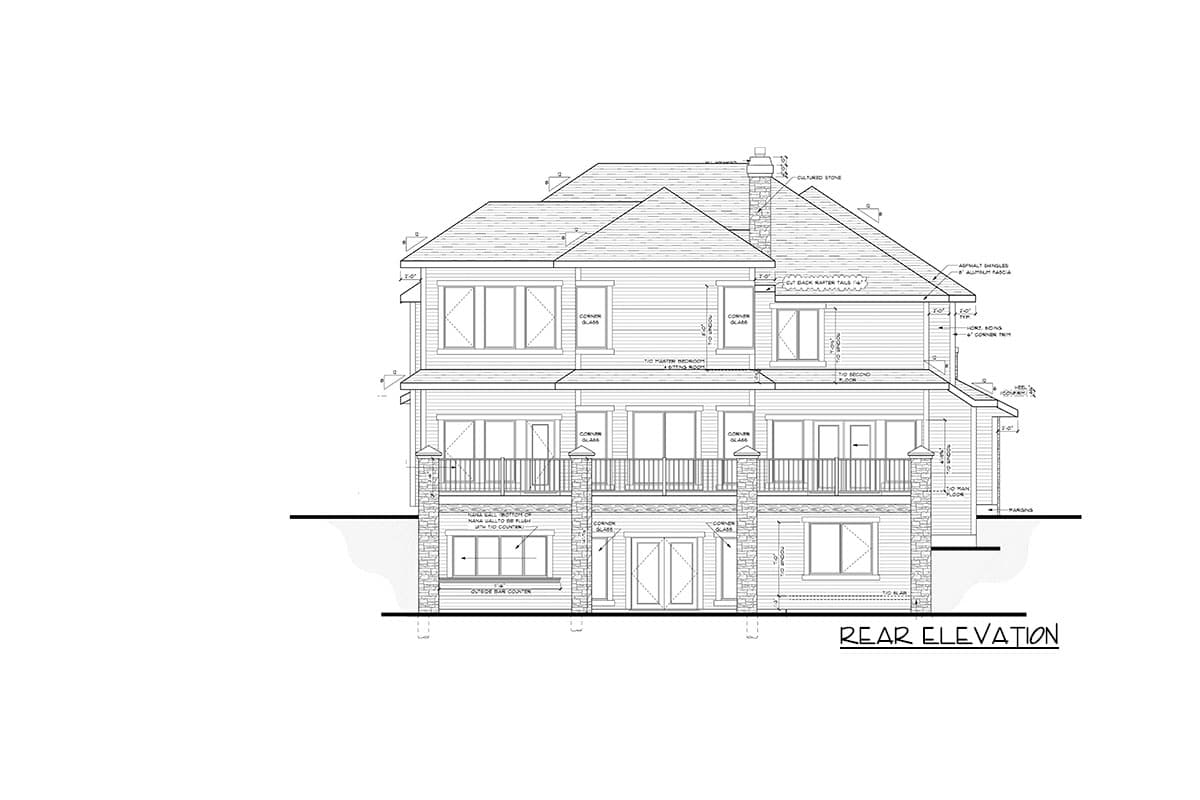

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

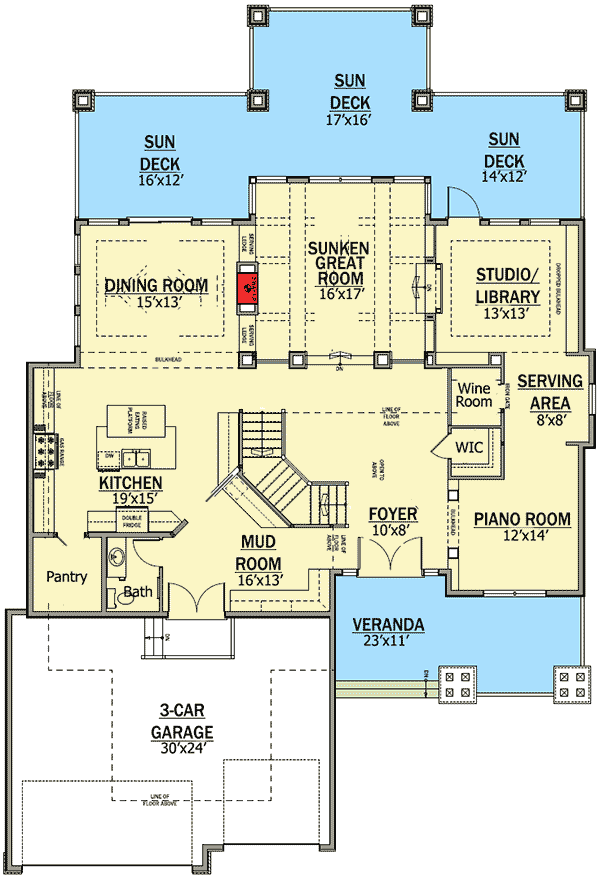

Sunken Great Room and Raised Master Suite - 81641AB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

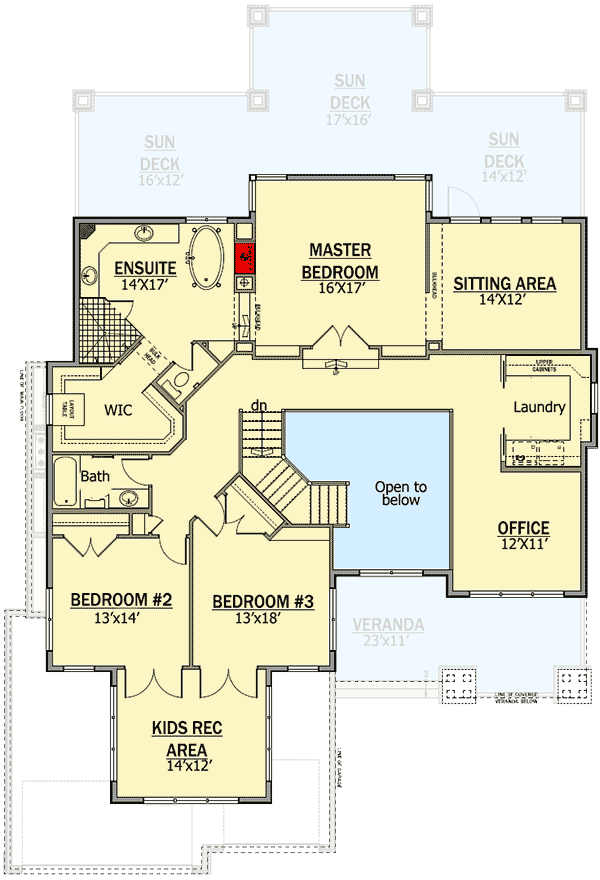

Sunken Great Room and Raised Master Suite - 81641AB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,870 sq. ft.
  • 1st Floor: 1,920 sq. ft.
  • 2nd Floor: 1,950 sq. ft.
  • Deck: 645 sq. ft.
  • Basement Unfinished: 1,343 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 82' 0"
  • Max ridge height: 33' 6"

Garage

  • Type: Attached
  • Area: 718 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Sunken Great Room and Raised Master Suite

  • 3,870

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,100
  • CAD + PDF - Single Build $2,800
  • CAD Unlimited + PDF $3,300
  • View all purchase option online

About This Plan

  • Sturdy stone bases, each with four columns, support the front veranda on this Northwest home plan.
  • Unique features await you inside, from the piano room off the foyer to a wine cellar area with iron gates.
  • The sunken great room has a gorgeous coffered ceiling and a two way fireplace that warms the formal dining room too.
  • Coming in from the garage, the home gives you a spacious and practical mud room, handy half bath and a large walk-in pantry in the kitchen.
  • Don't forget to spend time out on the rear sun decks that stretch across the back of the house.
  • The second floor is just as amazing as the main level and boasts a kids rec area between bedrooms 2 and 3, a second floor laundry room and a bright home office that faces front.
  • Homeowners will be thoroughly pampered with a raised master suite with its separate sitting area and giant bathroom with a two way fireplace.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,870 sq. ft.
  • 1st Floor: 1,920 sq. ft.
  • 2nd Floor: 1,950 sq. ft.
  • Deck: 645 sq. ft.
  • Basement Unfinished: 1,343 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 82' 0"
  • Max ridge height: 33' 6"

Garage

  • Type: Attached
  • Area: 718 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
Plan 81641AB
View this and more for this plan by visiting www.architechtecturaldesigns.com/81641AB
|
