Plan 9840SW

Sunny 2-Bed Mountain Retreat with Master Sundeck

Heated S.F.
1,417
Beds
2
Baths
2
Stories
2

Floor Plan

Plan 9840SW

Main Level
Main Level
2nd Floor
2nd Floor

Plan 9840SW

M-F 9am-5pm EST |

1-203-761-8500

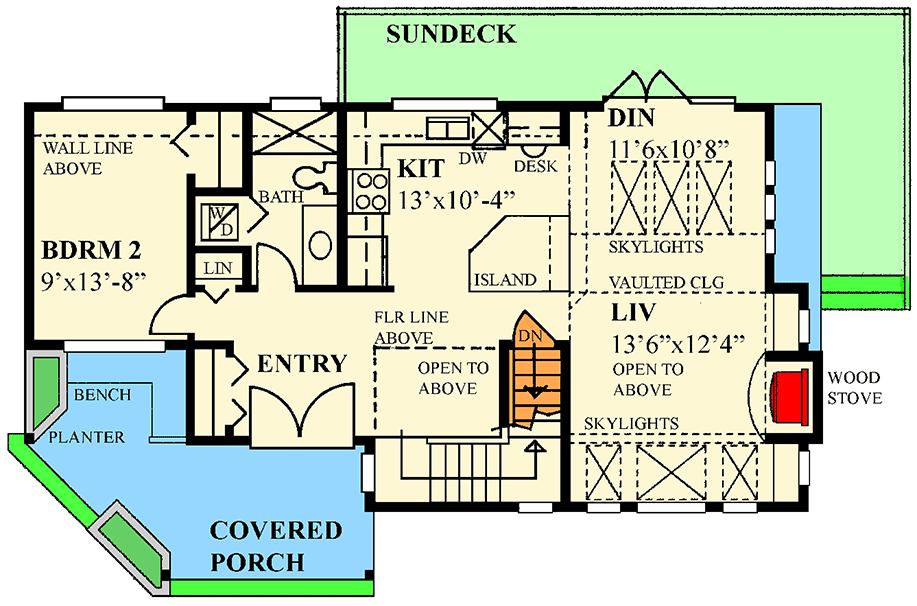

Main Level

Plan 9840SW: Sunny 2-Bed Mountain Retreat with Master Sundeck - Floor Plan - Main Level - Cabin, Cottage, Mountain, Rustic, Vacation

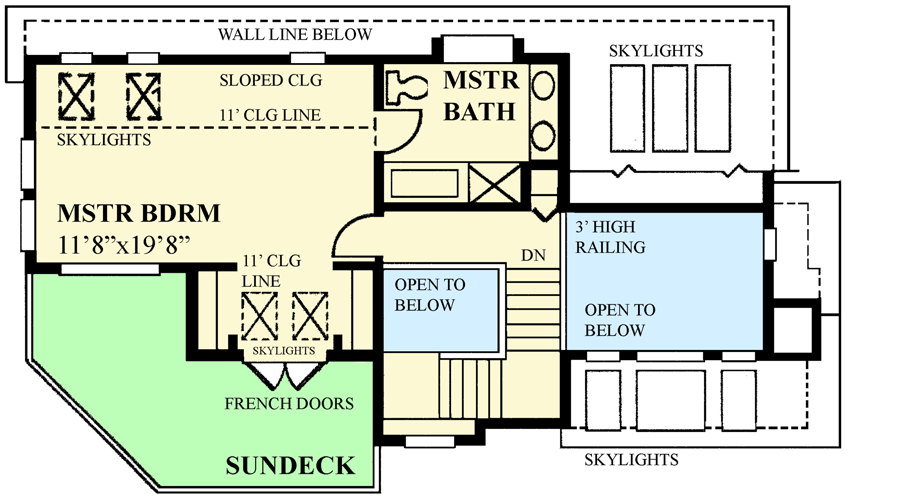

2nd Floor

Plan 9840SW: Sunny 2-Bed Mountain Retreat with Master Sundeck - Floor Plan - 2nd Floor - Cabin, Cottage, Mountain, Rustic, Vacation

Plan Details

  • This rear-view-oriented compact 2-bedroom cottage house plan has great outdoor spaces.
  • Abundant skylights and a window wall ensure maximum daylight for the vaulted living and dining rooms.
  • Decks situated on both levels capture all available views and encourage outdoor activities.
  • The upper floor is dedicated to the master bedroom which has its own private sundeck.
  • Related Plan: Get a smaller version with house plan 9840SW (1,235 sq. ft.).

What's Included

  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required
  • Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,417 sq. ft.

1st Floor

956 sq. ft.

2nd Floor

461 sq. ft.

Basement Unfinished

952 sq. ft.

Porch, Front

171 sq. ft.

Deck

286 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

28' 0"

Max Ridge Height

27' 0"

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Room

Ceiling Type
