Plan 51287MM

Three-Bed Craftsman Plan with First-Floor Master & Flex Space

Heated S.F.
2,784
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 51287MM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 51287MM

M-F 9am-5pm EST |

1-203-761-8500

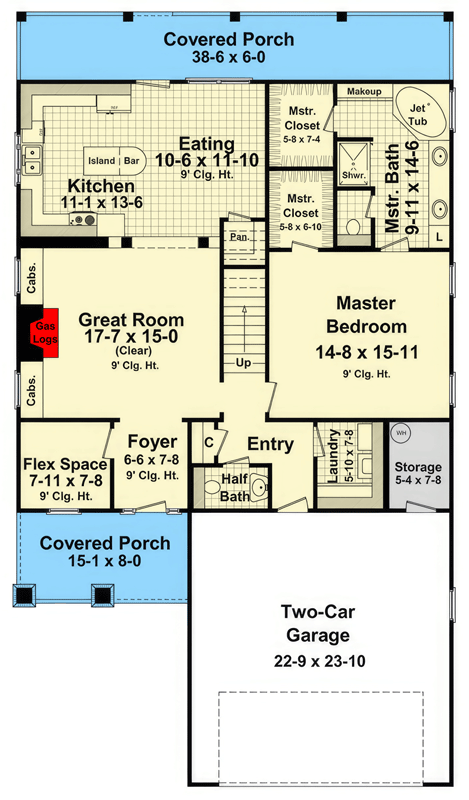

Main Level

Plan 51287MM: Three-Bed Craftsman Plan with First-Floor Master & Flex Space - Floor Plan - Main Level - Cottage, Craftsman

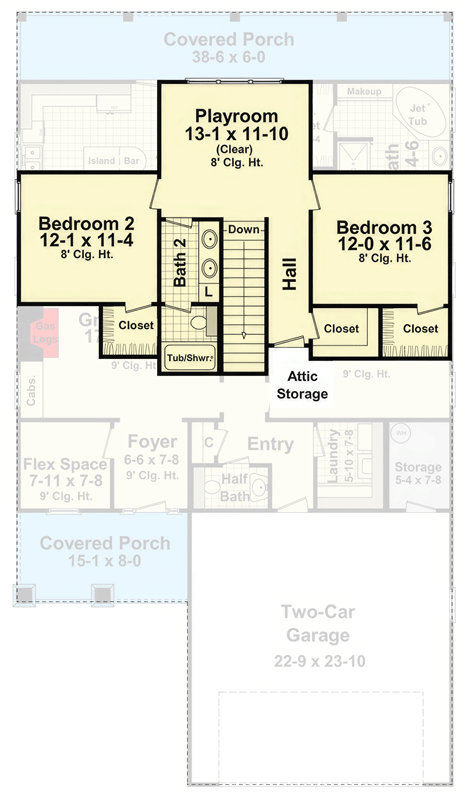

2nd Floor

Plan 51287MM: Three-Bed Craftsman Plan with First-Floor Master & Flex Space - Floor Plan - 2nd Floor - Cottage, Craftsman

Plan Details

  • This inviting 2,784 sq. ft. Craftsman Cottage house plan offers 3 bedrooms, 2.5 bathrooms, and a spacious 611 sq. ft. two-car front-entry garage.
  • Step inside from the charming 121 sq. ft. covered front porch into a welcoming foyer, flanked by a versatile flex space on one side, perfect for a home office or den, and a convenient half bath and main-level laundry room on the other.
  • The heart of the home unfolds into an expansive great room, featuring a cozy fireplace, which flows seamlessly into the gourmet kitchen. The kitchen boasts a large island with a breakfast bar, ample counter space, and an adjacent eating area, creating an ideal setting for both casual family meals and elegant entertaining. Sliding doors from the eating area open to the 231 sq. ft. covered rear porch, perfect for al fresco dining.
  • The luxurious first-floor master suite provides a private retreat, complete with a spa-like master bath featuring a jet tub, separate shower, and dual vanities. Two generous walk-in closets, one with the laundry room just around the corner, enhance convenience.
  • Upstairs, two additional bedrooms share a full bathroom and are complemented by a versatile playroom or loft, ideal for children or a secondary living area.
  • Enjoy tranquil moments on the generous covered front porch, or extend your living outdoors to the expansive covered rear porch, perfect for morning coffee.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

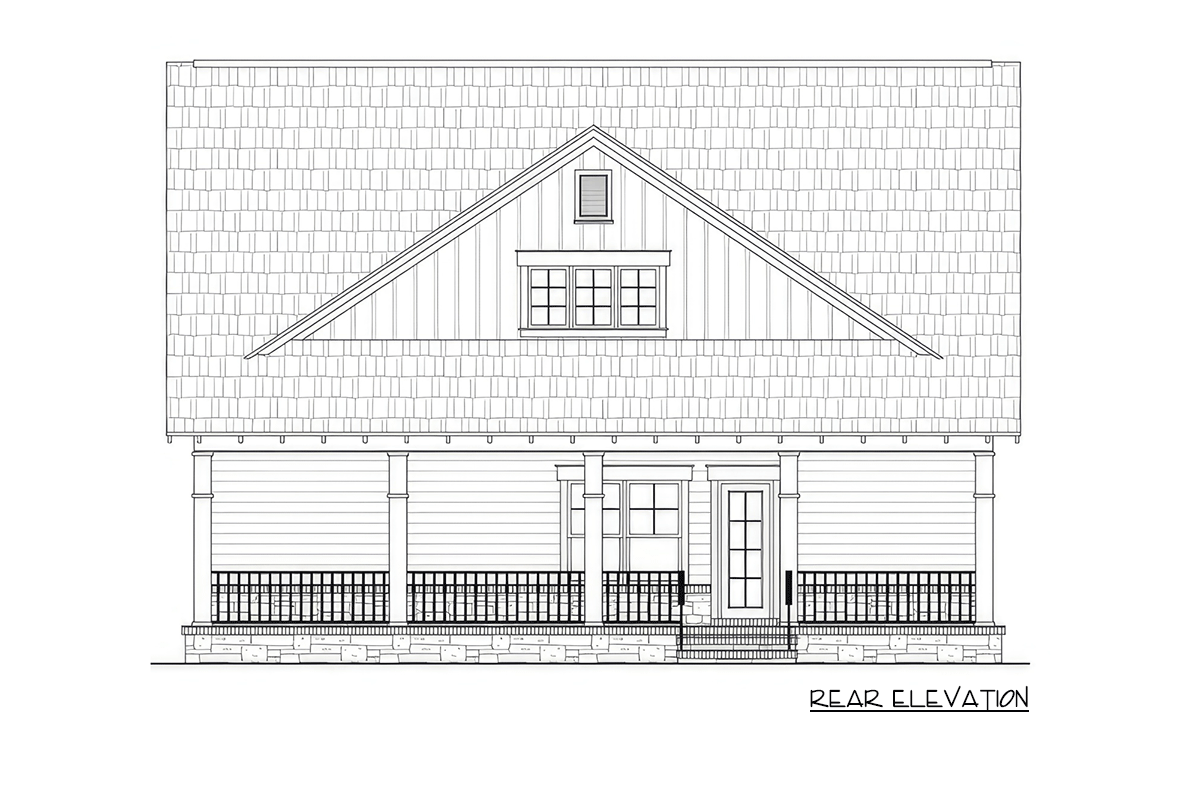

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,784 sq. ft.

1st Floor

2,104 sq. ft.

2nd Floor

680 sq. ft.

Porch, Front

121 sq. ft.

Porch, Rear

231 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 6"

Depth

68' 4"

Max Ridge Height

26' 10"

Garage

Type

Attached

Area

611 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,784 sq. ft.

1st Floor

2,104 sq. ft.

2nd Floor

680 sq. ft.

Porch, Front

121 sq. ft.

Porch, Rear

231 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 6"

Depth

68' 4"

Max Ridge Height

26' 10"

Garage

Type

Attached

Area

611 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor
