Plan 849134PGE

Three Bedroom Craftsman Cottage House Plan with Two Car Garage

Heated S.F.
2,060
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 849134PGE

Main Level
Main Level
2nd Level
2nd Level
Optionally Finished Basement
Optionally Finished Basement

Plan 849134PGE

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 849134PGE: Three Bedroom Craftsman Cottage House Plan with Two Car Garage - Floor Plan - Main Level - Cottage, Craftsman, Traditional

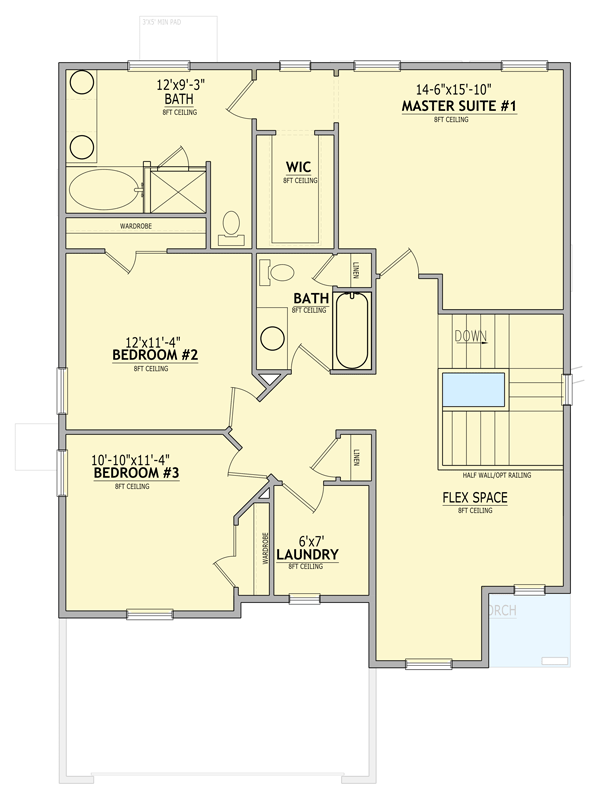

2nd Level

Plan 849134PGE: Three Bedroom Craftsman Cottage House Plan with Two Car Garage - Floor Plan - 2nd Level - Cottage, Craftsman, Traditional

Optionally Finished Basement

Plan 849134PGE: Three Bedroom Craftsman Cottage House Plan with Two Car Garage - Floor Plan - Optionally Finished Basement - Cottage, Craftsman, Traditional

Plan Details

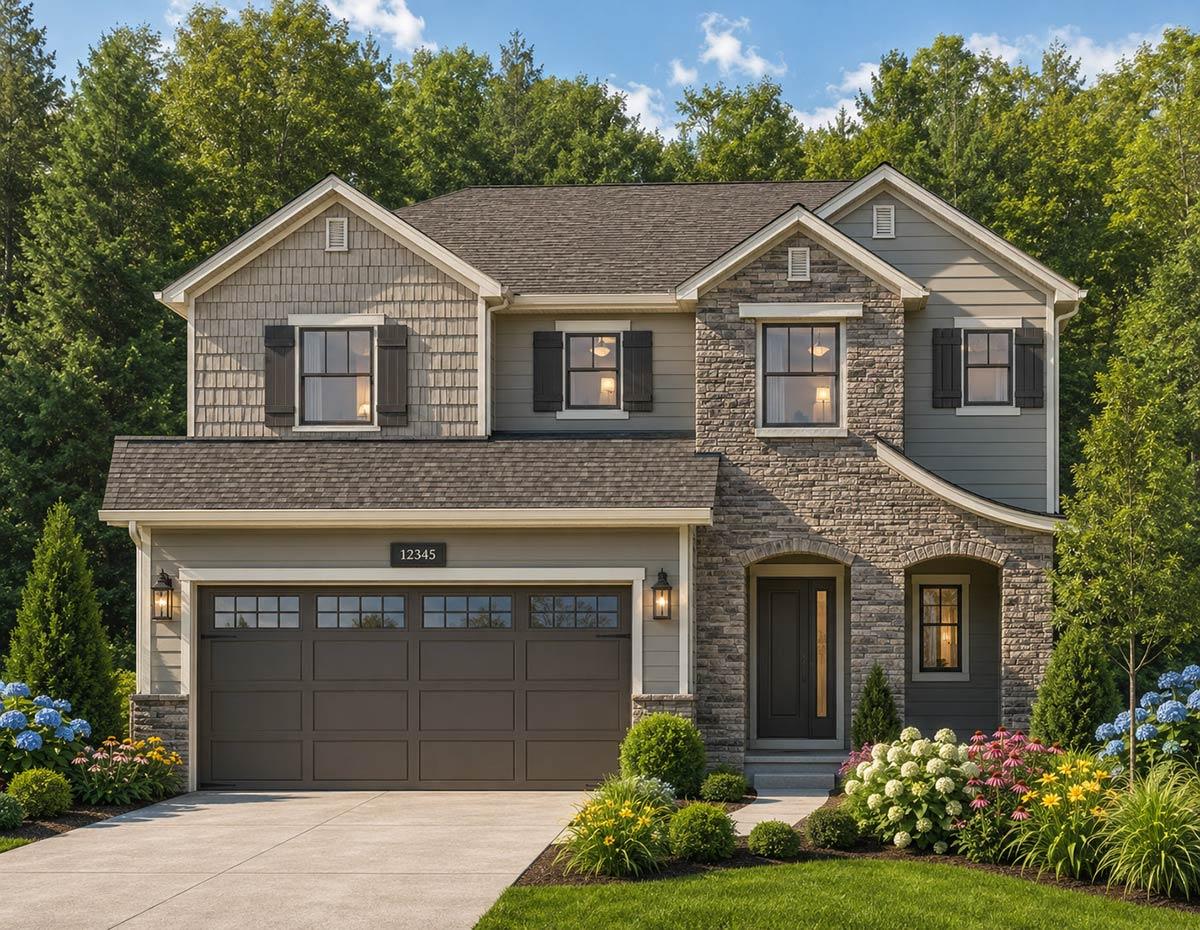

  • This 2,060 square foot craftsman cottage features a sophisticated blend of stone and siding with a two-car garage and three bedrooms and 2.5 bathrooms.
  • The welcoming front entry opens into a thoughtful main level layout that prioritizes fluid movement between the common living areas.
  • The heart of the home is anchored by an open-concept living space that flows into a bright breakfast nook and a kitchen equipped with a convenient walk-in pantry.
  • Upstairs, the primary bedroom suite provides a tranquil retreat, while two additional bedrooms are nearby for family convenience.
  • A versatile flex room on the first floor offers the perfect setting for a home office, study, or quiet reading nook.
  • The design includes an unfinished basement level, providing significant potential for future expansion or additional storage needs.

What's Included

  • Cover Sheet

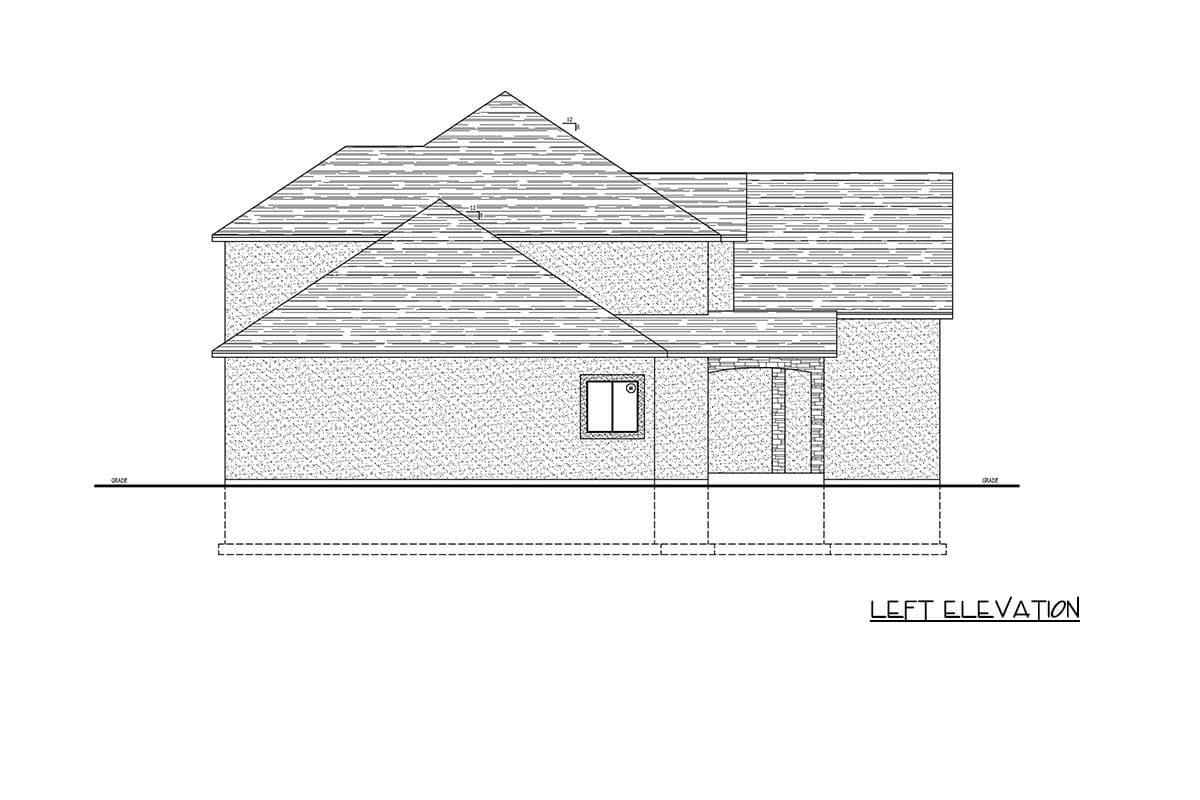

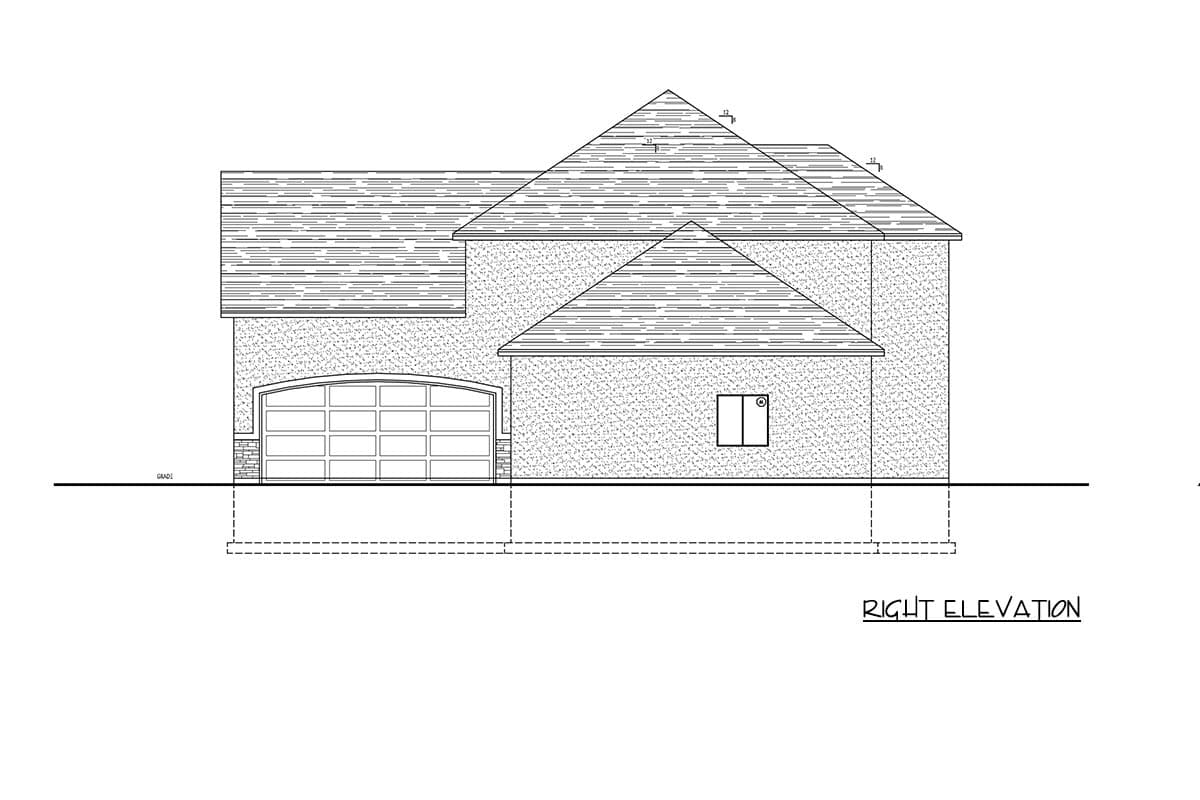

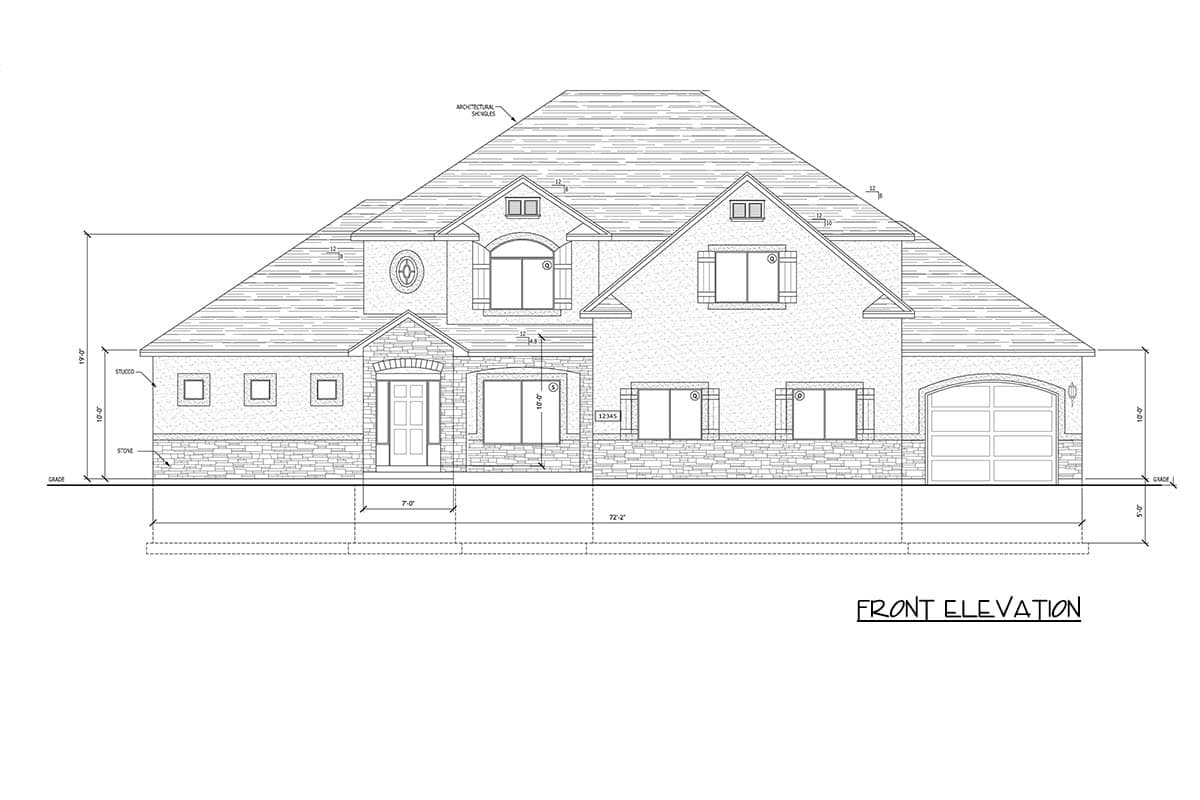

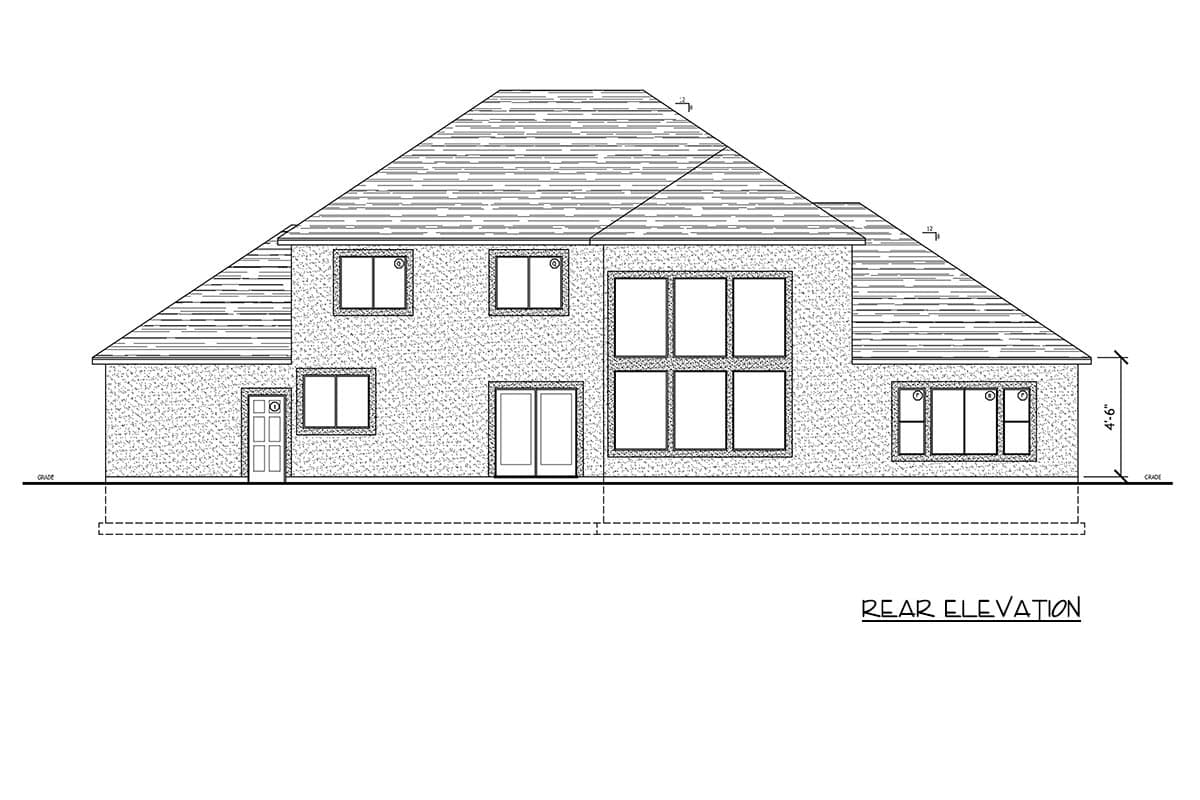

  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,060 sq. ft.

1st Floor

871 sq. ft.

2nd Floor

1,189 sq. ft.

Basement Unfinished

871 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

33' 0"

Depth

46' 6"

Max Ridge Height

25' 10"

Garage

Type

Standard

Area

464 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Loft

Master Suite - Upstairs

Walk-in Pantry
