Plan 21640DR
Three Bedroom Ranch Escape
Heated S.F.
1,127
Beds
3
Baths
1
Stories
1
What's Included
Plan Details

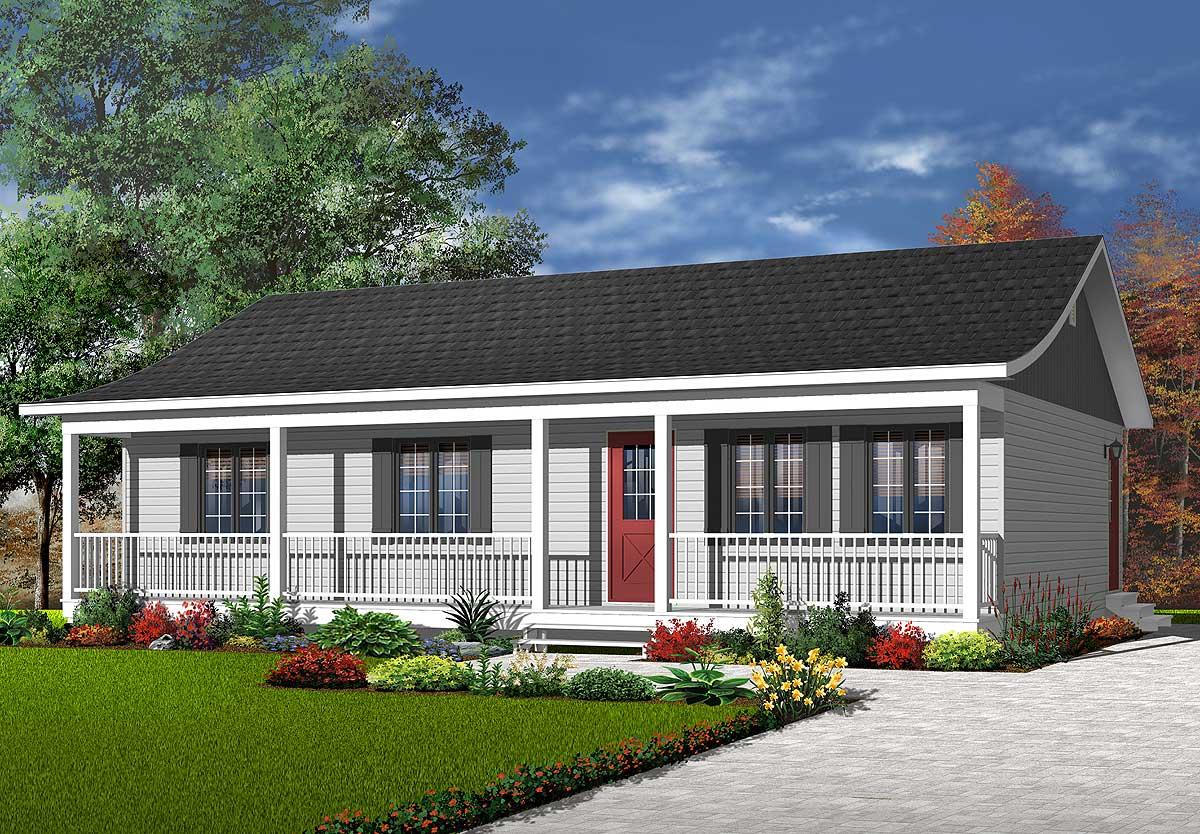

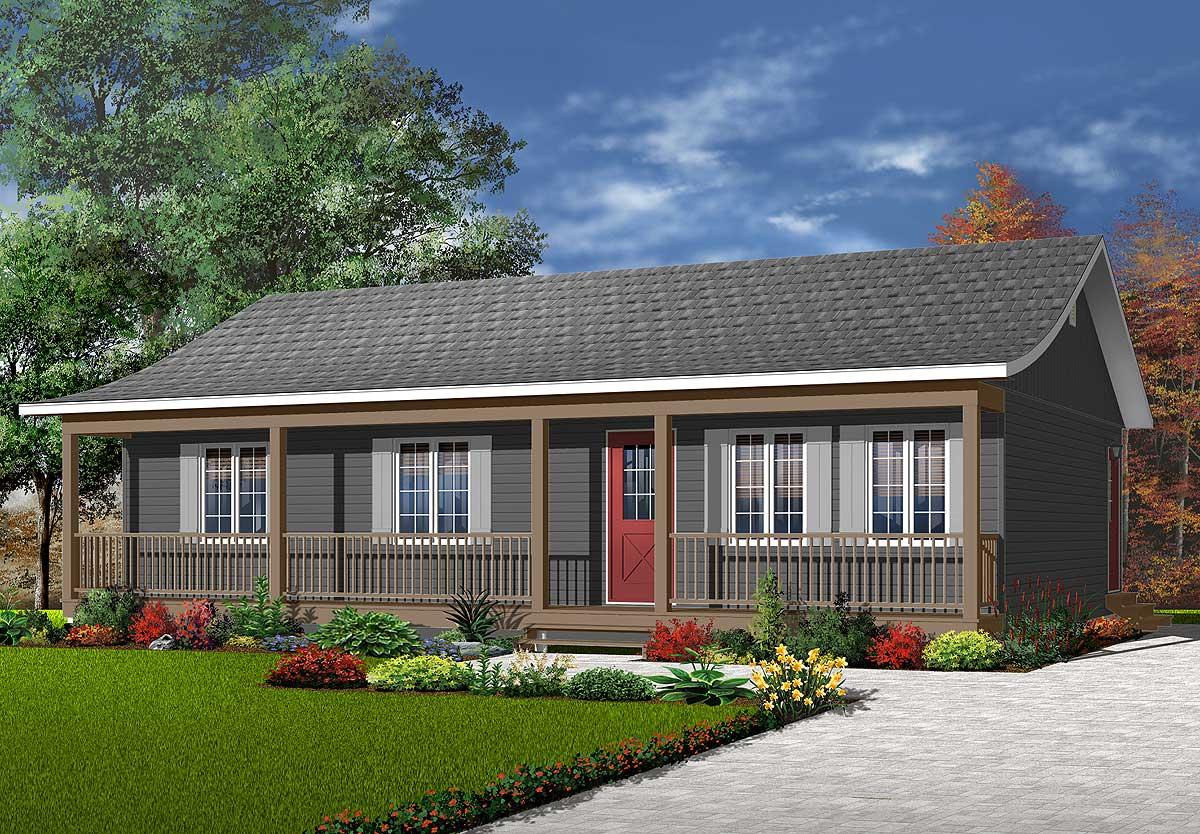

  • This three bedroom ranch home plan features a 6'-deep covered porch running the full length of the home.
  • Two living areas are separated by a partial wall giving some privacy to teh front family room while not cutting it off from the kitchen.
  • Three bedrooms share the central bath with laundry facilities.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Three Bedroom Ranch Escape

  • 1,127

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

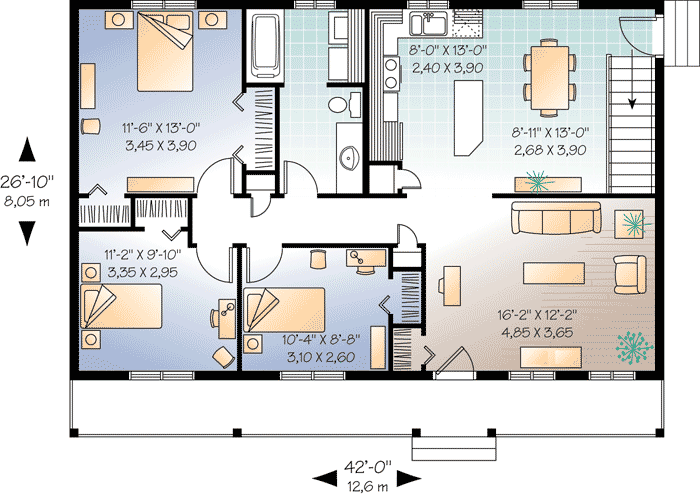

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,127 sq. ft.
  • 1st Floor: 1,127 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 26' 1"
  • Max ridge height: 17' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Three Bedroom Ranch Escape

  • 1,127

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

Three Bedroom Ranch Escape

  • 1,127

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

Plan Details

Square Footage Breakdown

  • Total: 1,127 sq. ft.
  • 1st Floor: 1,127 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 26' 1"
  • Max ridge height: 17' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
